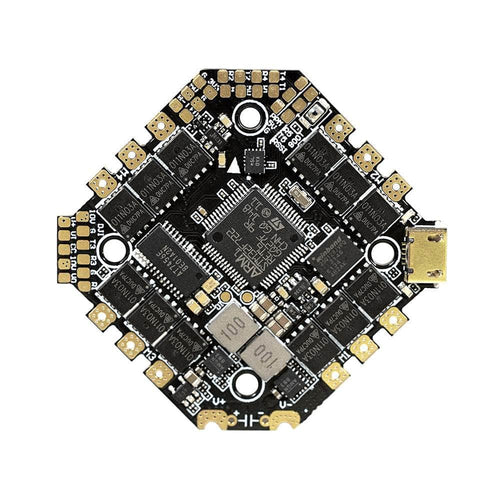

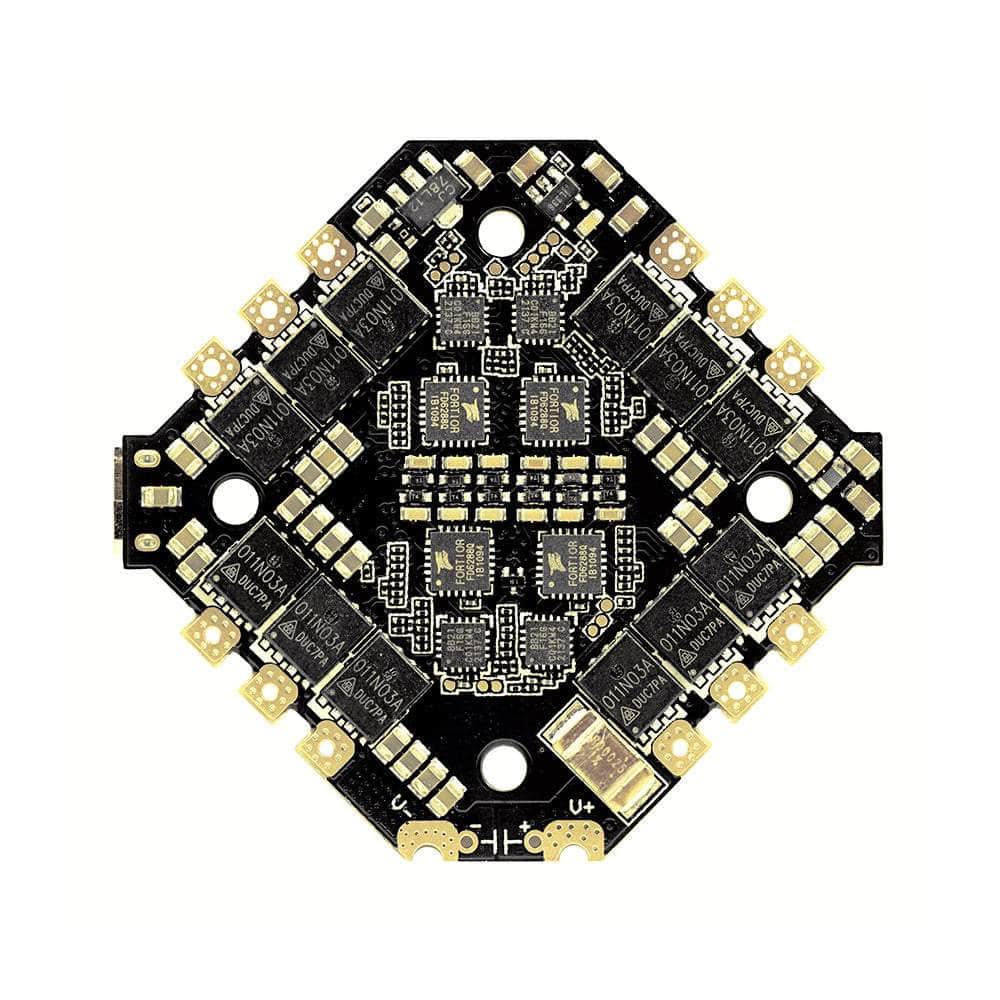

Aikon 3-6S F7 AIO Whoop/Toothpick Flight Controller w/ 60A 8Bit ESC

Original price $95.74 - Original price $95.74
Original price
$95.74
$95.74 - $95.74
Current price $95.74
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

This Aikon 3-6S F7 AIO flight controller w/ 60A 8bit ESC is a new generation flight controller and ESC combination specifically designed for heavier cinewhoops, high performance toothpick style builds and other high-current applications. Aikon has packed all the greatest features into one seamless flight experience.

Check out our other AIO flight controllers and the rest of our Aikon gear!

Features

  • Software controlled VTX power switch (assigned to USER1 mode by default)
  • On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
  • Large 5x6mm high current MOSFETs

Specifications

  • Input Voltage: 3-6S
  • MCU: STM32F722
  • IMU: BMI270
  • Blackbox: SPI 16MB
  • BEC: 10V 1.5A for DJI
  • LED: Yes
  • Buzzer: Yes
  • Max Continuous Current: 60A
  • Max Burst Current: 70A
  • Flight Controller Firmware: Betaflight AIKONF7 Target
  • ESC Firmware: BLHeli_S (Supports BlueJay)
  • Mounting Pattern: 25.5x25.5mm M2
  • Weight: 14g

Includes

  • 1x Aikon 3-6S F7 AIO Flight Controlller w/ 60A 8bit ESC
>
