Description

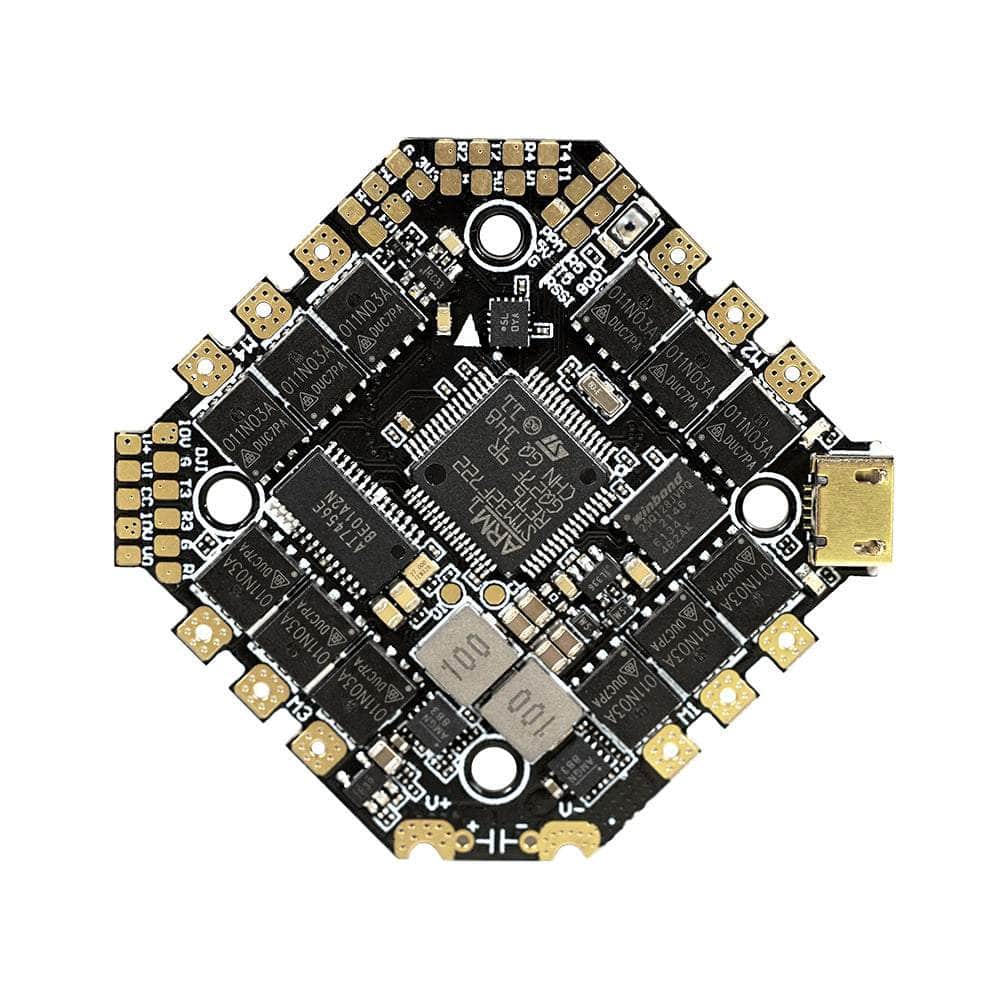

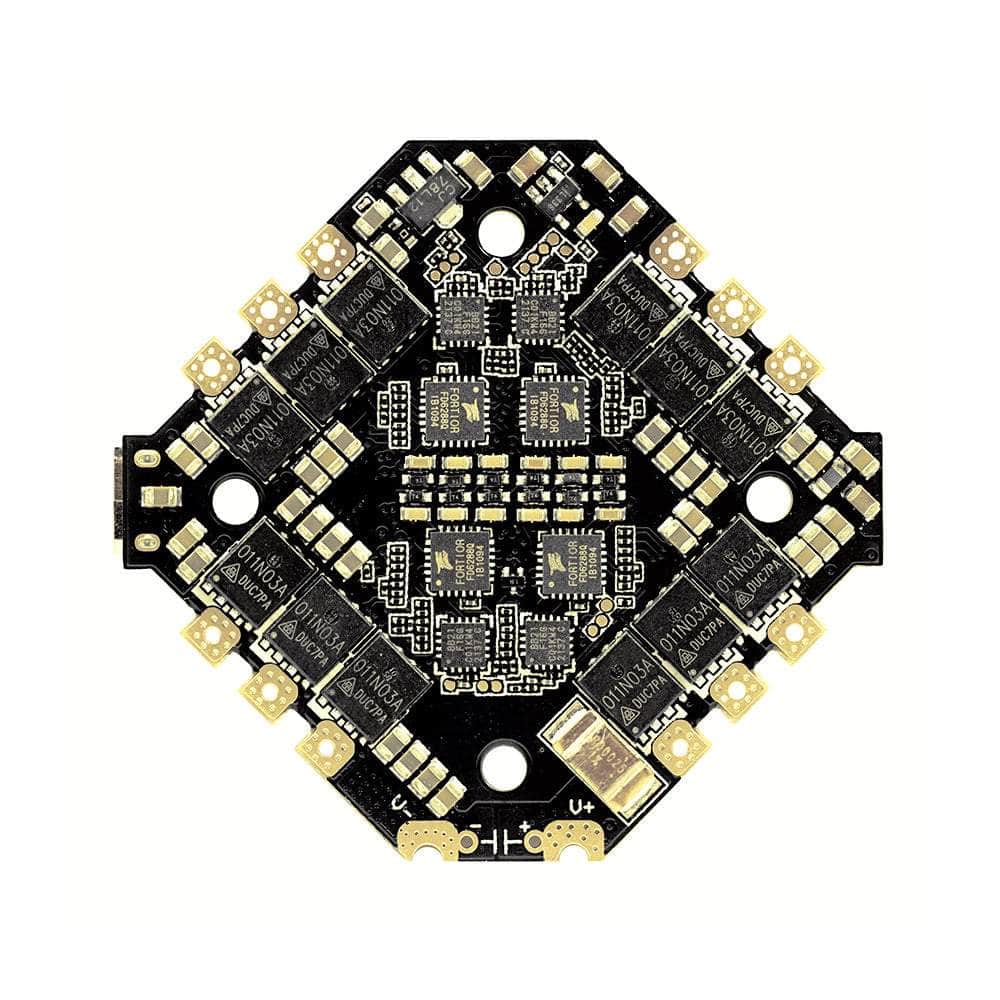

This Aikon 3-6S F7 AIO flight controller w/ 60A 8bit ESC is a new generation flight controller and ESC combination specifically designed for heavier cinewhoops, high performance toothpick style builds and other high-current applications. Aikon has packed all the greatest features into one seamless flight experience.

Check out our other AIO flight controllers and the rest of our Aikon gear!

Features

• Software controlled VTX power switch (assigned to USER1 mode by default)
• On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
• Large 5x6mm high current MOSFETs

Specifications

• Input Voltage: 3-6S
• MCU: STM32F722
• IMU: BMI270
• Blackbox: SPI 16MB
• BEC: 10V 1.5A for DJI
• LED: Yes
• Buzzer: Yes
• Max Continuous Current: 60A
• Max Burst Current: 70A
• Flight Controller Firmware: Betaflight AIKONF7 Target
• ESC Firmware: BLHeli_S (Supports BlueJay)
• Mounting Pattern: 25.5x25.5mm M2
• Weight: 14g

Includes

• 1x Aikon 3-6S F7 AIO Flight Controlller w/ 60A 8bit ESC
