AMASS MR30 Connector Male/Female Set

AMASS MR30 Connector Male/Female Set

$2.49
$2.49
In stock
In stock
Add To Wishlist
View full details

Details

Description

These handy little connectors are basically 3 pin XT30s, They can be used on ESCs, motors, or anything with 3 wires to allow for quick connections and part swaps.

Check out all our pigtails, adapters and connectors!

Features

  • Suitable for connecting ESCs and motors
  • With protective sleeve
  • Assistive weld foot, more stable

    Specifications

    • Body Material and Surface Plating: Brass and gold plated
    • Insulation Material: PA66
    • Original Internal Resistance: 0.8MΩ
    • 500 Times Internal Resistance: 0.85MΩ
    • Max. Continuous Current: 30A (within 30 minitues)
    • Max. Instantaneous Current: 40A (within 1 minitues)
    • Recommended Cable Spec: 18AWG 2.8mm diameter
    • Recommended Soldering Spec: 400° C/3S
    • Weight: 1.2g/pcs
    • Insulation Degree: UL94V-0
    • Machine Life: 3000 Times

      Includes

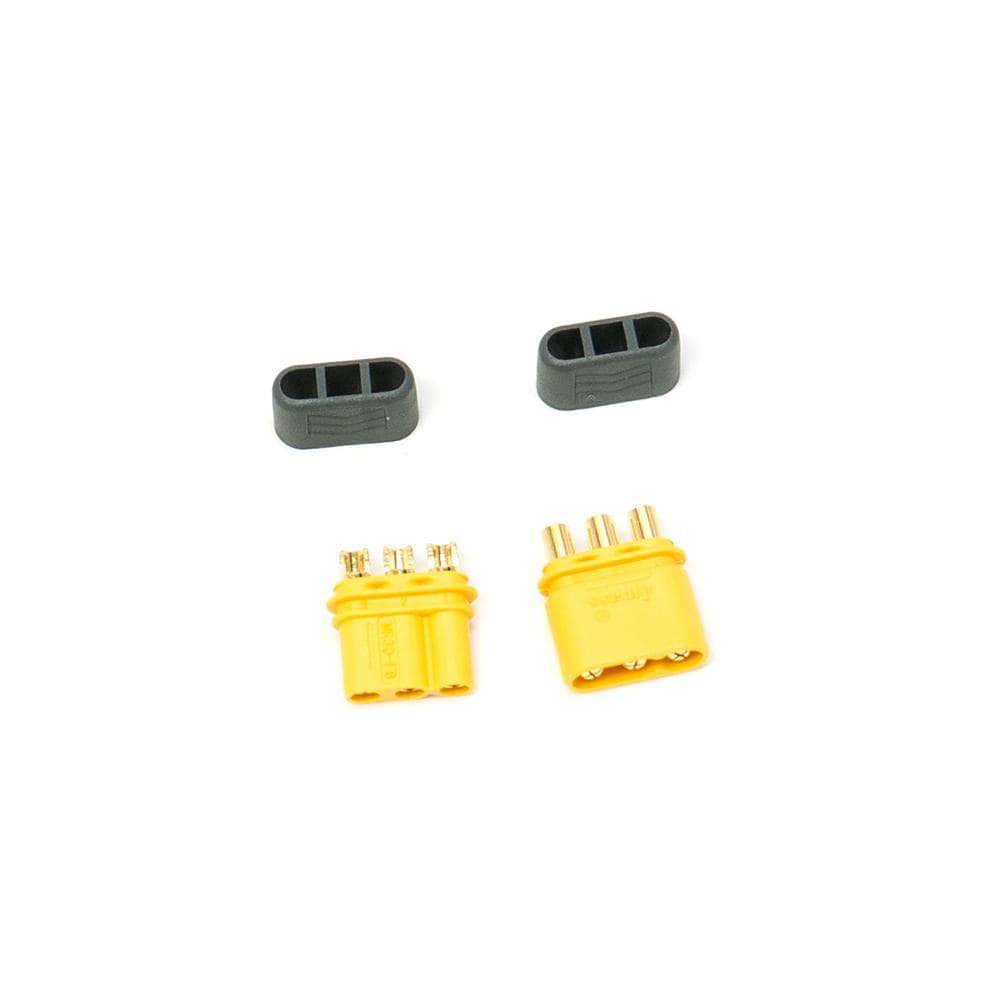

      • 1x AMASS MR30 Connector Male w/ Protective Shield
      • 1x AMASS MR30 Connector Female  w/ Protective Shield

      More Info

      • SKU: 691023500679
      • Barcode: 691023500679
