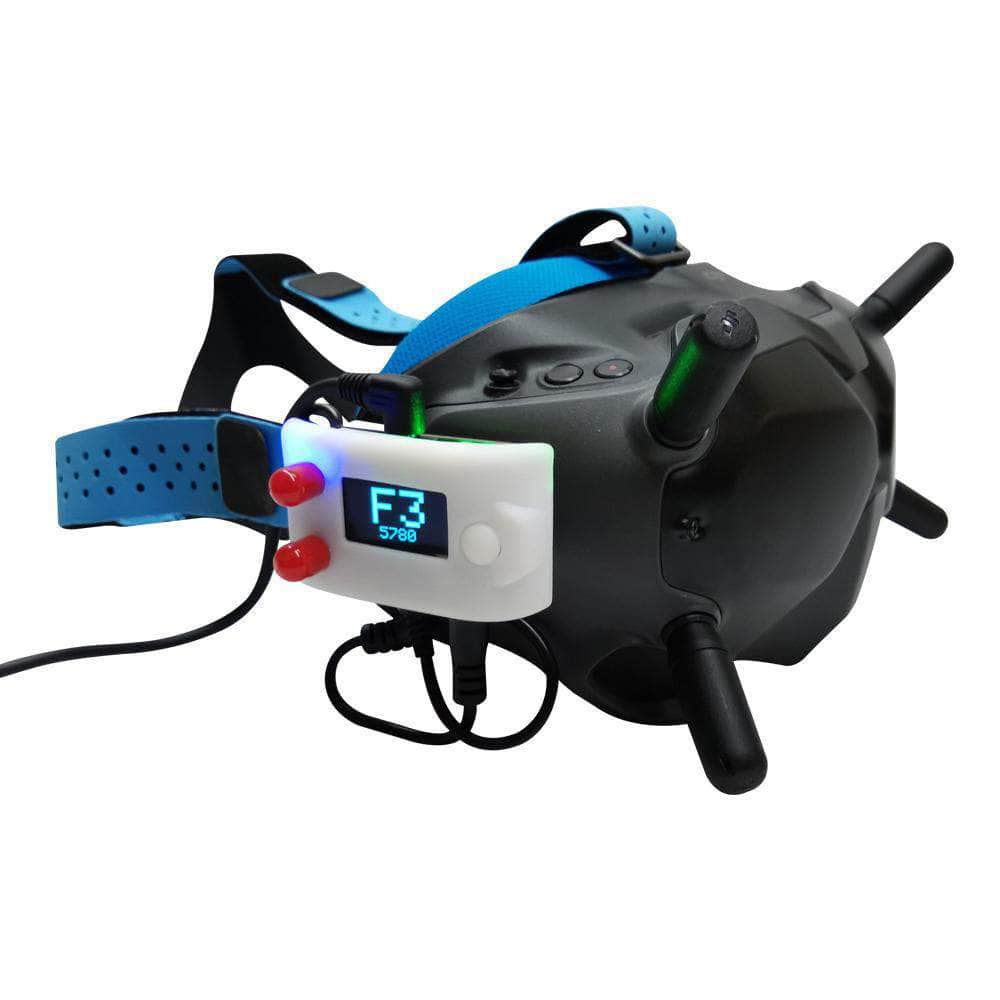

Analog FPV FatShark Module Adapter V2 for DJI Digital FPV Goggles

$11.99
Coming Soon
In Stock
Pre Order
Add to Wishlist
Free Delivery on U.S.A. Orders $50 or more
Revised version now includes a power switch and additional solder pads.

This analog fat shark module adapter fits on the side of your DJI Digital FPV Goggles so you can use a fat shark or various third-party fat shark style analog video receivers modules! It transfers video and audio signals to the high-quality screen of DJI FPV goggles for viewing or recording. This compact and lightweight adapter is easy to install and won't void your warranty!

Check out all our DJI compatible frames, electronics & accessories and our FPV receiver modules & antennas collection!
Specifications
  • Input Voltage: 2S-4S (DC5.5x2.1mm)
  • Internal Voltage: 5V 3A (with pad output)
  • Output Voltage: 2S-4S (DC 5.5x2.1mm)
  • Signal Input: Standard Fat Shark Receiver Port
  • Including third-party receivers: Realacc, Furious, etc.
  • Signal output: standard audio / video
  • Power Switch
  • Dimension: 48x28x12mm
  • Weight: 10g (without extension cable)

Includes

  • 1x Analog FPV Adapter for DJI Goggles
  • 1x Adapter mounting board and screws
  • 1x Audio and video cable
  • 1x Power cable
