Description

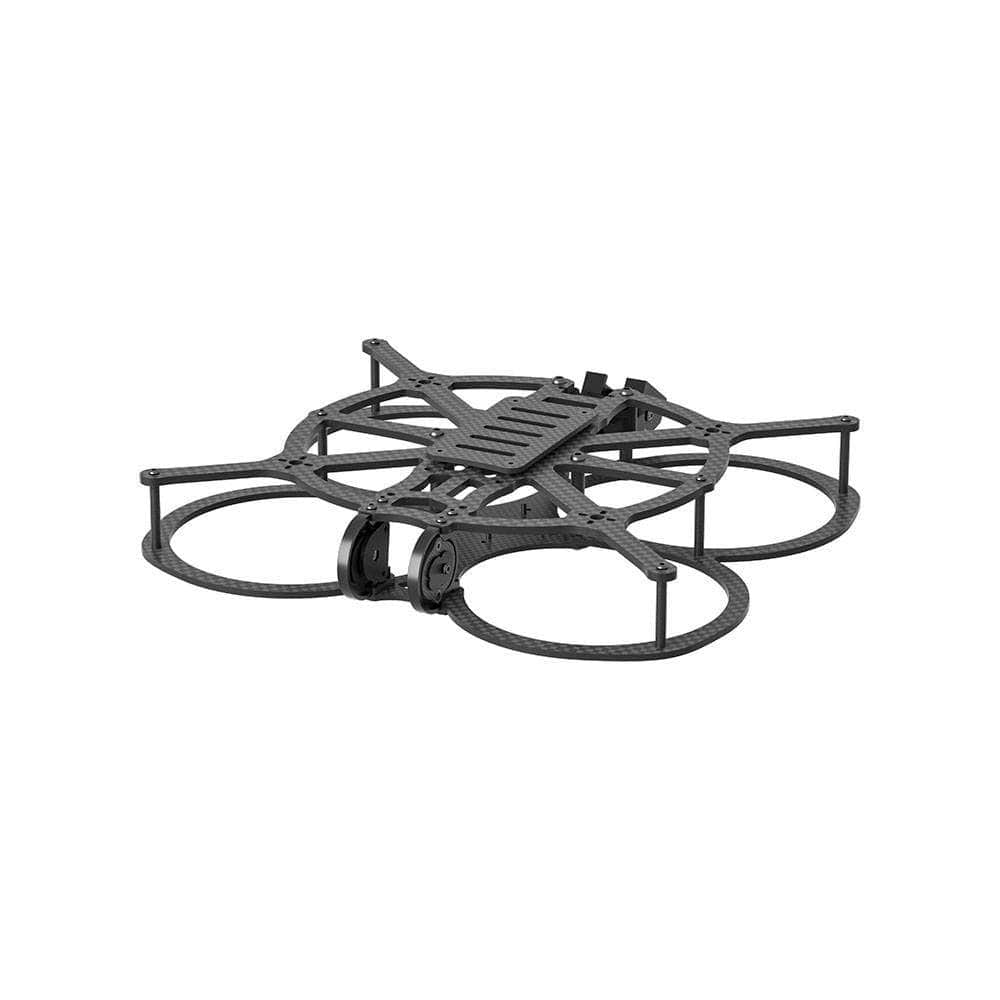

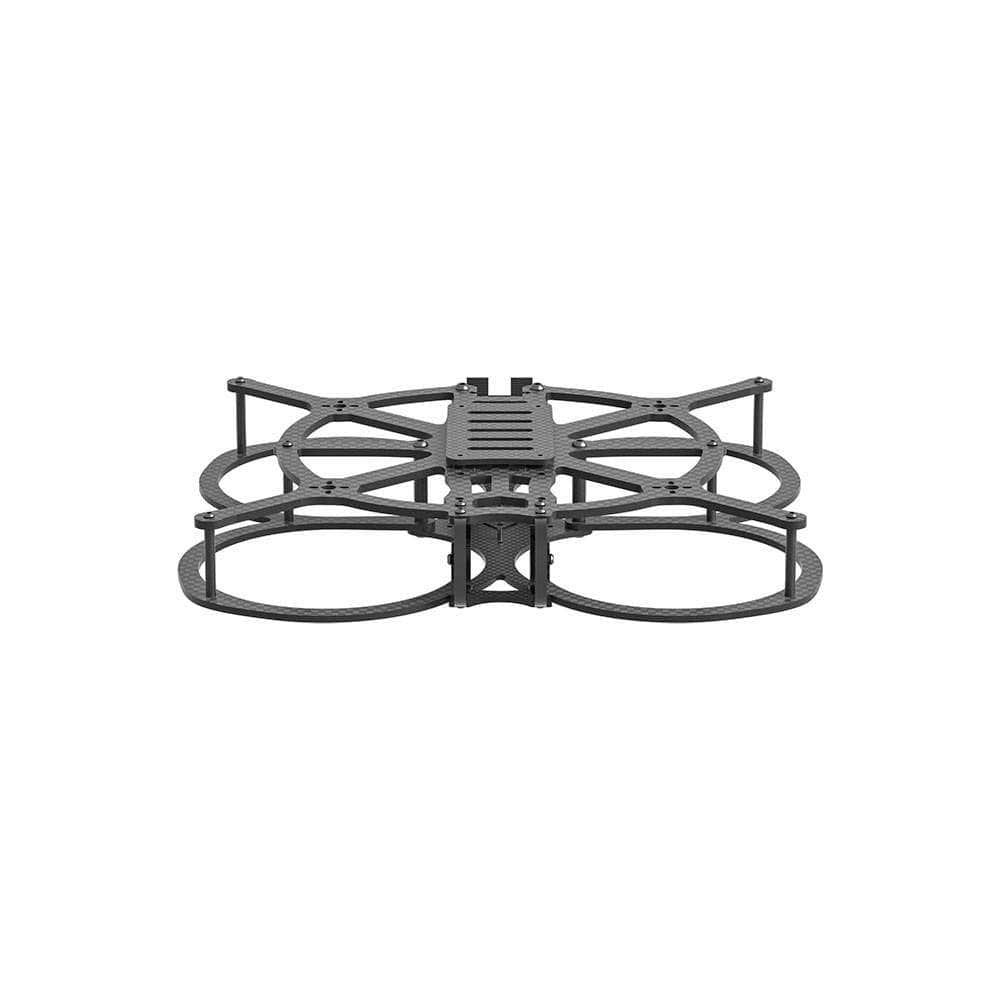

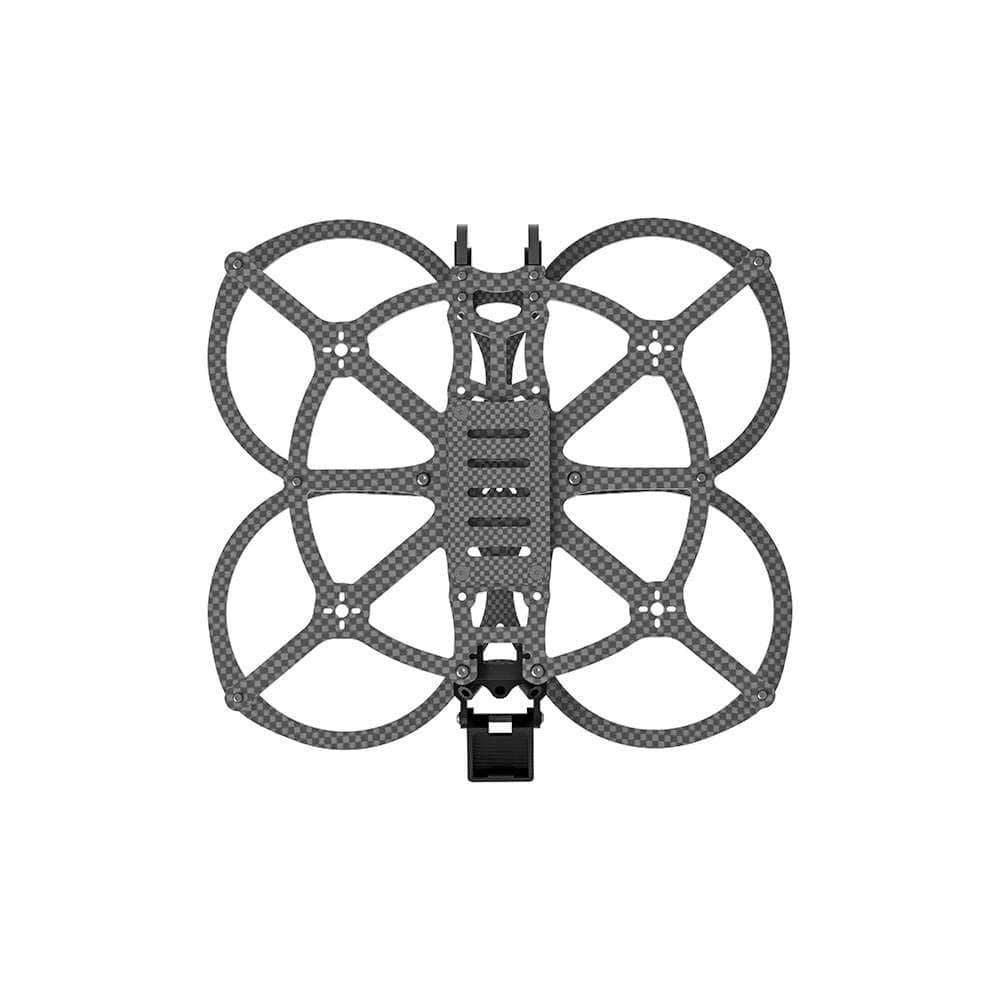

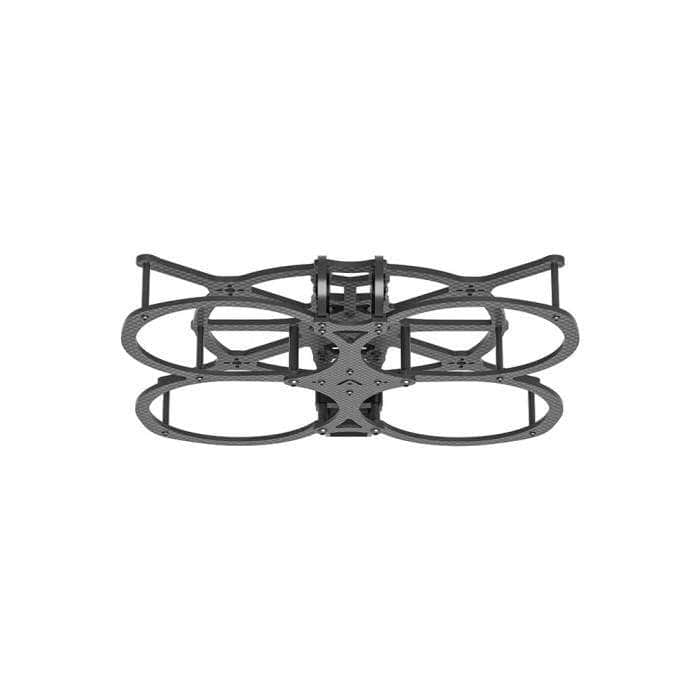

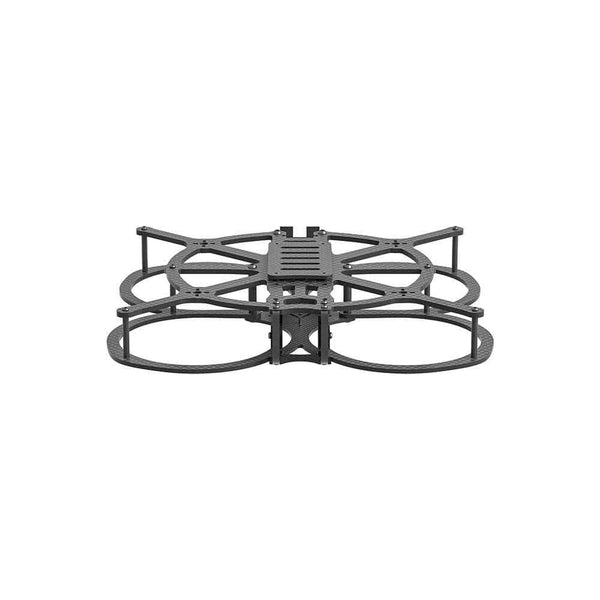

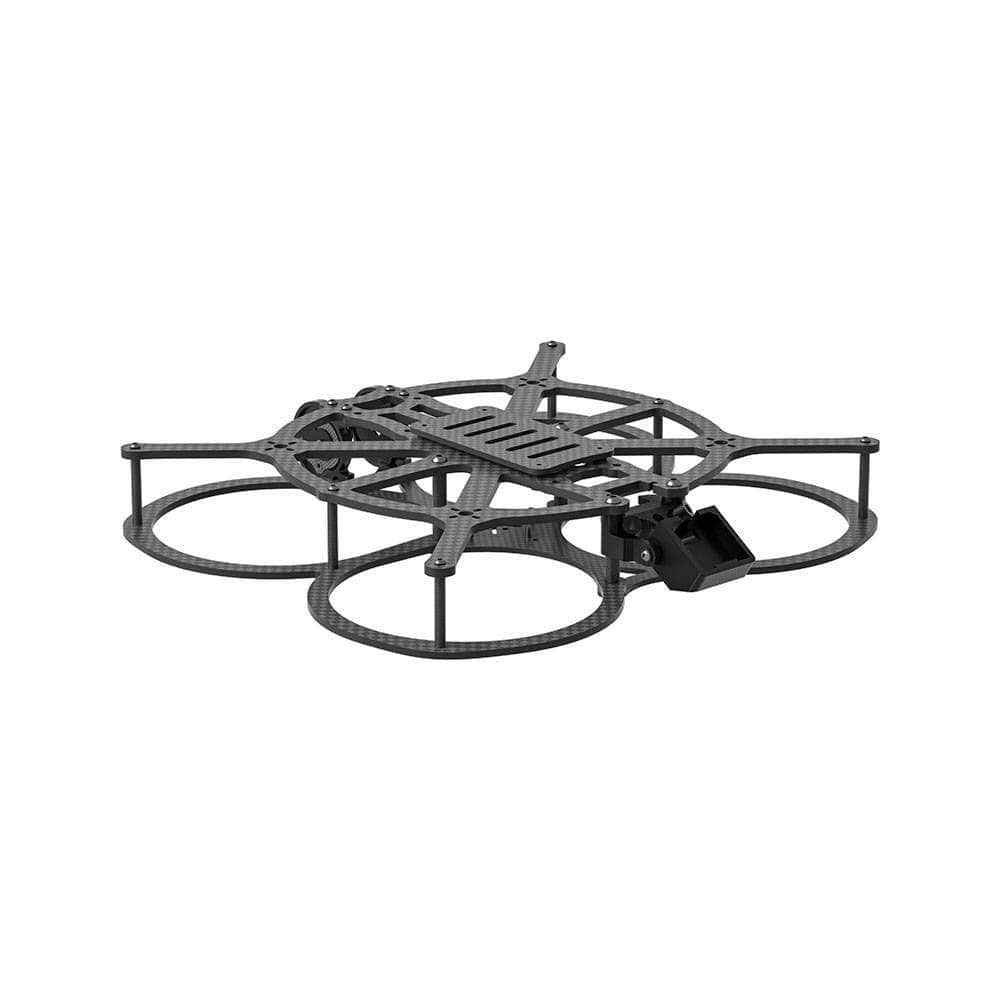

The AOS Cine35 V5 Frame Kit is built for creators who need more power, stability, and versatility in their cinematic flights. Supporting up to 3.5" props, it combines lightweight durability with professional-grade features. From its integrated carbon fiber prop guards and reinforced mounting points to the robust 7075 aluminum camera cage with ND filter support, every detail is optimized for both protection and performance.

Be sure to browse the rest of our AOS RC products and DJI compatible frames, electronics and accessories.

Features

• Supports up to 3.5" props
• Front & rear GoPro mounting
• 155° wide FOV with no props in view
• 7075 aluminum camera cage
• Integrated carbon fiber prop guards
• Flexible battery mounting
• Compatible with DJI O3/O4, HDZero, WS Avatar, Analog (14mm cams supported via 3D print)

Specifications

• Product Name: AOS Cine35 V5 Frame Kit
• Frame wheelbase: 153mm
• Frame Dimension: 223 x 203 x 36.5mm (L x W x H)
• Top Plate Thickness: 3mm
• Bottom Plate Thickness: 2mm
• Battery Plate Thickness: 2mm
• Max Flight Stack Height: 25mm
• Max VTX Height: 25mm
• Flight Stack Mounting: 20 x 20 Φ2mm / 25.5 x 25.5 Φ2mm
• VTX Mounting: 20 x 20 Φ2mm / 25.5 x 25.5 Φ2mm
• Motor Mounting: 9 x 9mm/ 12 x 12 -φ2
• Weight: 145g
• Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX

Includes

• 1x AOS Cine35 V5 Frame Kit
• 1x TPU Parts
• 1x Screw Bag
• 2x Battery Strap
• 2x Anti-slip Battery Pad
