Description

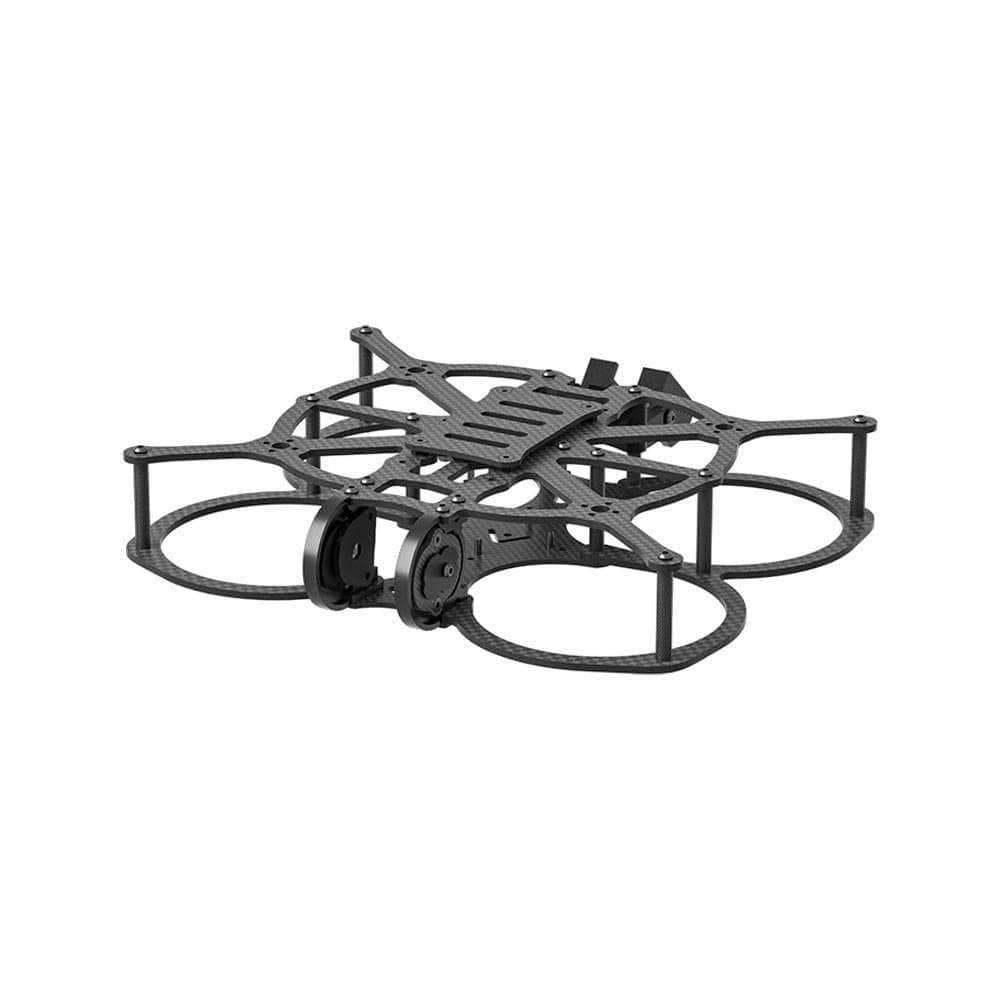

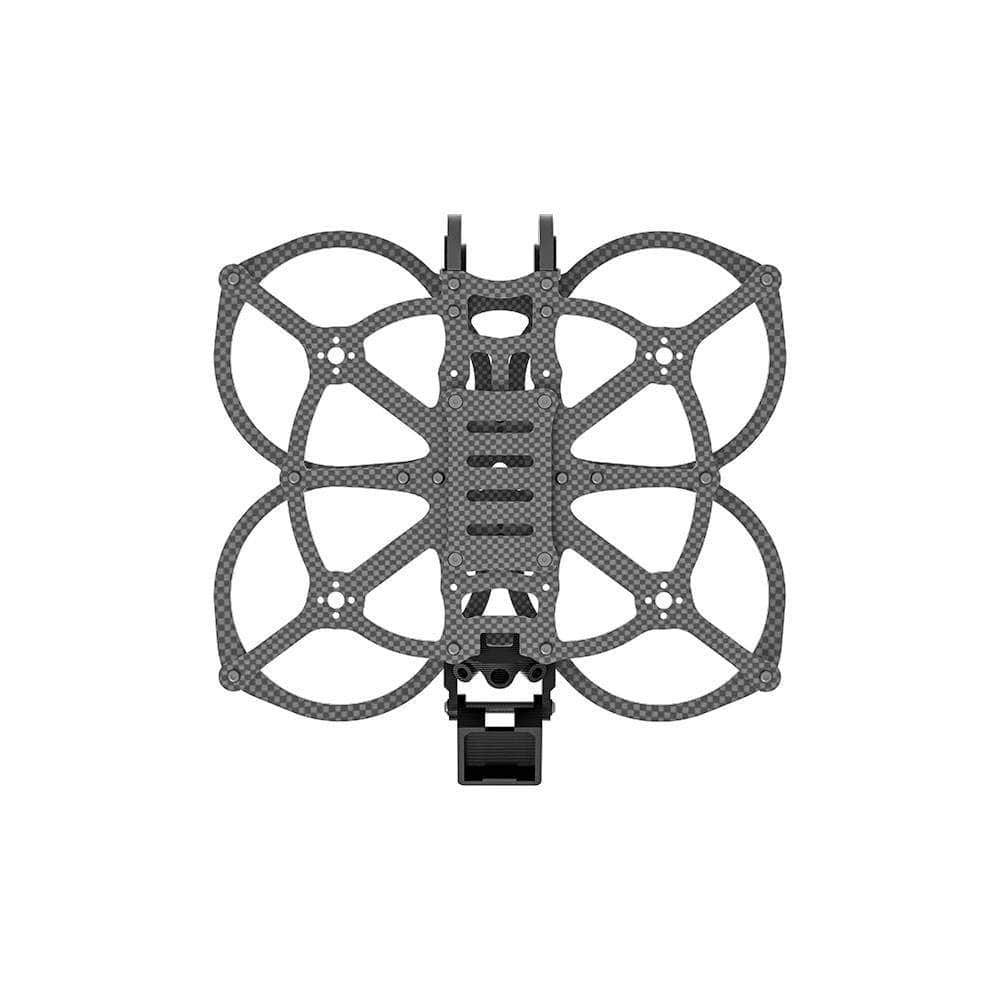

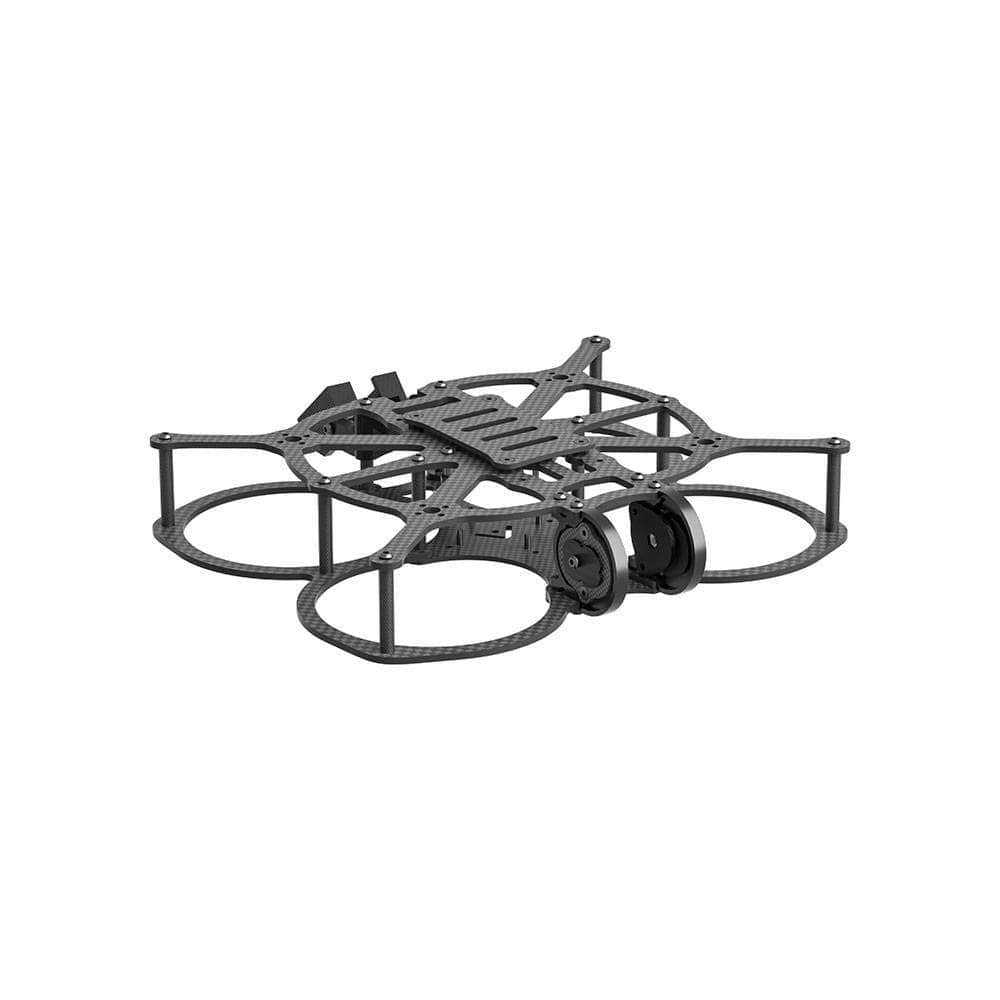

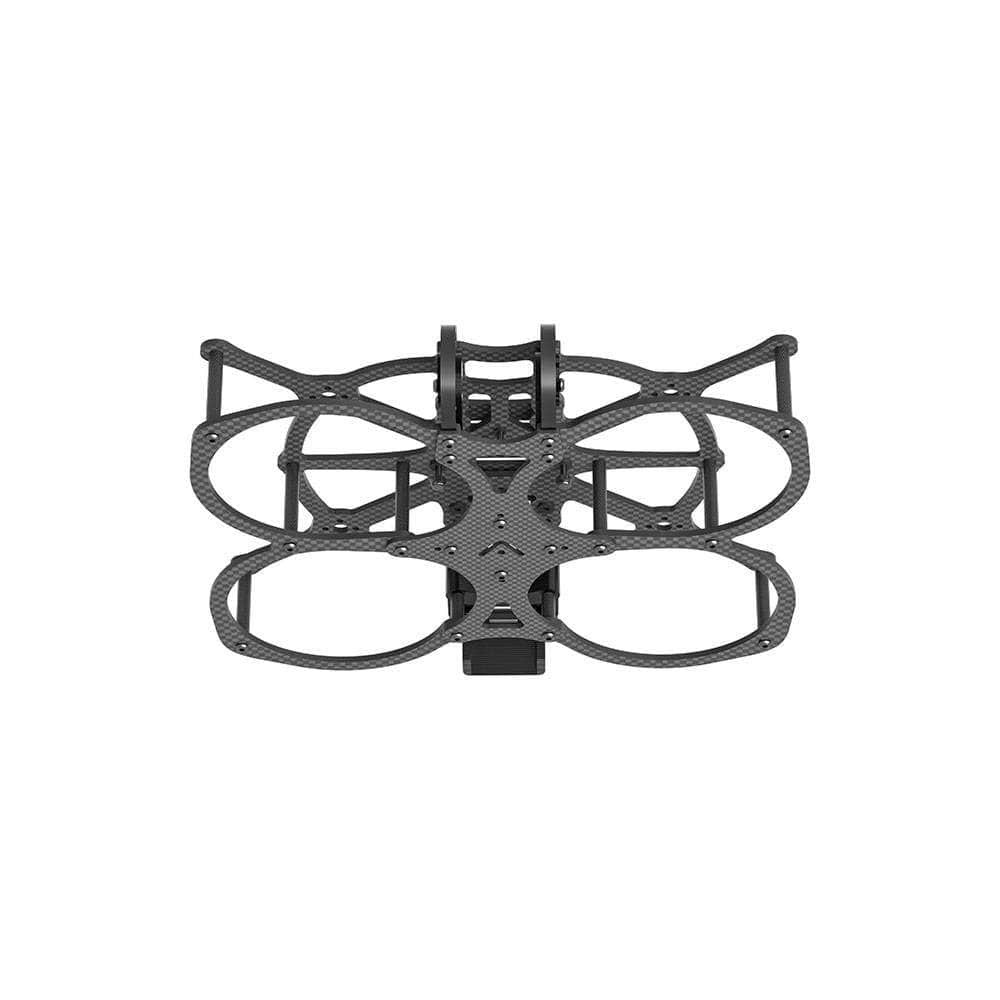

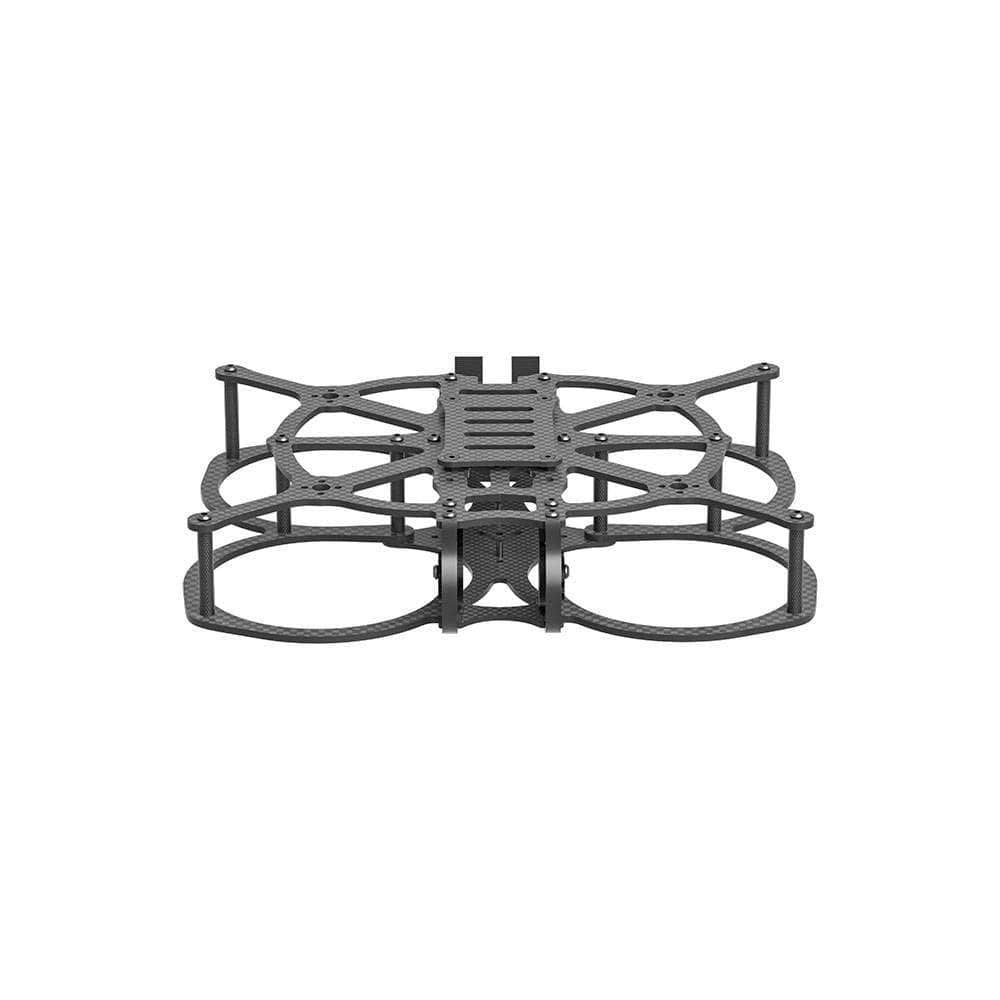

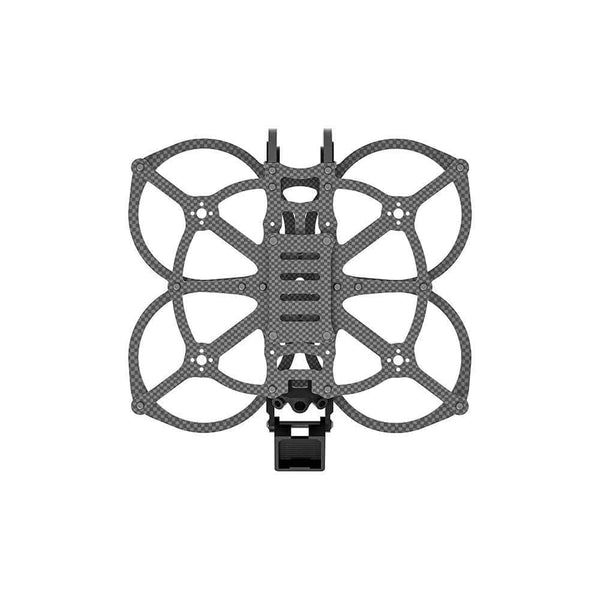

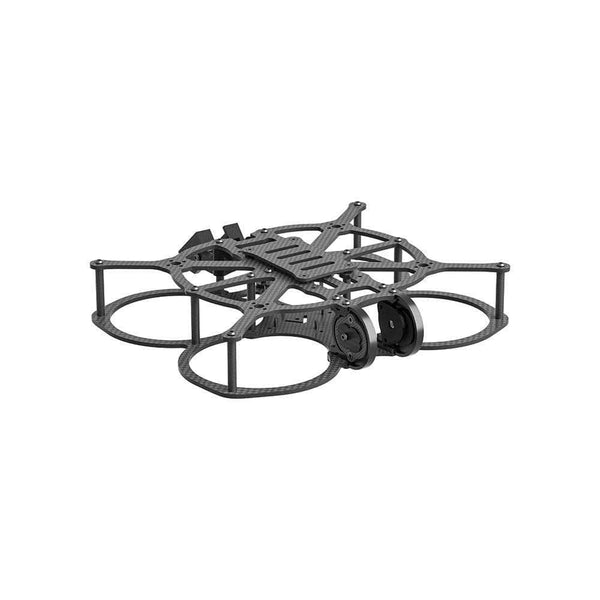

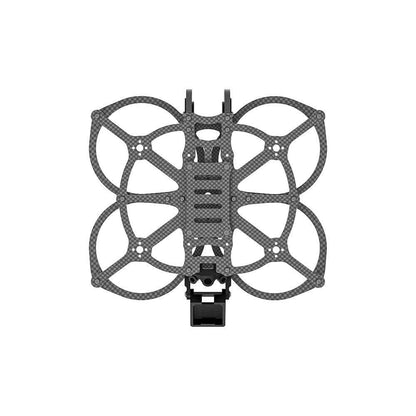

The AOS RC Cine25 V5 Frame Kit is designed to deliver cinematic performance in a compact 2.5" form factor. Featuring lightweight carbon fiber prop guards, reinforced mounting points, and a rugged 7075 aluminum camera cage, it balances durability with agility for both indoor and outdoor flying. With forward and rear GoPro mounting, full ND filter support, and broad camera compatibility—including DJI O3/O4, HDZero, WS Avatar, and Analog—the Cine25 V5 adapts to any filming setup.

Be sure to browse the rest of our AOS RC products and DJI compatible frames, electronics and accessories.

Features

• Supports up to 2.5" props
• Front & rear GoPro mounting options
• 7075 aluminum camera cage with ND filter support
• Compatible with DJI O3/O4, HDZero, WS Avatar & Analog
• Carbon fiber prop guards with reinforced structure
• 155° wide FOV with no props in view
• Flexible battery mounting (lengthwise or toilet tank)

Specifications

• Frame wheelbase: 120mm
• Frame Dimension: 171 x 147 x 34 mm (L x W x H)
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 1.5mm
• Battery Plate Thickness: 1.5mm
• Max Flight Stack Height: 25mm
• Max VTX Height: 25mm
• Flight Stack Mounting: 20 x 20 Φ2mm / 25.5 x 25.5 / Φ2mm
• VTX Mounting: 20 x 20 Φ2mm / 25.5 x 25.5 Φ2mm
• Motor Mounting: 9 x 9mm - φ2
• Weight: 88g
• Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX

Includes

• 1x AOS RC Cine25 V5 Frame Kit
• 1x TPU Parts
• 1x Screw Bag
• 2x Battery Strap
• 2x Anti-slip Battery Pad
