Description

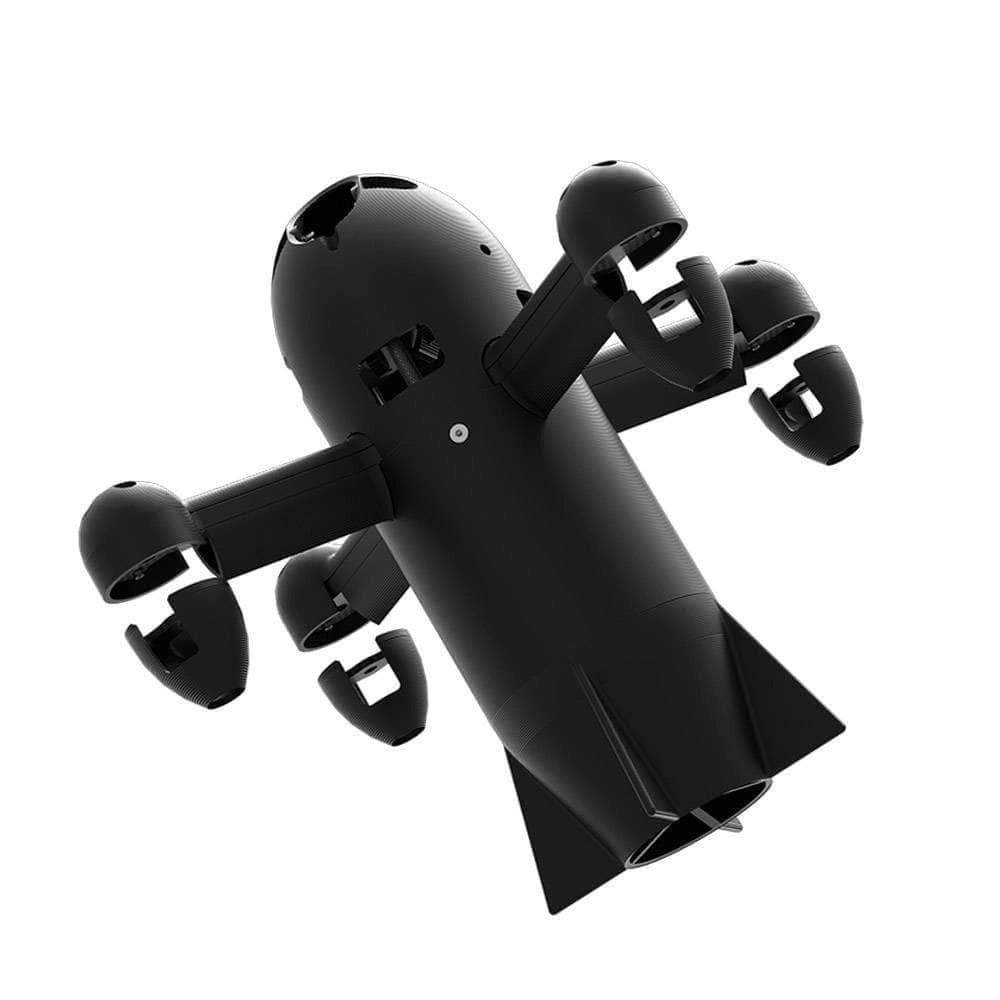

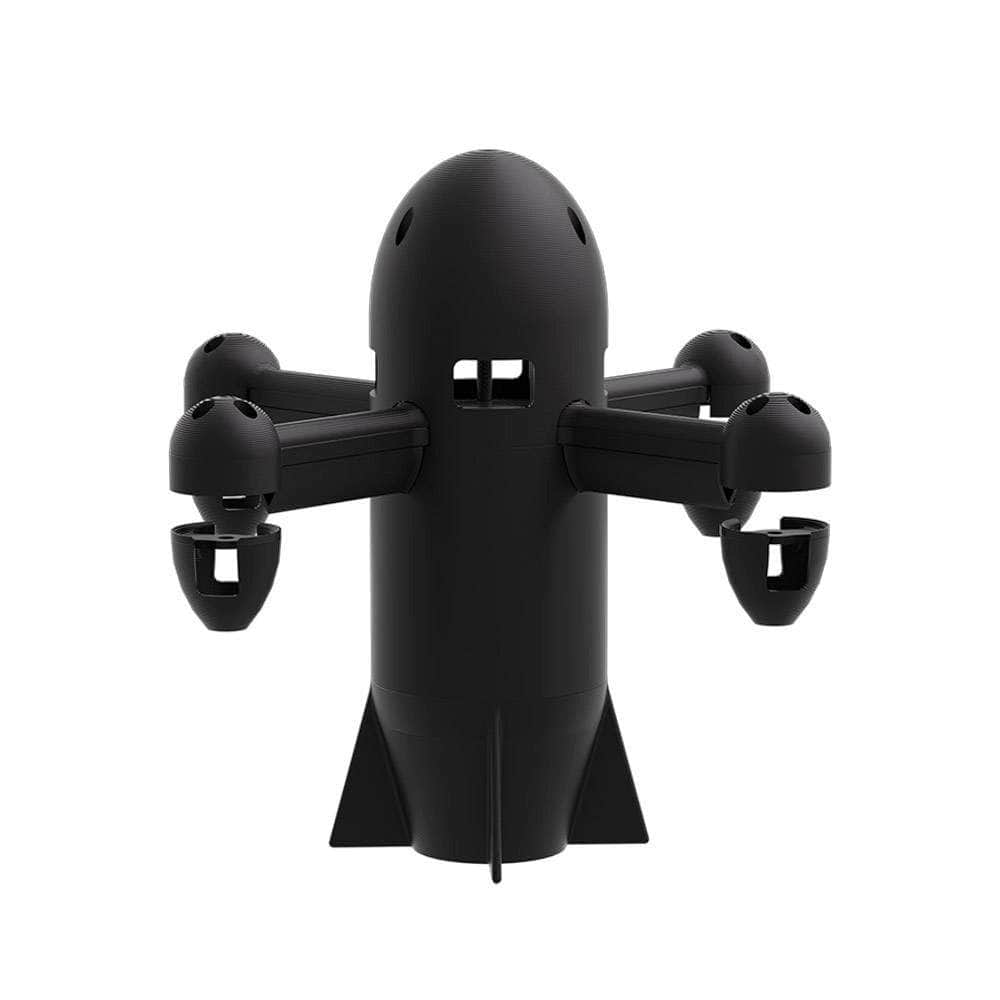

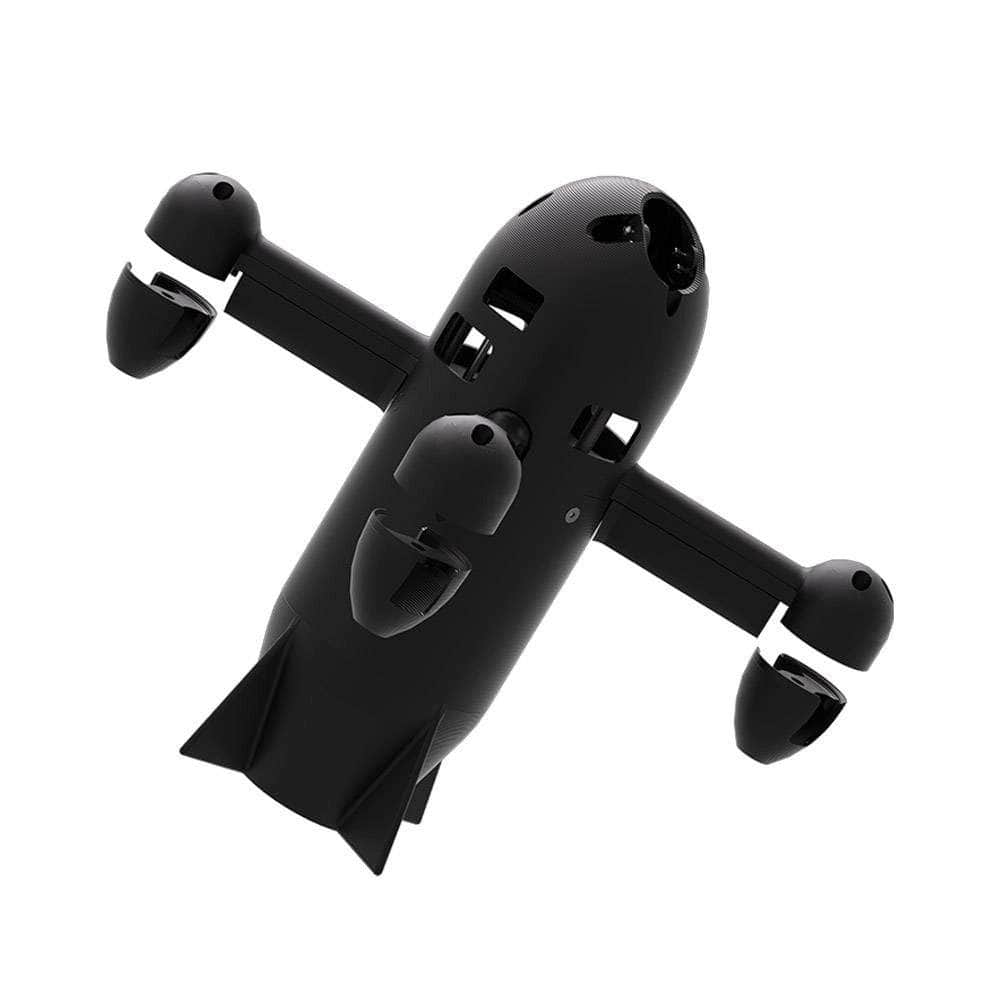

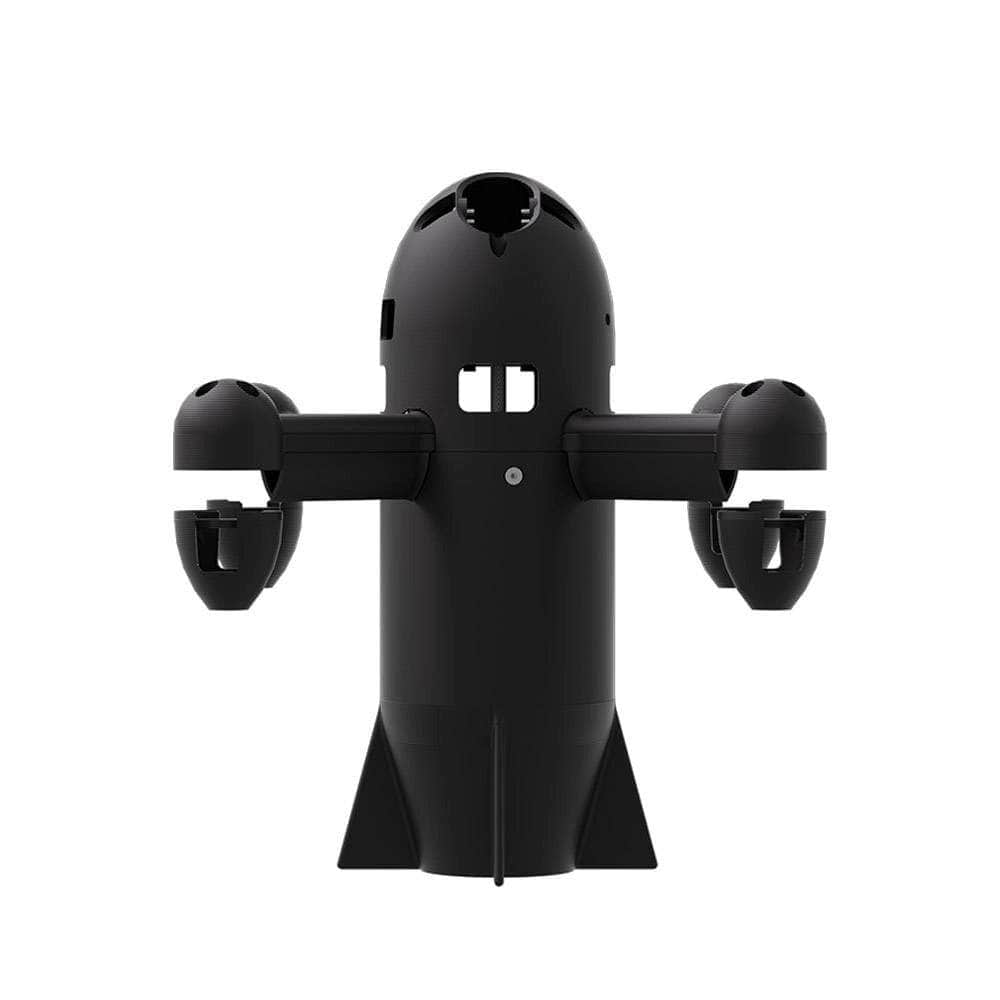

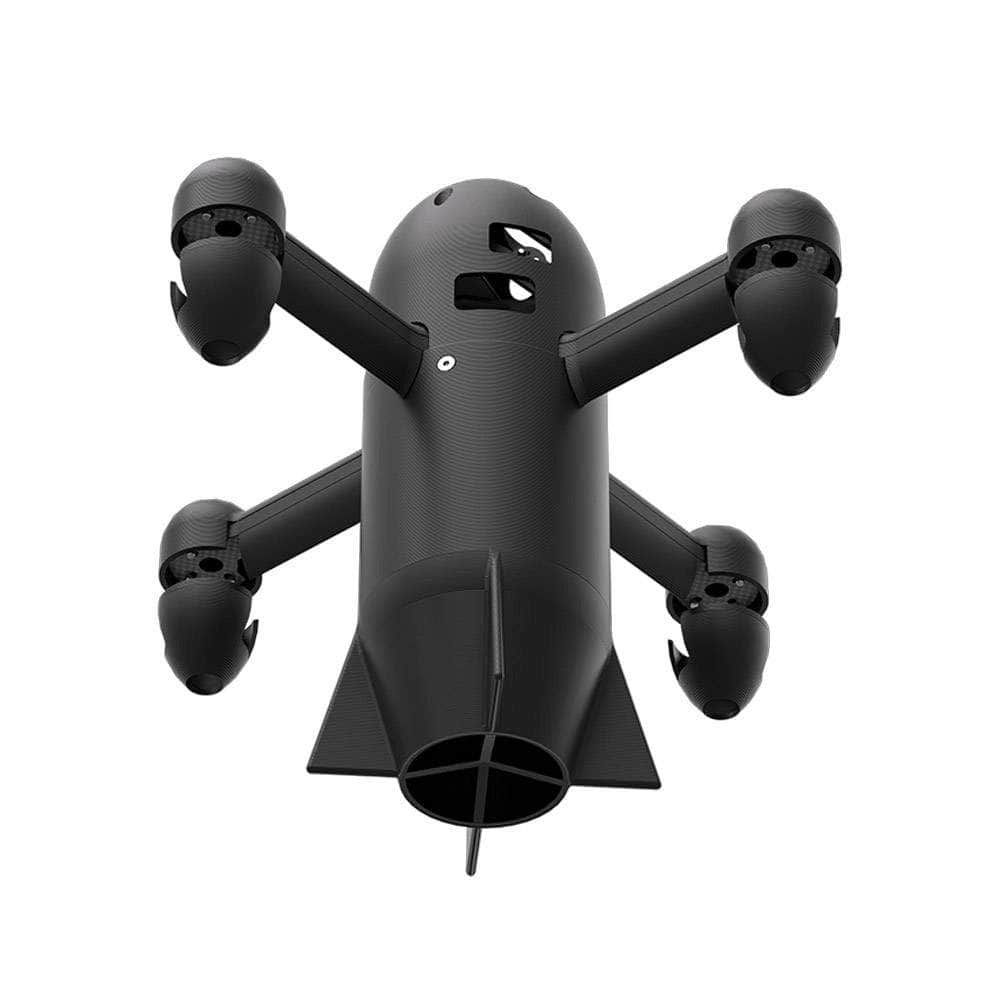

Ever wanted to have an FPV Rocket? The AOS HS5 is ready for take off! With the ability to reach top speeds of over 200 mph (320 kph), with the capability to mount a FPV system.  Designed for both professionals and enthusiasts, this aerodynamic frame offers an immersive 155° FPV experience and cutting-edge aerodynamics.

Check out our vast frame selection and all our AOS RC Motors!

Features

• Immersive 155° FPV Experience
• Advanced Aerodynamic Design
• Supports 19-20mm Camera
• No Props in View
• Easy to Build


Specifications

• Compatibility: BLITZ Whoop 1.6W VTX / DJI O3 Air Unit HD
• Motor Mounting: 16 × 16mm - 3mm / 19 × 19mm - 3mm
• Frame Dimensions: L165 × W165 × H226 mm
• Frame Product Name: AOS HS5 Frame Kit
• Flight Stack Mounting: 30 × 30mm - 3mm
• VTX Mounting: 30 × 30mm - 3mm
• Max Flight Stack Height: 30mm
• Bottom Plate Thickness: 6mm
• Frame Wheelbase: 233mm
• Top Plate Thickness: 2mm
• Max VTX Height: 30mm
• Arm Thickness: 6mm
• Weight: 226g

Includes

• 1x AOS RC HS5 High-Speed Drone Frame Kit
• 1x Bottom Plate
• 1x Hardware Kit
• 2x Battery Pads
• 1x Top Plate
