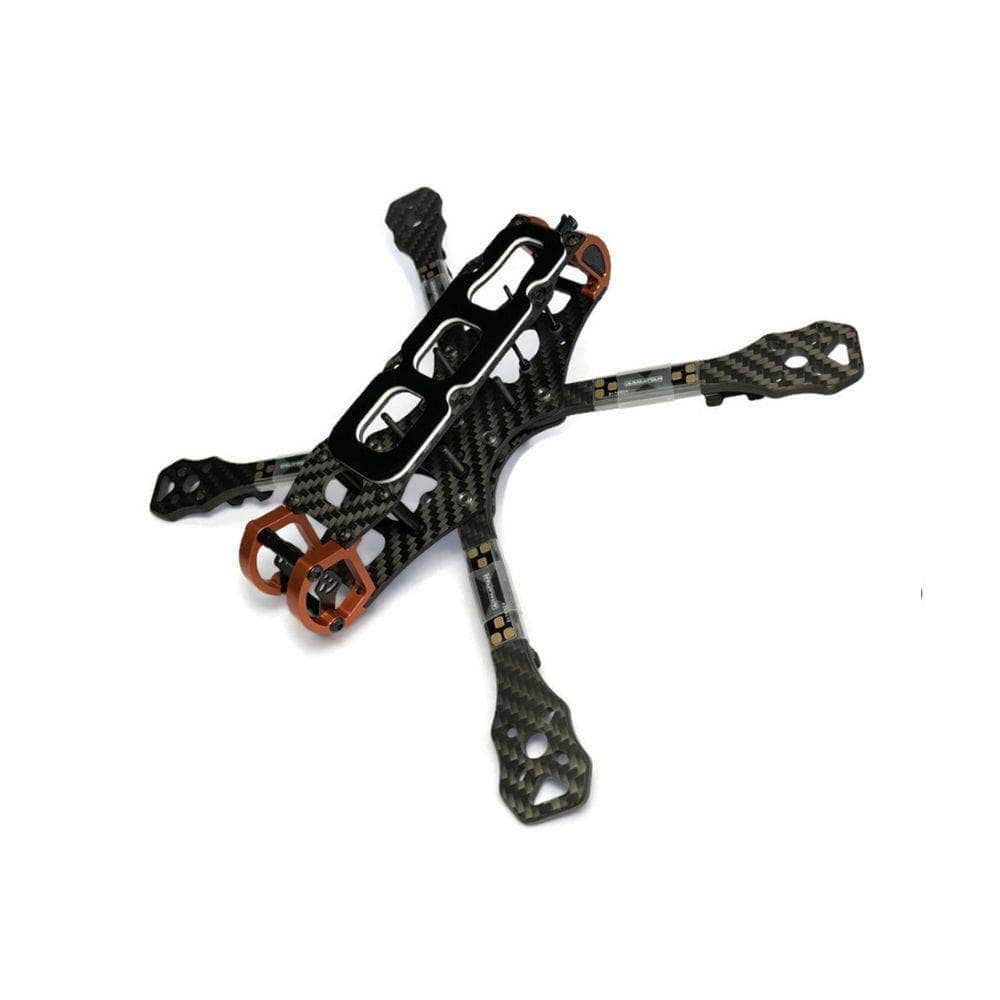

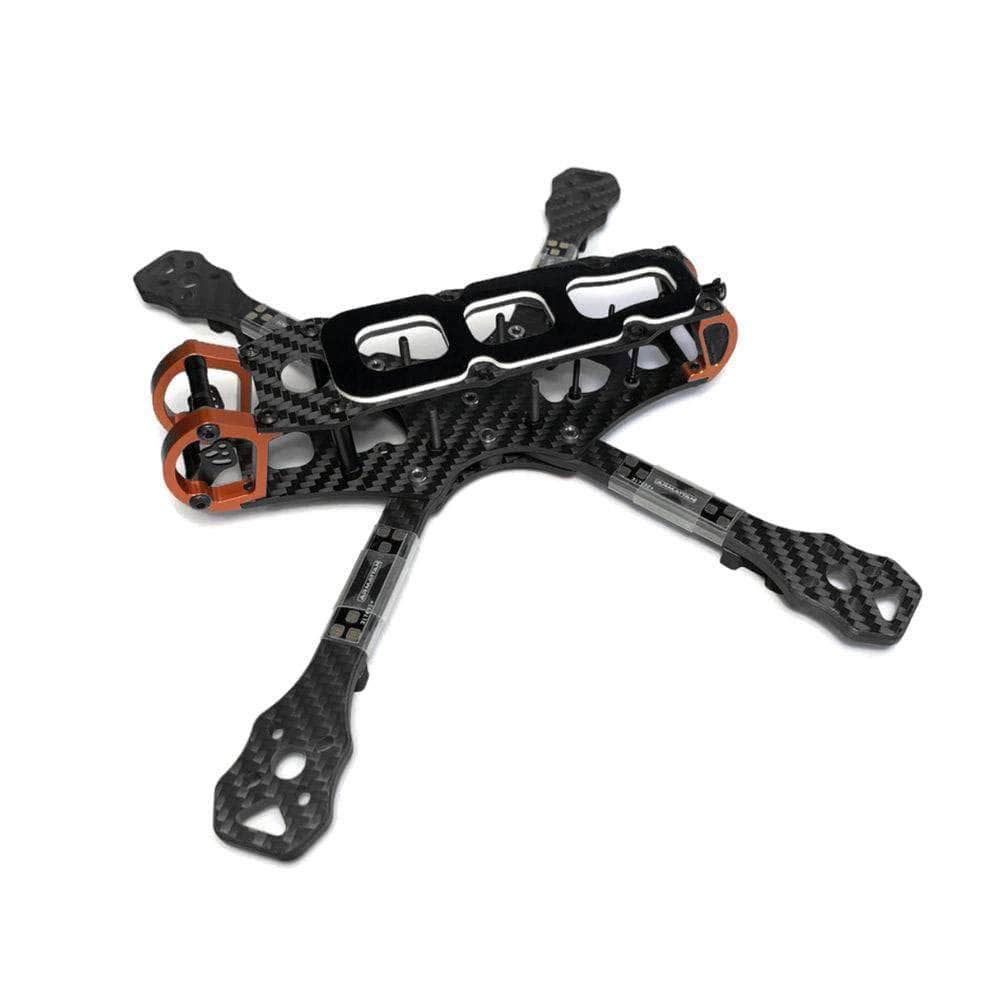

After many designs and prototypes, the Armattan Beaver Frame 5" Quadcopter Frame Kit is here! The Armattan Beaver features a strong carbon frame with thicker arms than previous versions which makes it the strongest to date. This frame focuses on noise reduction, easy maintenance, and versatility for use with a variety of electronics. With a weight of 126g, this frame is lighter than previous Armattan frames.

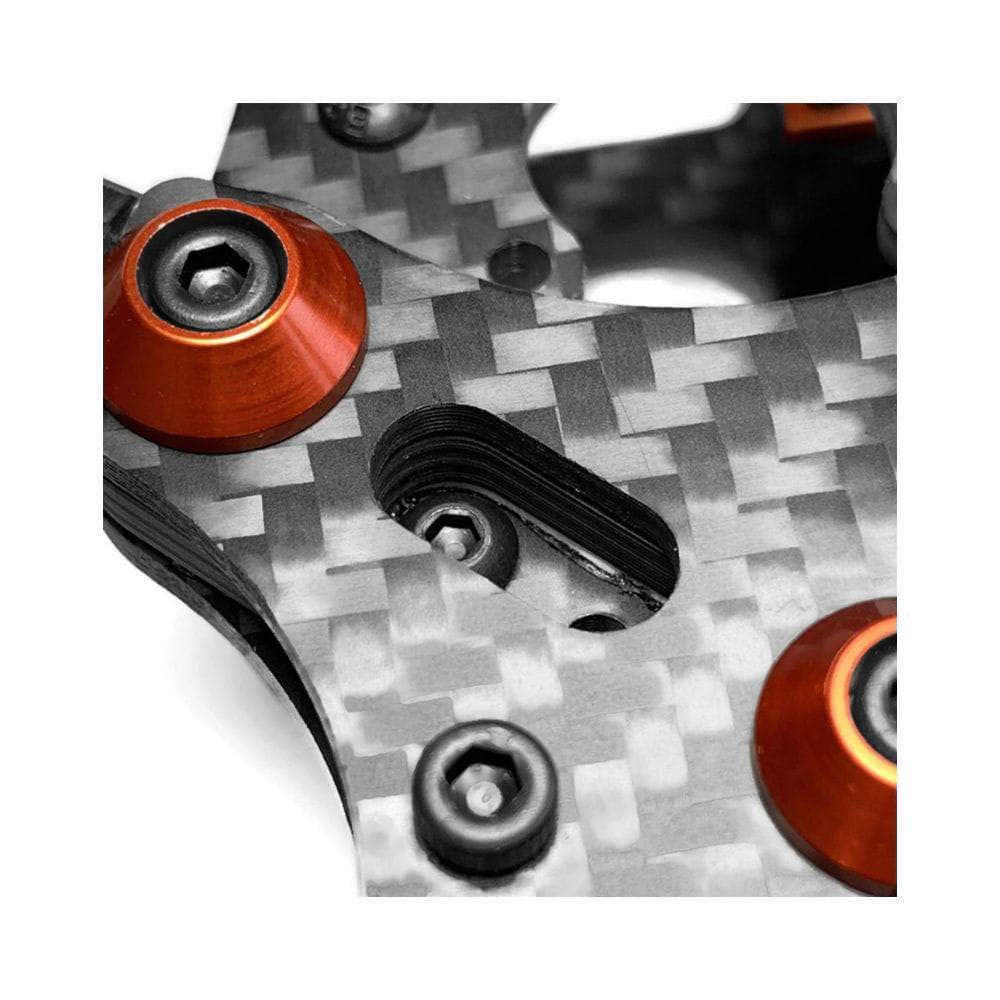

Ease of maintenance: Only one bolt needs to be removed to replace an arm at the field
Well-balanced frame (strength and weight distribution)
Great price point for a high-end, freestyle frame
Thicker arms than any other previous frame
Light and small camera cage
Easy to tune for newcomers
Strong, stiff and light frame
Crash-protection provisions
Good-looking frame
Lifetime warranty
Noise reduction
Versatile
Specifications

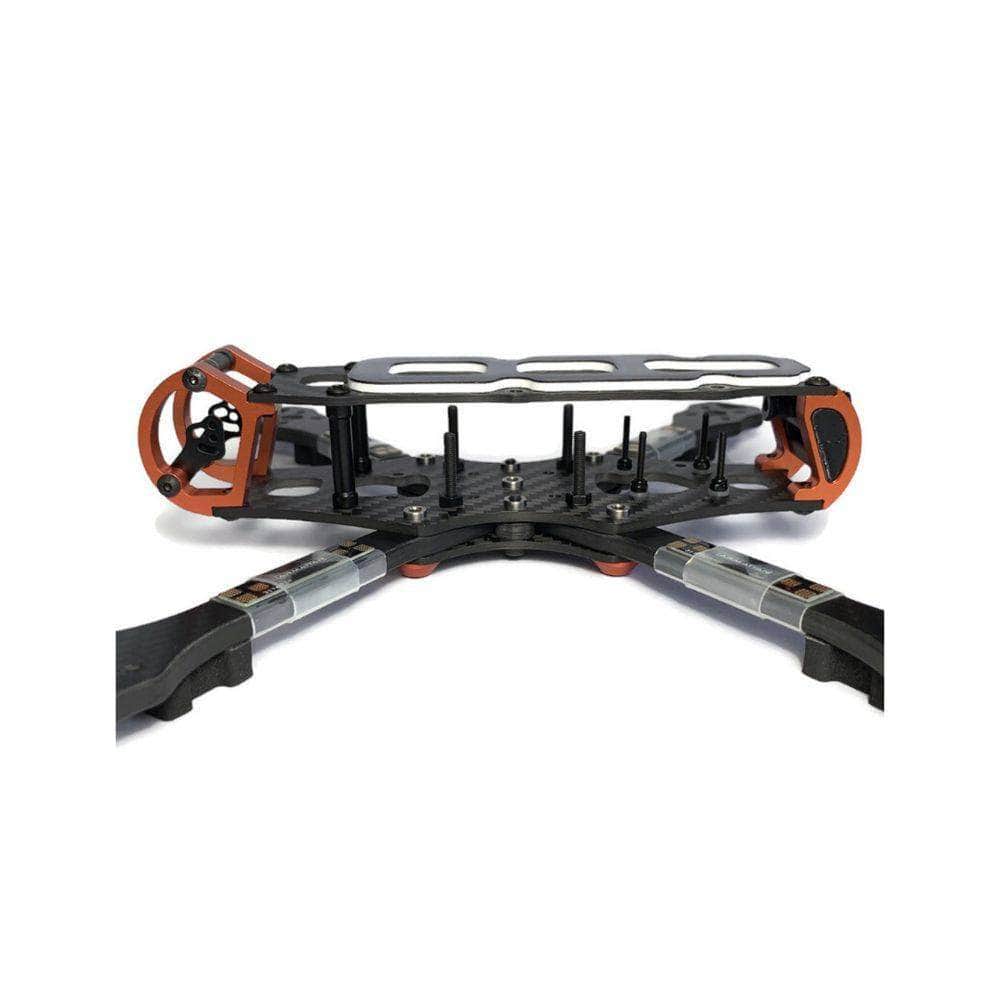

Stack Mounting: Two 30.5x30.5mm stacks(center and rear) + Two 20x20mm stacks (4 possible positions)
FPV Camera Mount: 20mm(DJI) or 19mm Micro cam
Motor Mount Pattern: 16x16 or 16x19 or 19x19mm
Warrantied Parts: All CF and alumi frame parts
Main Plate Thickness: 2.5mm
Frame Shape: Compressed X
Frame Weight: 126 grams
Max Stack Height: 25mm
Motor to Motor: 235mm
Arm Thickness: 5mm
Includes
Carbon Fiber
1x 2mm bottom plate
1x 2.5mm main plate
4x 5mm arms 5 inch
1x 2mm top plate
1x 4mm arm core
Hardware
4x M3 25mm profiled alumi standoff
5x M3 20mm button head iron bolt
6x Aluminum cone spacer orange
5x M3 6mm nylon standoff F/F
20x M3 6mm 12.9 grade bolt
5x M3 10mm 12.9 grade bolt
5x M2 2.5mm cup head bolts
2x M3 20mm alumi standoff
9x M3 12mm cup head bolt
3x M3 16mm cup head bolt
5x M2 18mm cup head bolt
5x M2 nylon washer
14x M3 nylon nuts
5x M2 nylock
Metal

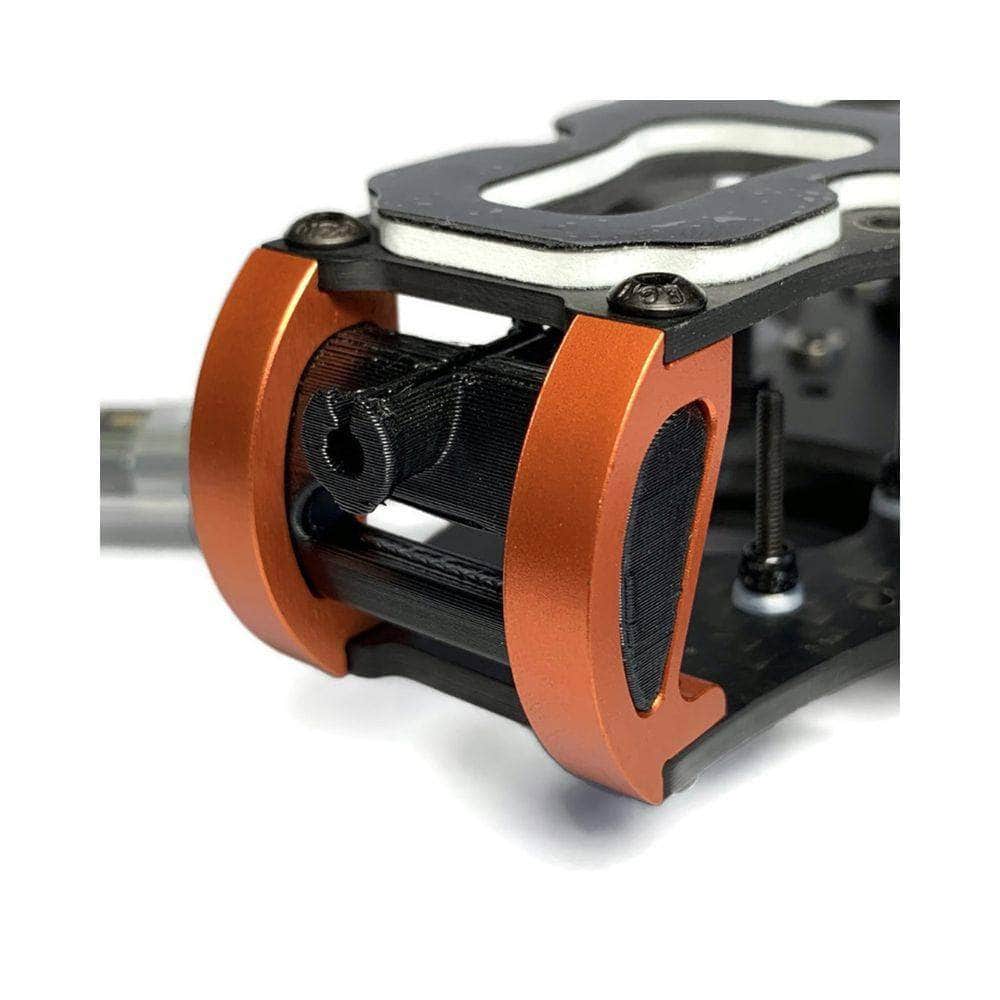

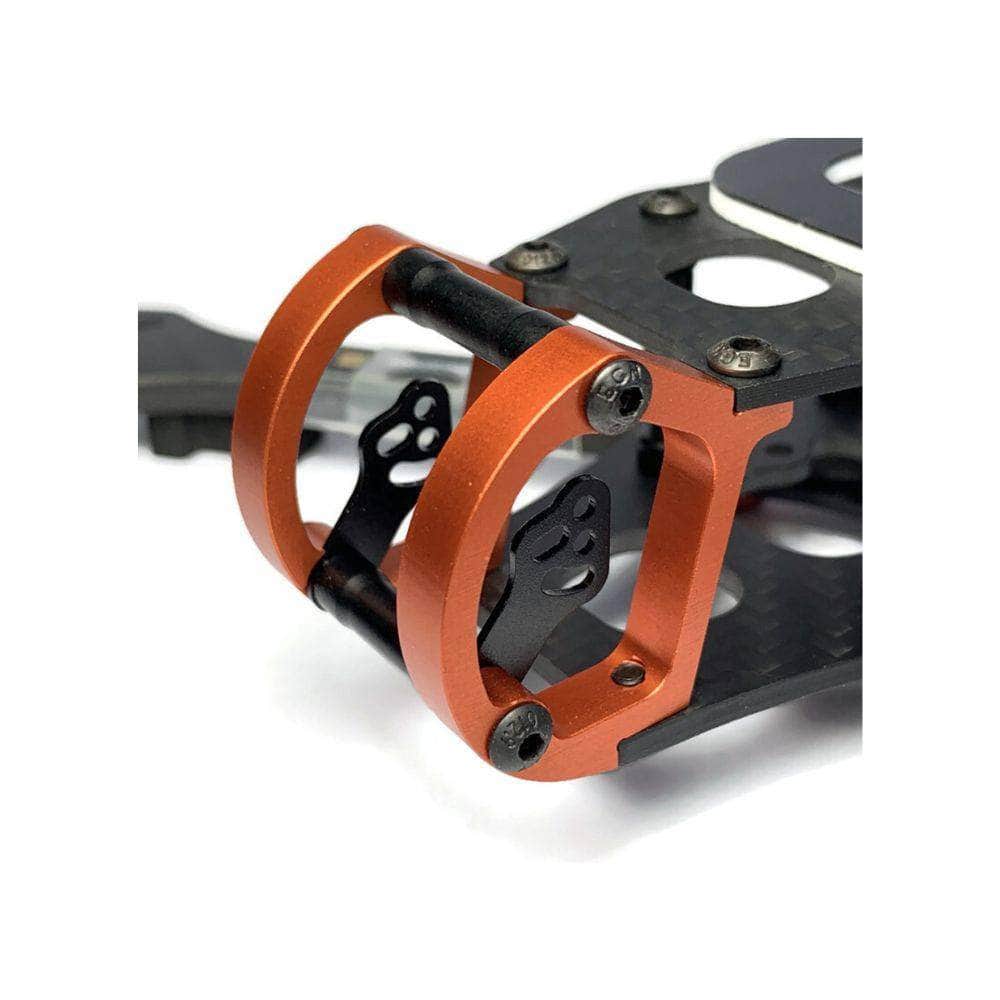

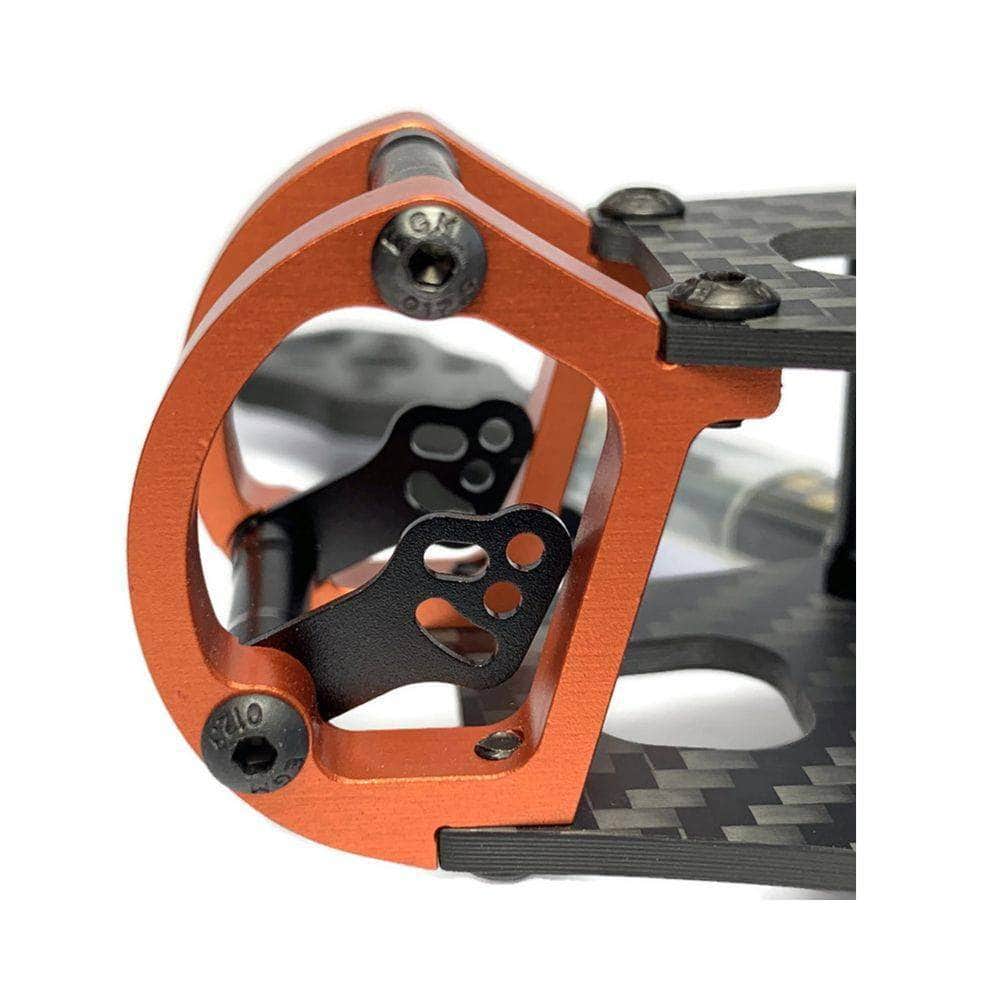

1x Right aluminum cam brace orange
1x Left aluminum cam brace orange
2x Aluminum tail posts orange
2x Aluminum cam saver black
Foam
4x Dog bone landing pads
1x Air unit foam
1x Center foam
1x Lite grip
Accessories
1x 25cm clear heat-shrink 20mm wide
4x Motor wire extension PCB
1x Universal antenna mount
2x White lipo strap
More Info
SKU:
19445
Barcode:
691023509740
Overall rating: 4.75 / 5 from 12 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["frame","issues"].
Review highlights
Reviews
I wanted to love it.
"Buyers beware. This frame does not accommodate the DJI 03 air unit camera, the frame will be in view. There will be 2 orange bars on both sides of your vision. And the up tilt will be limited. The frame is gorgeous in typical Armattan fashion other than that. I hope Armattan comes out with a revised camera mount because I want to love this frame."
— Todd B. (2/5)
Like it
"Like it"
— Lesley L. (5/5)
Excelente frame
"Super solid, fits a whole air unit, 30x39 stack, cap n beeper ✌"
— Giancarlo S. (5/5)
Solid frame
"Love the free Sturdy and lots of room and options"
— Jared H. (5/5)
A really great frame!
"This is a really nice frame. There are lots of options for standoffs and plenty of room for other equipment. Really Solid frame and I saw no resonance issues in the BB logs."
— Yancy B. (5/5)
Nice frame.
"Typical Armattan. High quality. Good build."
— Brandon B. (5/5)
Great frame
"Feels sturdy AF. Only flaw was the cam cage bracket came with a missing mounting hole on 2 out of 3 frames. But still works and I'm sure the manufacturer will replace them when I get around to it. This will probably be my new "go to" frame"
— robert k. (5/5)
Fantastic frame, I am glad Armattan is back
"I haven’t finished tuning it yet but this frame is bad ass. I started with filters and I was able to turn off all filters except the gyro rpm filter, and the dterm low pass filter. I’ve never had a quad that has allowed me to go that far with the filter tune yet and I’m excited to see what it can do once I get it fully set up. It’s a bit heavier than I would like but hopefully that just translates into it being a tanky frame. It is a little weird to build in, it’s going to be the first time I’ve built a quad with the fc not in center of mass but that should end up being ok."
— Payton H. (5/5)
Across the board 1 of
"Across the board 1 of the best frames you can buy out right now under or over $100!"
— Kevin B. (5/5)
Beaver frame
"Nice looking frame. Still trying it out with no problems so far! The warranty will be nice if I ever need it."
— Brad K. (5/5)
