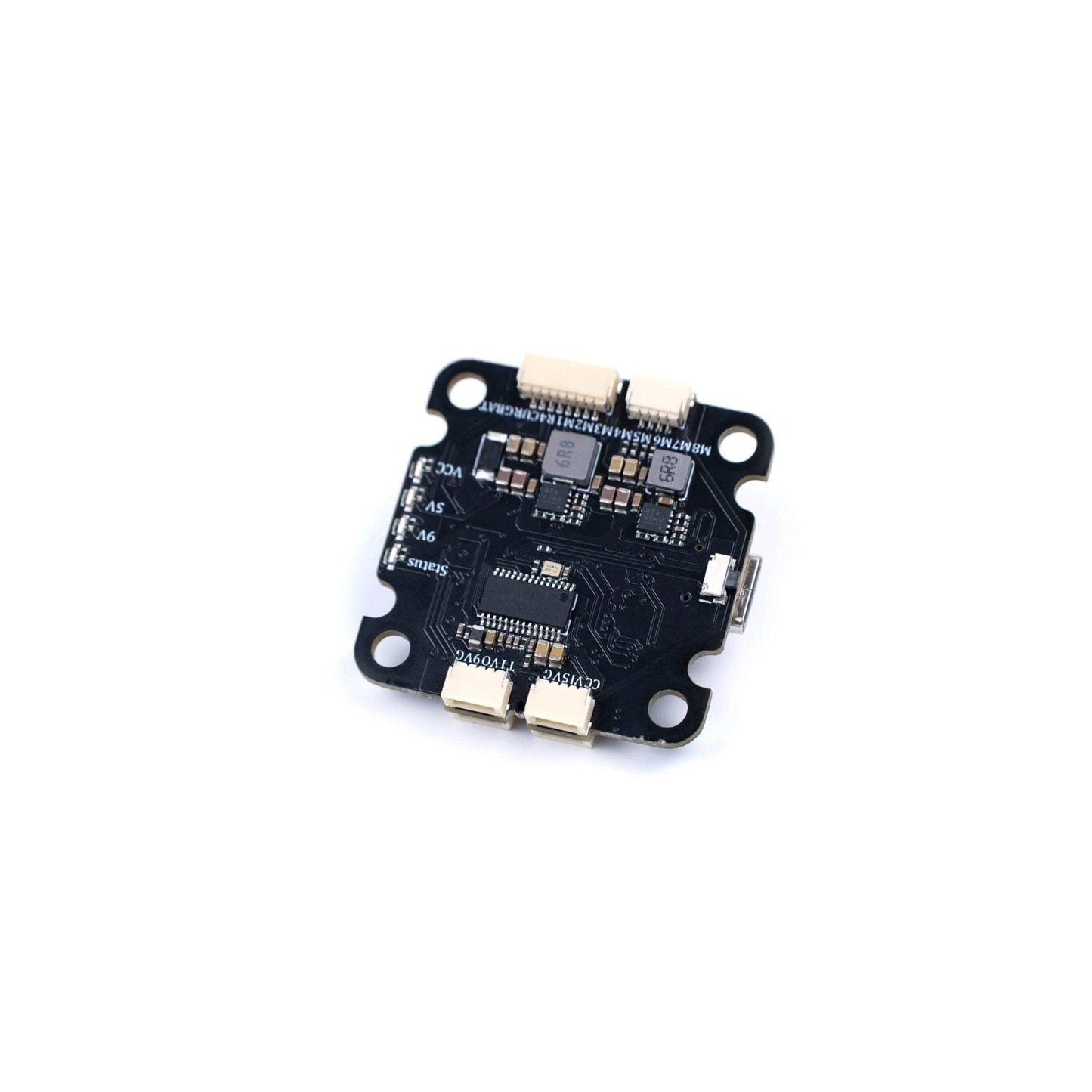

AxisFlying Argus F7 HD 3-6S 30x30 Flight Controller

Original price $59.89 - Original price $59.89
Original price
$59.89
$59.89 - $59.89
Current price $59.89
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

The latest from AxisFlying, the Argus F7 is a powerhouse of a chip. It comes in two versions, regular and PRO which has a CNC heat dissipation aluminum cover. It has a high-performance F722 chip, onboard barometer, OSD and Black Box. And it can support up to 8 motors! This chip comes packed with power. Pair it with the Argus 65A ESC for ease of installation; a convenient plug-and-play feature. And it supports the new DJI O3 Air Unit! AxisFlying has got you covered!

Check out all our 30x30 Flight Controllers, and all our Axis Flying Products!

Features

  • High-quality and large-size MOSFETs are selected, with low internal resistance and low heat generation.
  • No welding, more peace of mind.  With this FC, HD Air unit, analog camera, GPS, and other common peripherals all support direct plug-in
  • Integrated dual BEC, support DJI O3 Air Unit direct connection
  • The FC supports up to 8 motor outputs, easily build your X8 drone
  • Quickly check the working status of the FC by turning on and off the corresponding status indicator light

Specifications

  • MCU: STM32F722RET6
  • Gyro: BMI270
  • Barometer: Yes
  • OSD: Yes
  • BEC: 9V/2A, 5V/2A
  • UART Ports: 6
  • Black Box: 16MB onboard
  • Number of supported motors: 8
  • Firmware Name: AXISFLYINGF7
  • Input Voltage: 3-6S LiPo (12-50V Max)
  • Installation Holes: 30.5x30.5mm M3

Includes

  • 1x AxisFlying Argus F7 3-6S 30x30 Flight Controller
  • 1x Assorted Connector wires
>
