Description

The Plug and Play Argus is AxisFlying electronic series that includes ESC, FC, and stack.  Argus PRO series adopt a full aluminum cover wrapped that can get IP54 to protect PCB.  Argus series is PCB electronic only. There are 2 kinds of ESC 55A and 65A. The FC is F722 which can support X8.

Check out all our 30x30 FC Stacks, and all our Axis Flying Products!

Specifications

Argus F722 Flight Controller

• MCU: STM32F722RET6
• Gyro: BMI270
• Barometer: Yes
• OSD: Yes
• BEC: 9V/2A, 5V/2A
• UART Ports: 6
• Black Box: 16MB onboard
• Number of supported motors: 8
• Firmware Name: AXISFLYINGF7PRO
• Input Voltage: 3-6S LiPo
• Installation Holes: 30.5x30.5mm M3

32bit 4in1 ESC

• Continuous Current: 55A
• Burst Current: 65A
• Input Voltage: 3-6S
• ESC Target: BLHeli_32 (ST_G0_04)
• Current Proportion value: Scale=400
• PWM Frequency Range: 16-96khz
• Telemetry: Supported
• Ammeter: Supported
• BEC: No
• Installation holes: 30.5x30.5mm
• Dimensions: 48.6x44x6.3mm
• Weight: 16.2g

Includes

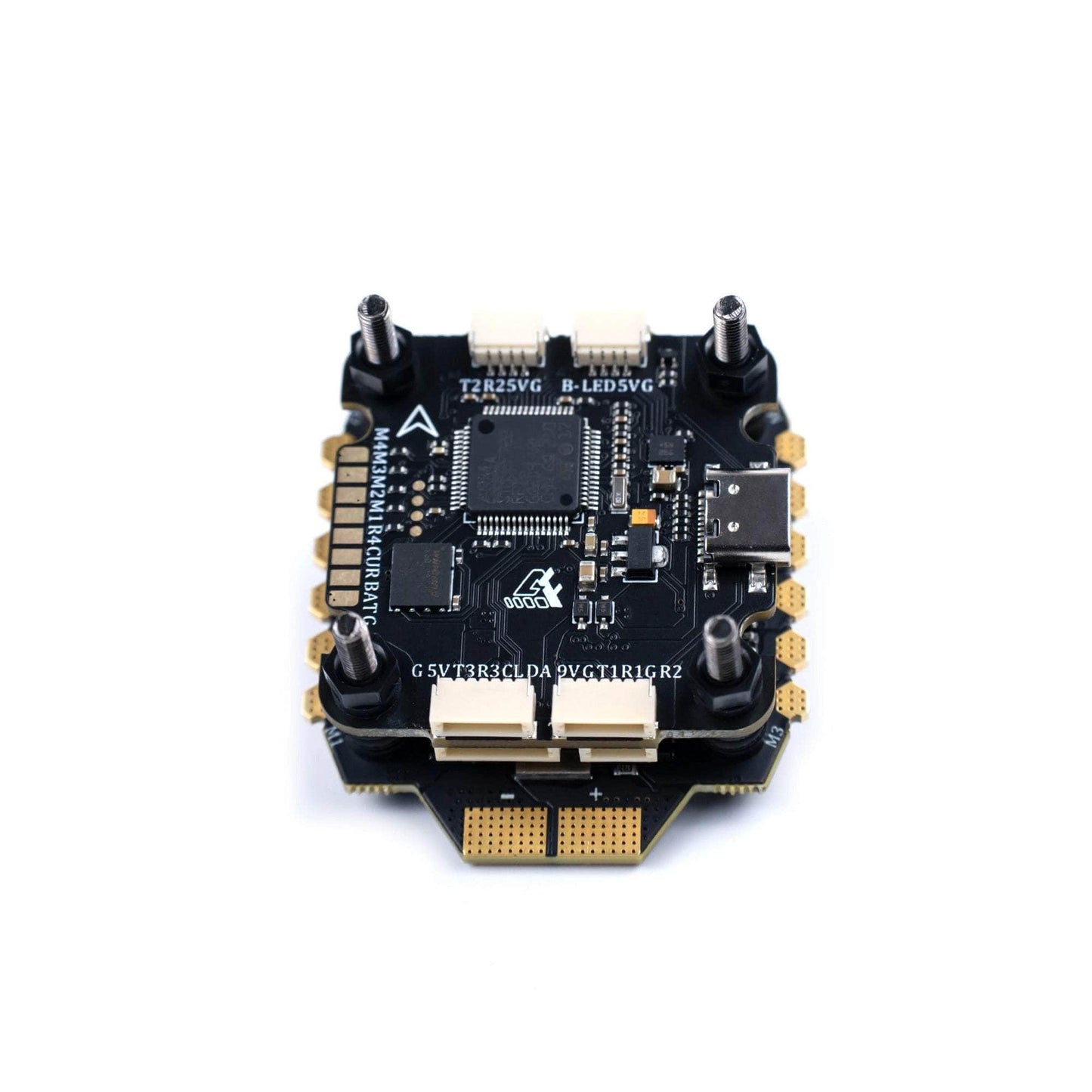

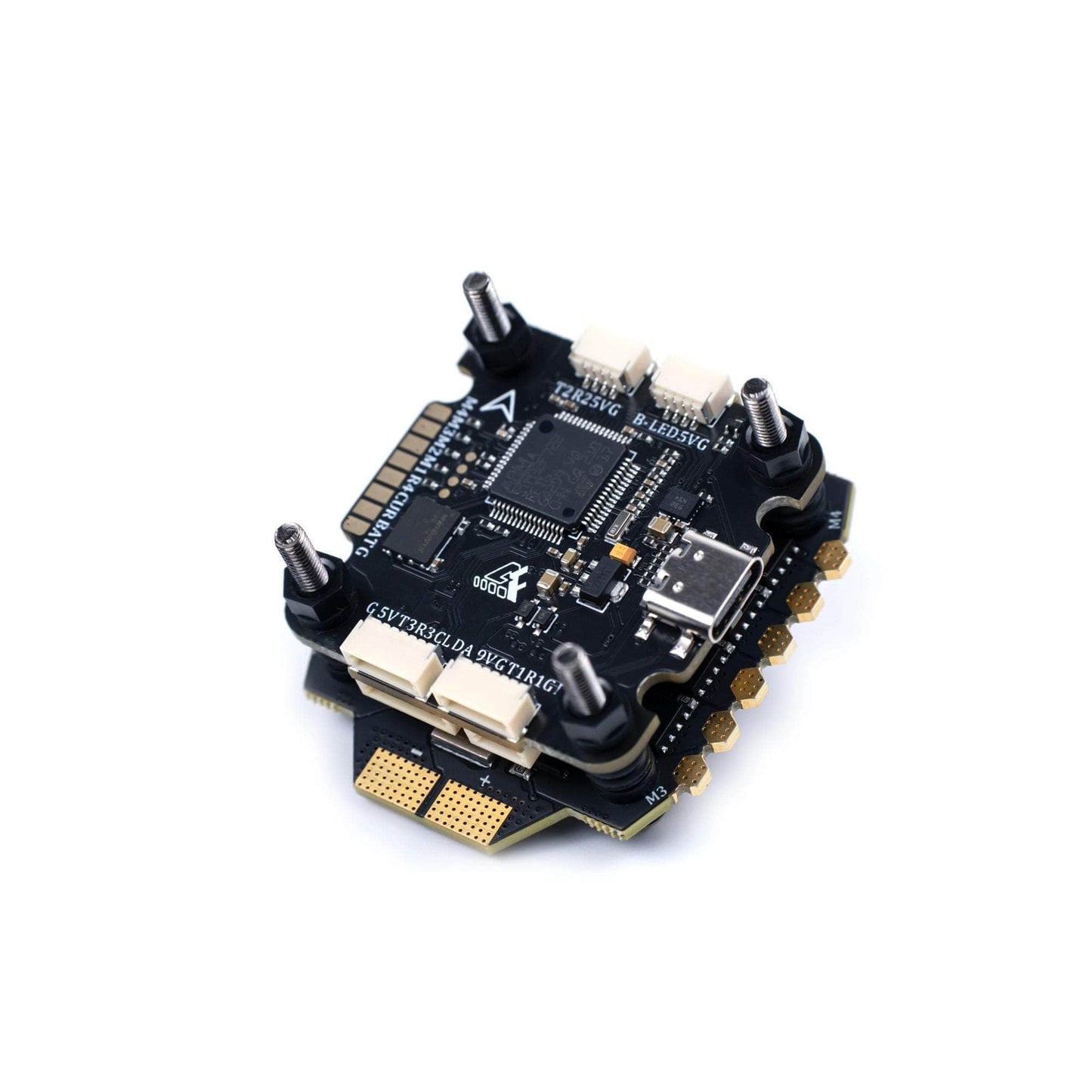

• 1x AxisFlying Argus F722 3-6S 30x30 Stack/Combo (F7 FC / 32bit 55A 4in1 ESC)
• 1x Wiring Set
