Pretty good AIO board. Probably
"Pretty good AIO board. Probably better on a 4 or 5 inch than a 3 inch like I did, but hey, it fit and we've got ESC headroom for days"
Details
Description

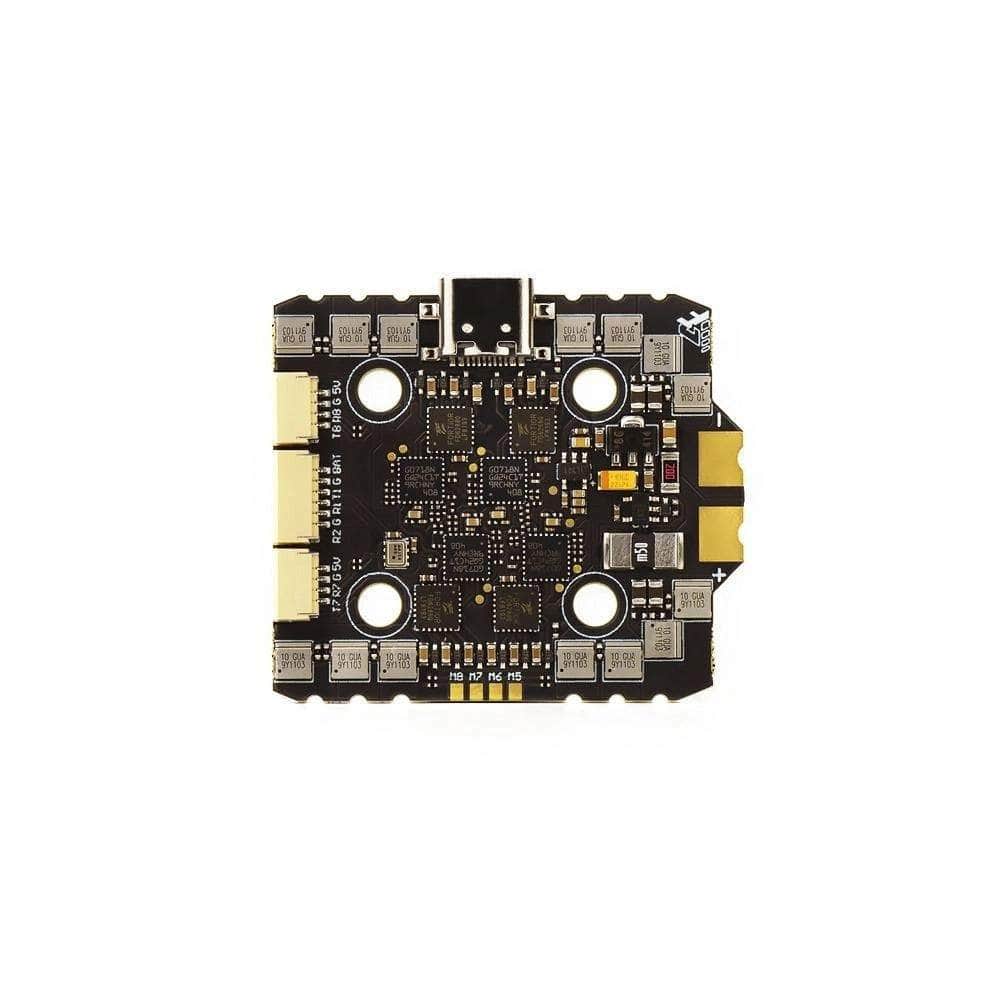

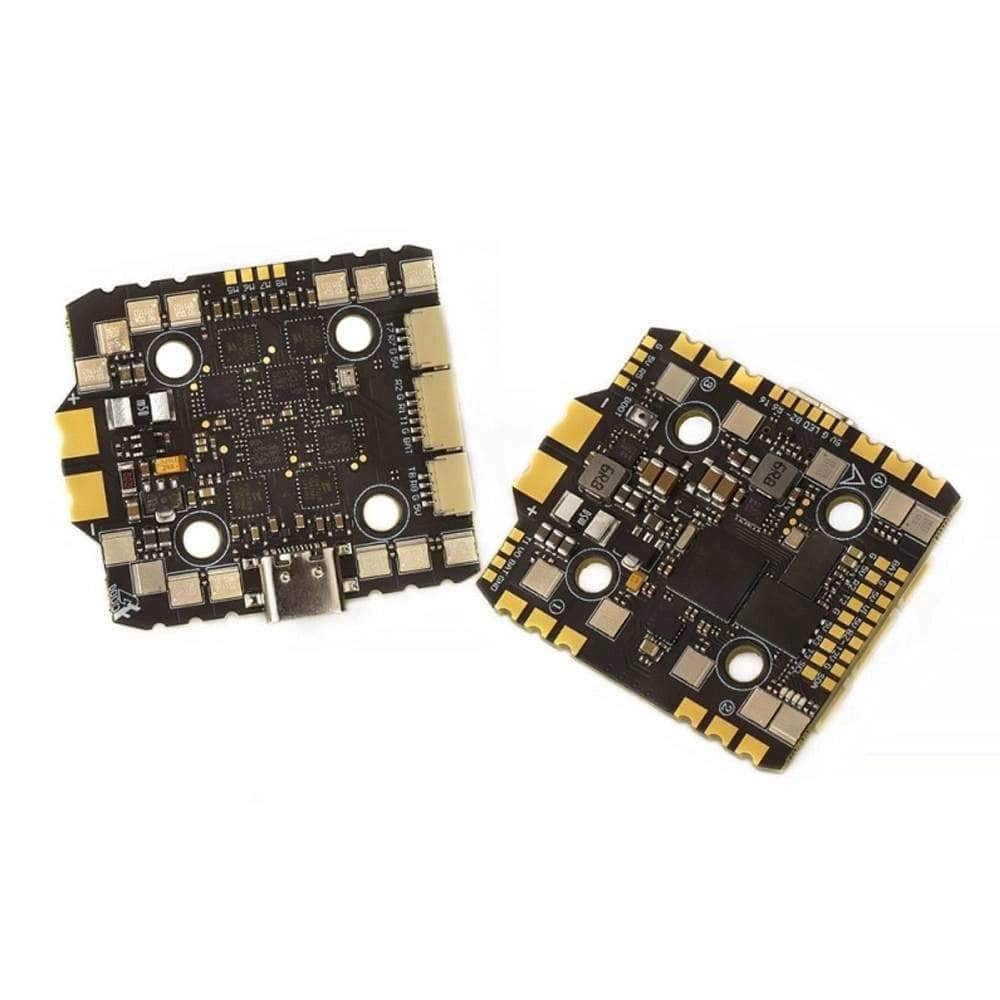

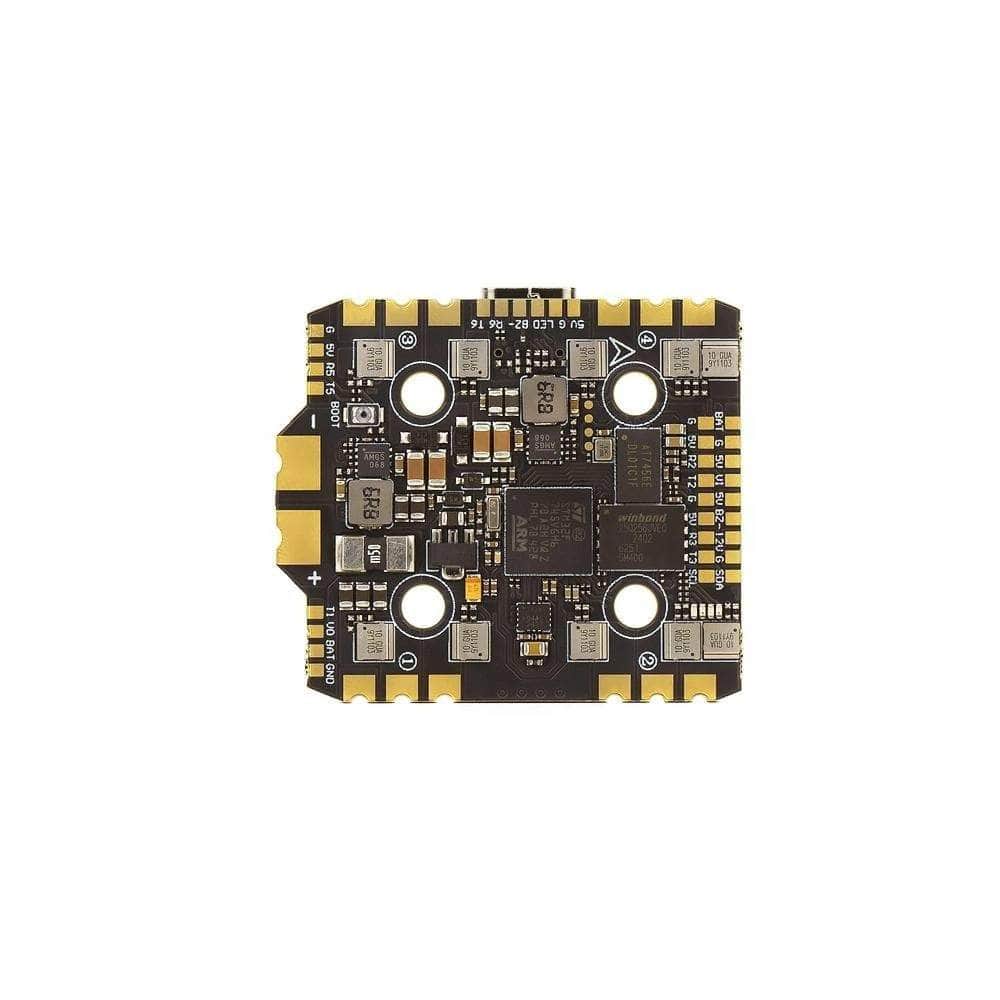

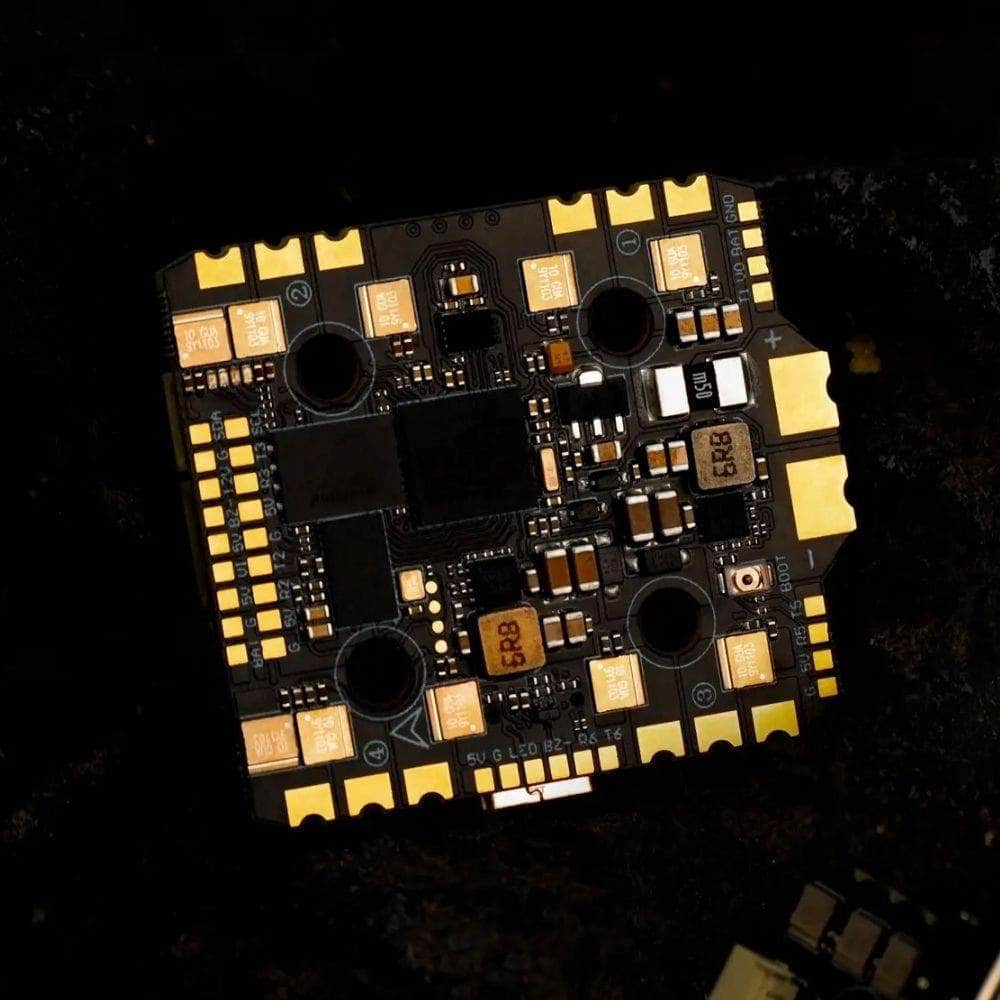

The AxisFlying Argus F745 AIO - F745 FC + 40A 4-6S AM32 ESC is a top-tier flight control system. Boasting high-quality circuit technology and 40A ESC power, this AIO ensures seamless performance. Equipped with an F745 MCU and 32M black box, it is reliable and an ideal choice for drone tuning.
Browse the rest of our Whoop AIO Boards and all our Axis Flying Products!
Feature
- Factory installed AM32 ESC firmware
- 8 Uarts
- F745 High-performance MCU
- 40A of power on an AIO
Specifications
AxisFlying F745 40A AIO Flight Controller
- FC Target: AXISFLYING F745 AIO
- DJI dedicated plug: Supported
- Barometer: Supported
- BEC: 5V / 2A(Max 3A) 12V / 2A(Max 3A)
- GPS: Supported
- Beeper: Supported
- Size: 38 x 45 x 7mm
- MCU: STM32F745
- Gyro: ICM42688P
- Uart: 8
- OSD: Supported
- LED: Supported
- Mounting: 20 x 20mm
- Weight: 14.4g
ESC
- Factory firmware: (AM32) ST_G0_06_N_G071
- Current: 40A
- Input voltage: 4-6S Lipo
- Amperage Meter: 200 Scale
Includes
- 1x AxisFlying Argus F745 AIO - F745 FC + 40A 4-6S AM32 ESC
- 1x High-Frequency 220uf/35V Capacitor
- 1x Amass XT60 Connector
- 2x 18 AWG
- 8x Silicone rubber vibration dampeners
More Info
- SKU: 23400
- Barcode: 723326374692
