Description

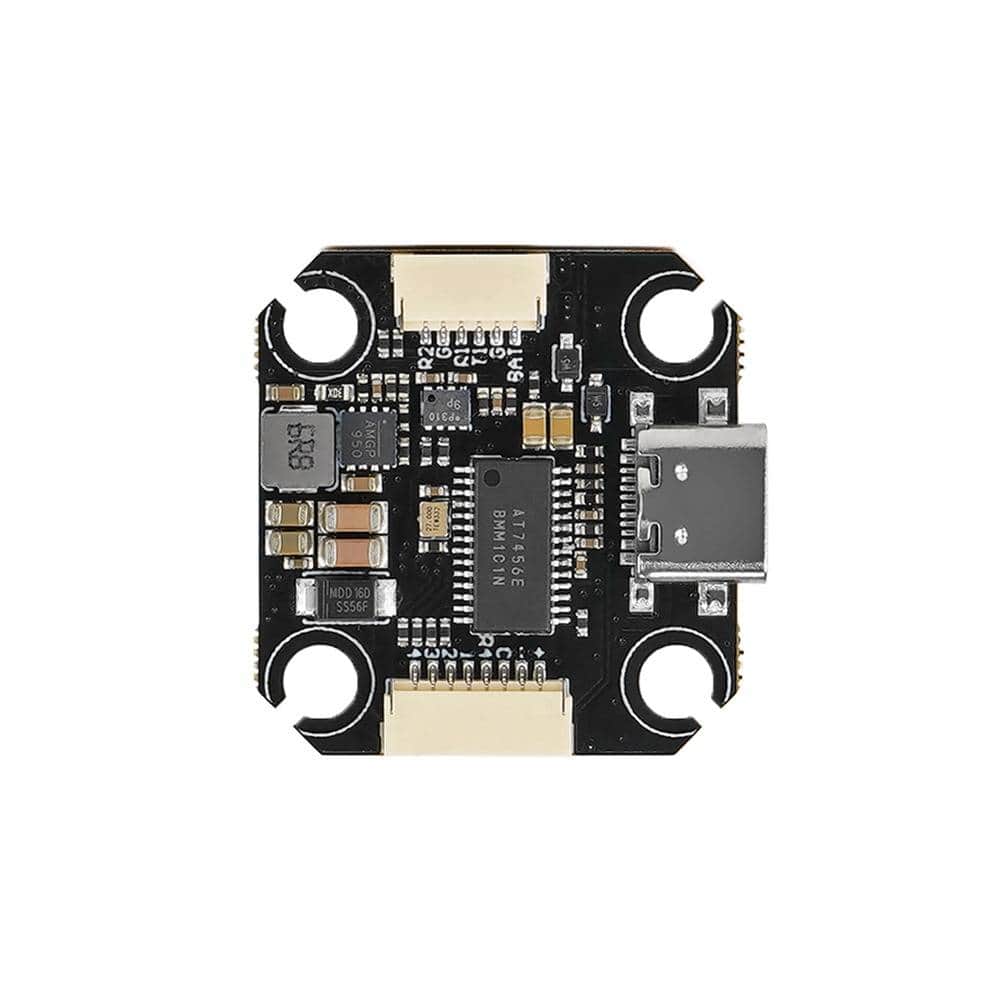

The Axisflying Argus Mini F7 is a lightweight compact flight controller specially designed for 3-5 inch Cinewhoop and tiny freestyle drones. It features high performance, small size, low weight, and perfect compatibility with analog and HD digital FPV systems.
Check out all our 20x20 FCs and all our Axis Flying Products!
Features
- High-performance processor
- 4–6S wide voltage input
- 5V 3A BEC, sufficient for cameras and peripherals
- 16MB blackbox, barometer, OSD supported
- Standard 20×20mm mounting, universal for mini frames
- Complete cable set for plug-and-play installation
Specifications
- FC Target: AXIS FLYING F7 PRO

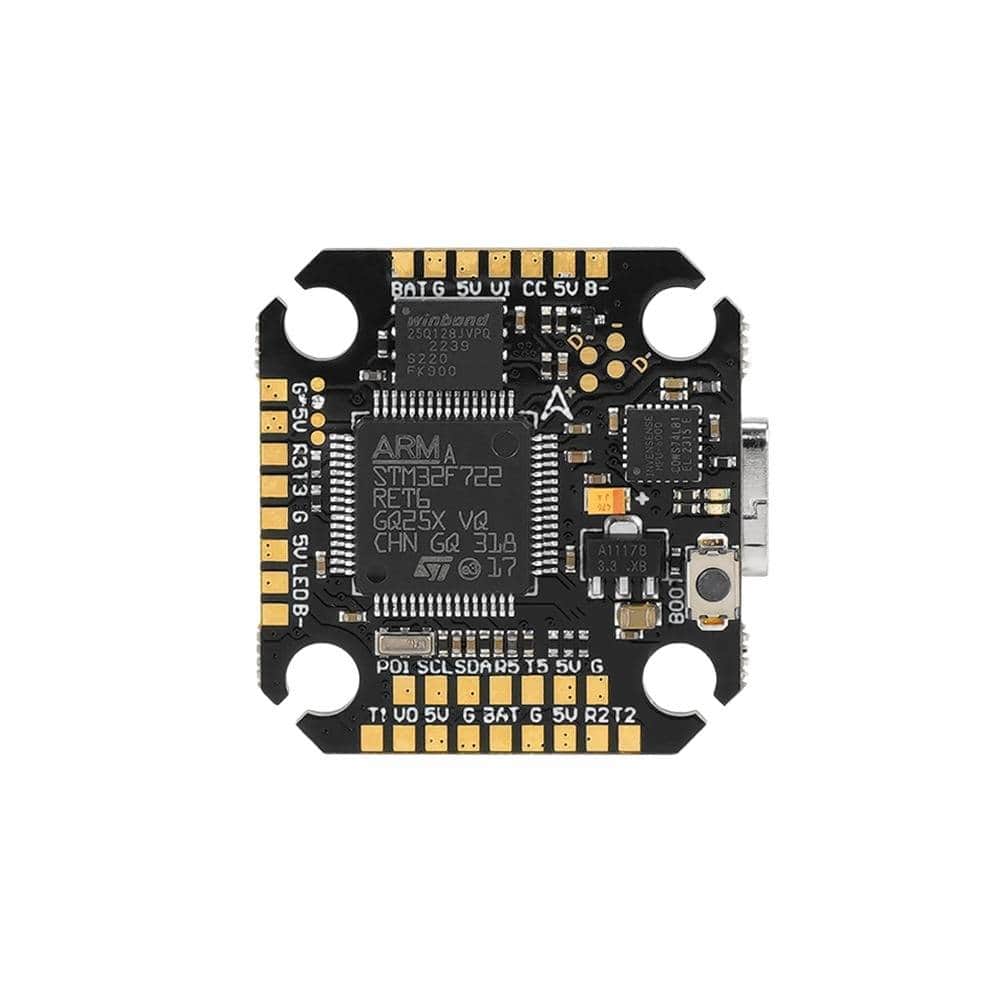

- MCU: STM32F722RET6
- Gyro: ICM-42688-P
- Input Voltage: 4-6S LiPo (14.8–26.1V)
- BEC: 5V (max 3A)
- UART: 5 sets (UART1–5)
- OSD: Supported
- Barometer: Supported
- Blackbox: 16M
- Size: 28.5×27×6.2mm
- Mount: 20×20mm (M2/M3)
- Weight: 5g
Includes
- 1x Short connection cable
- 1x Long connection cable
- 1x 35V 470uF capacitor
- 1x HD VTX cable
- 8x M2 shock-absorbing rubber rings
- 8x M3 shock-absorbing rubber rings
- 4x M2×25 screws
- 4x M3×25 screws
- 4x M2 anti-loosening nuts
- 4x M3 anti-loosening nuts
- 1x XT60 power cable
