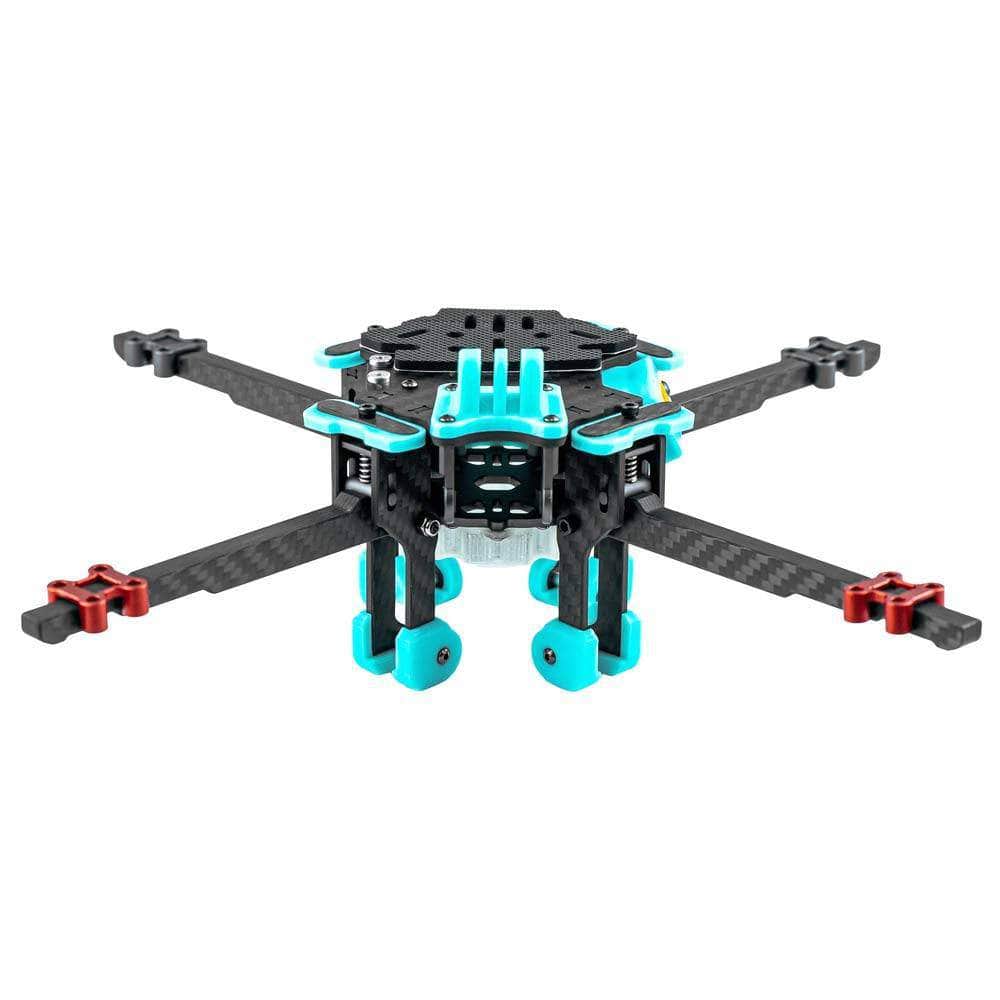

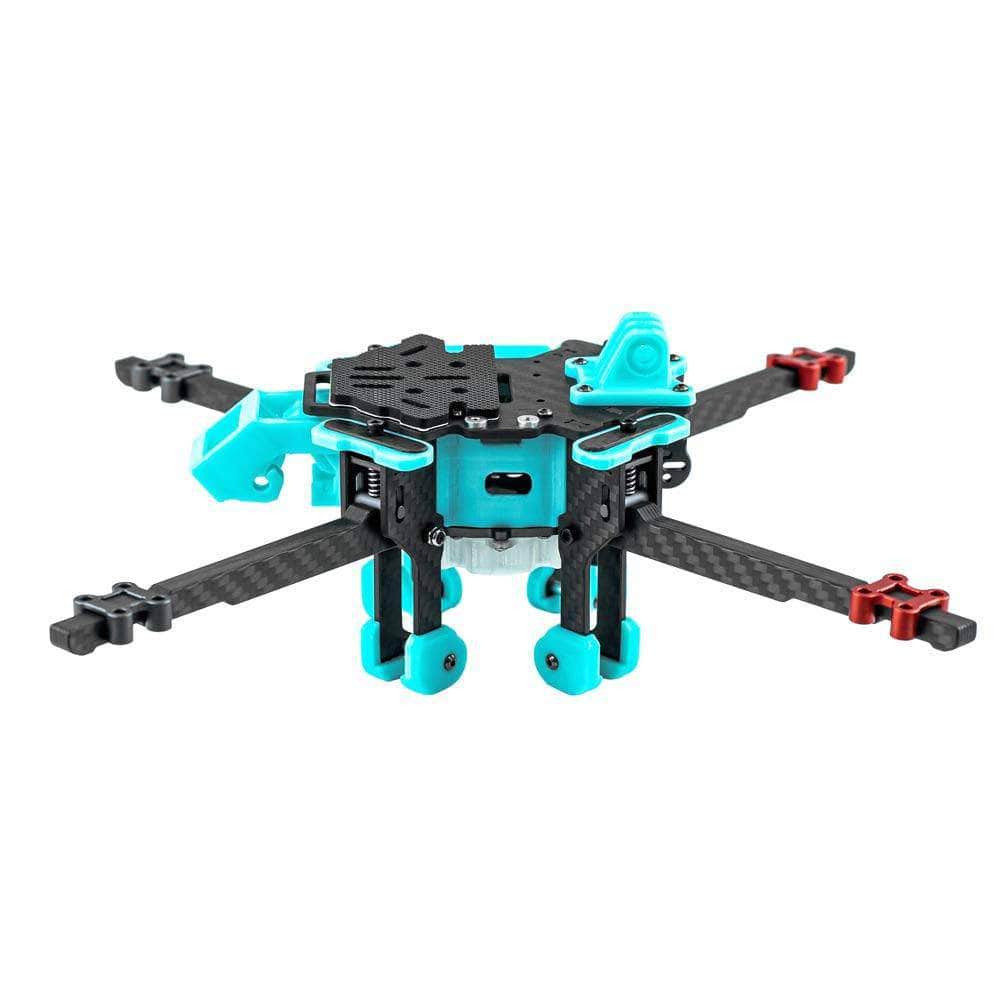

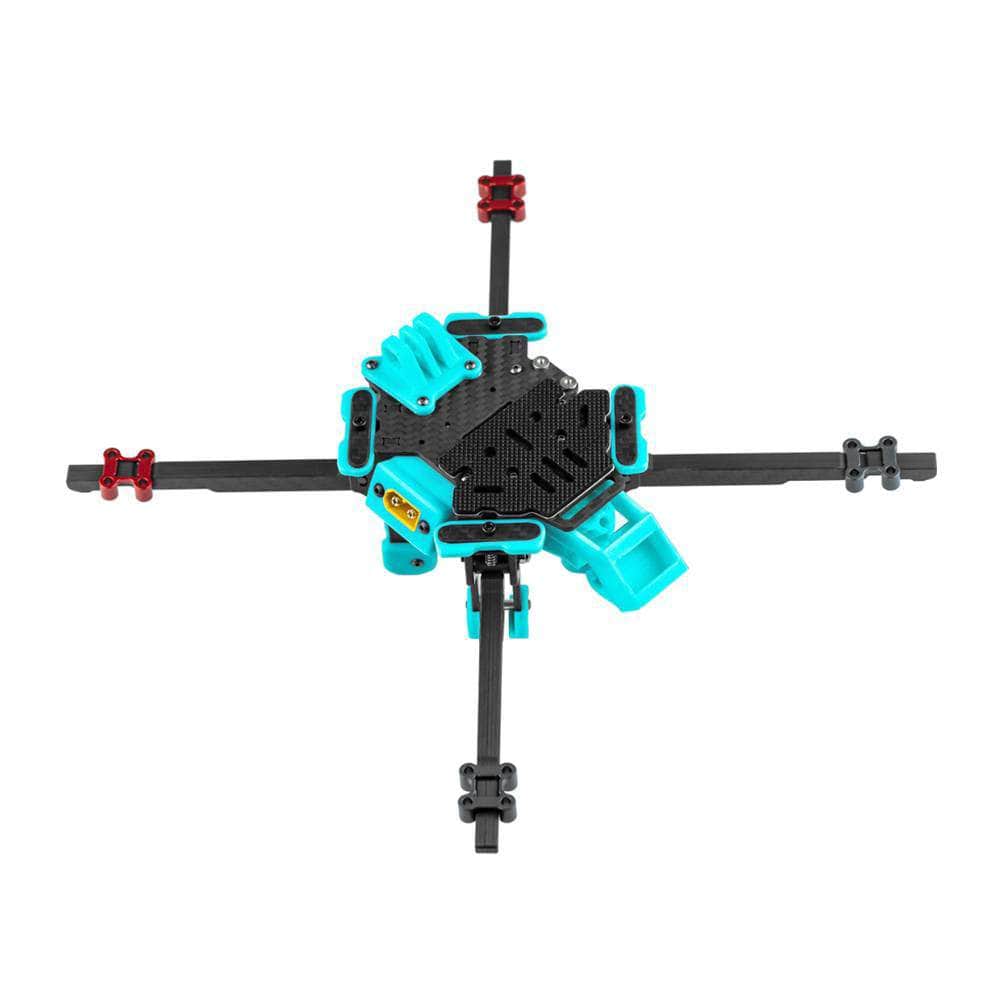

AxisFlying Kolas 6 Long Range Foldable 6" Frame Kit

The Axisflying Kolas 6 is a 6" long-range FPV frame with up to 15 minutes of flight time. Axisflying has adopted an innovative folding design with the Kolas 6, allowing for easier storage and transport! This unique frame kit also includes all 3D printed parts.

Check out all our DJI-compatible frames, electronics, and accessories and all our Axis Flying Products!

Features

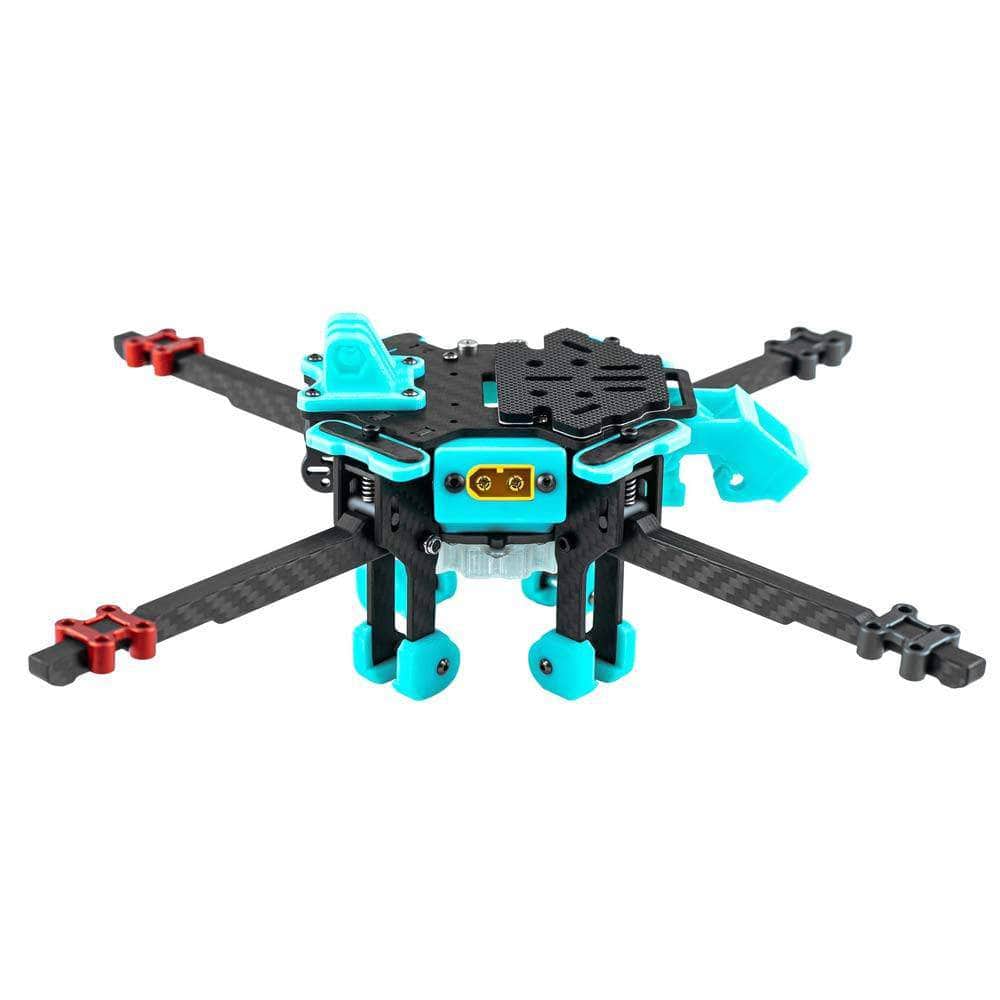

• XT60 plug on the left side of the frame for flight safety
• 25MM top to bottom distance for Caddx Vista
• Open right side design for quick tuning
• 20MM/25MM/26.5MM Mounting Holes
• Independent receiver compartment
• High-strength T700 carbon plate

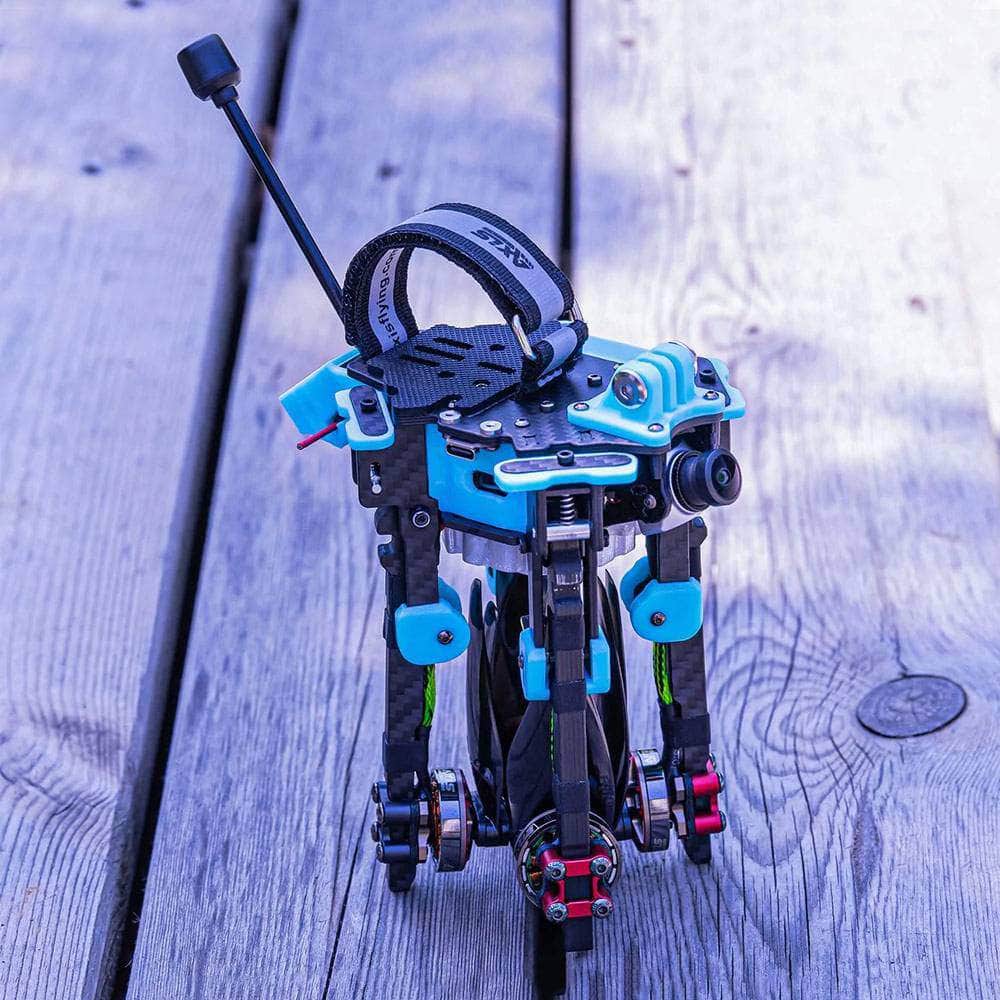

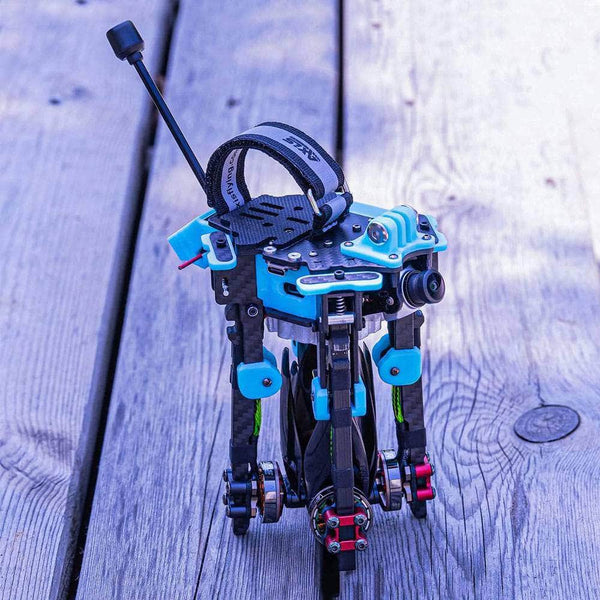

• Foldable drone for easy storage
• Ability to carry GoPro Camera
• 16x16 motor mounting holes
• Underslung navigation light
• 15 Minute flight time
• 6" Foldable arms

Specifications

• Wheelbase: 245mm
• Top plate: 2.5mm
• Bottom plate: 32.5mm
• Arm: 7.0mm
• FC mounting holes: 25.5mm x 25.5mm M2 / 20mm x 20mm M3
• VTX mounting holes: 25.5mm x 25.5mm / 20mm x 20mm
• Motor mounting holes: 16mm x 16mm
• Camera installation space: 19-20mm
• Suitable propeller size: 6″propeller
• Weight: 138g (without TPU)


Includes

• 4x Axisflying Kolas 6 Foldable 6" Arms
• 1x Battery Ant-Slip Pad
• 1x 3D Printed Parts Set
• 2x Camera Side Plates
• 1x Hardware Set
• 1x Main Plate
• 2x LiPo Strap
• 1x Top Plate
