Description

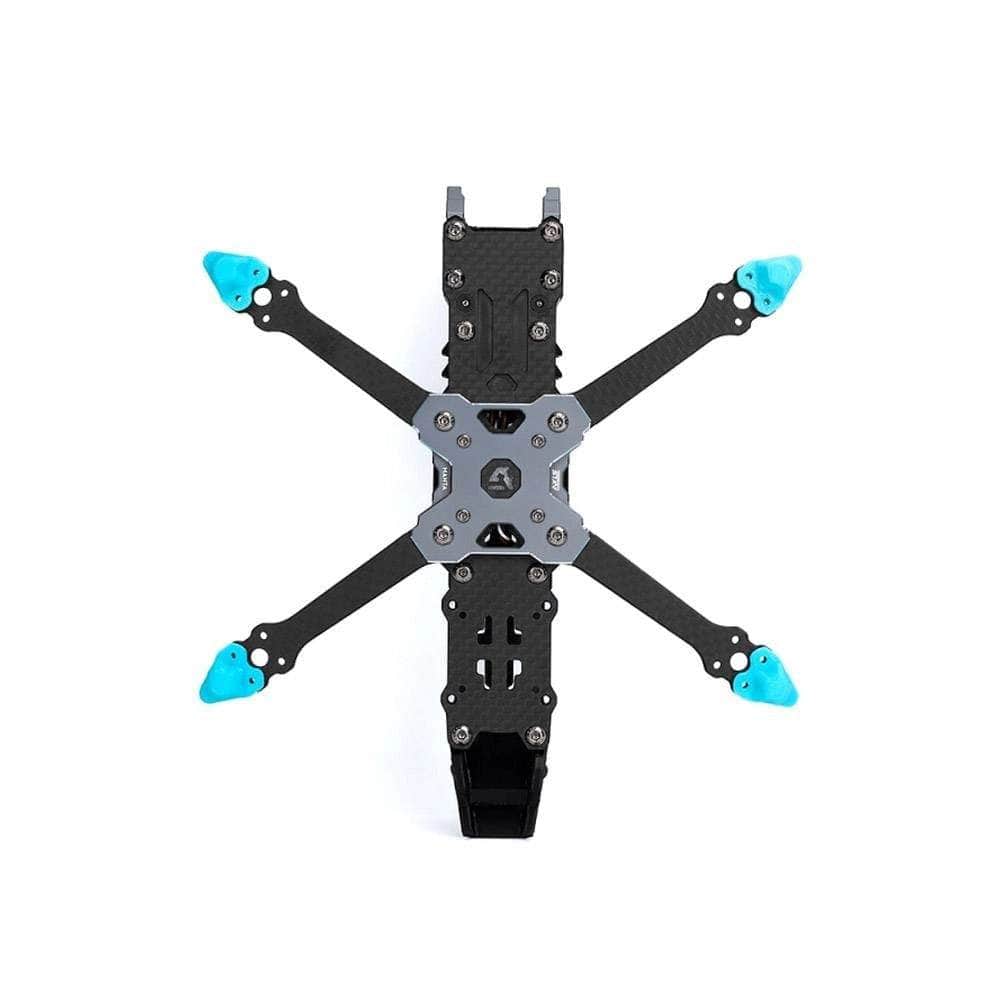

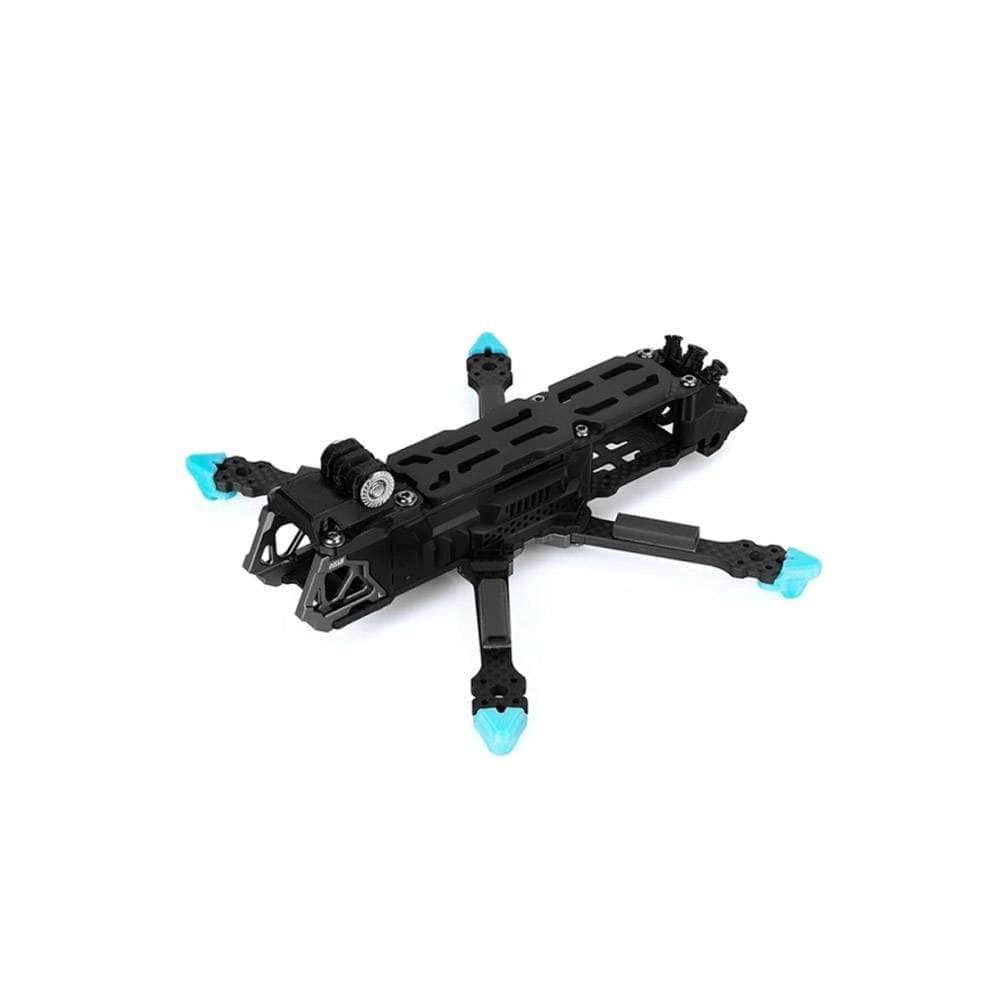

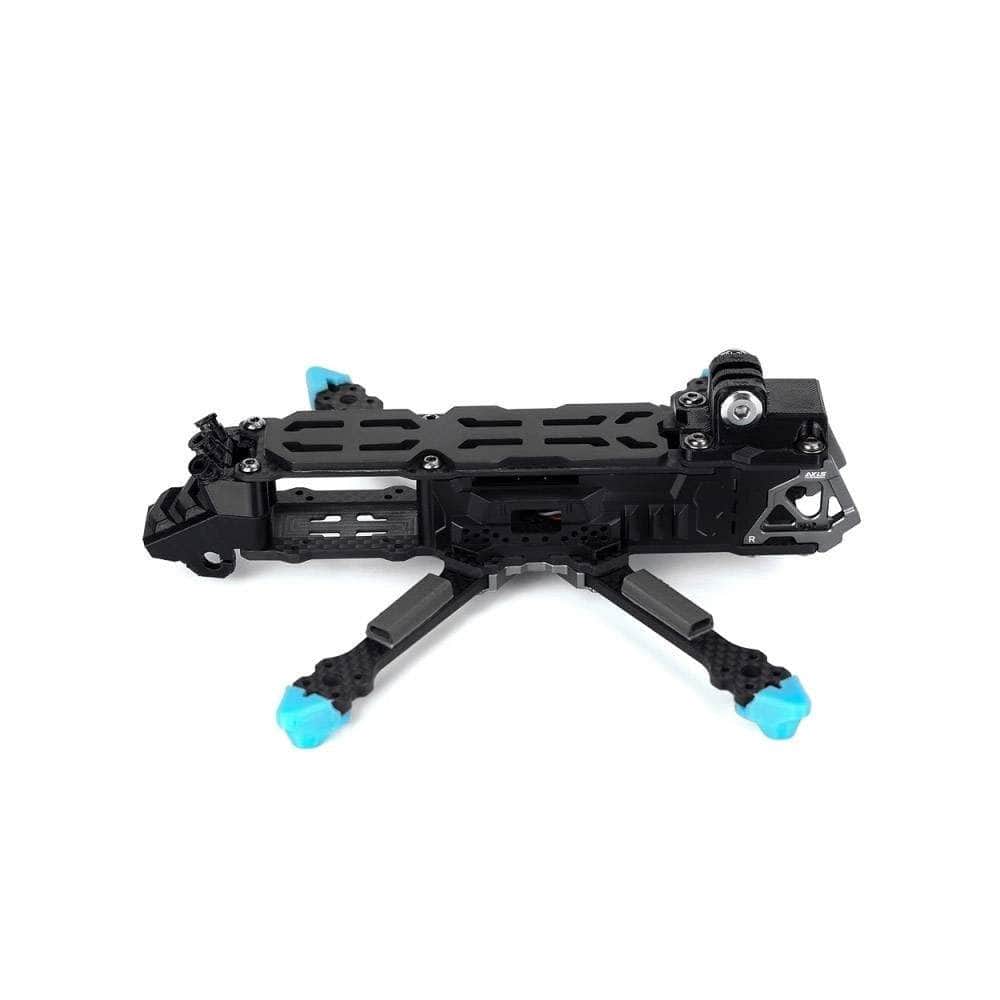

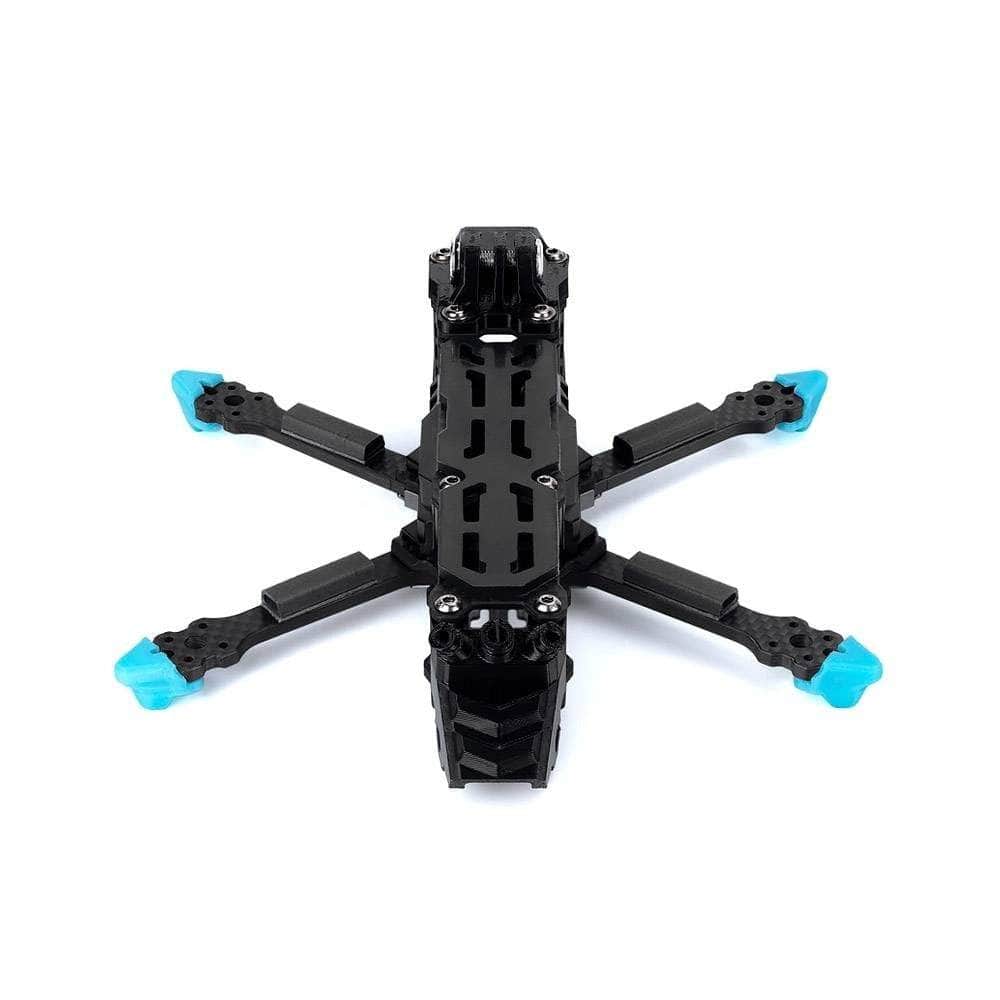

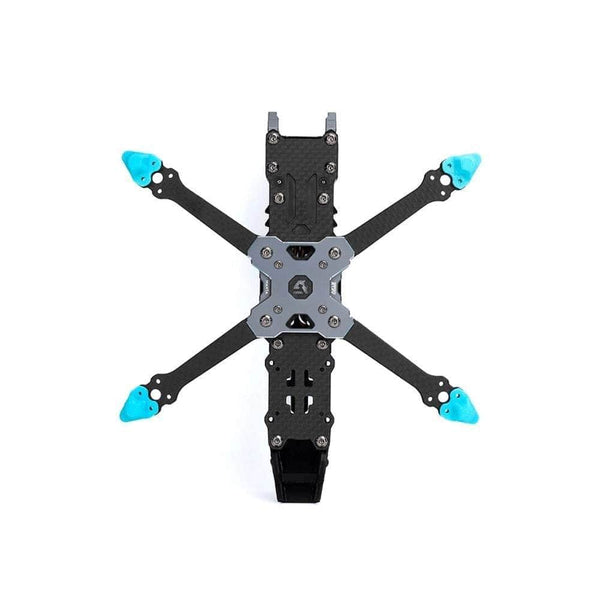

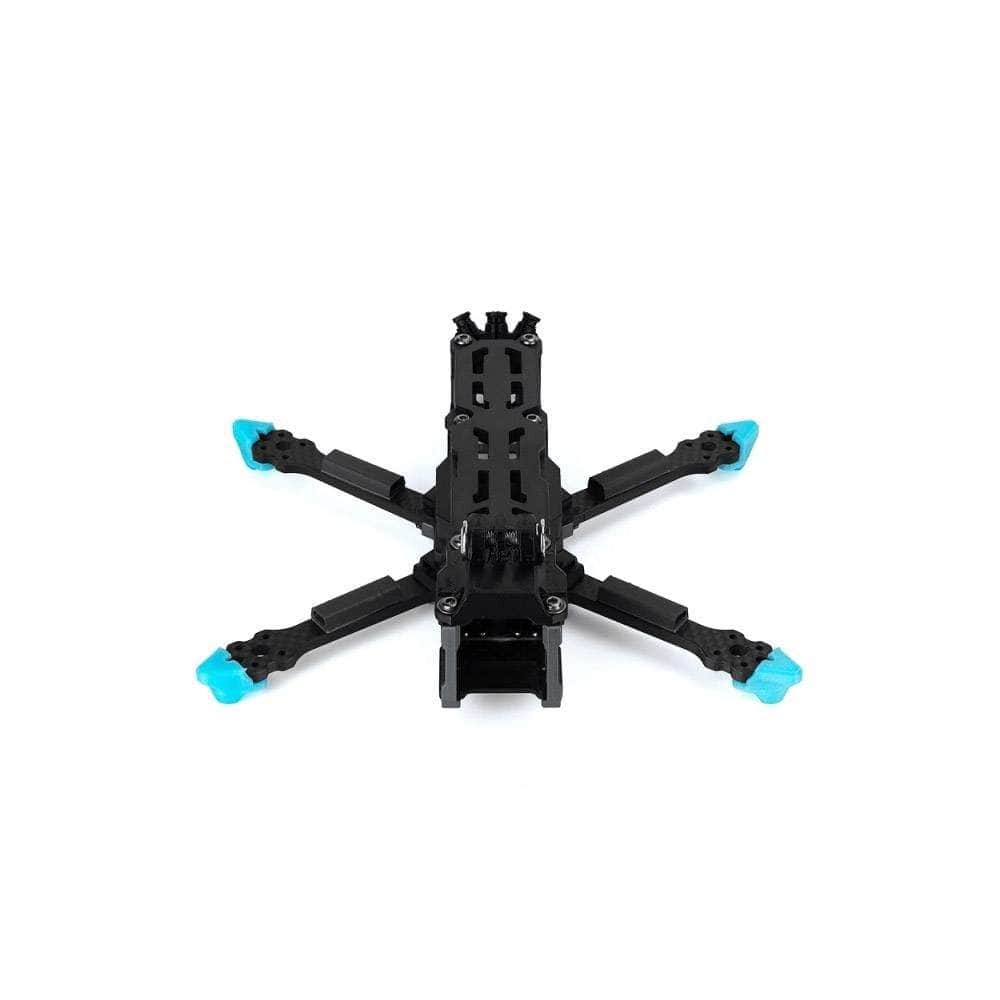

The Axisflying Manta 3.6" Frame Kit in squashed X design is here and ready to freestyle. A 162mm wheelbase and T700 carbon make for an extremely strong frame that is lightweight! It supports up to 3.6" props and has a variety of mounting options for stacks & VTXs, making it ideal for custom builds. Perfect for both fun and competitive flying.

Be sure to check out all our 3.5" frames, and all our Axis Flying Products!

Features

• Versatile Stack Mounting

• VTX Mounting Options

• Durable Construction

• Supports 3.6" Props

• Squashed X Design

• Lightweight

• Easy Setup

Specifications

• Stack Mounting: 20mm (M2) & 30.5mm (M3)

• VTX Mounting: 20mm & 25.5mm (M2)

• Motor Mounting: 12x12mm (M2)

• Bottom to Top Distance: 20mm

• Weight: 120.5g (TPU included)

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 2mm

• Prop Size: Max 3.6 inches

• Carbon Material: T700

• Structure: Squashed X

• Lens Space: 14-20mm

• Arm Thickness: 4mm

• Wheelbase: 162mm

• Name: Manta 3.6"

Includes

• 1x Axisflying Manta 3.6" Frame Kit - Squashed X

• 1x 1.5/30mm Screwdriver

• 2x Battery Straps

• 1x Hardware Set
