Description

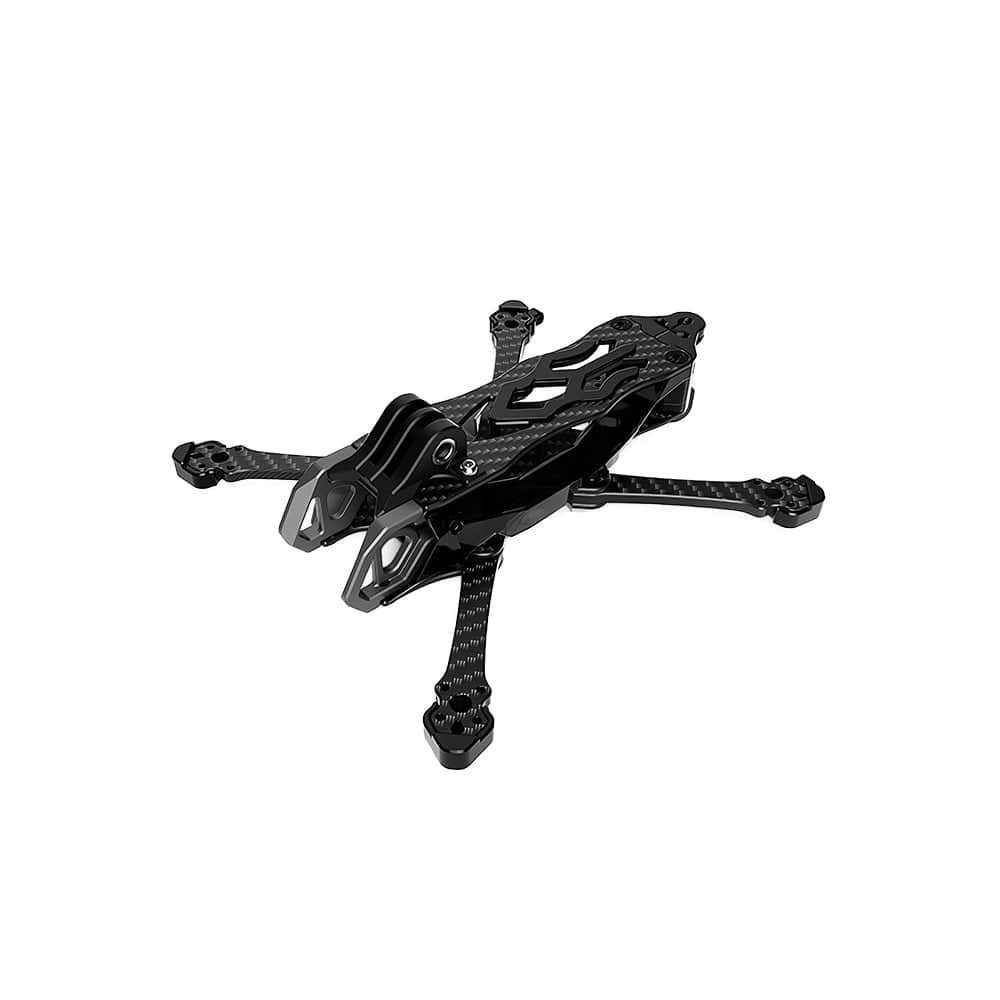

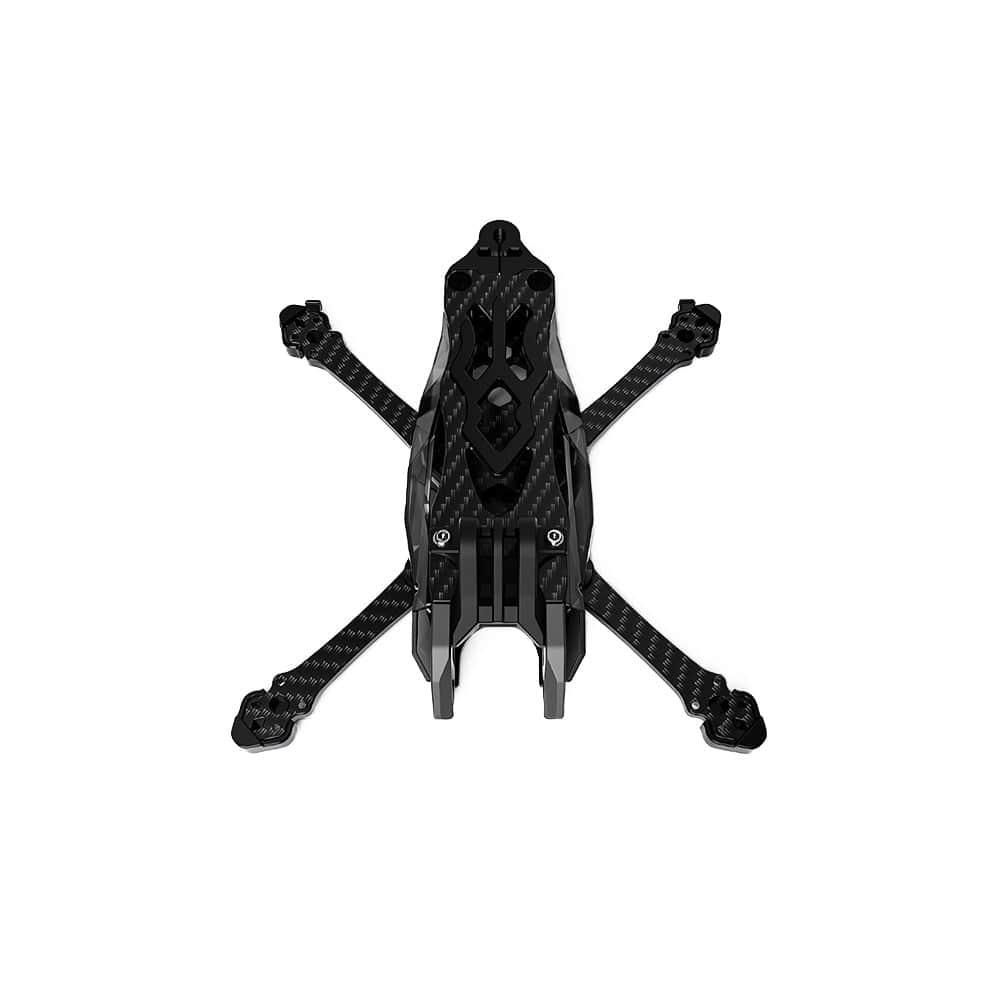

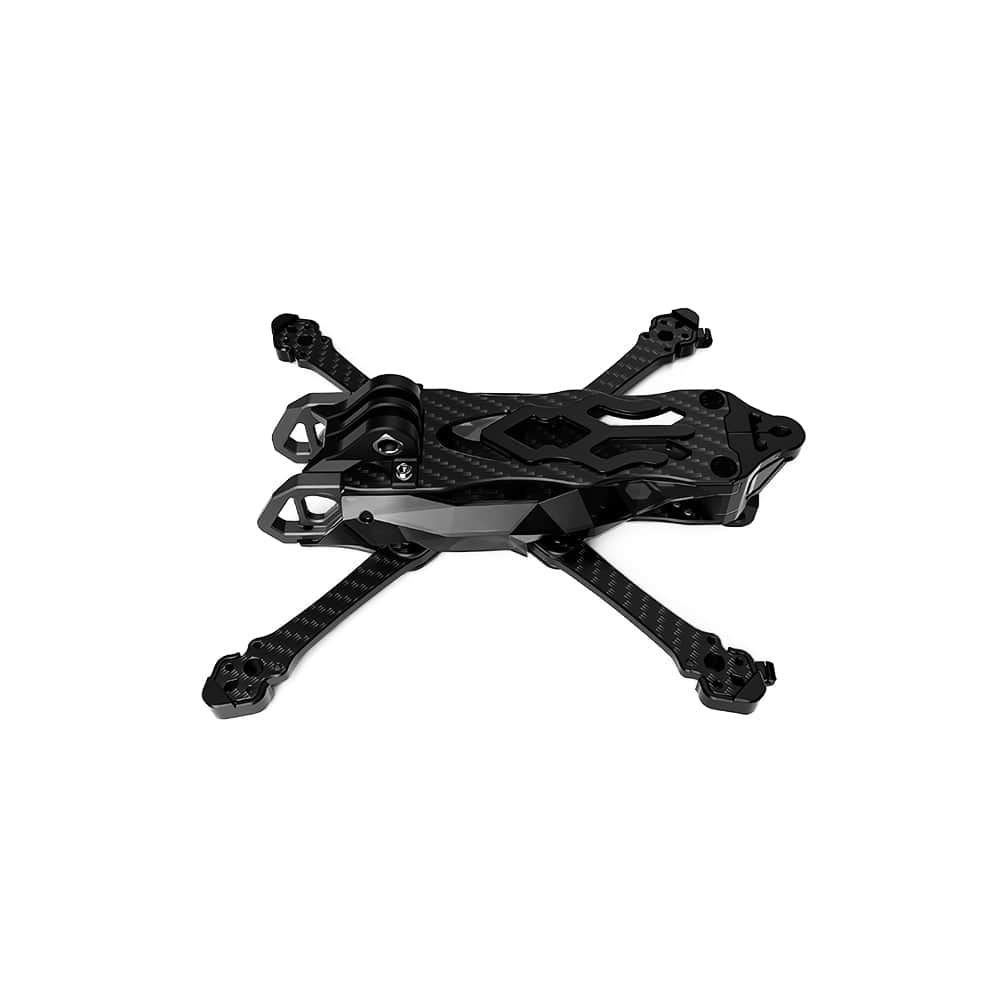

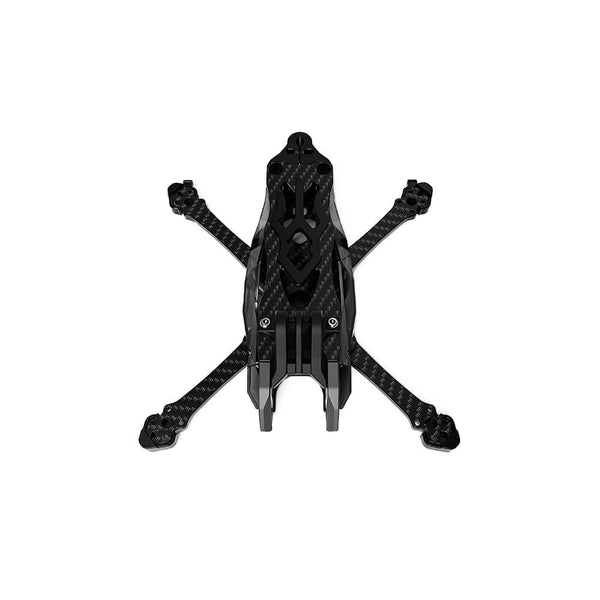

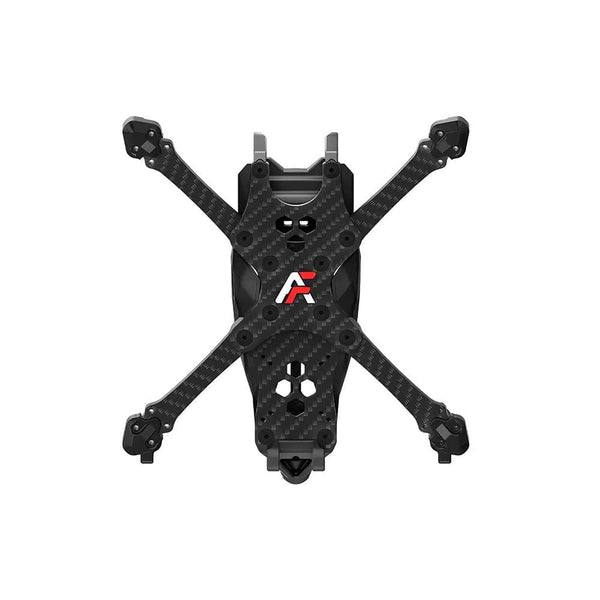

Build a compact powerhouse with the Axisflying MANTA 30 3" Frame Kit, a high-strength 3-inch FPV frame designed for the most demanding freestyle pilots. This frame features incredibly robust 4mm carbon fiber arms and a unique M3 motor mounting system for unparalleled durability. Optimized for modern, high-power 6S components and the latest DJI O4 digital FPV system, the MANTA 30 is a compact beast.

Check out our other 3" frames as well as our Axis Flying Products!

Features

• High-Strength T700 Carbon
• Protective Side Plates
• DJI O4 Ready
• Versatile Component Mounting
• Optimized for 6S Power

Specifications

• Wheelbase: 160mm
• Arm Thickness: 4mm
• Top Plate Thickness: 2mm
• Middle Plate Thickness: 2mm
• Bottom Plate Thickness: 2mm
• Max Prop Size: 3 inch
• FC Mounting: 20mm×20mm (M3)
• VTX Mounting: 25.5mm & 30.5mm
• Motor Mounting: 12mm×12mm (M3)

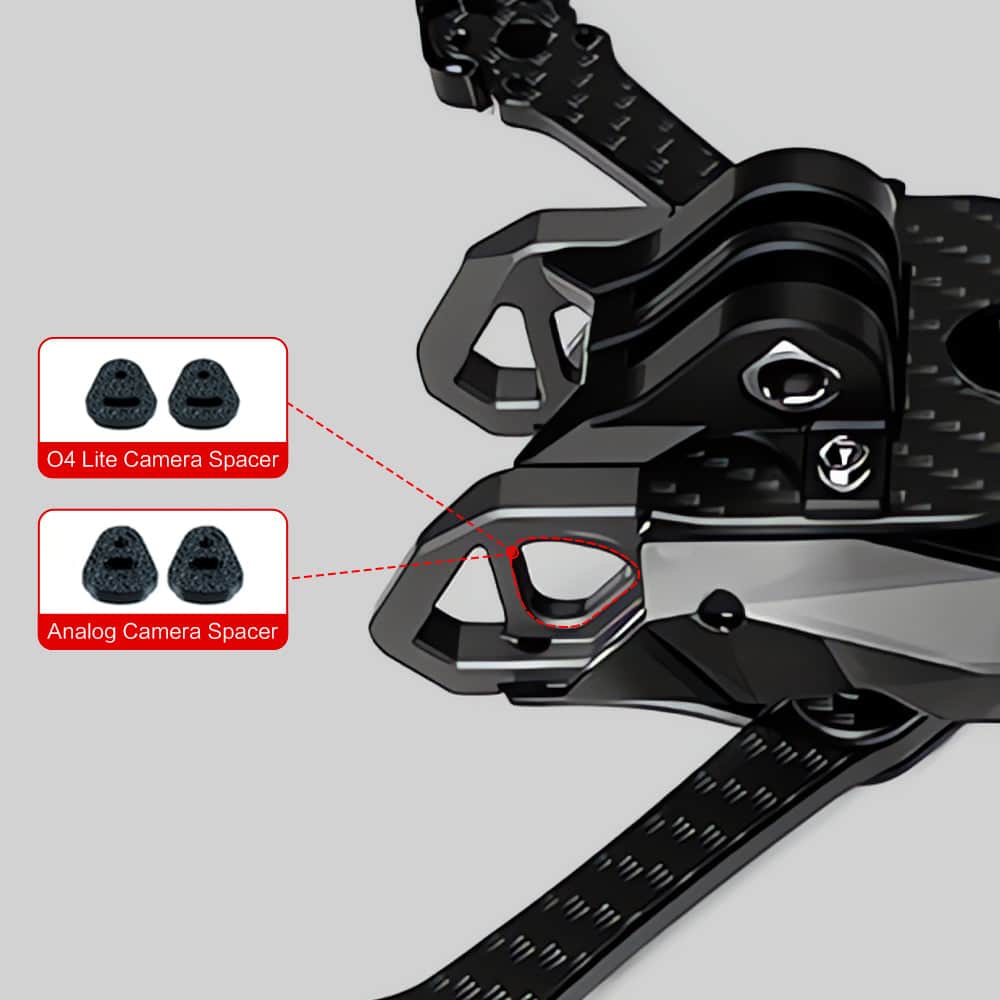

• Camera Installation: 19−20mm
• Weight: 86.5g

Includes

• 1x Axisflying MANTA 30 3" Frame Kit
• 1x Hardware Kit
