Description

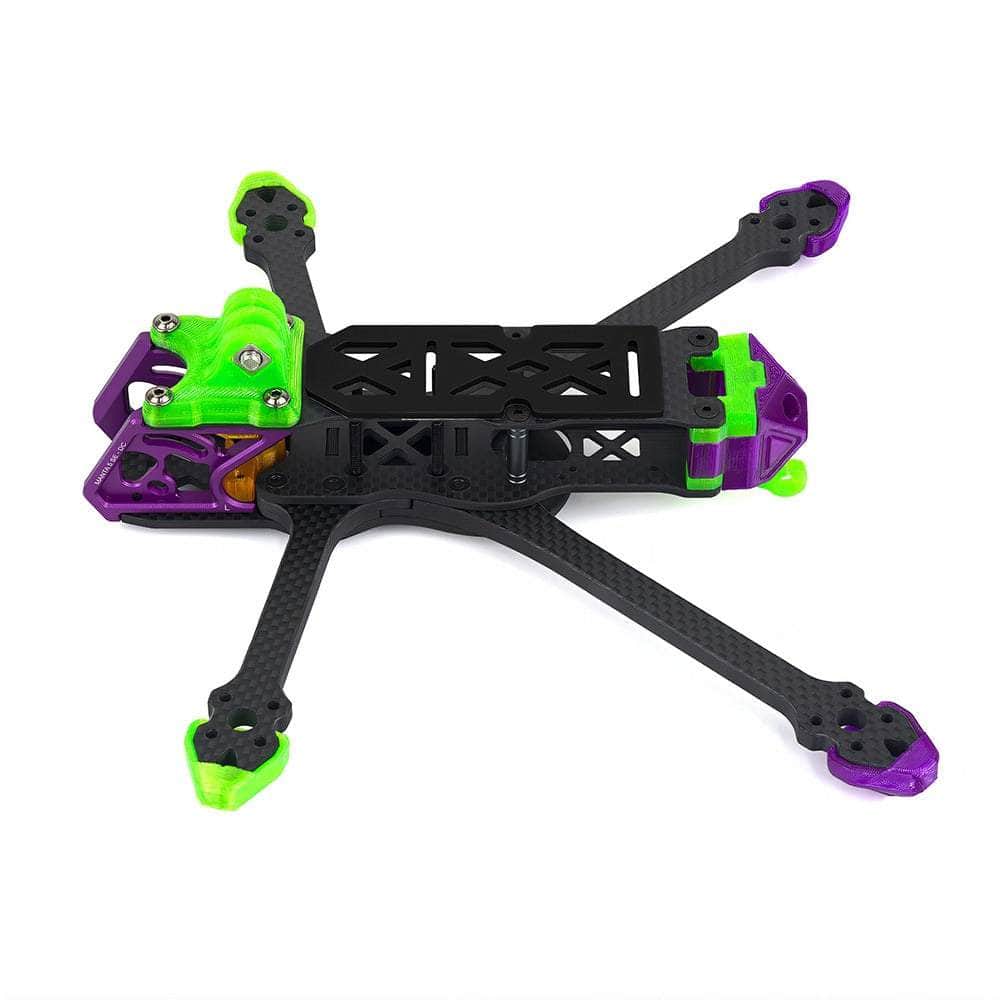

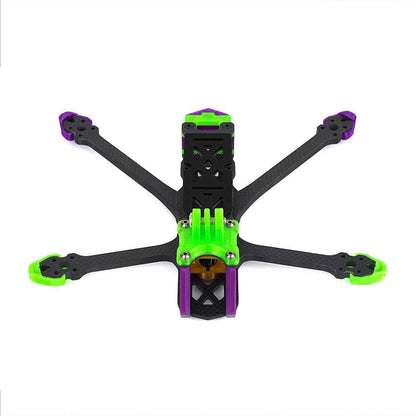

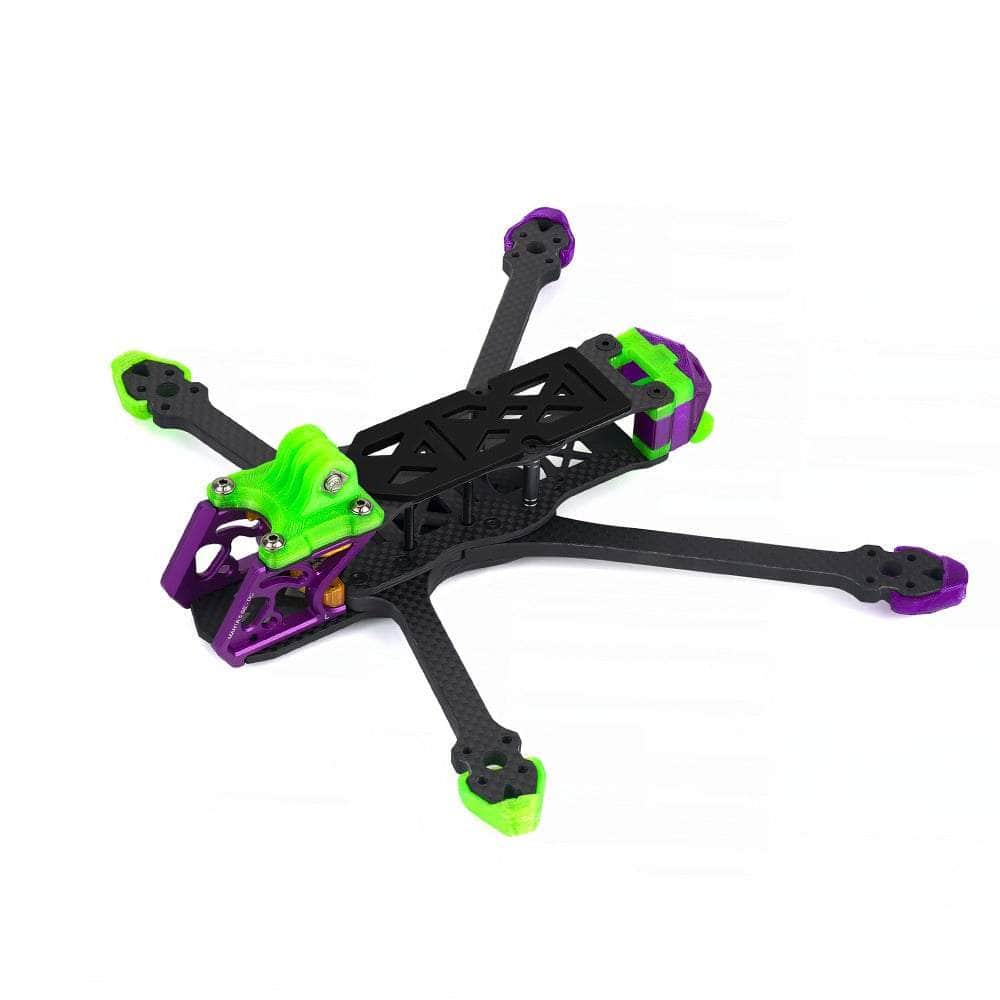

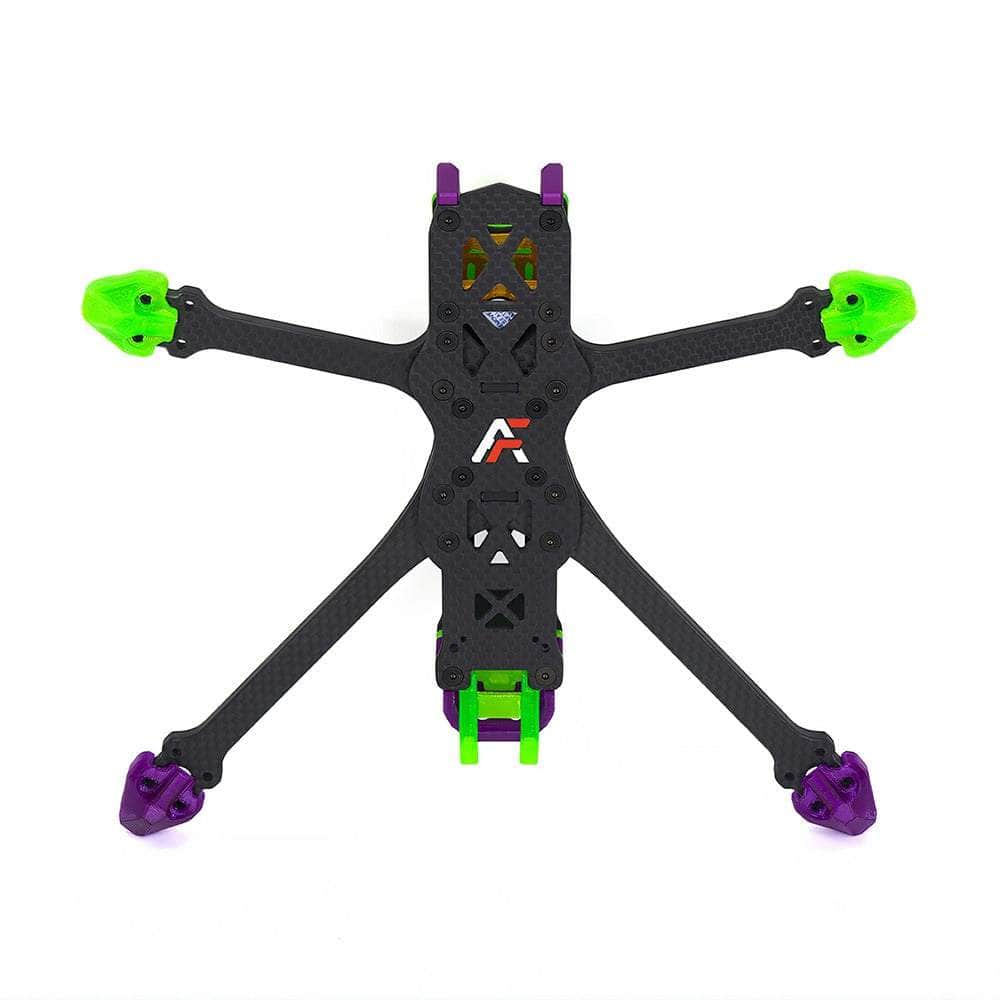

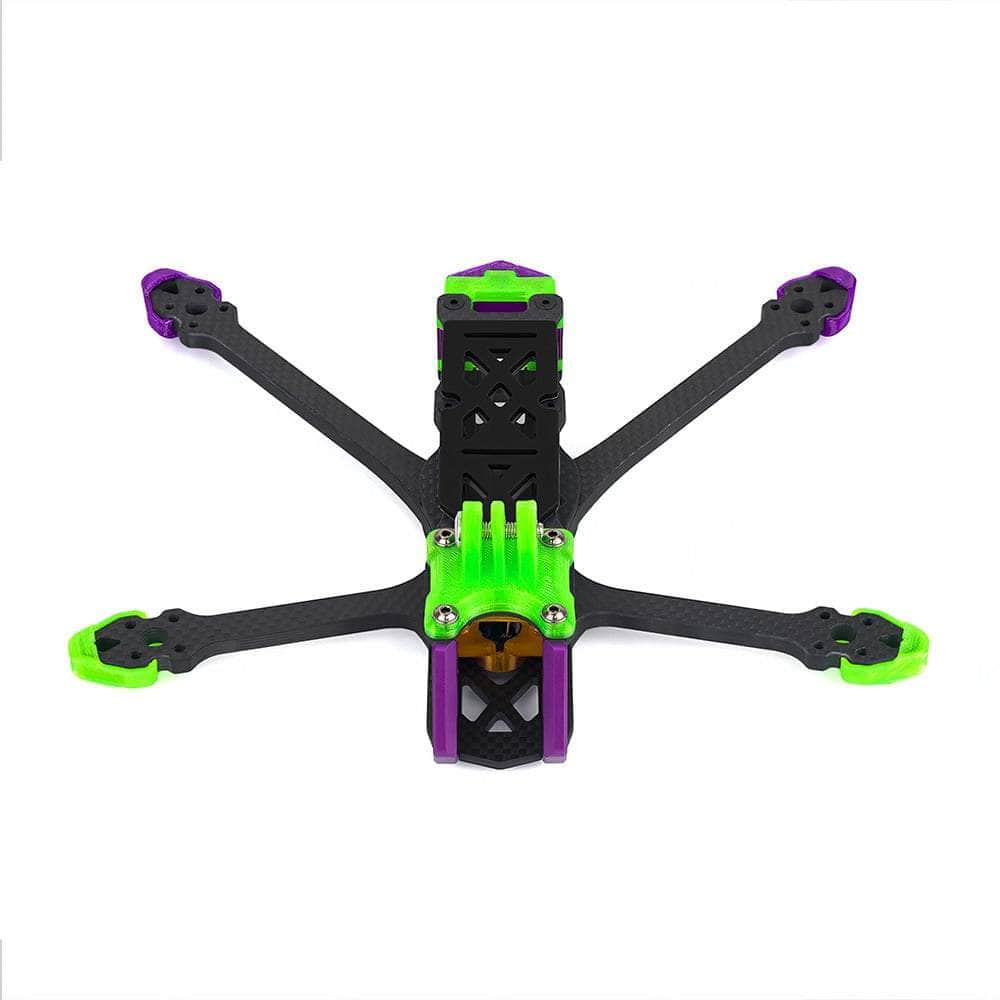

The Axisflying Manta 5 SE DC Frame Kit is a lightweight, durable frame designed for serious pilots who demand strength, balance, and precision. Built from high-quality T700 carbon fiber with aluminum alloy parts, it combines rigidity and vibration reduction for smoother flights. With a versatile design supporting 20mm and 30.5mm flight stacks, multiple camera sizes, and easy installation, the Manta 5 SE is both beginner-friendly and competition-ready. At just 179g, it delivers a strong foundation for building a powerful and agile quad.

Check out our other 5" frames, and all our Axis Flying Products!

Features

• Strong Carbon Fiber Construction
• Supports 2207 / 2306 motors
• 6S LiPo battery compatible
• clear installation layout
• Reinforced aluminum parts
• Multiple Camera Support
• Multiple stack options
• Lightweight design
• Easy assembly

Specifications

• Product Name: Manta 5 SE DC
• Wheelbase: 226mm
• Top Plate Thickness: 3mm
• Bottom Plate Thickness: 3mm
• Arm Thickness: 6mm
• Carbon Material: T700
• Weight: 179g (including printed parts)
• Frame Geometry: DC (Dual Column)
• Max Stack Height: 20mm
• FC Mounting: 20mm × 20mm / 30.5mm × 30.5mm
• VTX Mounting: 20mm × 20mm / 25mm × 25mm
• Camera Mounting: 19mm / 20mm / 22mm
• Motor Mounting: 16mm / 19mm (5-inch props supported)
• Recommended Motor: 2207 / 2306 series
• Recommended Battery: 6S 1150–1300mAh
• Recommended Stack: Axisflying F7/22 60A ECO

Includes

• 1x Axisflying Manta 5 SE DC Frame Kit
• 2x Battery Straps
• 1x Hardware Kit
