Details
Description

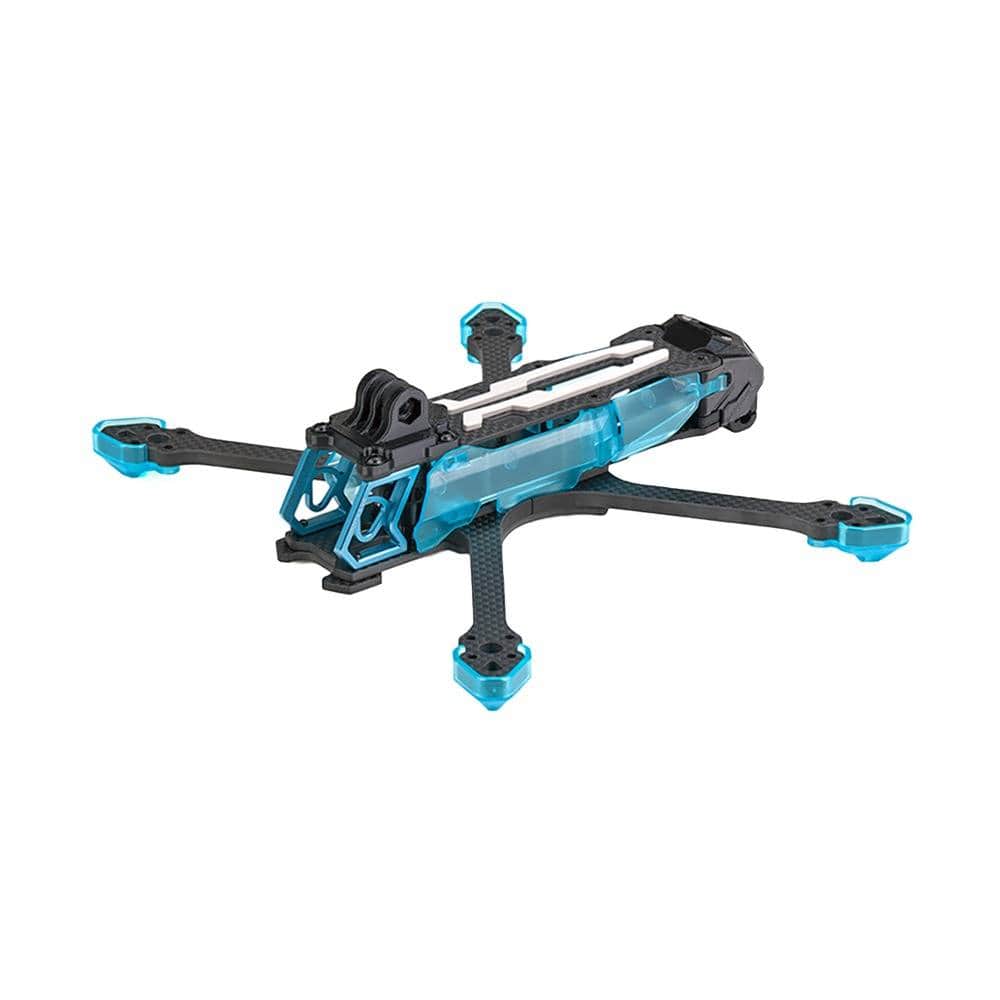

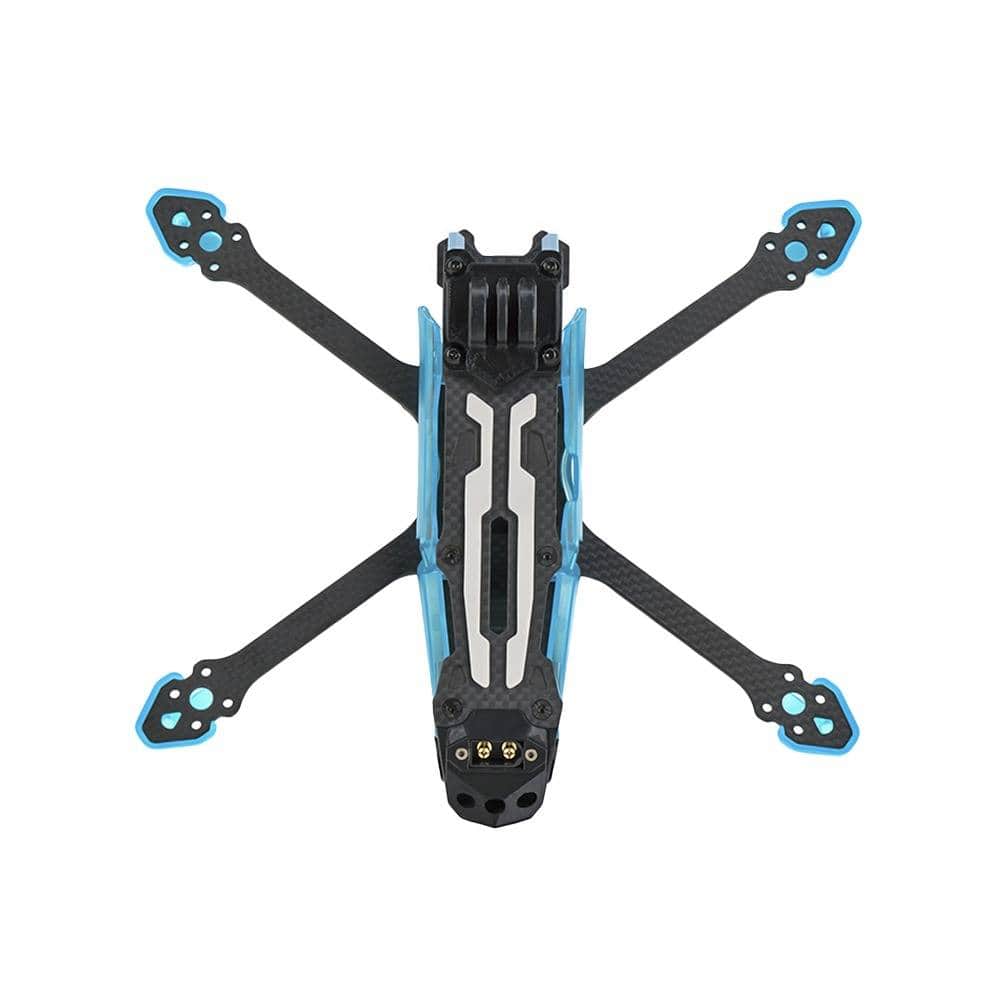

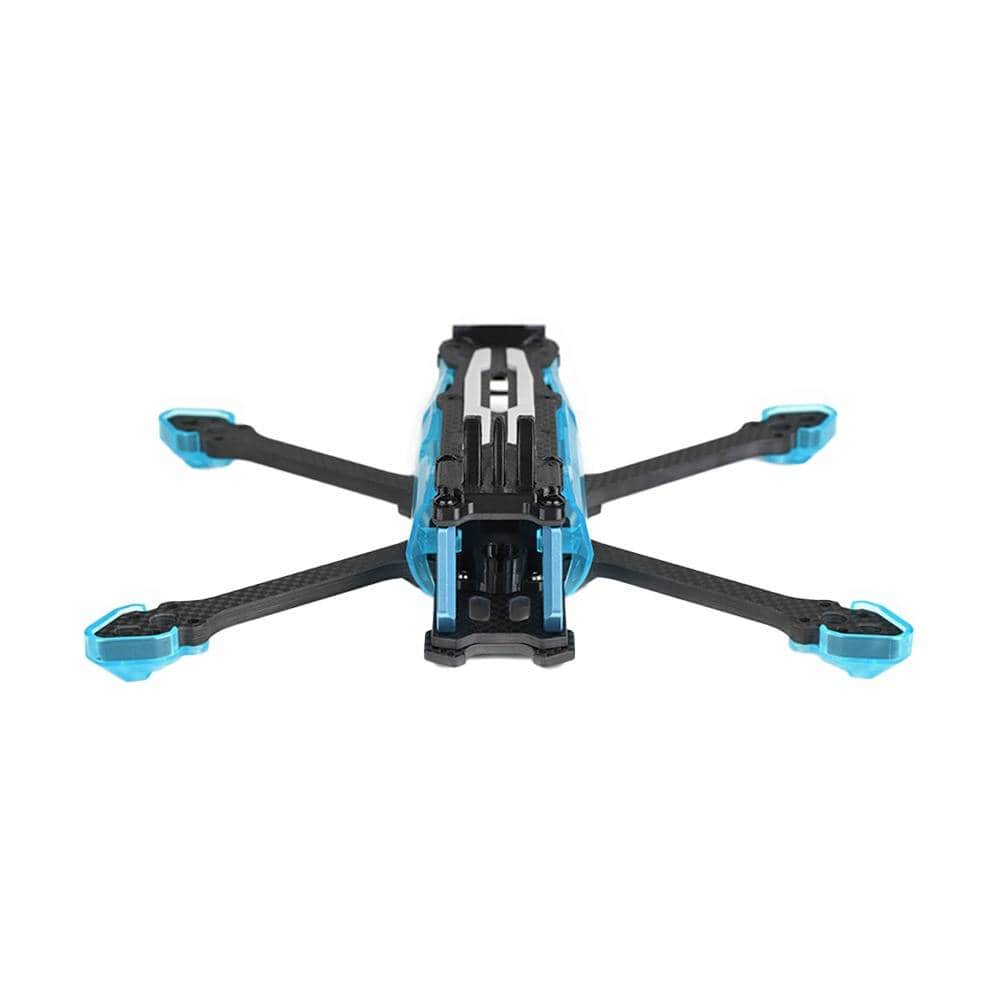

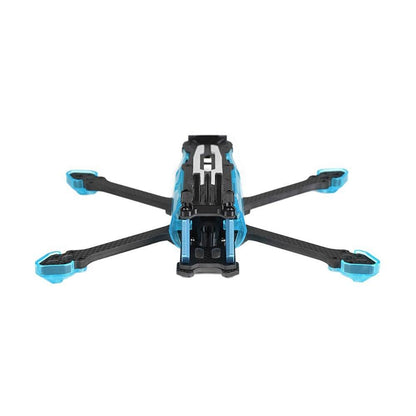

The updated Axisflying Manta 5 SE V2 Frame Kit is a lightweight, durable frame designed for serious pilots who demand strength, balance, and precision. Built from high-quality T700 carbon fiber with injection-molded parts, it combines rigidity and vibration reduction for smoother flights. The Manta 5 SE V2's versatile design supports 20mm and 30.5mm flight stacks, multiple camera sizes, and easy installation.
Check out our other 5" frames, and all our Axis Flying Products!
Features
- Strong T700 carbon fiber construction
- 6S LiPo battery compatible
- Reinforced aluminum parts
- Lightweight design
- Easy assembly
Specifications
- Product Name: Manta 5 SE V2 Squashed X Frame
- Wheelbase: 223mm
- Top Plate Thickness: 2mm
- Center Plate Thickness: 2mm
- Bottom Plate Thickness: 3mm
- Arm Thickness: 5.5mm
- Carbon Material: T700
- Weight: ~155g (including printouts)
- Max Stack Height: 20mm
- FC Mounting: 20mm × 20mm / 30.5mm × 30.5mm
- VTX Mounting: 20mm × 20mm / 25mm × 25mm
- Camera Mounting: 14mm-20mm
- Motor Mounting: 16mm × 16mm
- Recommended Motor: AE2505 1750KV 6S
- Recommended Battery: 1050–1550mAh 6S LiHV/LiPo
LinksIncludes

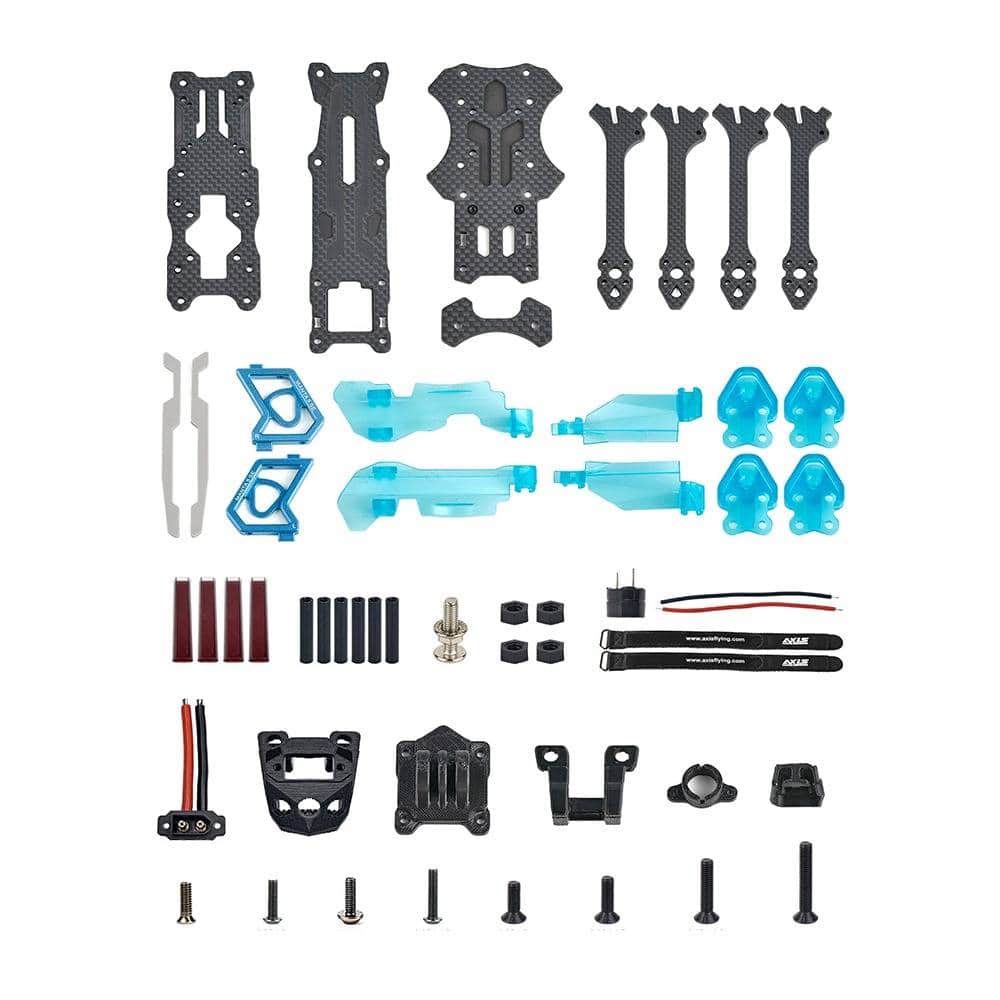

- 1x Axisflying Manta 5 SE V2 Squashed X Frame Kit
- 2x Battery Straps
- 1x Hardware Kit
More Info
- SKU: G24273CN1Z
- Barcode: 723326380389
