Axisflying Manta HD O3 Deadcat 5" Frame Kit

Original price $73.89 - Original price $73.89
Original price
$73.89
$73.89 - $73.89
Current price $73.89
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

The Axisflying Manta HD O3 Deadcat 5" Frame Kit is designed with the user in mind, addressing common pain points to enhance the overall experience. This deadcat frame is crafted with precision CNC aluminum parts and premium carbon plates, setting it apart in the industry with its unique and innovative design. It comes with an LED light for the bottom, all the prints you need, and an XT60 that mounts into the top plate.

Check out our other 5" frames, and all our Axis Flying Products!

Features

  • The frame adopts the innovative CNC aluminum structure design with a high-strength carbon plate making the overall structure very strong, stable & safe.

  • The stack mounting is compatible with 20x20mm and 30.5x30.5mm, which can cover all types of stacks on the market. The VTX mounting is compatible with the movable M2 (20x20mm) and M3 (30.5x30.5mm), which can cover all analog VTX types and HD VTXs

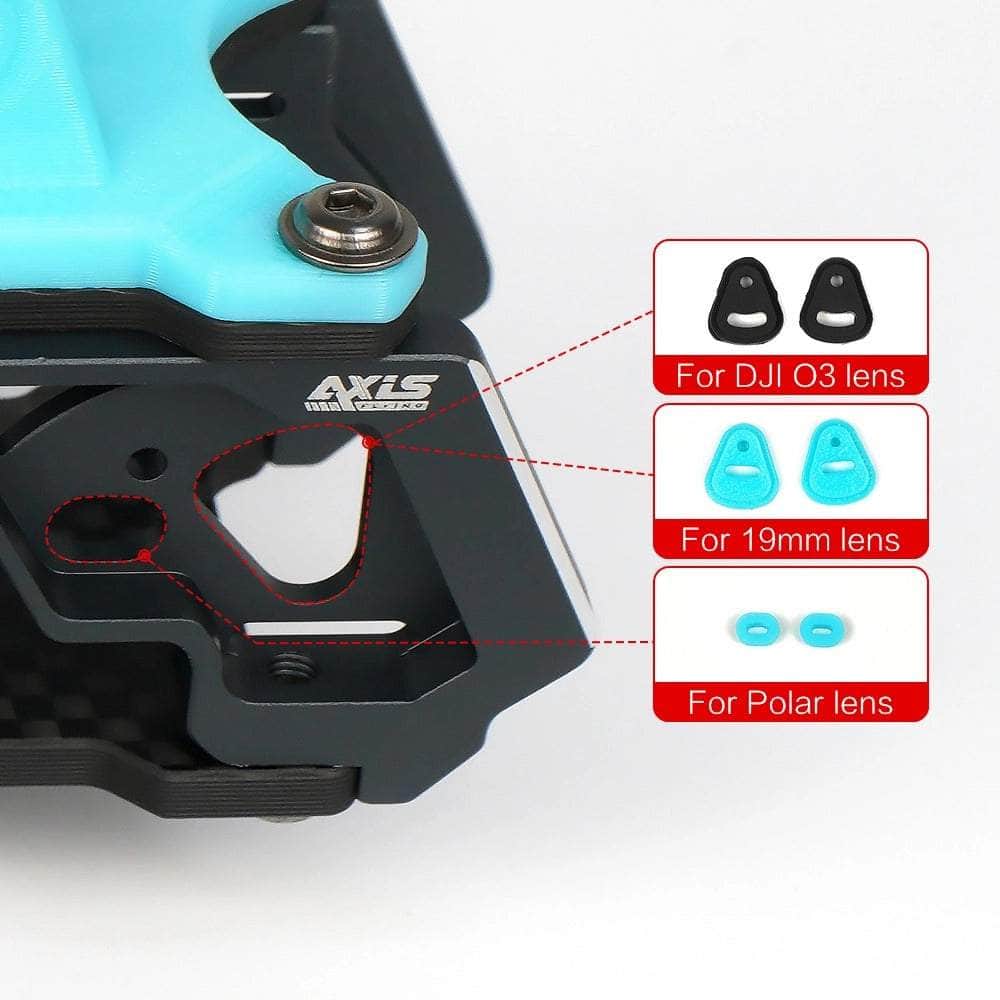

  • The frame is compatible with 19-20mm wide FPV camera, and the aluminum side plates can effectively protect the camera

  • The motor mounting holes are 16x16mm

  • 4.9″-5.1″ Freestyle propellers are recommended

Axisflying MANTA5" / 5inch fpv freestyle DeadCat-DC type frame kit  MANTA 5" DC frame kit cinematic drone,cinewhoop drone,longrange drone,freestyle drone,fpv drone,fpv quads,5inch freestyle drone,6inch freestyle drone,7inch longrange drone,5inch quads,6inch quads,7inch LR quads,7" fpv drone,7" fpv quads,7" longrange quads,6" cinematic quads,6" freestyle quads,6" longrange quads,DJI O3,DC FRAME

Specifications

  • Carbon Fiber: T700
  • Props: Max 5.1inch
  • Motor Bolt Pattern: 16x16mm
  • Name:  Manta 5"
  • Structure: DC
  • Wheelbase: 229mm
  • Bottom plate: 3mm
  • Top Plate 2.5mm
  • Bottom to top distance: 25mm
  • Weight:  180g (plus or minus 5g)
  • Prop size: Max 5.1"
  • VTX mounting: M2 20/25.5mm & M3 30.5mm
  • Motor Mounting: 16x16mm
  • Stack Mounting: M3 20mm/30.5mm
  • Lens space: 14~20mm

 Includes

  • 1x Axisflying Manta HD O3 Deadcat 5" Frame Kit
>
