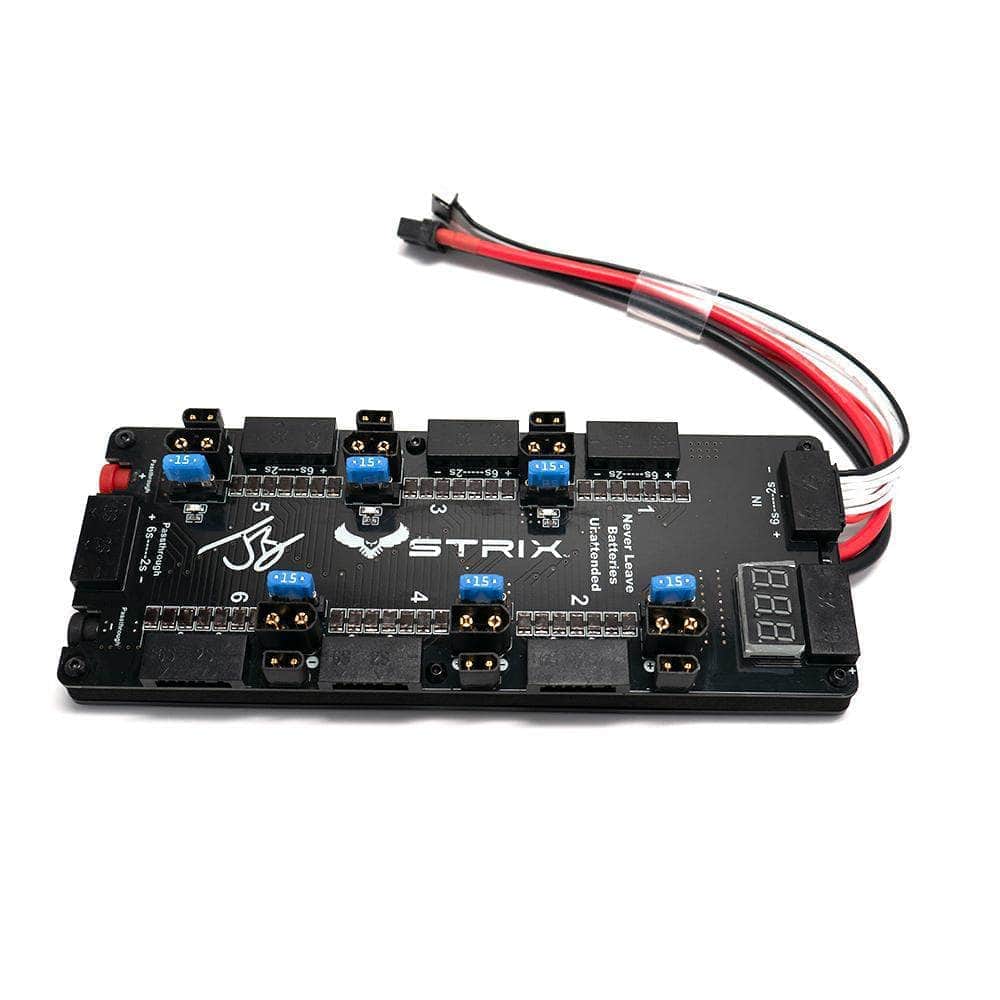

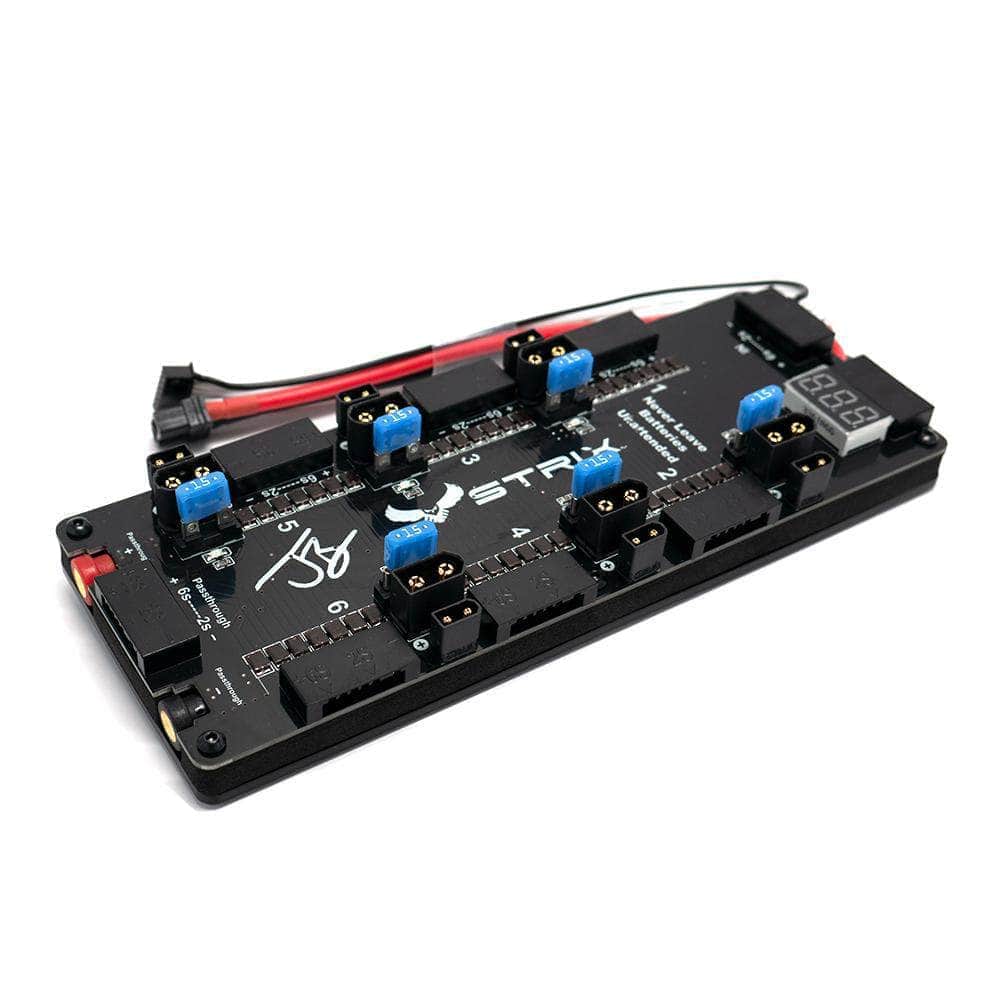

STRIX Ultimate Joshua Bardwell 2-6S XT30 / XT60 Parallel Charging Board - JB Signature Line
The Bardwell parallel charging line just got a whole lot sweeter. Now with one board, you can charge batteries from 2-6S with either XT30 or XT60 connection, all with just one board! This upgraded design keeps the main key features from the other boards and turns it into something for everyone.

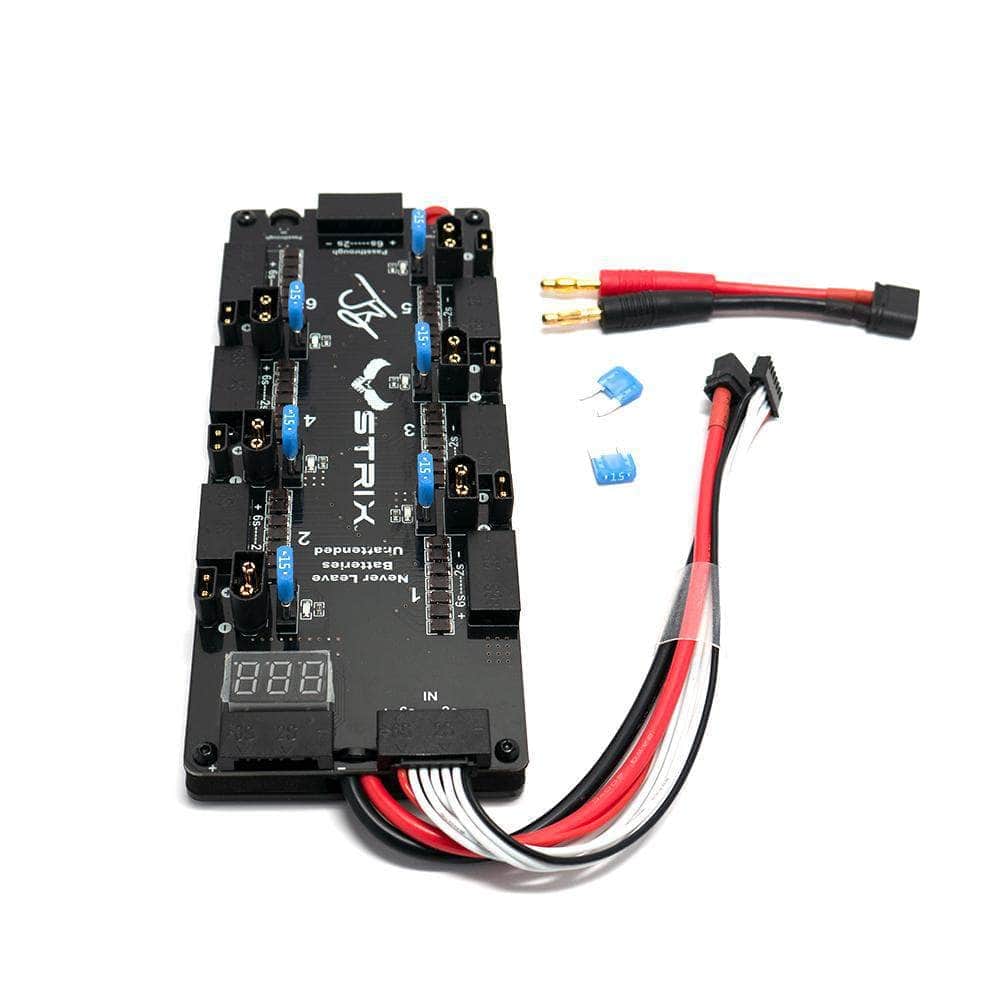

This board's main power lead comes equipped with an XT60 connector, which is handy for chargers like ISDT. It also comes with an adapter to go from XT60 back to traditional 4mm banana style. Safety is a major concern for any form of parallel charging. Checking each cell of every single battery before connecting them together is extremely important! If you see a cell's voltage that is not like the rest, do not charge it with the others in parallel! To help with this, we have added a cell checker at the top of the board. You need to check them one at a time before plugging them all into the board, however. We have also provided replaceable fuses between the main power leads to aid in preventing surges from one pack to another. For example, we suggest only parallel charging packs that are within roughly 0.1 volts per cell, or 0.4 volts for a 4S pack. So a pack that is at 15.0 volts total would be safe to charge with another pack that was 15.4 volts or 14.6 volts. The same logic holds true for 5S and 6S batteries.
Check out our other Battery Chargers and Accessories!
Specifications
- Input Power Connector: XT60 Male housing, Female Bullets with 12AWG wire
- Also includes 4mm banana adapter
- Charge Connector: 6x XT60 and XT30 male housing, Male Bullets
- Fuse: 15A automotive (removable without de-soldering)
- Balance Connector: 6x XH 2-6s Connectors
- Dimensions: 203x79.5x30mm
- Maximum Current: 70A Total (Needs to use more than 4 ports)
Includes
- 1x Bardwell 6S Parallel Charging Board 2.0 - JB Signature Line
