Description

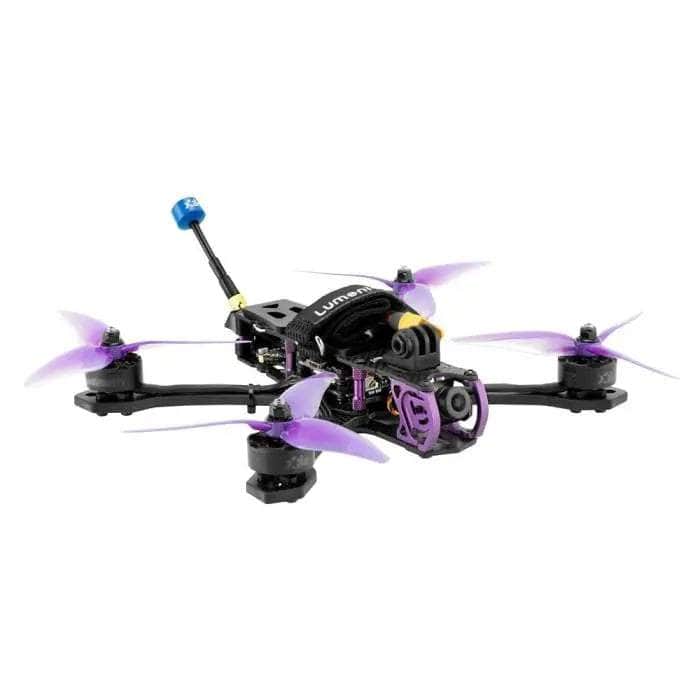

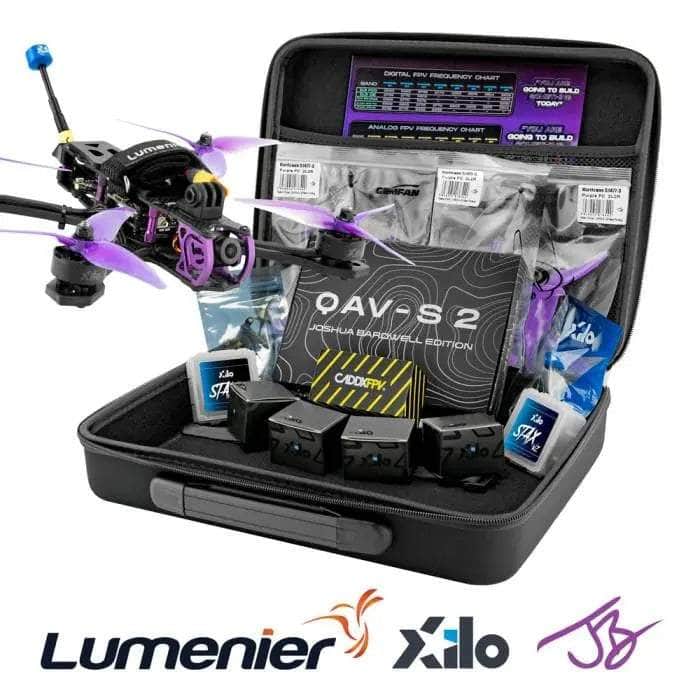

The Beginner DIY Drone Kit - QAV-S 2 Joshua Bardwell SE 5” - Analog is now at RDQ! This Analog build kit has the FPV system included, featuring a Caddx Ratel 2 Camera, Xilo Stax 5.8GHz VTX, and Xilo 5.8GHz RHCP SMA Antenna. This kit comes with everything you need to get up in the air.  Joshua Bardwell, Lumenier, and Xilo have partnered up to create this amazing kit and all of the info to build it.

Note: Receiver is not included. A receiver that is compatible with your controller is required, please see the options under "Recommended". This is a Full DIY Build Kit with assembly required.

Make sure to check out our other Pre-Built quads and our Lumenier product selection!

Features

• This drone kit is designed for Freestyle FPV and can carry an HD action camera for epic footage

• Upgraded 5" QAV-S 2 Frame with X-Lock Arm Mechanism and Aluminum FPV Camera Plates

• Powerful Xilo Stax V2 45A BLHeli_32 ESC (3-6s) with Current Sensor and Telemetry

• Xilo Stax V2 F4 Flight Controller with the latest BetaFlight firmware compatibility

• Analog FPV System with Caddx Ratel 2, Xilo Stax VTX, and Xilo 5.8GHz Antenna

• Includes full step-by-step build guide series by FPV expert Joshua Bardwell

• Frame made of High-Quality Lumenier carbon fiber material and hardware

• DIY Kit has all of the components needed to build the FPV drone

• Powerful and smooth Stealth 2207 6S 1800KV motors

What's New?
This Analog DIY Kit has been developed and designed with the addition of the long-awaited QAV-S 2 frame! Lumenier and Xilo have been working side by side with Joshua Bardwell on multiple features to make this kit even better than the last:

• New Airframe Design: The QAV-S 2 - Joshua Bardwell Edition frame optimizes the space and weight for a 5” quad design, with a low profile body for electronics, enough space to fit an Analog or Digital Video System, engineered center of gravity when carrying an Action Camera, and strong and structured design that is meant for hardcore freestyle.

• X-Lock Arm Mechanism: The Lumenier QAV-S 2 Bardwell SE introduces a new lateral X-Lock arm system! This all-aluminum arm locking system improves on the QAV-S design in both rigidity and ease of use, providing two-axis clamping that is mechanically isolated from the main plates and flight controller stack. The new lock system also allows the arms to fold with only one screw for easy transportation.

• Aluminum FPV Camera Plates: The new FPV camera mounting solution offers excellent camera protection and support for a range of cameras. The use of a unique interlocking system allows for minimal hardware and strengthens the front end while staying lightweight.

Frequently Asked Questions

WHAT'S THE DIFFERENCE BETWEEN THIS HD READY KIT AND THE ANALOG KIT?

This Analog kit includes the analog FPV video transmitter, camera, and antenna.  The "HD Ready" kit comes without an FPV system so you can choose your own HD system to add to your build.

IS THIS DRONE KIT GOOD FOR BEGINNERS?

Yes! No matter your skill level, this kit is made for you! We take the guesswork out of picking parts by compiling all the gear together in one easy to assemble kit. This all-inclusive bundle pairs together proven components that are guaranteed to work well together, making the build easy for you.

Not only do you get all the parts, but XILO has partnered with the renowned FPV instructor Joshua Bardwell with a full step-by-step build guide. This build guide takes you from start to finish, building, setup, tuning, flying, radio setup, binding, updating, and more! All you have to do is follow the instructions in the video and you'll be flying your own freestyle FPV drone in no time!

I'M NEW TO FPV AND HAVE NOTHING. DOES THIS KIT HAVE EVERYTHING I NEED TO GET STARTED?

This bundle comes with everything the "drone" itself needs except the radio receiver and FPV System. If you are just getting into FPV and don't have anything yet there are a few key components you will need in addition to this kit to be able to fly. The good news is most of these parts you can use across multiple drones, so it is an upfront investment, but you won't have to necessarily buy them for every drone you build.

You will need the following in addition to this kit if you don't already have them:

• FPV Goggles / Video Receiver

• Tools for Building

• Battery Charger

• Radio Receiver

• Flight Batteries

• Radio

Specifications

• Frame: Lumenier QAV-S 2 Joshua Bardwell SE 5” Frame Kit

• Motors: Xilo Stealth 2207 1800KV 6S Motors

• Arm Length: Up to 5.1" Propeller clearance

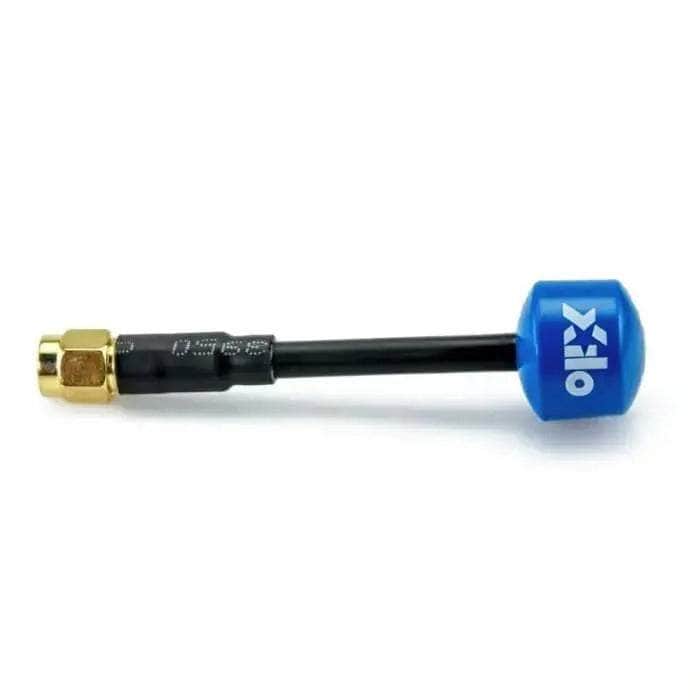

• Antenna: Xilo 5.8GHz RHCP SMA Antenna

• Propellers: JB Gemfan Hurricane 51477

• FC: Xilo Stax V2 F4 flight Controller

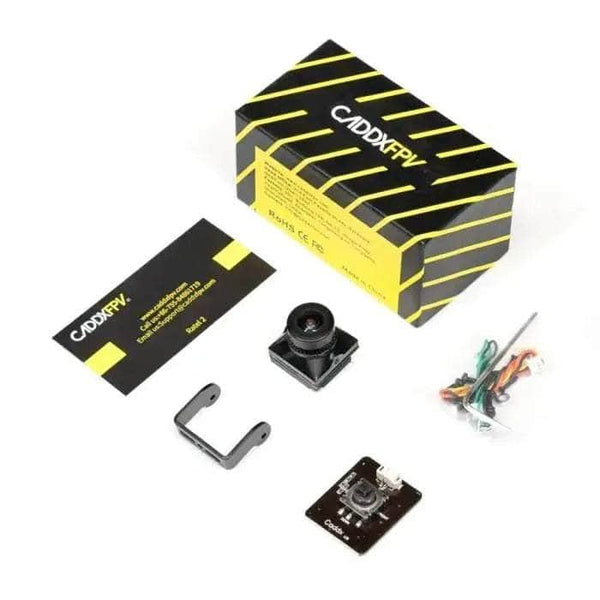

• FPV Camera: Caddx Ratel 2

• VTX: Xilo Stax 5.8GHz VTX

• ESC: Xilo Stax V2 45A ESC

• Recommended LiPo: 6S

2023 Freestyle FPV Drone Build For Total Beginners

Lumenier QAV-S 2 Bardwell Manual

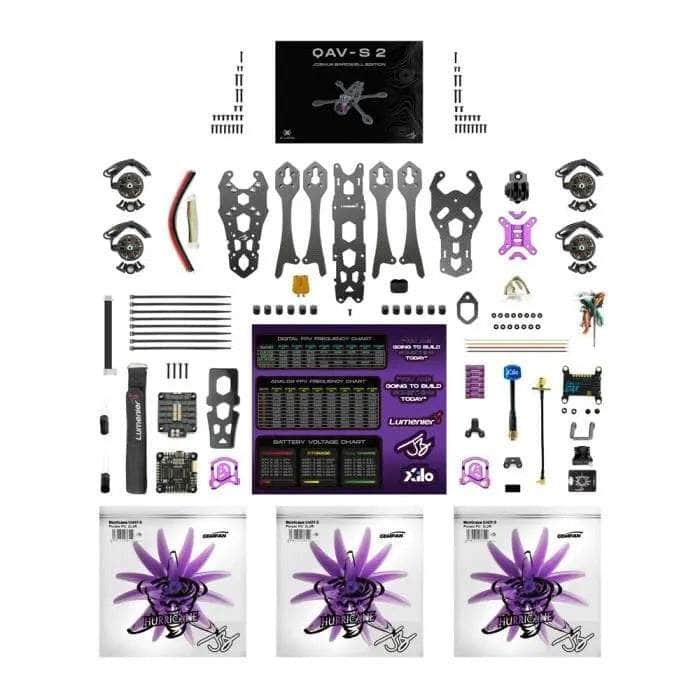

Includes

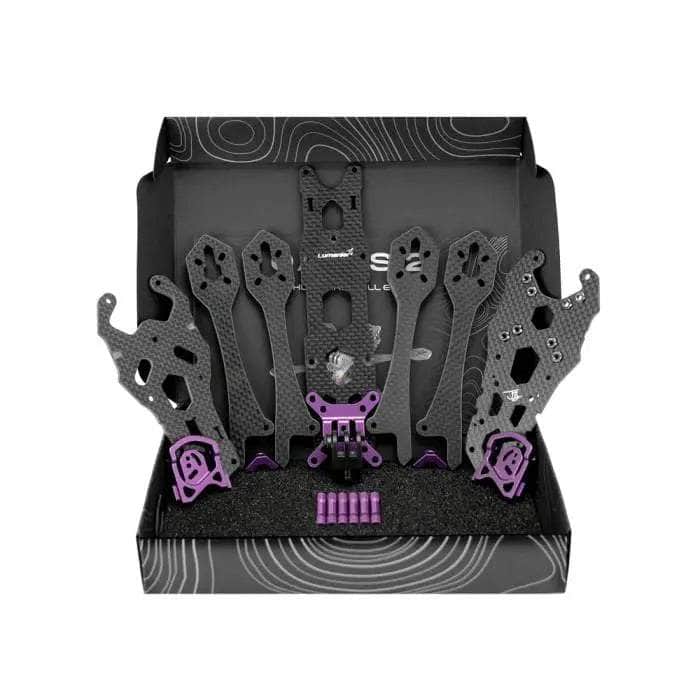

• 1x Lumenier QAV-S 2 Joshua Bardwell SE 5” Frame Kit

• 1x Frequency & Voltage Chart Sticker Sheet

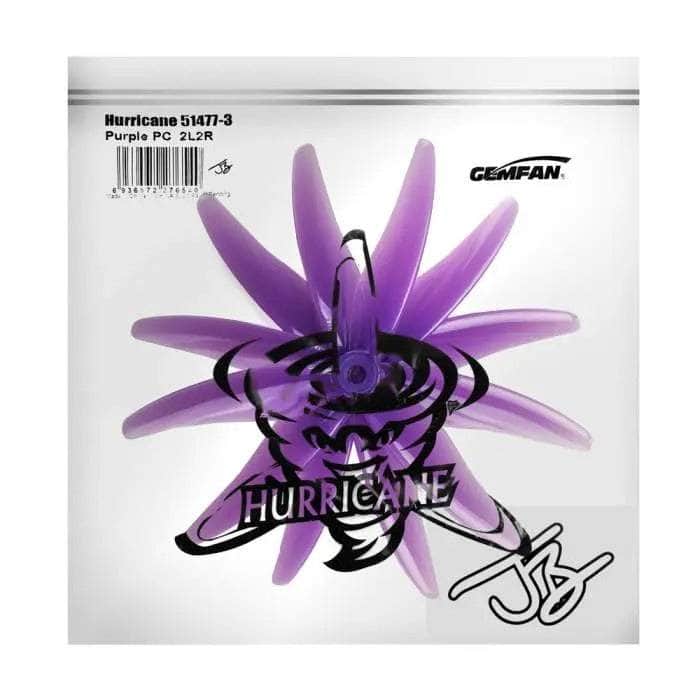

• 3x JB Gemfan Hurricane 51477 Propellers

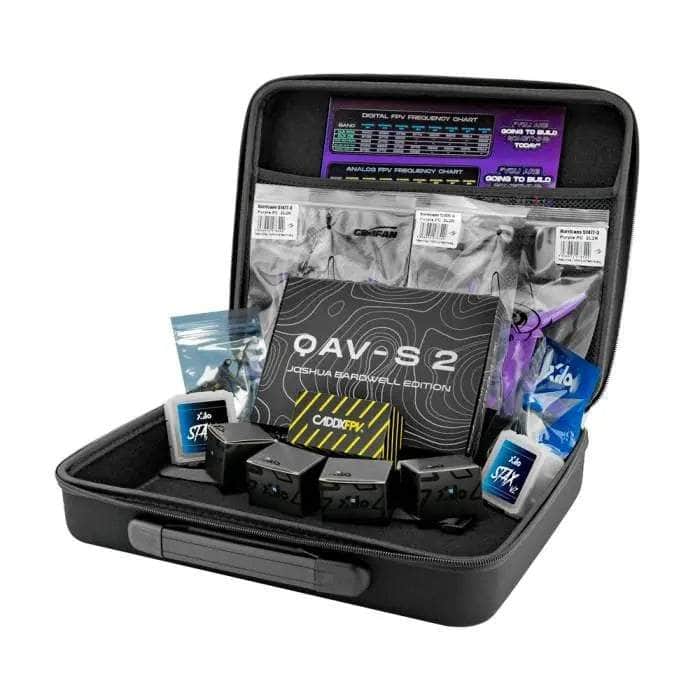

• 1x Custom Soft Zipper Case - JB Edition

• 4x Xilo Stealth 2207 1800KV 6S Motors

• 1x Xilo 5.8GHz RHCP SMA Antenna

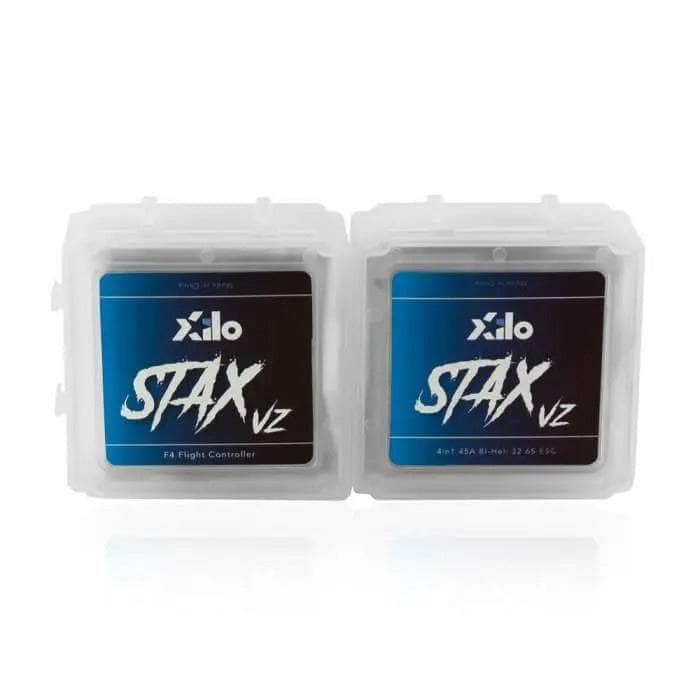

• 1x Xilo Stax V2 F4 Flight Controller

• 1x Xilo Stax V2 45A ESC

• 1x Connecting Wires Set

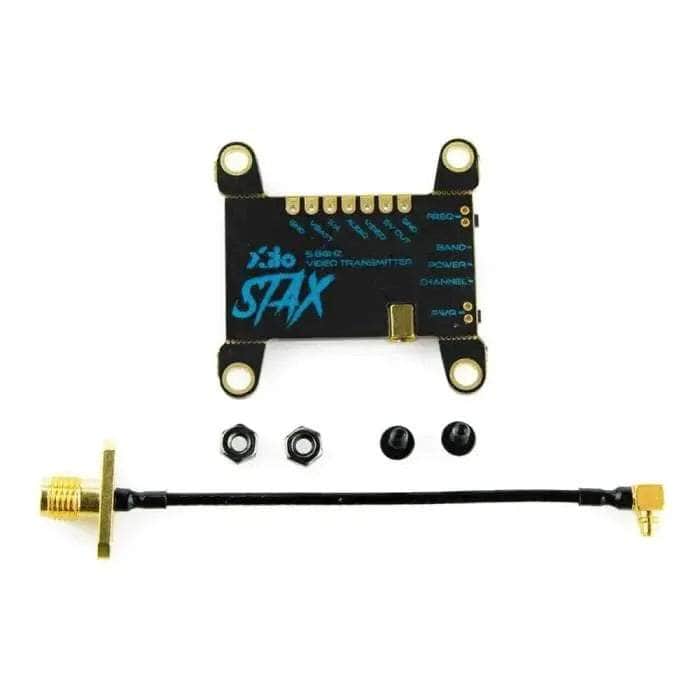

• 1x Xilo Stax 5.8GHz VTX

• 1x 3D Printed Parts Set

• 1x Hardware Set

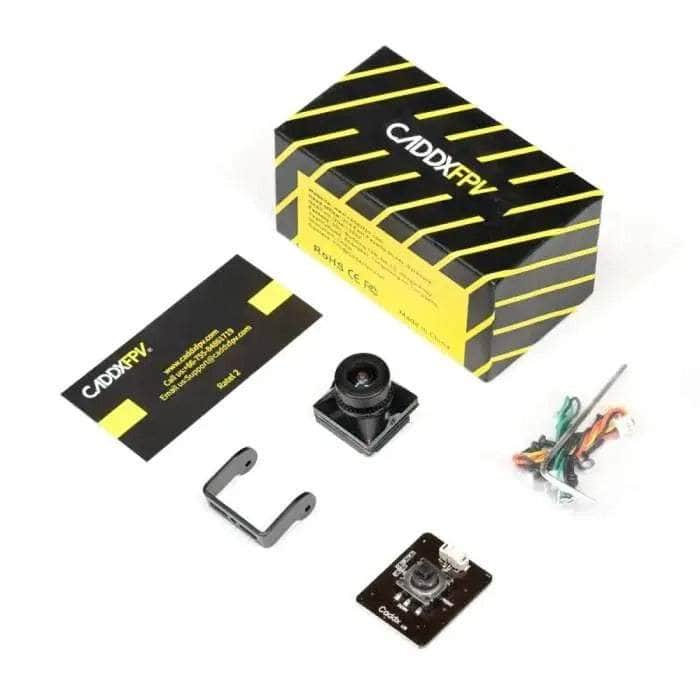

• 1x Caddx Ratel 2

• 10x Zip Ties
