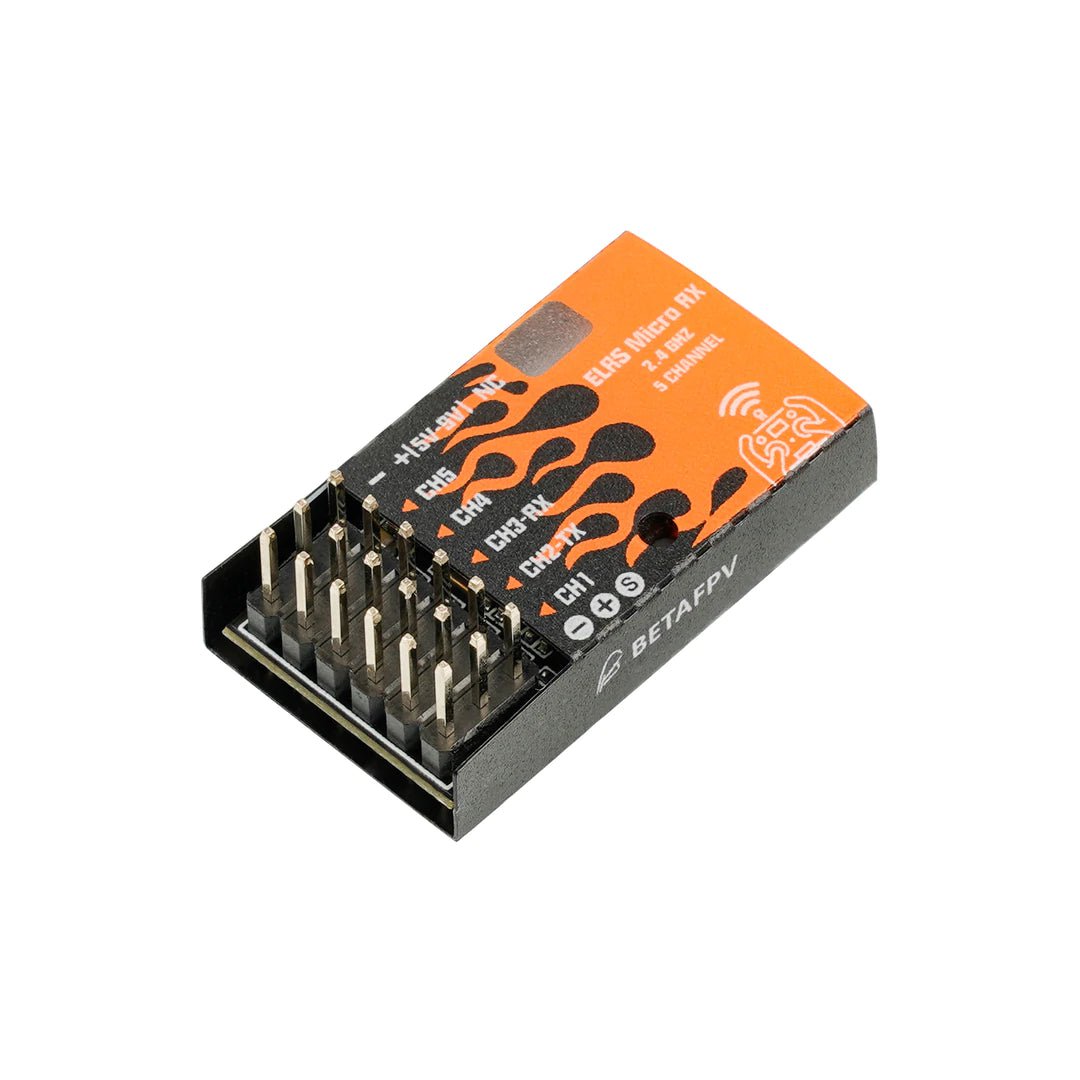

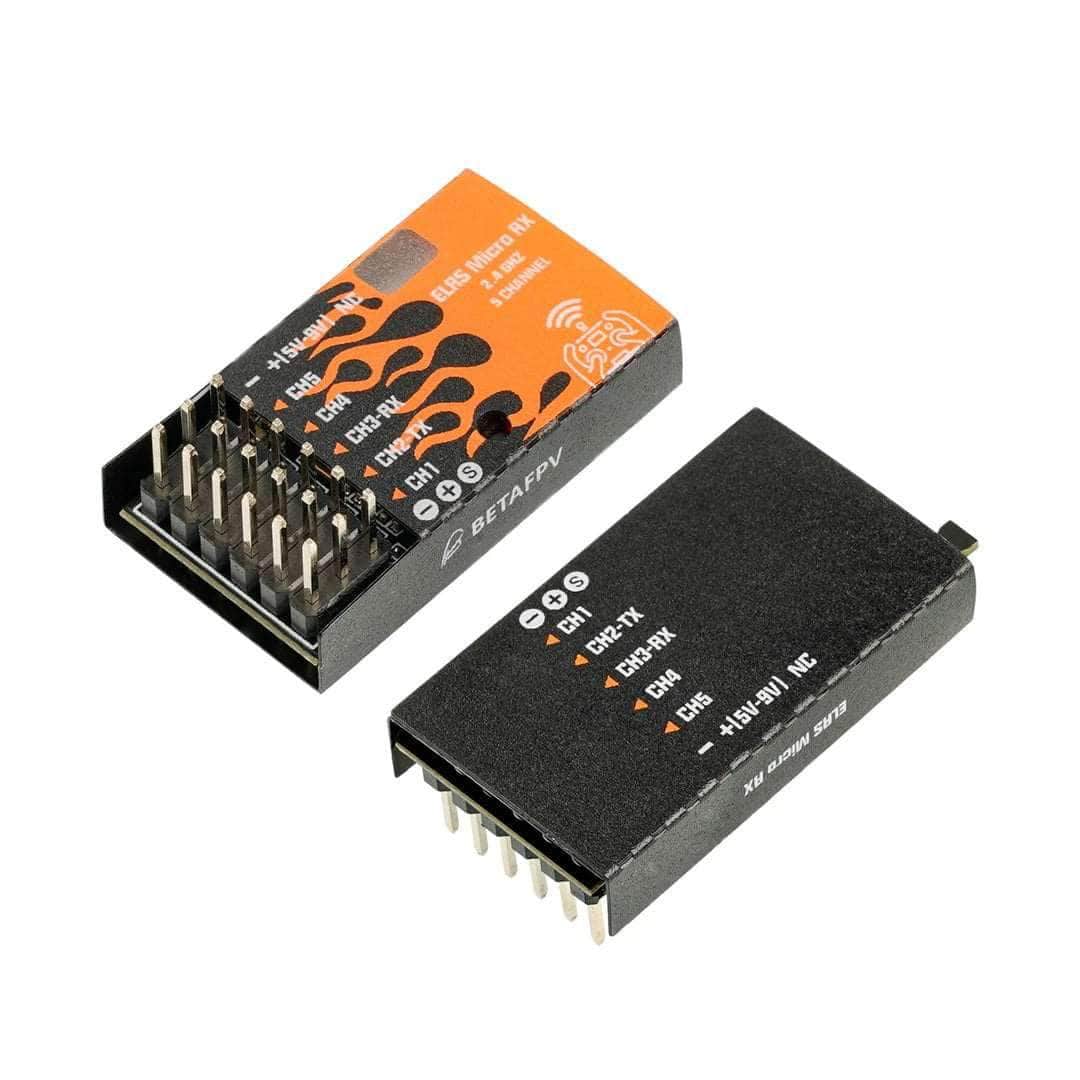

BetaFPV 2.4GHz Micro ELRS PWM Receiver

BetaFPV 2.4GHz Micro ELRS PWM Receiver

$15.99
$15.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

BETAFPV Micro receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

ExpressLRS now supports direct PWM output from receivers that have been specifically designed for this mode. BETAFPV ELRS Micro receiver features PWM output for the application of fixed-wing, helicopters, RC cars, boats and etc, and supports failsafe function, which can protect RC models from being out of control. Besides, the plug-and-play design makes it very easy and friendly to use.

Check out the rest of our ELRS gear, as well as all of our BetaFPV selection!

Specifications

  • PWM Channels: 5
  • Serial Output Protocol: PWM or CRSF
  • Dimensions: 19x32x9mm (without antenna)
  • MCU: ESP8285/SX1280/SX1281
  • Telemetry Power: 12.5dbm/17mW
  • Frequency Band: 2.4GHz ISM
  • Input voltage: 5V~9V
  • Firmware: ExpressLRS v2.0

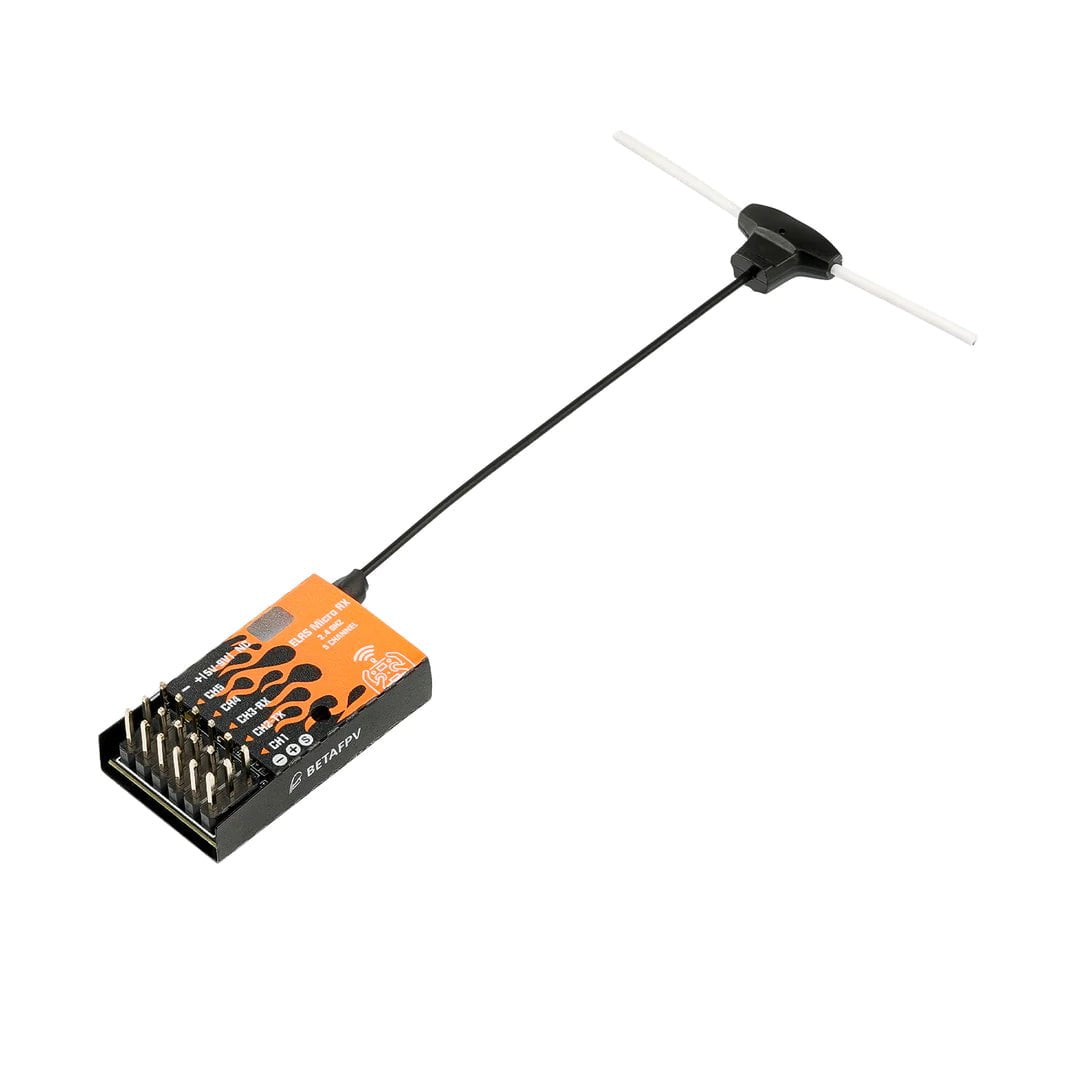

  • Antenna: IPEX MHF + T antenna (recommend 80mm Dipole T Antenna)
  • Weight: 4.5g (with antenna)

Includes

  • 1x BetaFPV 2.4GHz Micro ELRS PWM Receiver
  • 1x Antenna

More Info

  • SKU: BETA-01070005_1
  • Barcode: 728314136764


Overall rating: 4.590909 / 5 from 22 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["quality","issues","works","receiver","recovery"].

Review highlights

Reviews

Nice little receiver

"Although I have not done anything with it yet, it does look good. I have bought quite a few BetaFTP products and those have turned out really good. So. I do not expect this to be any different."

— Earl B. (5/5)

Good for the price, Documentation is lacking.

"It does have an ADC but the pin is mislabeled as NC. The ADC pin seems to have a voltage divider but I'm not sure the ratio. Adding a 47k ohm resistor in series with VBatt on this pin makes the voltage suitable for 4s. Also, it seems to have a generic PWM firmware that isn't listed in the configurator so I'm not sure what target would be needed to update. Better (any) documentation would have been nice."

— Adam (3/5)

Without fail

"Great little receiver. BetaFPV is super to update the firmware (WiFi) and connects instantly. I have not had any issues what so ever."

— Jamie W. (5/5)

"The receiver works great. Wouldn't work with my Radio Master MT12 at first. Did a little research and found out there was an update. Once updated, it works great. Great value for the money."

— Randy (5/5)

DOGSHIT DONT WORK

"Idek why i bought betafpv anything i promised myself i wouldnt i flashed these like any normal rx/pwm rx and they dont work at all i now need to buy a FDMI dongle to recover. Radiomaster pwm rx works flawlessly DONT BUY THIS GARBAGE"

— TIM (1/5)

Used in Value Hobby Acrocub

"Put this in a TH Beaver clone. As with all ELRS gear there's a bit of a learning curve to set it up, and after that it works flawlessly. Excellent quality receiver for dirt cheap."

— Mark F. (5/5)

It works

"This is my first PWM receiver. I was able to flash it, install it and fly the plane with it. I still don't know much about it or how to best set it up, but it works. I installed it in a T1 Ranger with no flight controller. I'd like to see these in 915mhz and with a gyro onboard. I'd definitely buy one of those."

— Jeremy B. (4/5)

simple, inexpensive and works

"easy to use, flash and just works well, high build quality"

— Will K. (5/5)

Excellent elrs PWM Receiver!

"Works great, flashed with version 3.X and have had no issues with it for surface or air use"

— Chad W. (5/5)

Amazing receiver best thing you

"Amazing receiver best thing you can get"

— Andre L. (5/5)

Q&A

I flashed new firmware and when I do the plug/unplug 3 times, it wont go into binding mode. What do I do?
Send me an email to support@racedayquads.com with a photo or video of the issue. Please place it in an open Google Drive Folder so I may share it with Beta also.
