BetaFPV F4 1S 12A 2022 Toothpick/Whoop Flight Controller - Choose Receiver

BetaFPV F4 1S 12A 2022 Toothpick/Whoop Flight Controller - Choose Receiver

$53.99
$53.99
Style:
Add To Wishlist
View full details

Details

Description

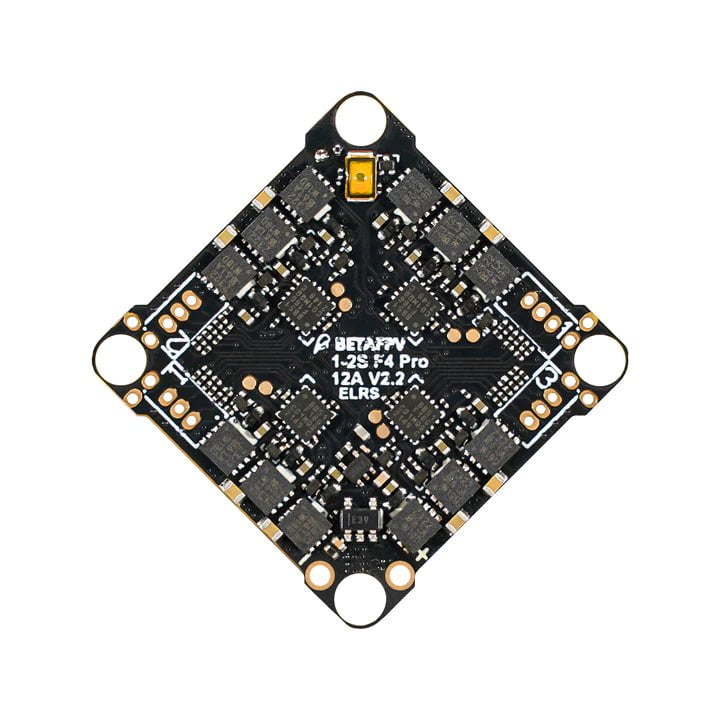

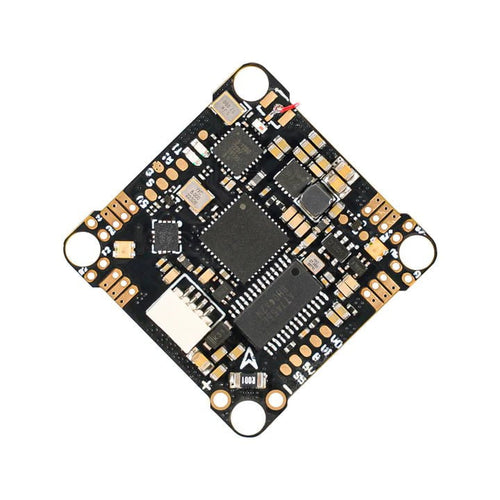

The BetaFPV F4 1S 12A AIO Brushless Flight Controller V2.2 is the default FC for Cetus X brushless whoop quadcopter, also great for 85mm whoop drones like Meteor85 and 3" toothpick drones like HX115 SE Toothpick Drone and HX115 LR Toothpick Drone. BetaFPV updated the FC to V2.2 with BMI270 gyro and BB51 ESC hardware in place of ICM20689 gyro and BB21 ESC hardware.

Check out all our whoop flight controllers, and all our BetaFPV gear!

    Specifications

    • CPU: STM32F411CEU6 ( 100MHZ )
    • Six-Axis: BMI270
    • Built-in Receiver: SPI ExpressLRS 2.4G / Frsky SPI
    • Receiver antenna: Line antenna
    • Size: 30mm x 30mm, fully mounting pattern compatible with the whoop frame in the current market
    • Firmware version: betaflight_4.3.1_BETAFPVF4SX1280 (ELRS)
    • OSD: Built-in BetaFlight OSD
    • Recommend VTX:
    • Power Cable: 55mm, with BT2.0 connector

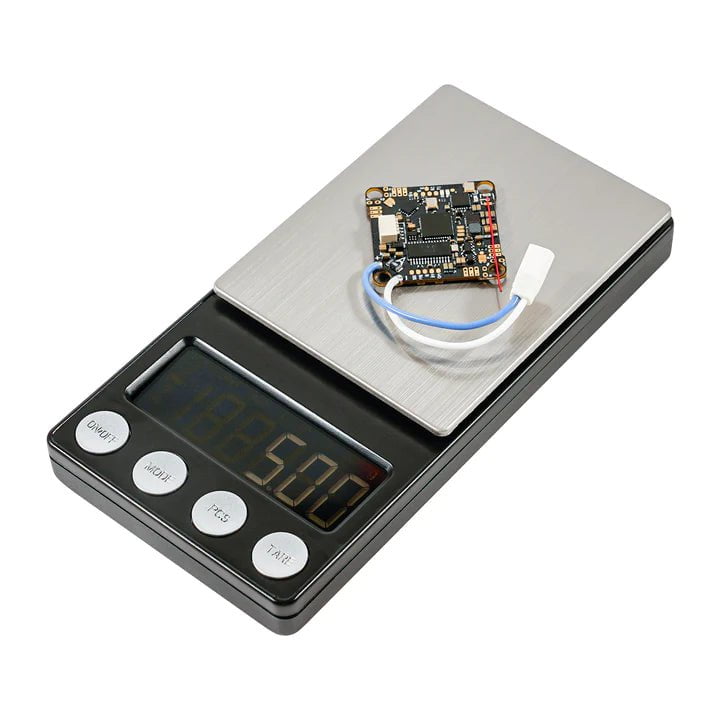

    • Weight: 3.6g (Without power cable included)
    • Power supply: 1S-2S
    • Current: 12A continuous and peak 25A (3 seconds)
    • Support BLHeliSuite programmable
    • Factory firmware: C_X_30_REV16_7.hex for BB51 BLHeli_S hardware
    • Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM



    Includes

    • 1x F4 1S 12A AIO FC

    Wiring Diagram

    More Info

    • SKU: BETA-01040001_4
    • Barcode: 738156453516


    Overall rating: 4.6153846 / 5 from 13 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: ["control","replacement","board"].

    Review highlights

    Reviews

    Good board, the pre soldered

    "Good board, the pre soldered bt2. 0 is nice"

    — Nick F. (5/5)

    So far so good!

    "As the title states, so far so good! Came pre flashed with bluejay, so no having to deal with flashing, as a beginner it can be frightening. I have this board on a mobula frame running 1103 11000kv motors. Essentially, I had the Cetus X and destroyed it to oblivion trying to learn 🤣 I bought this board and threw all the leftovers from the Cetus to build this 85mm RIPPER. Feels like a toothpick more than a whoop! It’s super fun!"

    — Sean G. (5/5)

    "Top notch flight controller I have now purchased 2 of them and both are very good. Easy to solder to and update."

    — Bradley (5/5)

    A great replacement/upgrade for 1s.

    "The original board of my Crux3 ELRS 1s couldn't handle the Flywoo Exploer 750mAh, 1s batteries and kept failsafing after arming. After a crash the esc's for one motor stopped working. Got this board with the M03 VTX board and it's been a great upgrade so far."

    — Brandon M. (5/5)

    Beta power

    "Great little AIO lots of power and options"

    — Harold I. (5/5)

    Absolutely fantastic little FC

    "Great to rebuild a Meteor65. The built in "AIO ELRS Receiver" loads up nicely and runs very well. I prefer it to the SPI receivers. The Bluejay ESC firmware is easy to update and the boot up melodies are fun. I love how easy its gotten to rebuild a quad."

    — William M. (5/5)

    Replacement for cetus x

    "Works great, exact replacement for cetus x fc"

    — Patrick L. (5/5)

    Gets the job done.

    "Got this as a replacement for my Meteor85. Everything works fine. Not a fan of the enamel wire RX antenna or the tiny solder pads. But they do label everything on the board at least. Only 2 available UARTs. Its good enough for my whoop and cheap enough that i can replace as needed."

    — DJ D. (4/5)

    Great for whoops

    "I’m using this on a mobigital 75mm whoop. It handles 2s great and I’ll actually using crossfire instead of the elrs. So it’s nice to have enough ports for that and dji"

    — jaron R. (5/5)

    good

    "good"

    — Shuhan G. (5/5)
