Description
The BETAFPV Femto Whoop Frame Kit is designed for performance and durability, offering a 4% thrust increase in a compact structure. It features improved connections between the whoop duct and carbon fiber plate with added supports and limits for secure assembly. Optimized for the DJI O4 Air Unit, it includes a reinforced protective structure for the circuit board. Additionally, the O4 Air Unit Bracket is compatible with Pavo Femto, Pavo Pico and Pavo20, catering to various FPV builds.
Check out pre-built quads, and the rest of our BetaFPV gear!
Features
- Enhanced Assembly: Improved connection between the whoop duct and carbon fiber plate with added supports for secure, hassle-free assembly.
- Boosted Thrust: Smaller duct design increases thrust by approximately 4%.
- Improved Durability: Strengthened protection for DJI O4 Air Unit's circuit board.
- Wide Compatibility: O4 Air Unit Bracket works seamlessly with Pavo Femto, Pavo Pico and Pavo20.
4% Thrust Boost

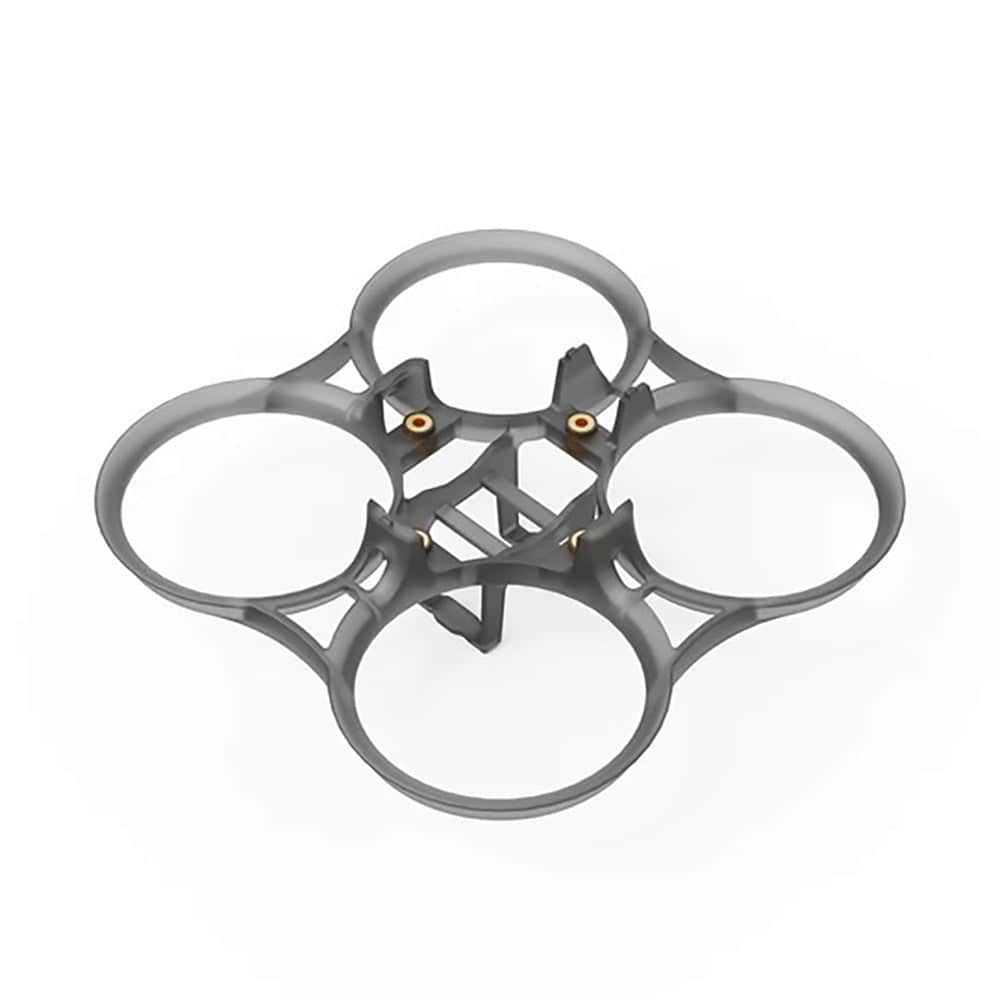

Inspired by rocket engine nozzle design, the Pavo Femto Frame optimizes whoop duct aerodynamics with precise height and thickness adjustments. Despite its smaller size, the frame achieves an approximate 4% thrust increase, providing enhanced power and stability. This allows pilots to execute advanced maneuvers like flips and turns with precision, ensuring smooth and reliable performance even in challenging conditions.
Enhanced Assembly
Features an improved connection between the whoop duct and the carbon fiber plate with added supports for a secure fit, ensuring quick and hassle-free assembly. Say goodbye to loose nuts and tedious installations.

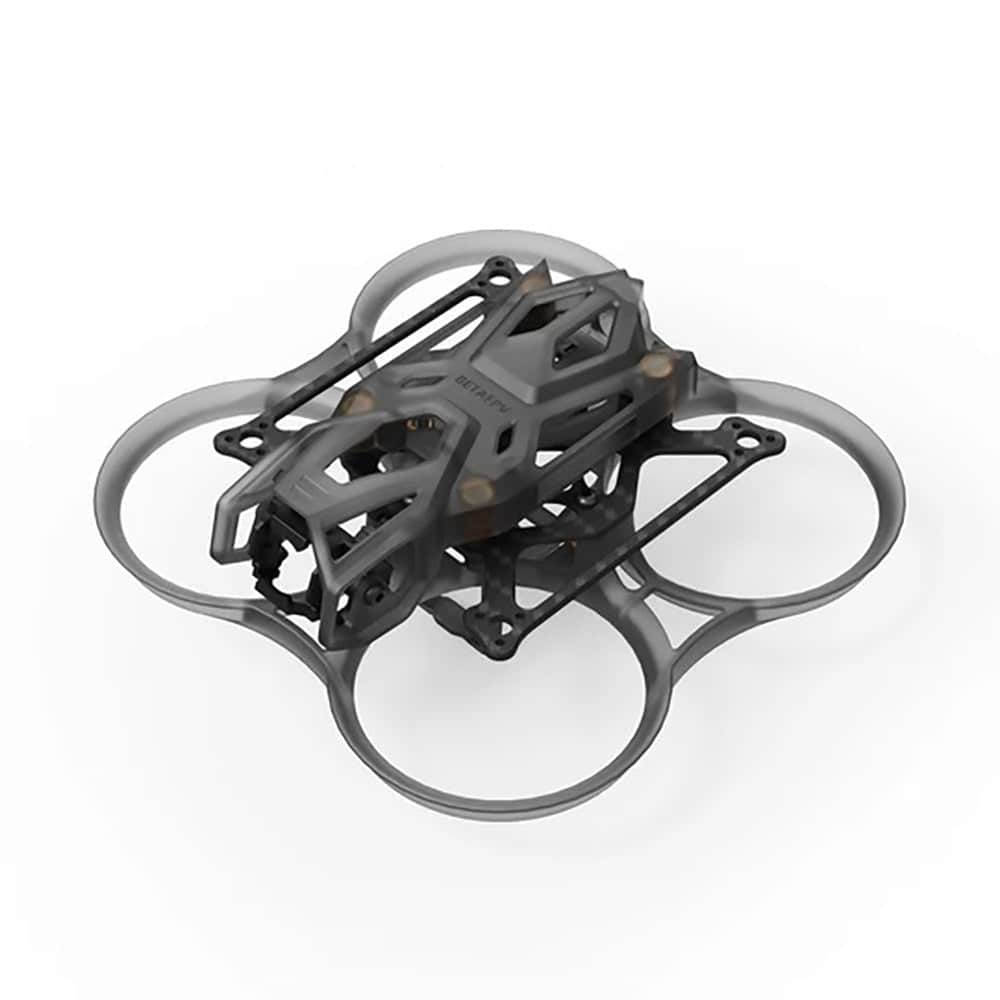

O4 Air Unit Bracket
The O4 Air Unit Bracket includes the O4 Camera bracket and Shock-Absorbing Components for O4 Air Unit, ensuring stable performance for high-quality footage. Its mounting holes are fully compatible with Pavo Femto, Pavo Pico, and Pavo20, making it ideal for various builds.
Specifications
- Item: Pavo Femto Brushless Whoop Frame
- Wheelbase: 75mm
- Carbon fiber plate thickness: 2mm
- Whoop duct material: PA12
- Whoop duct weight: 8.64g
- Frame weight: 22.16g
- Flight controller mounting hole size: 25.5mm x 25.5mm
- Motor mounting hole size: 3 x M1.4 EQS ø6.6
- O4 Air Unit Bracket material: PA
- O4 Air Unit Bracket weight: 6.05g
- Camera mounting spacing: 20mm
Includes
- 1x Whoop Carbon Fiber Plate
- 1x Whoop Duct
- 1x Canopy for O4 Air Unit Bracket
- 1x Bottom Plate for O4 Air Unit Bracket
- 1x DJI O4 Camera Bracket
- 1x Shock-absorbing Mount for DJI O4 Camera
- 1x 5.8G VTX Antenna
- 6x Shock-absorbing Balls for Flight Controller (8mm)
- 6x Shock-absorbing Balls for O4 Air Unit Bracket (6.6mm)
- 6x Shock-absorbing Pads for O4 Air Unit
- 6x Shock-absorbing Balls for O4 Camera
- 6x M2x10 Cylindrical Socket Head Cap Screws
- 4x M2x14 Flat Head Socket Cap Screws
- 4x M2x4 Flat Head Socket Cap Screws
- 6x M1.4x5 Phillips Flat Washer Head Tapping Screws
