Description

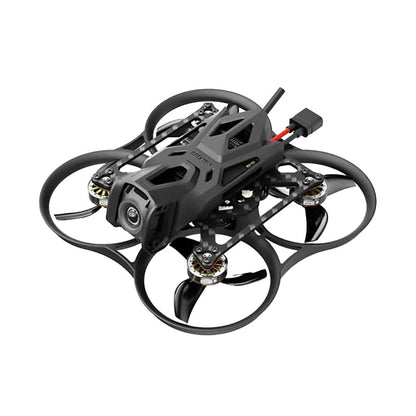

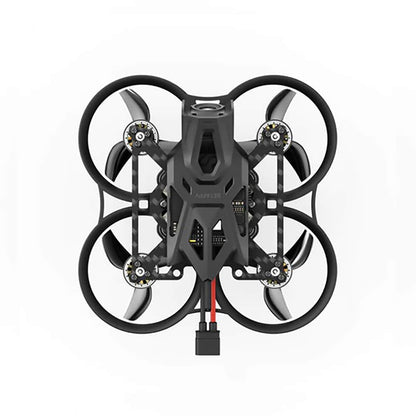

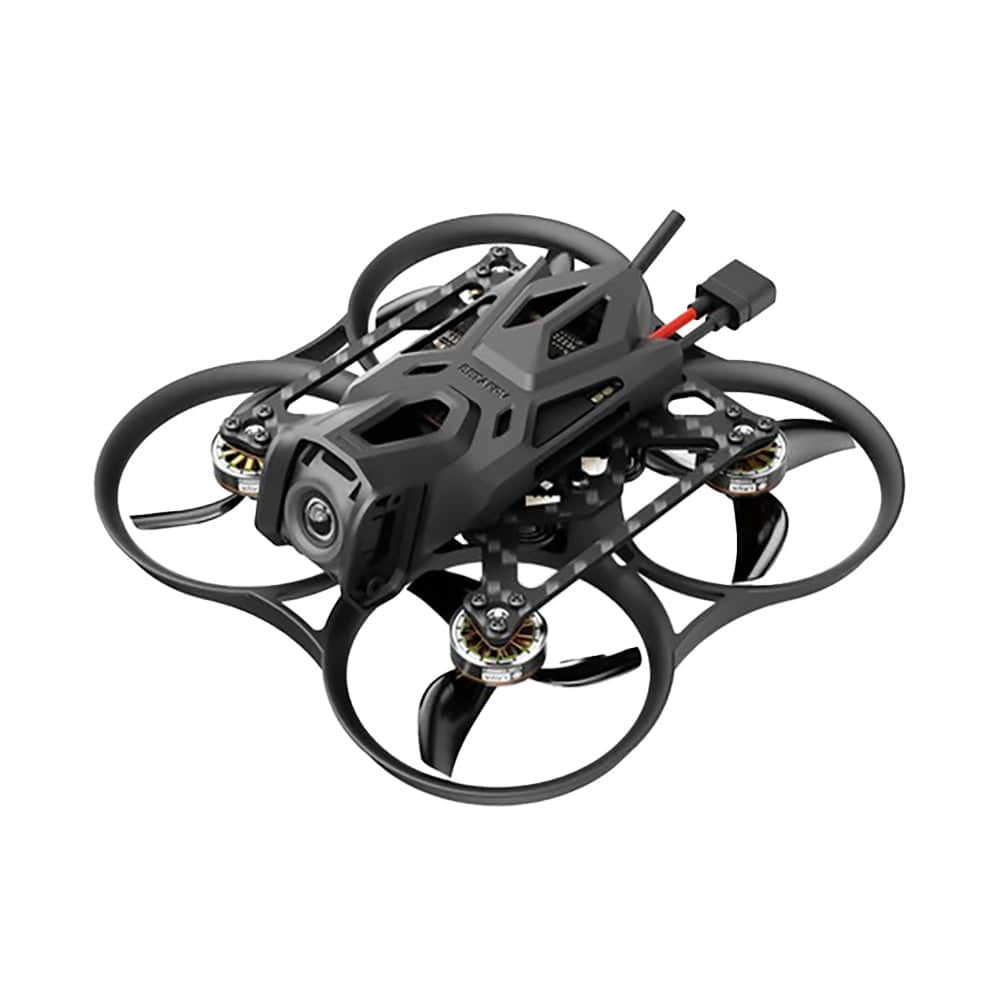

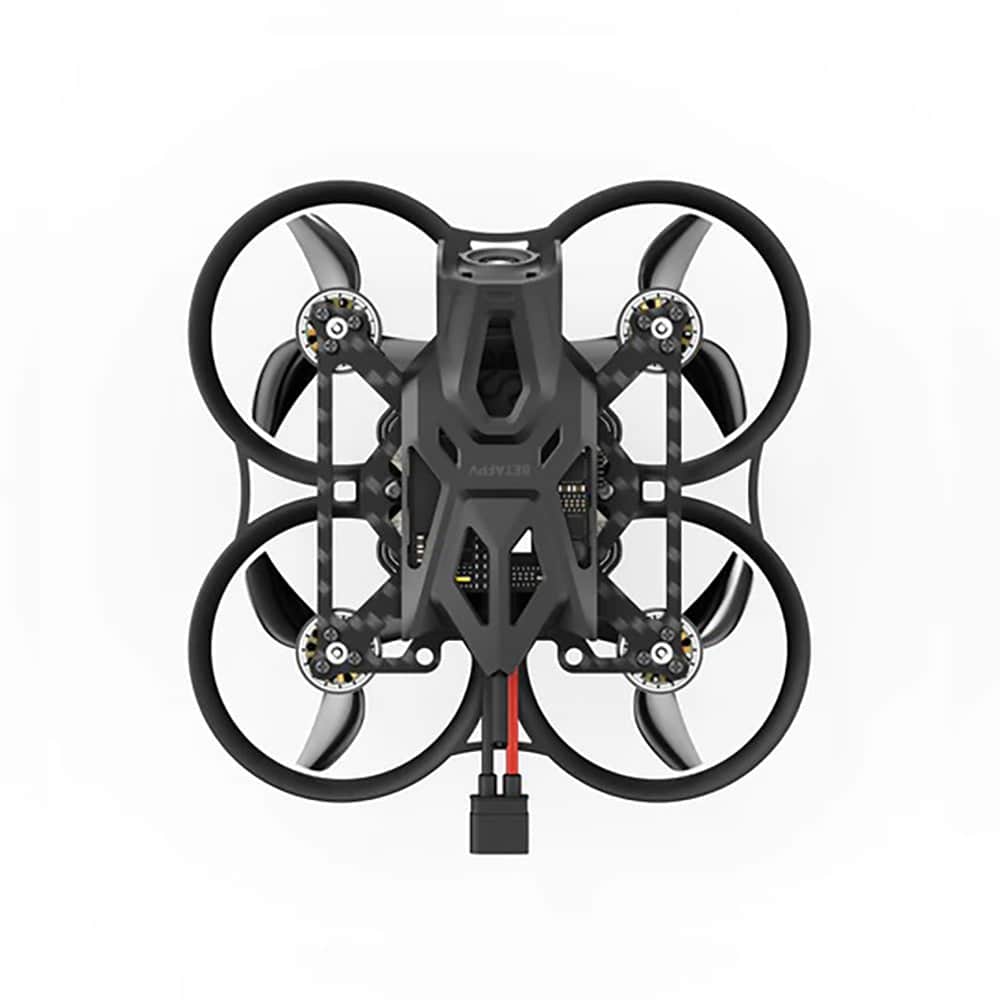

The next-generation BETAFPV Pavo Pico II Drone HD w/ DJI O4 - 2S - ELRS 2.4GHz is the ultimate compact cinewhoop, completely redesigned for the DJI O4 system. It features a new rigid frame with guided mounting for easy assembly, the innovative O4 Bracket II with 4 shock absorbers to eliminate jello, and a new carbon plate that fits both the O4 and O4 Pro air units. Powered by upgraded LAVA 1102 motors for 10% more power and efficiency, all in a lightweight 53.7g design, it delivers stunning, smooth 4K footage wherever you fly. Maximum Performance, Minimal Size.

Check out all our pre-built quads and our BetaFPV selection!

Features

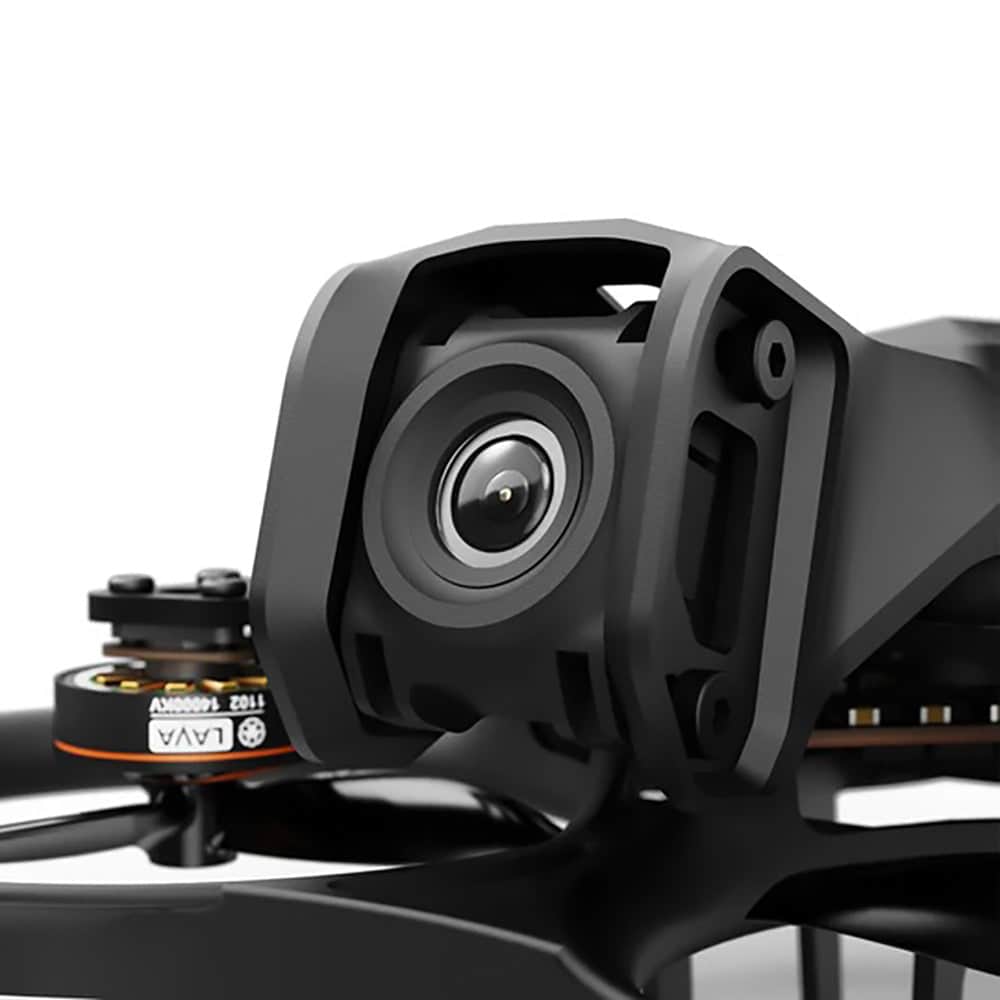

• O4 Air Unit Bracket II: The integrated bracket with 4 shock-absorbing balls eliminate jello for butter-smooth video.
• Next-Gen Frame: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.
• O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility.
• New Propulsion: The upgraded LAVA 1102 motors and GF 45mm props deliver a remarkable 10% power increase for explosive thrust, while also enabling extended flight times.
• Small and Lightweight: At a mere 53.7g with an 80mm wheelbase, this pocket-sized powerhouse combines an ultra-lightweight design with the raw thrust.
• Advanced Flight Controller: F4 20A AIO FC with dual BECs, supporting 9V 2A for HD VTX and 5V 3A for external devices.

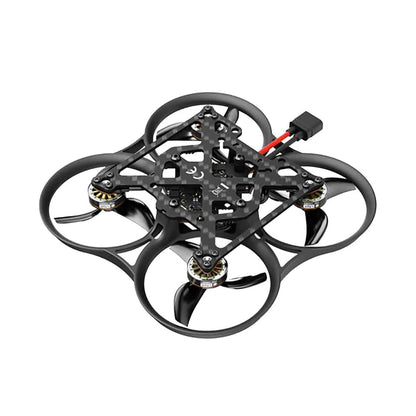

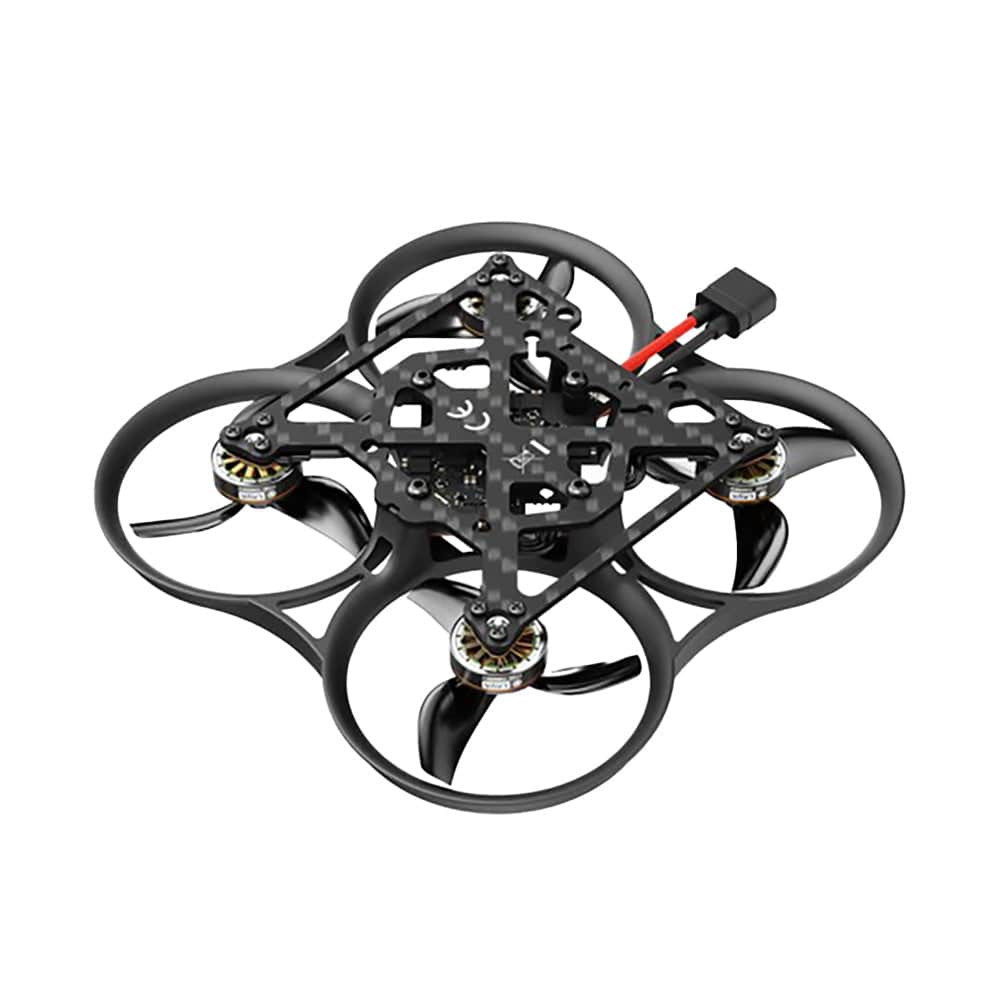

Pavo Pico II Frame
The Pavo Pico II frame revolutionizes assembly simplicity. Featuring embedded nuts, it requires just four screws for a secure connection that withstands crashes and ensures hassle-free building. Its advanced injection-molding technology combines a supported structure and three guided mounting points, guaranteeing perfect carbon plate alignment every time while eliminating flex for an incredibly rigid platform. This streamlined approach makes building a durable and high-performance setup easier than ever.

Flight Controller
The Pavo Pico II features an F4 2-3S 20A AIO Flight Controller specifically designed for HD VTX. Equipped with a dual BEC solution, it provides stable power outputs of 9V 2A for the DJI O4 system and 5V 3A for external devices. The 20A ESC ensures agile and dynamic flight performance, while dedicated HD VTX 6-Pin connectors and a conveniently positioned USB ports simplify installation and maintenance. This FC brings exceptional reliability and professional-grade functionality for Pavo Pico II.

Powerful Propulsion System
Experience a leap in performance with the all-new LAVA 1102 14000KV motors and custom-engineered Gemfan 45mm 3 blade props. This optimized combination delivers a massive 10% increase in propulsion for explosive acceleration, while also achieving remarkable efficiency for extended flight times up to 6:30 minutes.

Uncompromised O4 in the Palm of Your Hand

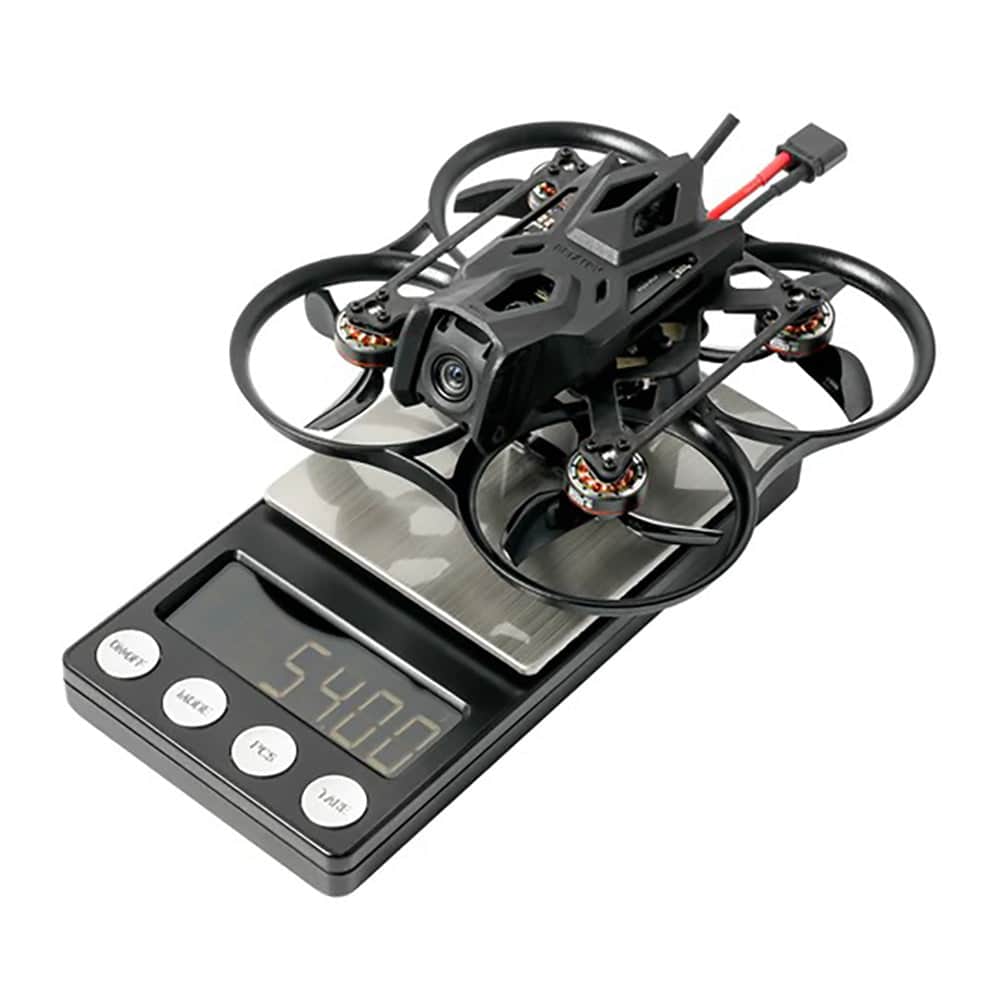

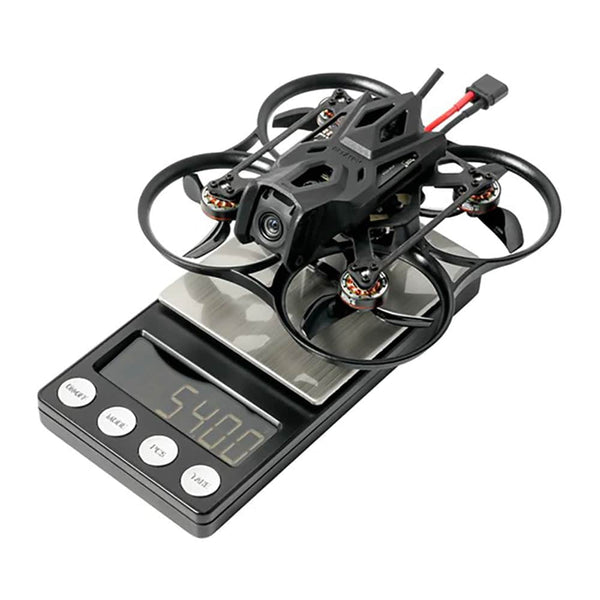

The Pavo Pico II defies expectations in an ultra-compact form. Weighing a mere 53.7g with an 80mm wheelbase, this powerhouse combines a featherlight design with the raw performance of its optimized propulsion system. Paired seamlessly with the DJI O4 Air Unit, it captures stunning, cinematic 4K/60fps video with an ultra-low latency of just 20ms and a incredible 10km transmission range. Whether navigating tight indoor spaces or soaring outdoors, the Pico II delivers unmatched digital HD clarity and smoothness.

Specifications

• Items: Pavo Pico II Brushless Whoop Quadcopter
• Color: Black
• Wheelbase: 80mm
• Frame: Pavo Pico II Brushless Whoop Frame

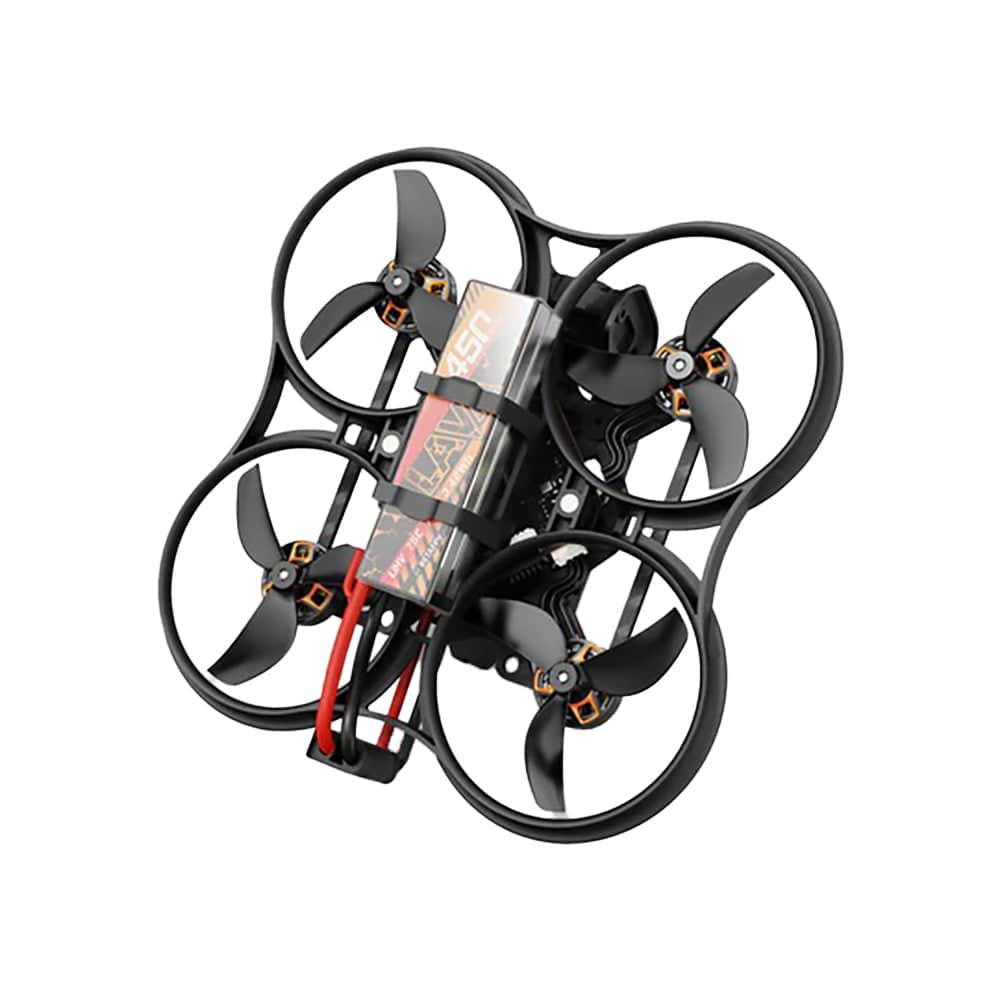

• Battery: Lava 2S 550mAh, LAVA 2S 450mAh
• FC:  F4 2-3S 20A AIO FC
• Props: GF 45mm 3B Prop
• Motor: LAVA 1102 | 14000kv
• Battery Connector: XT30
• Battery Slot: 16 x 12.7mm
• Flight Time: 6:30 min (O4 Version with LAVA 2S 550mAh battery)
• Weight: 39.1g (PNP Version), 53.7g (O4 Version)
• RX Version: Serial ELRS

Links

Includes

• 1x BETAFPV Pavo Pico II Drone HD w/ DJI O4 - 2S - ELRS 2.4GHz
• 1x DJI O4 Air Unit User Manual
• 4x GF 45mm 3-Blade Propellers
• 1x Type-C to SH1.0 Adapter
• 1x SH1.0-4Pin Adapter Cable
• 2x Shock-absorbing Balls for O4 Air Unit Bracket II (8.8mm)
• 1x Phillips Screwdriver
• 1x H1.5 Hex Screwdriver
