Description

The BETAFPV SuperX Nano ELRS Dual-Band Diversity Receiver is a true diversity solution designed for maximum reliability in long-range FPV, freestyle, and aerial applications. Equipped with dual receiver chains, TCXO technology for extreme temperature stability, and dual antennas for stronger signal coverage, it ensures consistent performance in demanding environments. Ultralight at just over 1g, this receiver supports both 2.4GHz and 915MHz frequencies, making it versatile for drones, fixed-wing, and other FPV aircraft.

Check out all our receivers, and our entire BetaFPV selection!

Features

• True diversity design with dual receiver chains
• Built-in TCXO for stability in extreme temps
• Only 1.2g ultralight weight

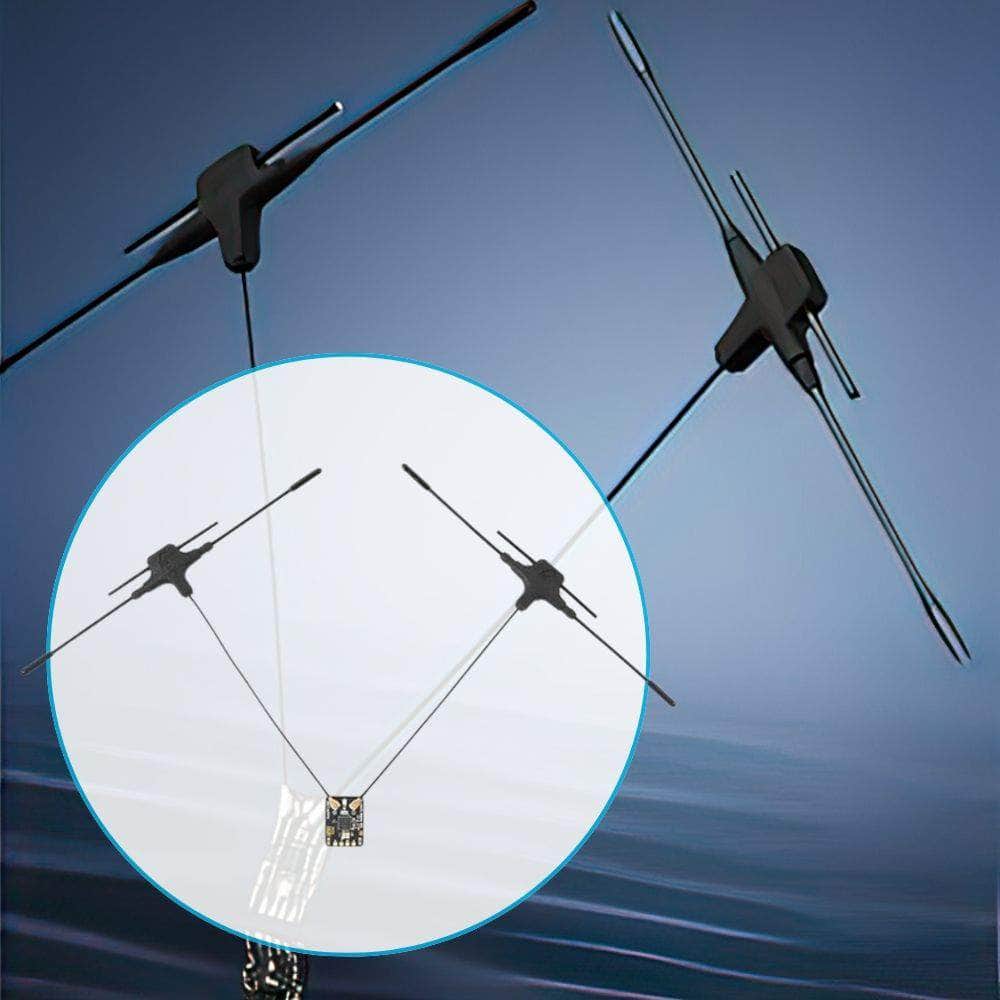

• Dual Dipole T antennas for improved signal
• CRSF protocol compatibility

Specifications

• Item: BETAFPV SuperD ELRS 2.4GHz / 915MHz / 868MHz Diversity Receiver

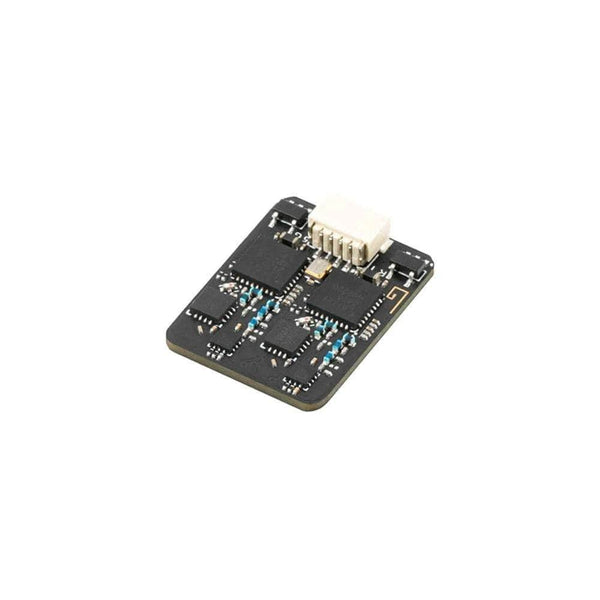

• MCU: ESP32 PICO D4, dual SX1280(SX1281) (2.4GHz) / dual SX1276 (915MHz/868MHz)
• Telemetry power: 20dBm (2.4GHz) / 17dBm (915MHz/868MHz)

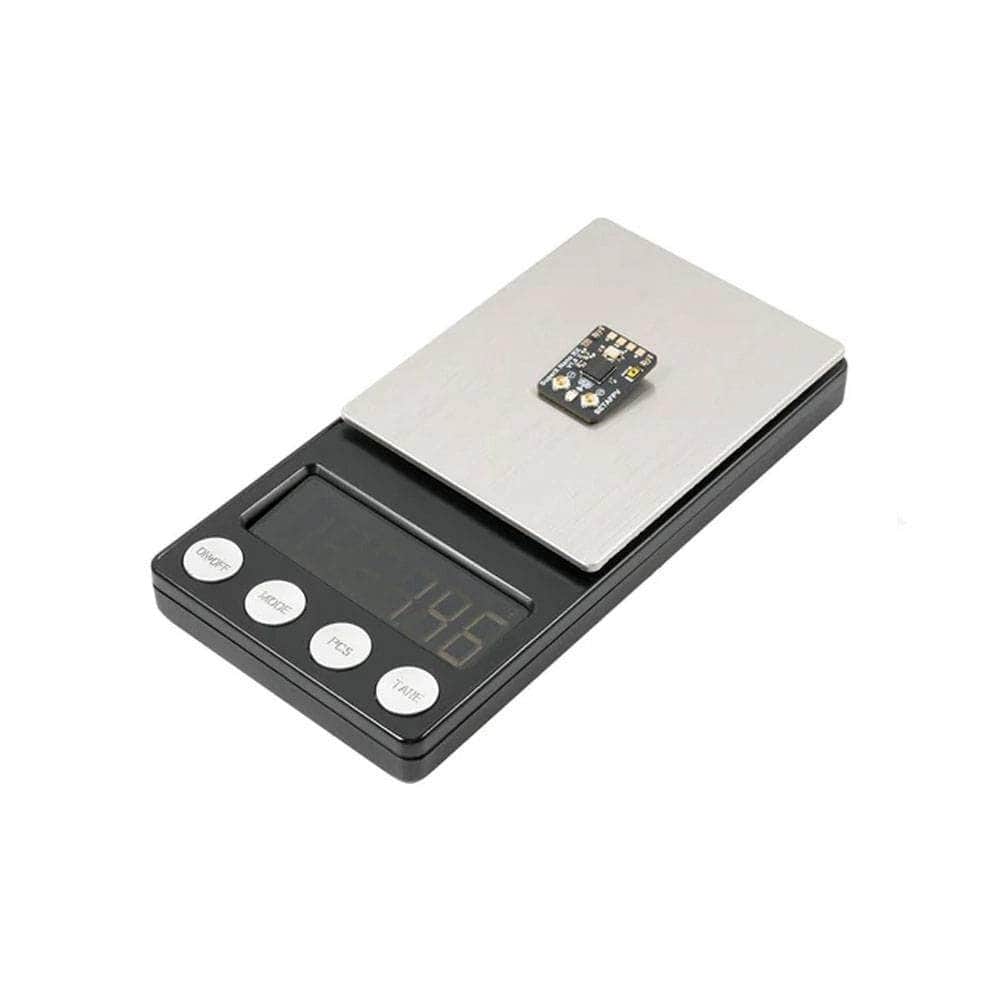

• Weight excluding antenna: 1.1g (2.4GHz) / 1.2g (915MHz/868MHz)
• RF Frequency: 2.4GHz (ISM) / 915MHz FCC/868MHz EU
• Antenna connector: IPEX MHF 1 / U.FL
• Input voltage: +5V DC @ “+” pad
• Receiver protocol: CRSF

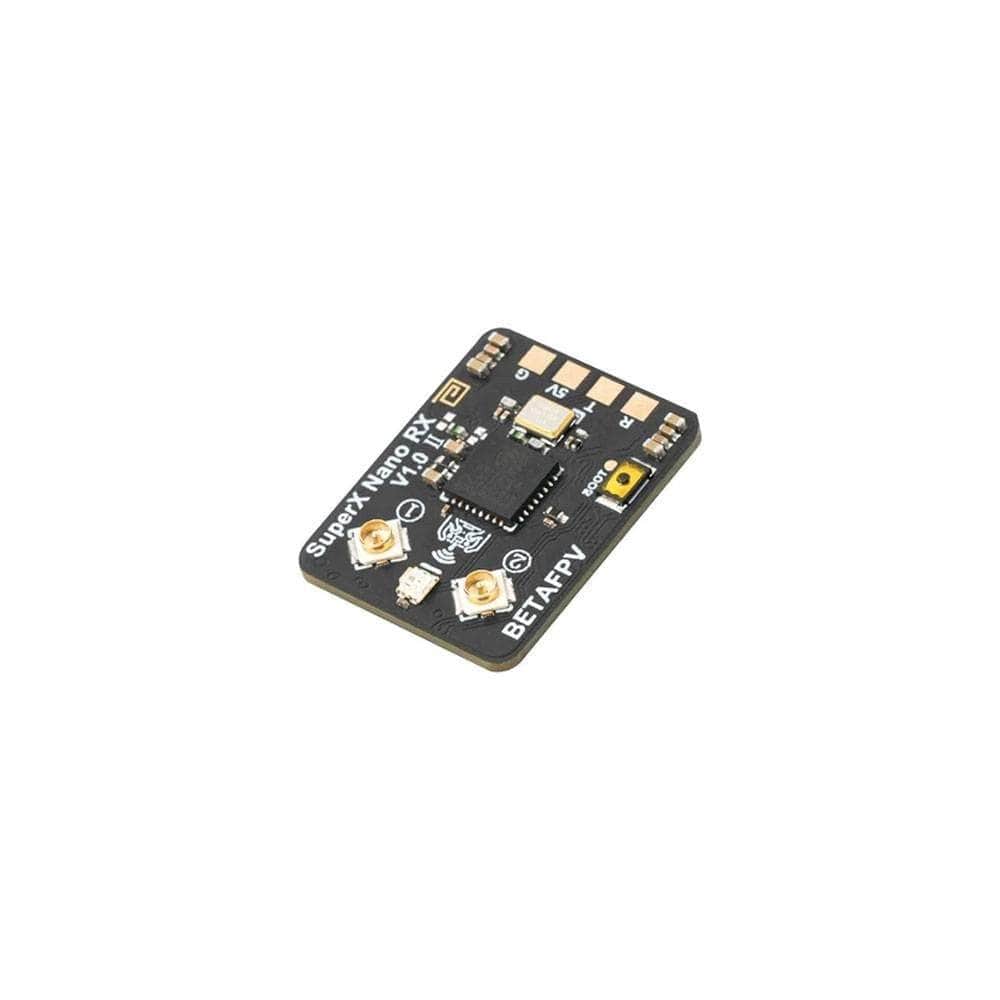

• PCB size: 22mm x 14mm

Includes

• 1x SuperX Nano Receiver

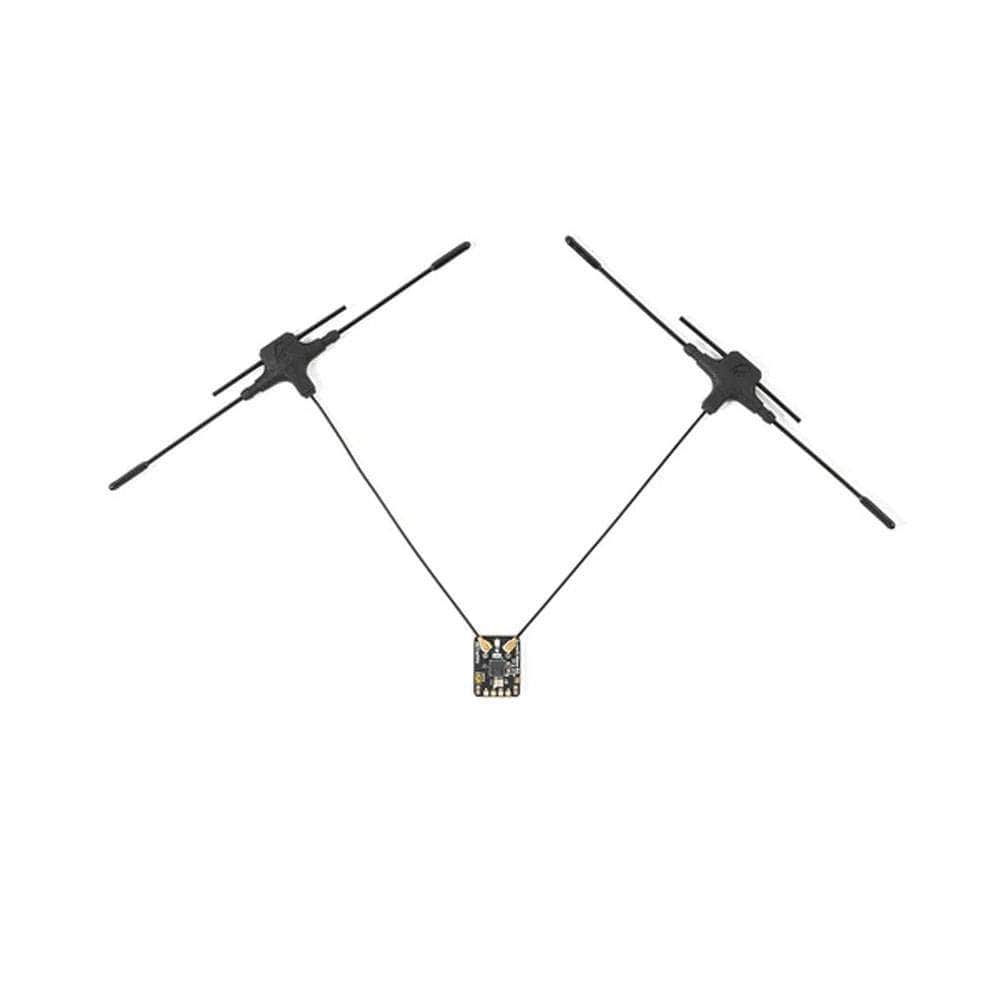

• 2x Dual-band T Antenna
• 1x SH1.0 Connector (Double Ended)
• 2x Heat Shrink Tubing
• 1x User Manual
