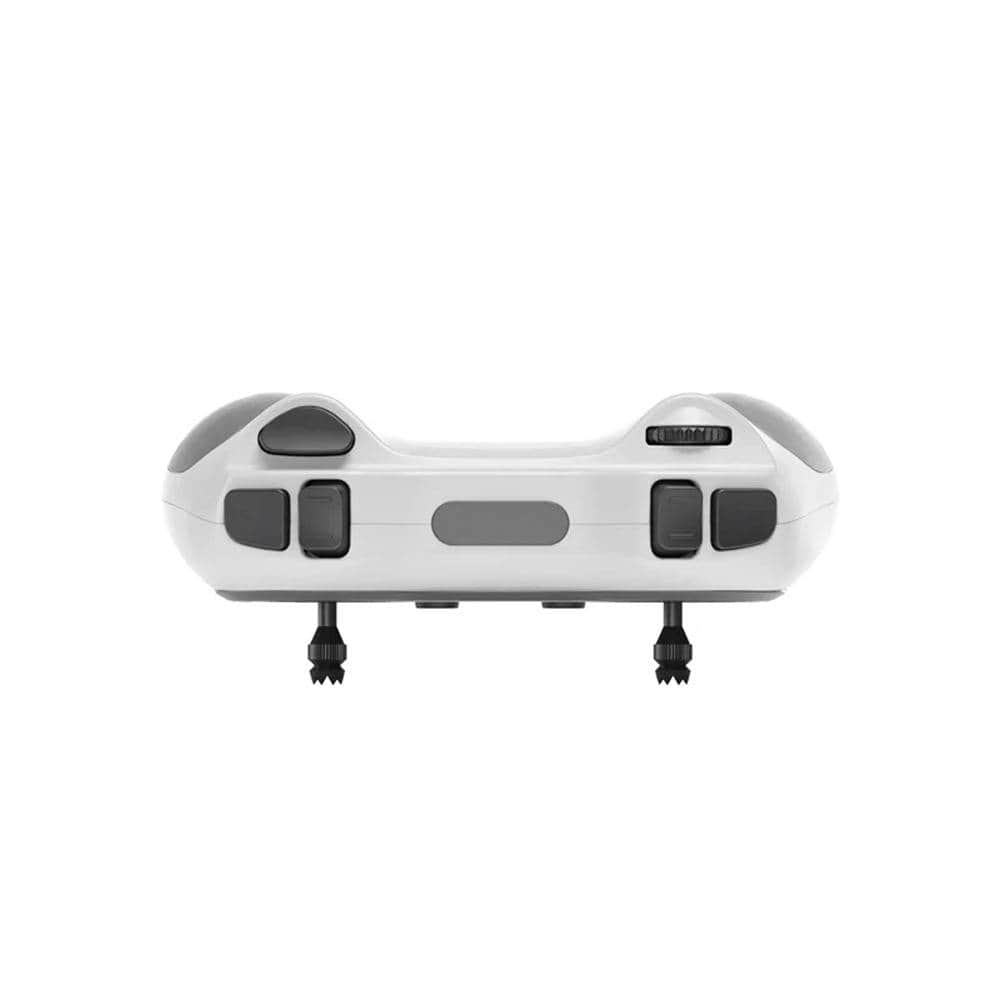

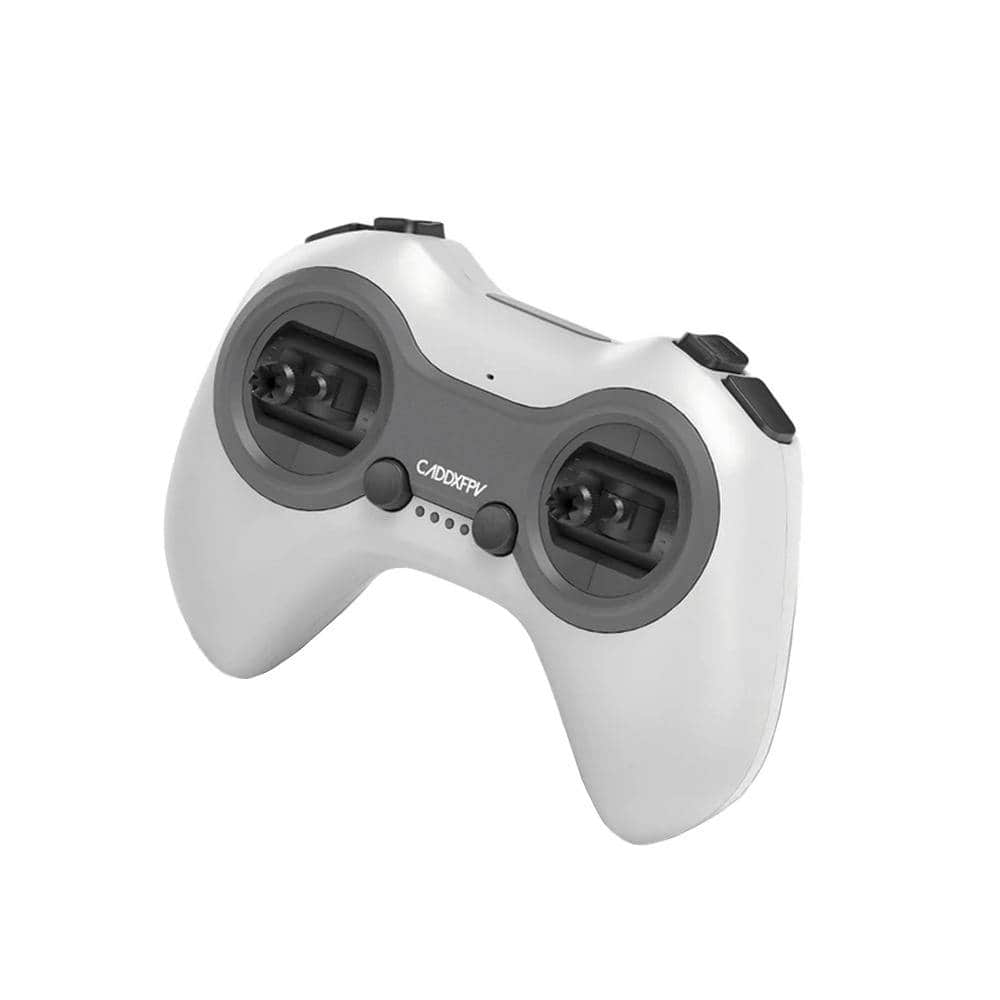

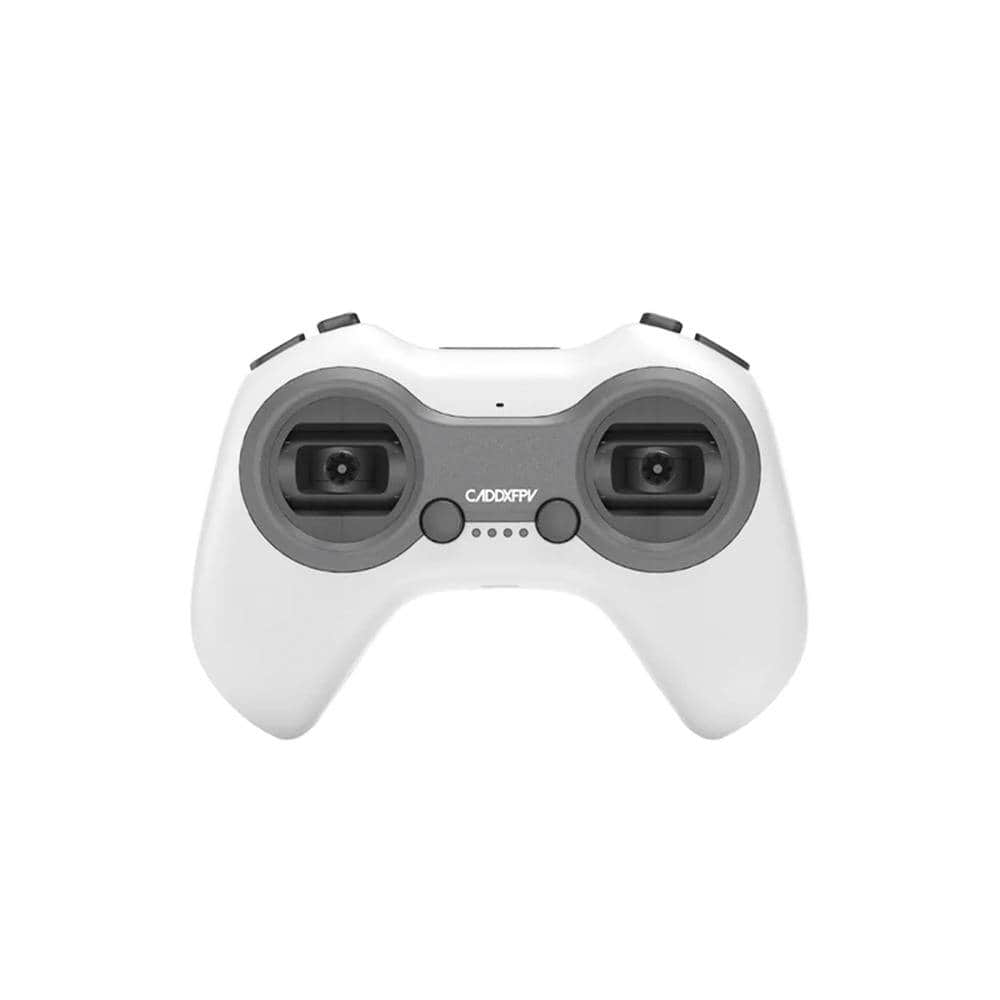

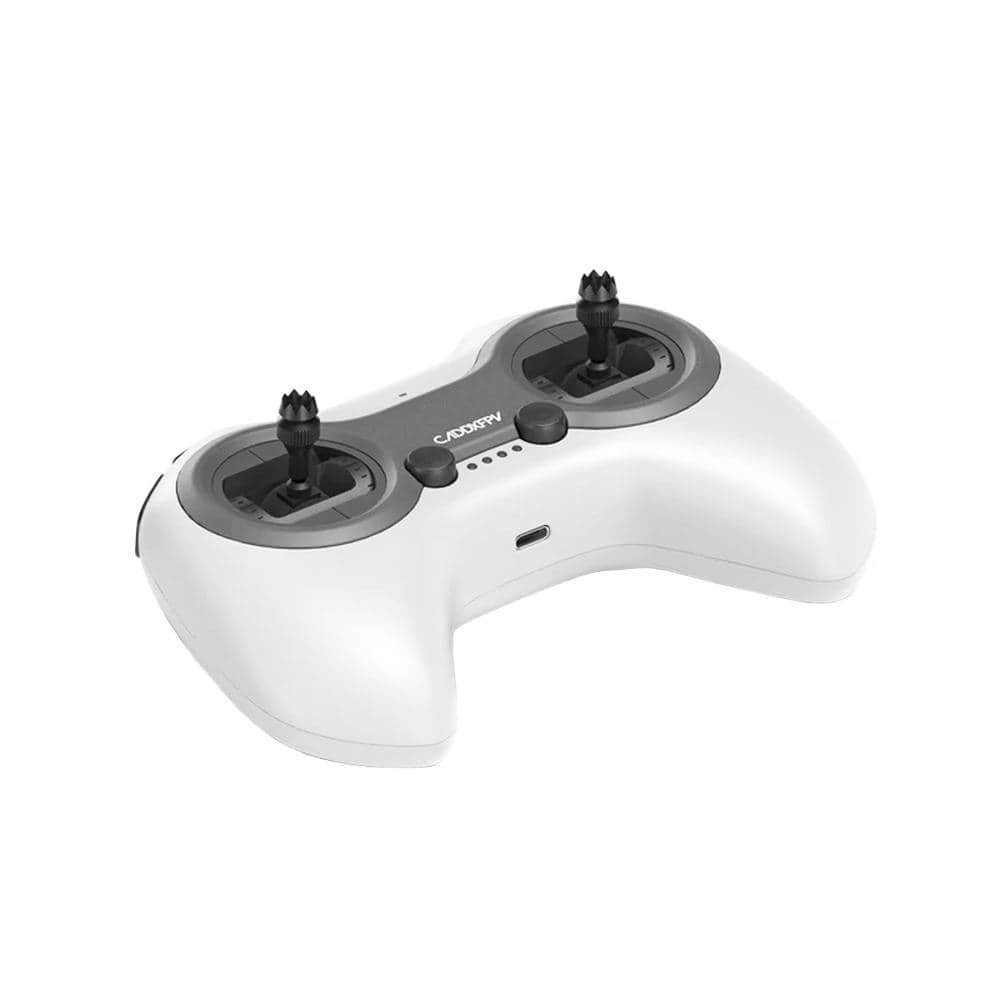

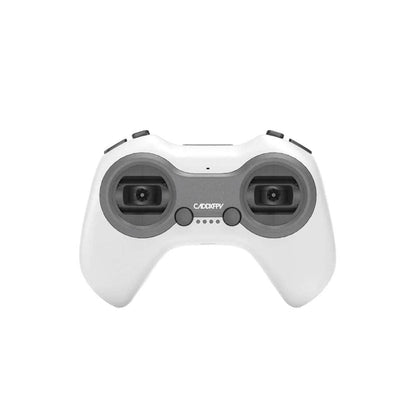

The Caddx Alink is a radio controller with a built-in ELRS 2.4GHz RF module and 10-channel control. It features an ergonomic design and can be used to control RC models equipped with an ELRS 2.4GHz receiver, as well with FPV simulators.

Note: Mode 2 Only

Check out all our RC Transmitters and our entire CADDX selection!

Features

• Built-in ELRS 2.4GHz RF module
• 10 channels (including 4 joystick channels)
• Full-bearing hall-sensor joystick assembly
• USB Type-C for charging and communication
• PC connection support for FPV flight simulators via Type-C data cable

Specifications

• FCC IC: 2BHG9-C0PJ-YKL19
• Main Control Chip: AT32 F413RCT7
• RF Module: ELRS 2.4GHZ
• RF Protocol: CRSF
• Max RF Power: 100mW (20dB)
• Number of Available Channels: 10 (including 4 joystick channels)
• Joystick Type: Full-Bearing Hall-Sensor Joystick Assembly
• Function Switch: 1 x Latching Button / 2 x Momentary Buttons /2 x 3-Position Toggle Switches / 1 x Scroll Wheel
• Status Indicator Module: 4 x Status Indicator LEDs / Buzzer
• Charging & Communication Interface: USB-Type C
• Battery Specification: Lipo 1s 1000mAh
• Max Charging Power: 5V / 1A / 3.50W
• Charging Time: ≈90:00 min
• Operating Voltage Range: DC 3.50V~4.20V
• Dimensions: 158mm x 108mm x 58mm
• Weight: 180g±5g

Includes

• 1x Caddx Alink Controller - ELRS 2.4GHz
• 1x USB-C Cable
• 1x Product Manual
