Description

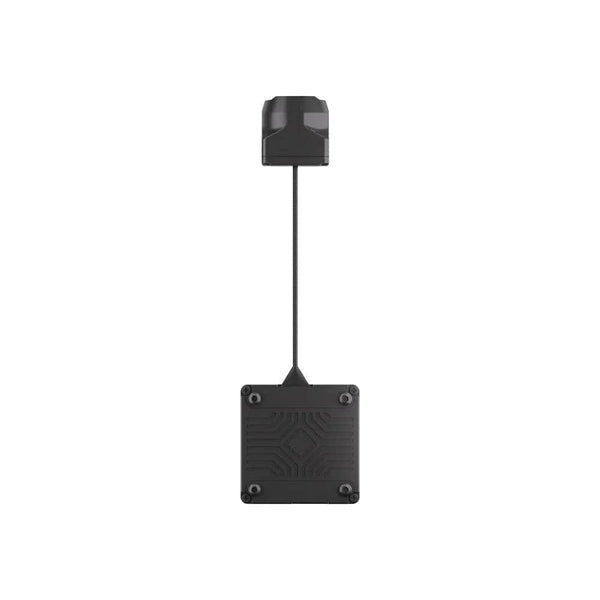

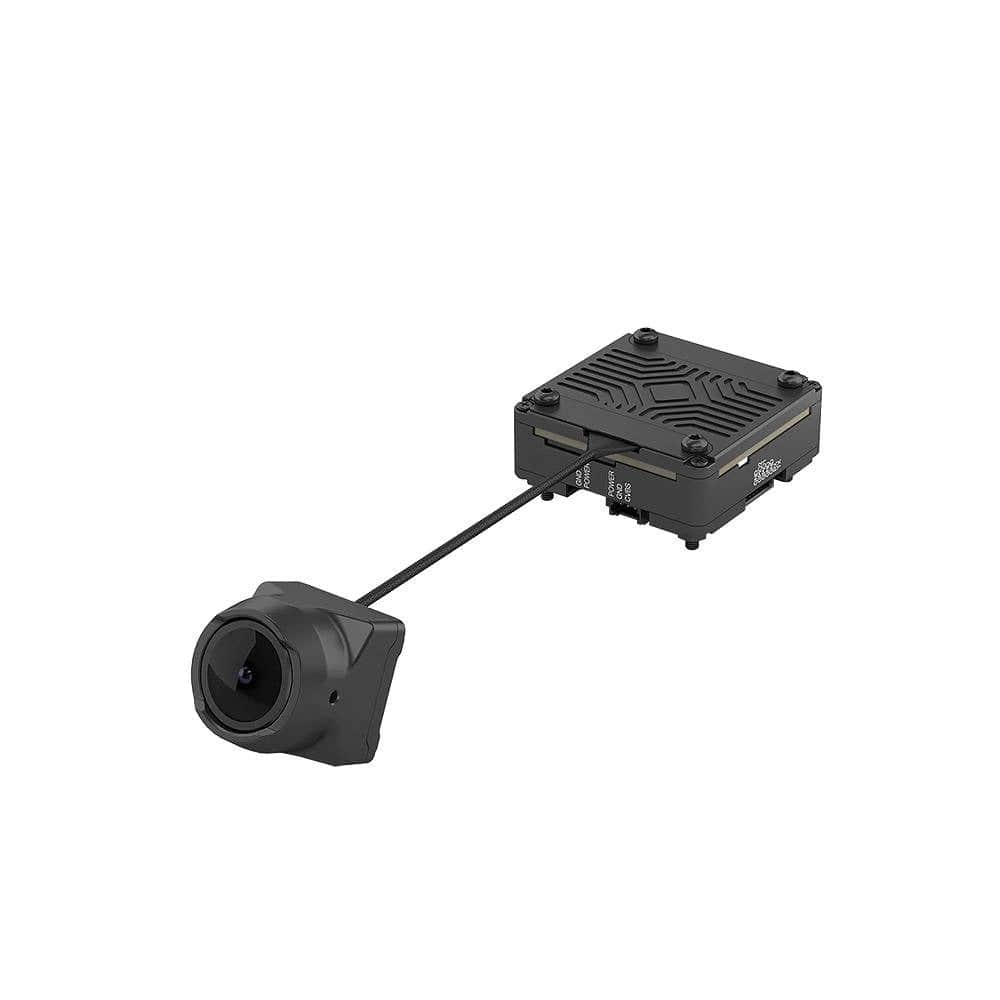

The CaddxFPV Farsight Analog FPV Camera delivers sharp visuals with up to 8x AI-assisted quick zoom. Its wide 122.5° field of view and 1500 TVL resolution provide crisp, distortion-free imagery with excellent light sensitivity for dynamic flight scenarios. Compact and lightweight, this camera is ideal for any FPV setup needing flexible, detailed visual performance without sacrificing compatibility with existing analog systems.
Check out the rest of our Caddx cameras or other FPV Drone Cameras!
Features
- Quickly zoom in with up to 8× AI-assisted magnification to capture fine details and close-ups
- Easily and smoothly control zoom through your flight controller
- Large 1/2-Inch sensor with 4:3 output
- Compact size with analog system support
Specifications
- Model: Caddx Farsight
- Image Sensor: 1/2"
- Illuminance: 0.01 Lux
- Focal Length: 2.2mm
- FOV: 122.5°(H) x 92.2°(V) x 155°(D)
- Horizontal Resolution: 1500TVL
- Aspect Ratio: 4:3
- Zoom Ratio: 1-8x
- Zoom Mode: Connect to FC, PWM Control
- Video Interface: CVBS
- Power Supply Range: 9~24V
- Power Consumption: <2w
- Operating Temperature: -20℃~60℃
- Dimensions:

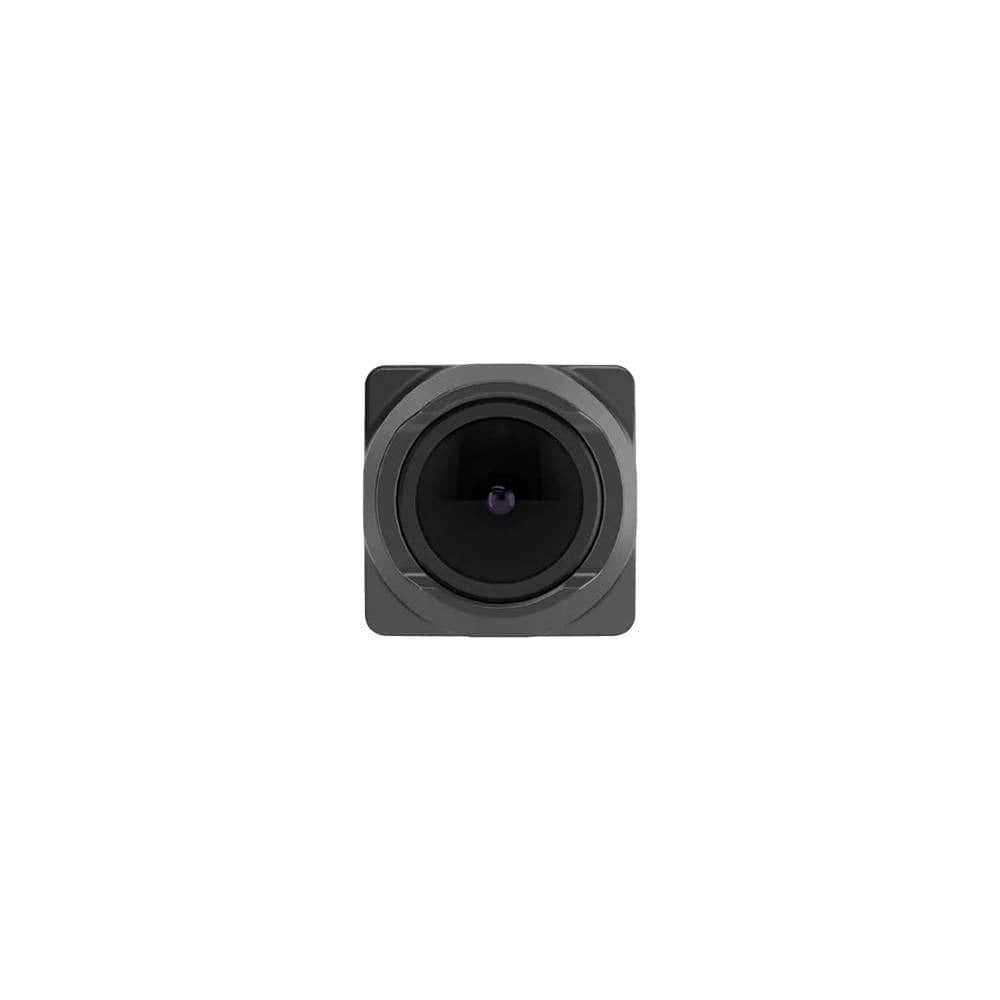

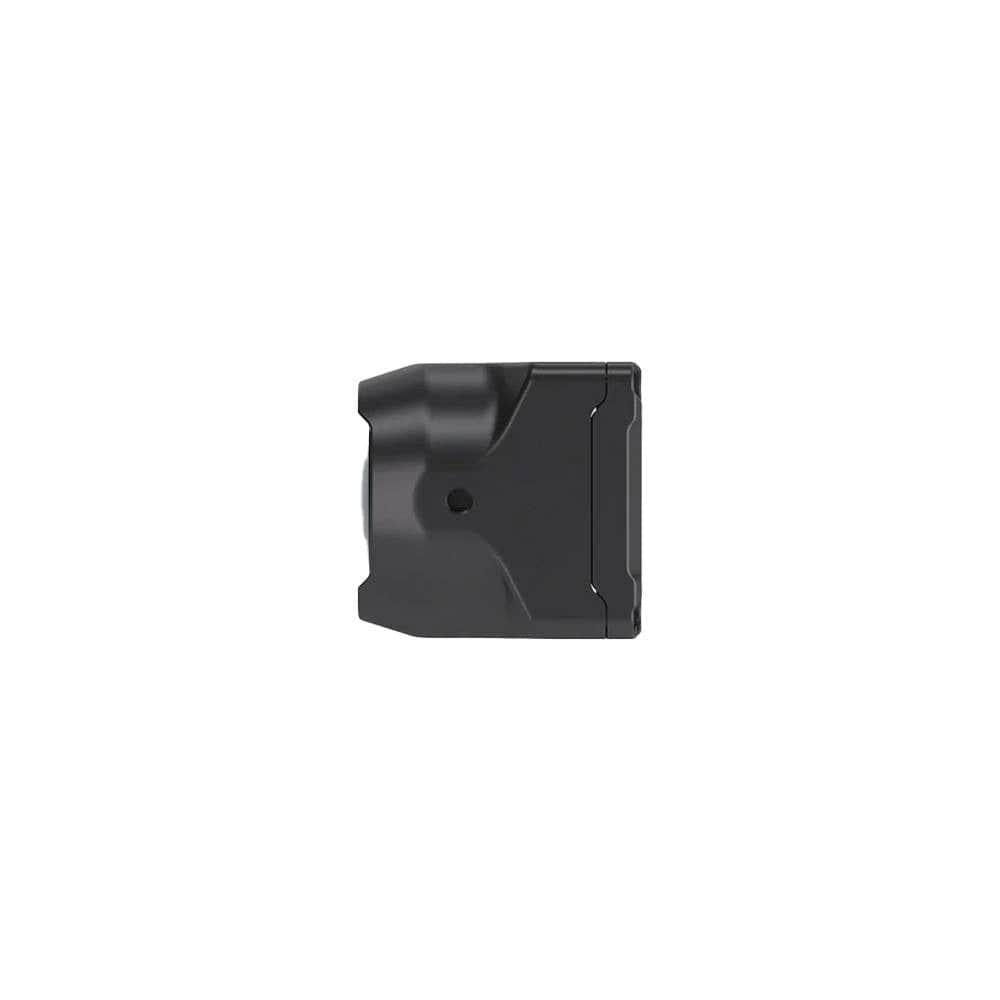

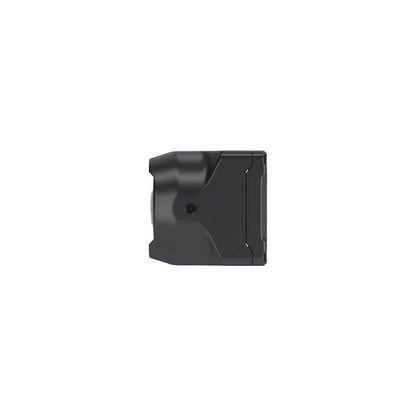

- Camera: 19x19x19.5mm
- AI Box: 33.5x33.5x12.35mm
Links
Includes
- 1x Caddx Farsight Analog FPV Camera
- 1x 7Pin3 Silicone Cable
- 2x 6mm Screws
- 2x 5mm Screws
- 2x 4mm Screws
- 2x Screw Washers
- 1x Quick Start Guide
More Info
- SKU: 23545
- Barcode: 210000274556
