Description

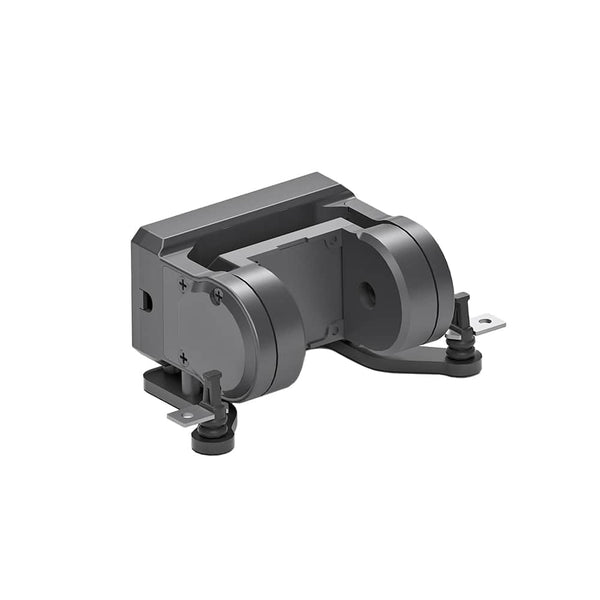

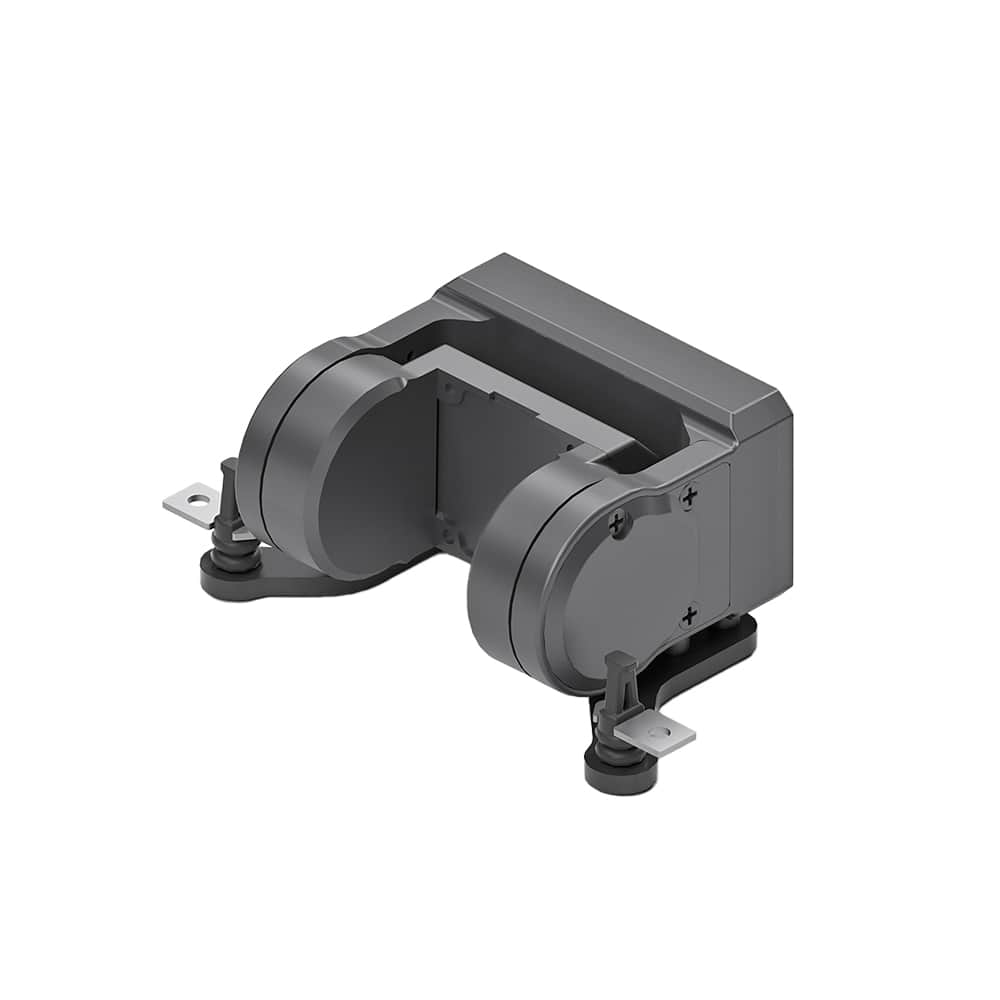

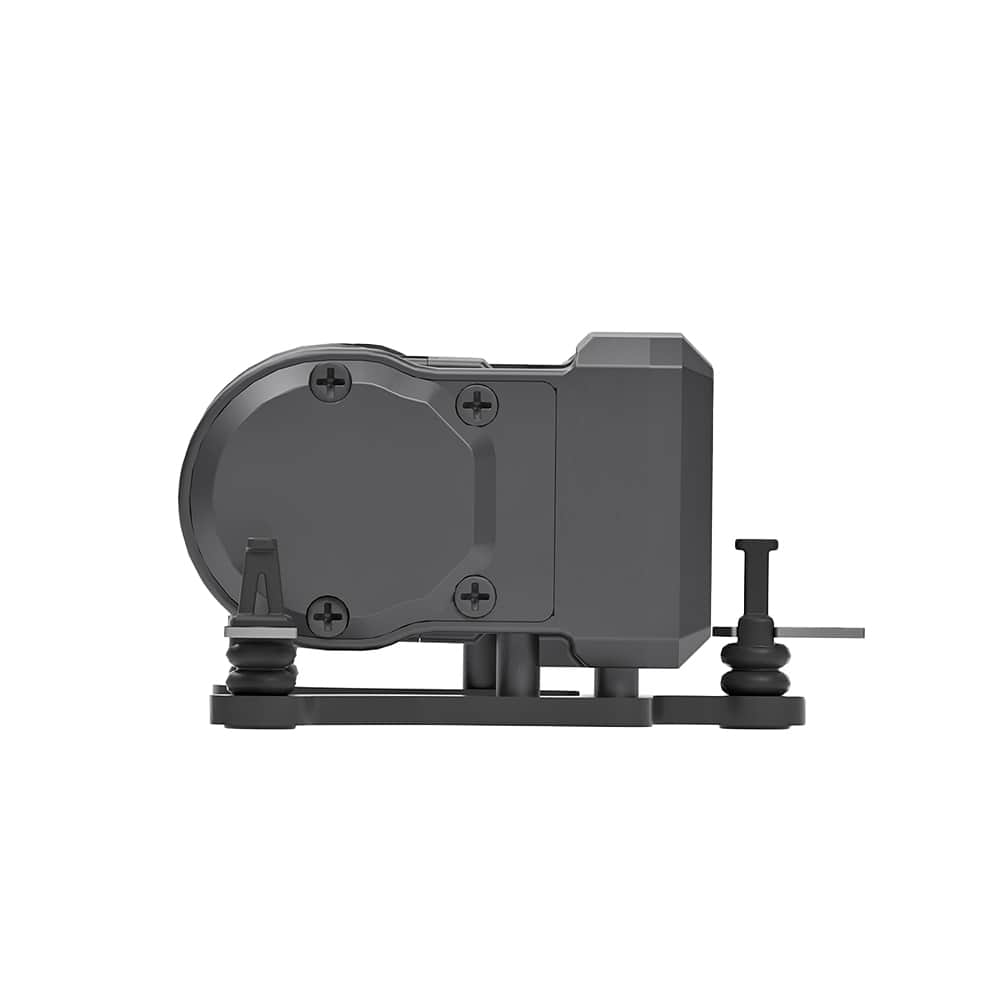

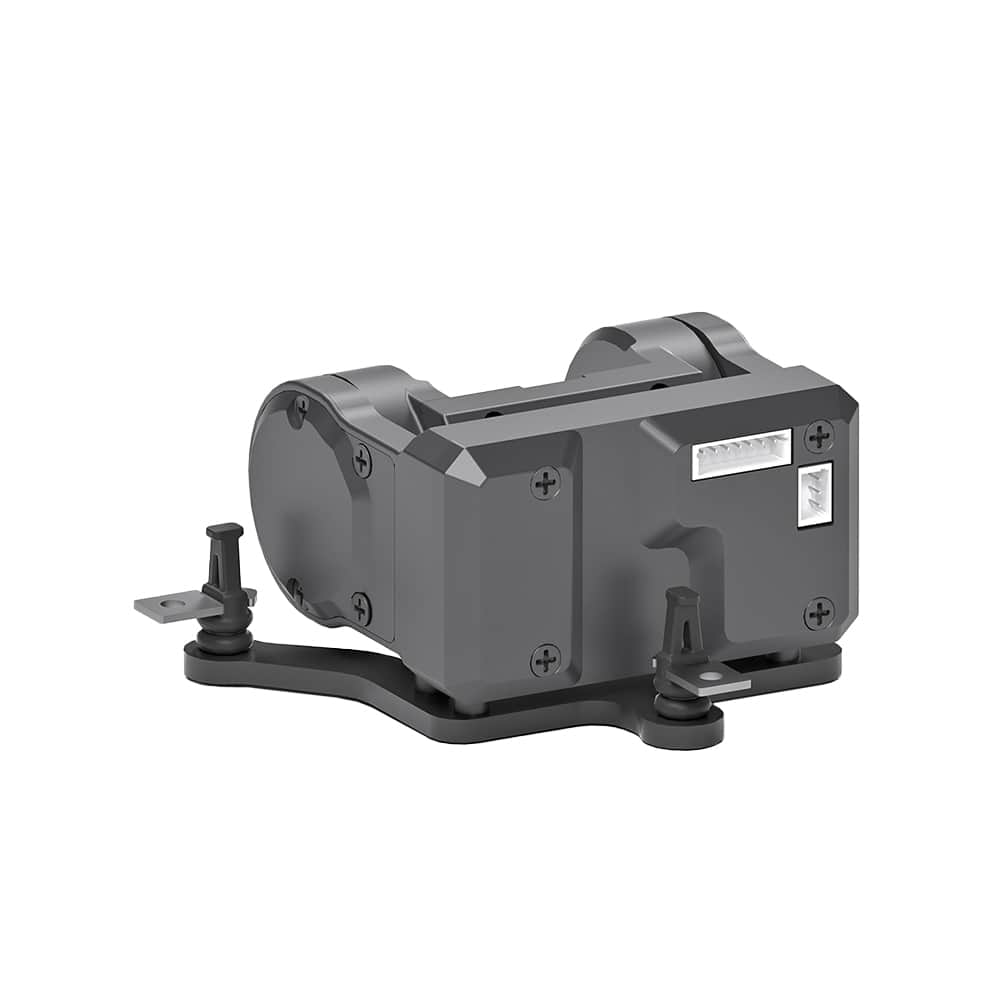

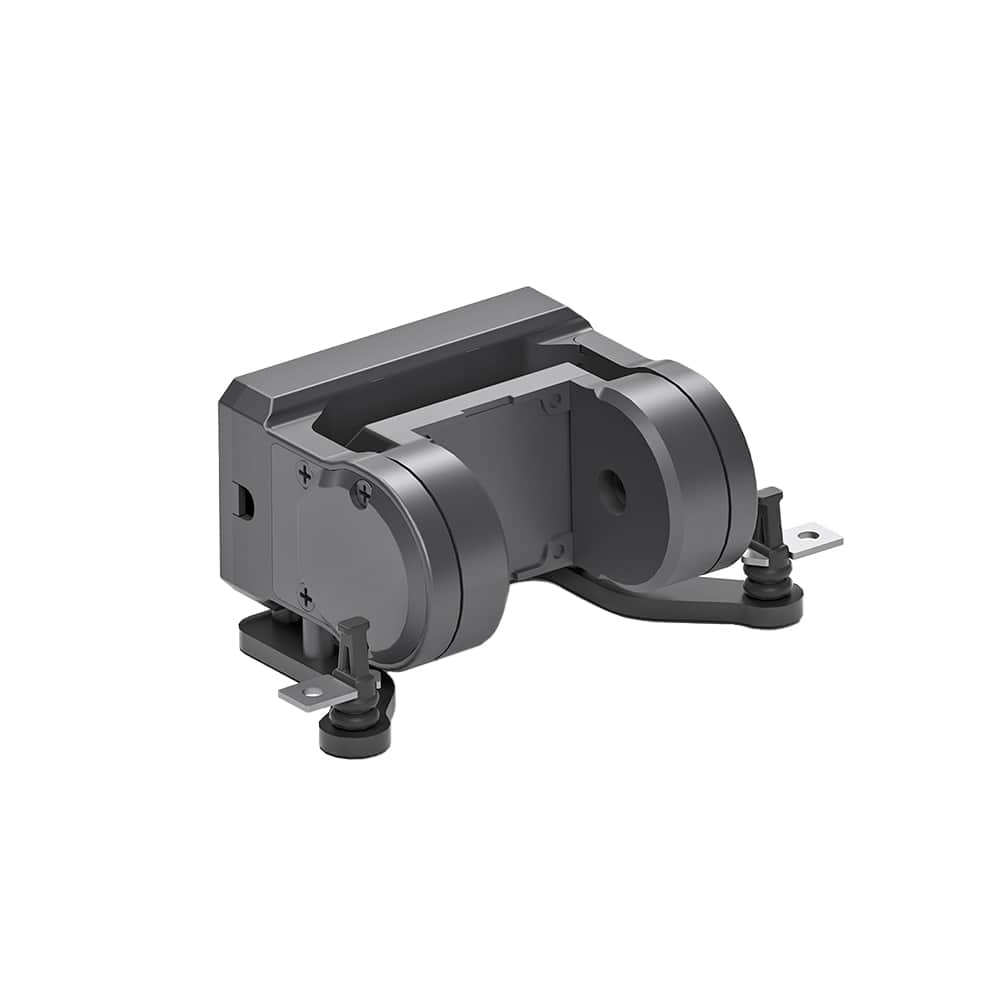

The Caddx GM1 V2 Analog FPV Gimbal was developed based on pilot feedback and incorporates the head tracking function of goggles. Caddx's R&D team designed this series of gimbals specifically for FPV cameras to cater to various needs. The primary goal is to provide stable, smooth images, making it easy to capture stunning aerial videos and photos. The head tracking function adds an immersive feeling, turning every flight into an adventure.

Note: This purchase includes only the GM1 V2 FPV Gimbal; the VTX must be bought separately.

Check out all our replacement cam parts & lenses, and our CADDX gear selection!

Features

• Compatible with Walksnail Avatar/Ascent Goggles

• Enhanced FPV Experience

• Mechanical Stabilization

• Supports Head Tracking

• Modes and Sensitivity

• Controllable Gimbal

• Quick Assembly

• Flexibility

Specifications

• Camera Compatibility: Avatar/Ascent Series 19mm Camera
• Max Controllable Speed: ±1500°/s
• Max Controlled Rotational Range:

  • Pitch: ±120°
• Head Tracking Control: Supports
• Static Power: 1.0W
• Stall Power: 7.5W
• Control Mode: PWM / UART / S.bus / Crsf / Mavlink
• Image Stabilization: ±0.005°
• Size: 43x46.4x56.9mm
• Model: GM1 V2-19
• Weight: 32g

Links

Includes

• 1x Caddx GM1 V2 Analog FPV Gimbal
• 1x 7Pin Power Cable

• 1x Product Manual
