Description

Super F405HD AIO with ELRS. Meant for the Caddx Gofilm 20, but perfect for your next 2-4S build!

Check out pre-built quads, and our CADDX selection!

Features

• Suitable for Gofilm 20

• AIO flight control with integrated ELRS receiver

• Supports 2S-4S batteries

Specifications

• MCU: STM32F405RGT6

• GYRO and IMU: ICM42688

• Barometer: BMP280

• ExpressLRS receiver: ELRS V3.0 UART

• ESC: 20A 4-IN-1

• Blackbox: 8MBp

• Support Power: 2~4S Lipo/Lihv

• Mounting hole Distance: 25.5×25.5mm

• Firmware target: CADDXF4_AIO_ELRS

Includes

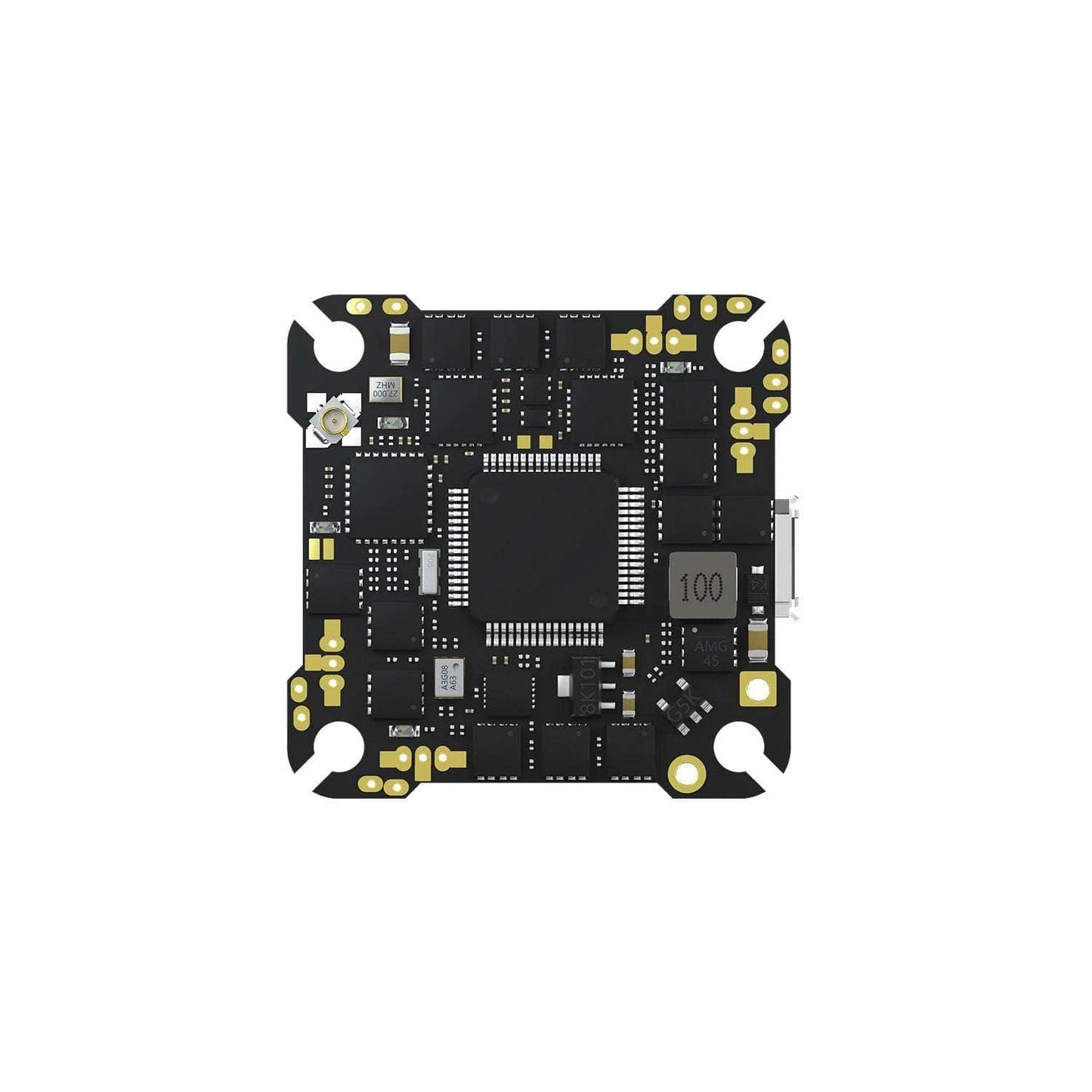

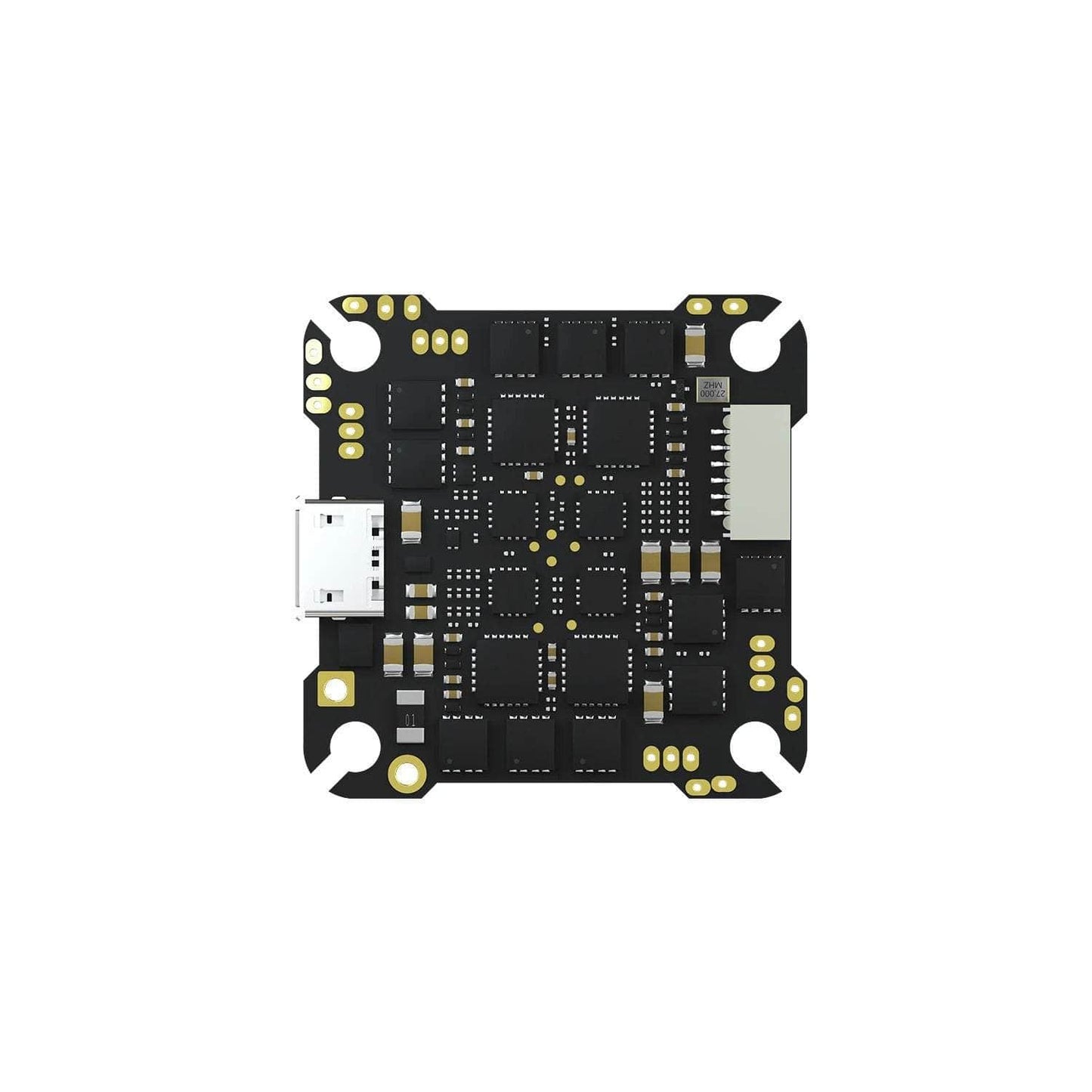

• 1x Caddx Gofilm 20 F4 AIO Whoop/Toothpick Flight Controller (w/ 20A 8Bit 4in1 ESC & ELRS 2.4GHz)
