Caddx Nebula Pro Vista Kit w/ 12cm Cable - Black

Caddx Nebula Pro Vista Kit w/ 12cm Cable - Black

$197.99
$197.99
Add To Wishlist
View full details

Details

Description

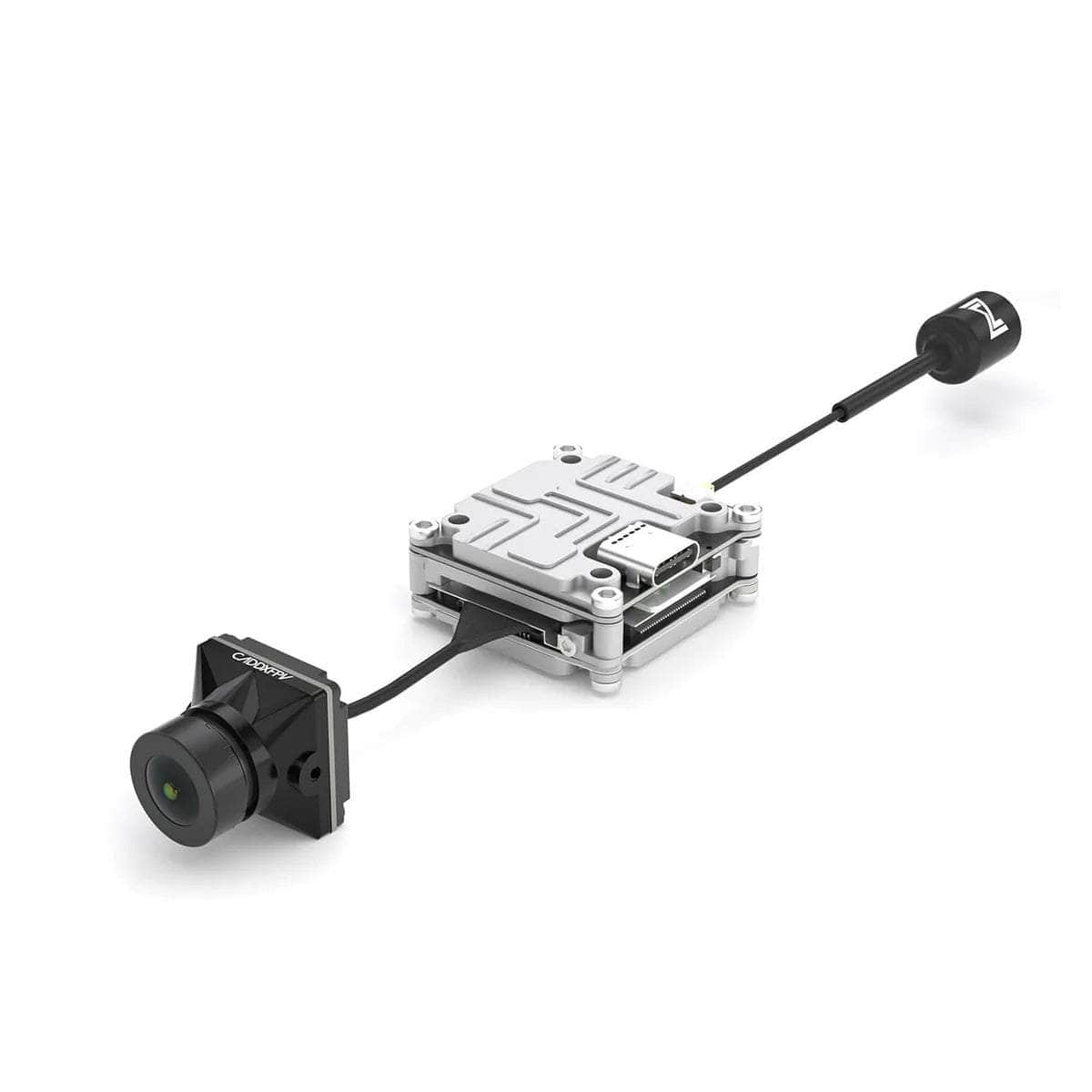

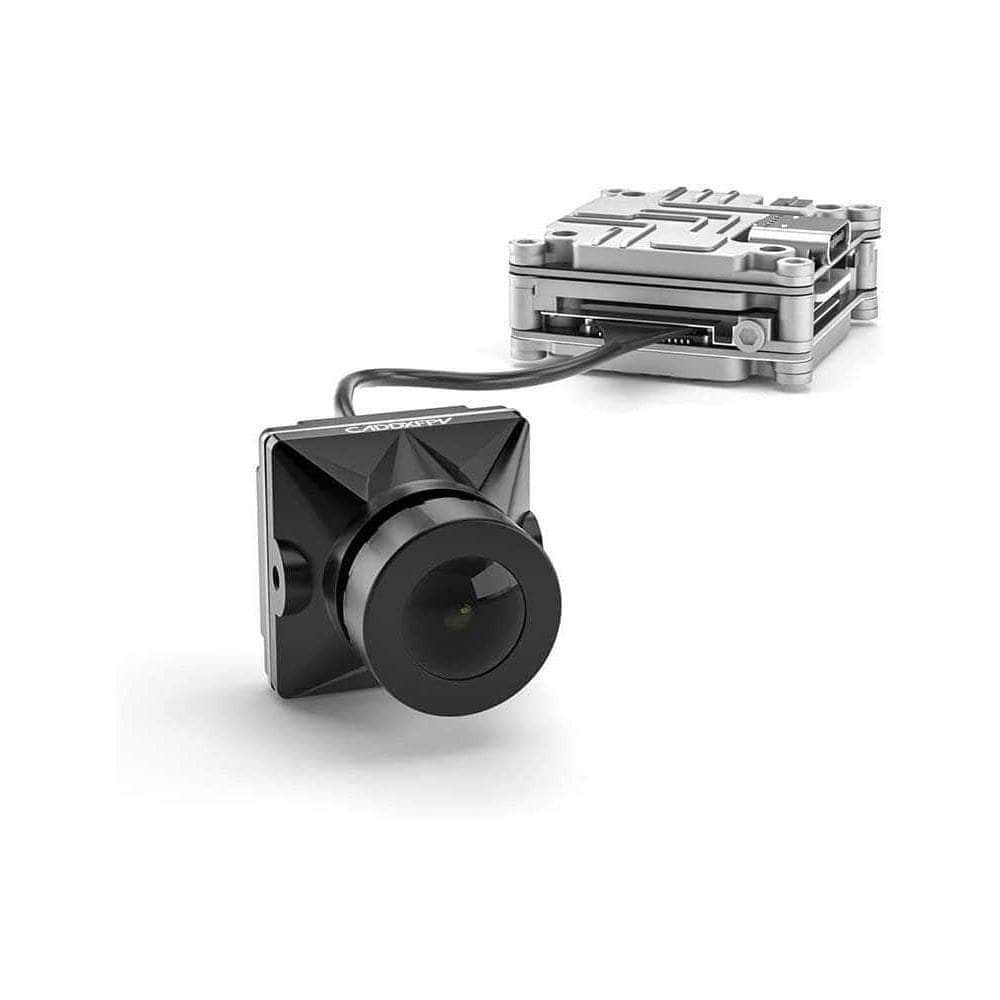

Capture stunning aerial video with the Caddx Nebula Pro Vista Kit. This lightweight kit comes with a 12cm cable and is designed to ensure a clear, high quality image. The Pro Vista Kit produces vibrant colors, deep contrast, and sharp details with minimal distortion.

The Caddx Nebula Pro Digital FPV Camera Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Caddx Nebula Pro with Vista is designed for FPV drones and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.

User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers, as well mount on racing drones!

Check out the entire DJI System product line, our DJI compatible gear and our CADDX selection!

Features

  • Lightweight digital image transmission combination
  • Embedded Remote Controller Receiver
  • Stable and clear HD video
  • 720p/120fps
  • 28ms of latency over 4km
  • 27g weight
  • 8 video channels

Specifications

  • Model: Nebula Pro Vista Kit
  • Weight: Vista Kit(camera included): 25g
  • Weight(Antenna): 1.5g
  • Dimensions(Vista Kit): 30 x 29 x 13mm
  • Dimensions(Camera): 19 x 19 x 20mm
  • Dimensions(Coaxial Cable): 120mm
  • Operating Frequency: 5.725-5.850GHz
  • Transmitter Power(EIPP): FCC/SRRC/MIC: <30dBm
  • CE: <14dBM
  • Min. Latency(end-to-end): Low Latency Mode(720p 120fps): 21-28ms
  • Max. Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
  • I/O Interface: USB-C, IPEX, 3-in-1port
  • Supported Flight Control System: F3,F4,F7
  • Operating Temperature Range: 32° to 104°F (0° to 40°C)
  • Input Power: 7.4-26.4V
  • Power Output: 25W/200mW/500mW/700mW
  • Hardware Included: Vista/Nebula pro/coaxial-cable/antenna
  • Goggles: Work with DJI goggles
  • Camera(sensor): 1/3" CMOS
  • Camera(Lens): 2.1mm
  • Camera(Shutter): Rolling Shutter
  • Camera(FOV): 150°(D);122°(H);93°(V)

Includes

  • Caddx Nebula Pro Vista Kit w/ 12cm Cable - Black

More Info

  • SKU: 15122
  • Barcode: 691023476639


Overall rating: 4.888889 / 5 from 27 reviews.

AI Generated Review Summary

The Caddx Nebula Pro Vista Kit is a lightweight digital image transmission system designed for FPV drones, offering clear, high-quality video with vibrant colors and sharp details. It supports 720p 120fps image transmission over 4km with minimal latency and can be used with DJI FPV Goggles. The setup is simple, and users are highly satisfied with its picture quality.

Summary topics

  • Setup Simplicity: 18%
  • Picture Quality: 44%

Review topics: ["quality","light","setup","vtx","picture","latency","vista","antenna","fpv","range"].

Review highlights

  • "Setup is simple, great quality and image, and a small selection of shooting styles." — Corey M.
  • "Fast shipping RDQ , light weight, good picture quality" — Kris B.
  • "Setup is easy, quality is beyond any other VTX out there and it comes in a 20x20 package." — MICAH A.

Reviews

I gotta snatch up a few more of these Vista/Nebulas before they're gone

"The Nebula Pro Vista is performing very well. Range so far is great, but I plan to push it more. The image quality is great and DJI knows their product. The dynamic range is what the Vista/Nebula are known for, DJI knows their shtuff. The exterior looks great and appears well made. Totally jazzed with the new hardware. The setup was fairly straightforward after watching Bardwell's videos. I will say, coming from HDZero, the latency is noticable, but manageable after retraining my brain. Still love my HDZero for most of the daily flights, but DJI has a few applications that make it shine, too."

— Wolf D. (5/5)

Great product!

"Great product from a great seller!"

— Michael A. (5/5)

Best VTX out there

"Can never complain with DJI, Low Latency is the best on the market right now, will def stay with them unless something bagged comes along, much cheaper then the o3 but I am surprised they haven’t lowered the prices on this yet but will definitely buy again"

— Daniel B. (5/5)

Awesome product

"Works great"

— Tory h. (5/5)

I use this kit on

"I use this kit on all my quads, the quality is definitely my standard, setup it totally easy, with beautiful pictures, for the price, I'm totally comfortable, thanks RDQ."

— Odean S. (5/5)

"Still works with the goggles 2 🤩"

— Edward (5/5)

Love it.

"It works great on my Apex 3”."

— Keith S. (5/5)

DJI is King

"I know the vistas are considered old now, and most of my quads have O3. But I still build a lot of quads with Vistas as tons of people are still flying the V2 system. I think the Caddx Nebula Pro camera will always be the best 120fps for the V2 system over the Runcam Wasp."

— Ryan R. (5/5)

A tried and true product

"Well know product good picture quality to value"

— Mark R. (4/5)

Picture quality is a bit

"Picture quality is a bit wonky. It's super orange but the low light is really good! Not as good as the Walksnail HD Pro but still way better than the other Vistas and especially the o3."

— Dylin S. (4/5)

Q&A

I just want to know if this air unit will work with the DJI Goggles Integra??
No. They are meant for the Avata and the 03 air unit.
