Description

All batteries must be shipped by a ground shipping method.

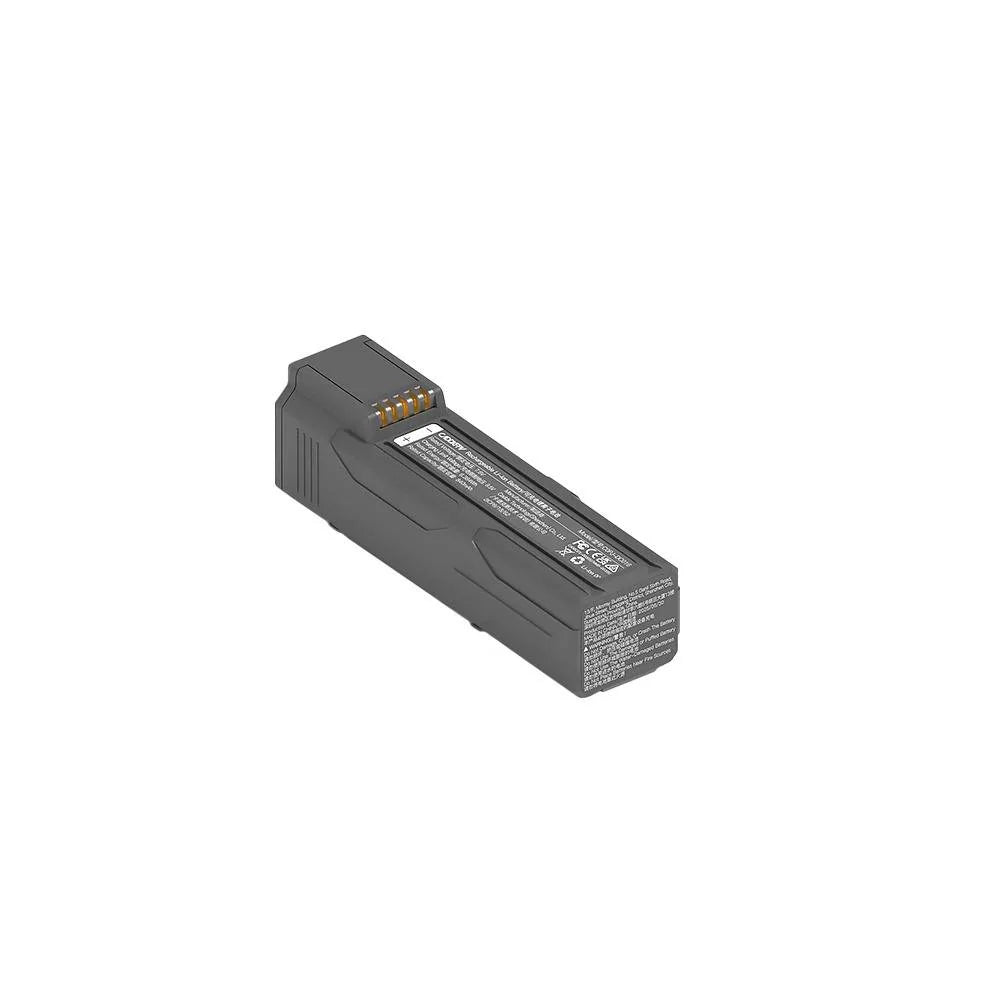

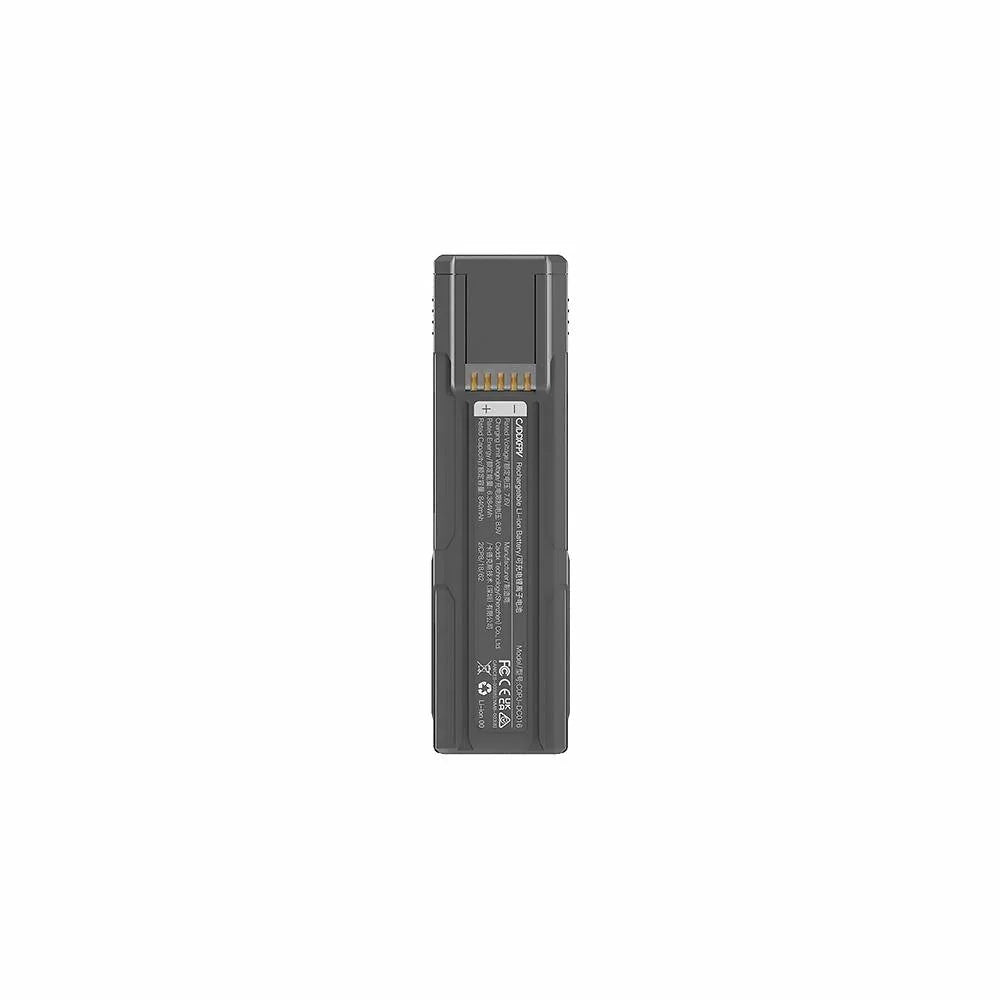

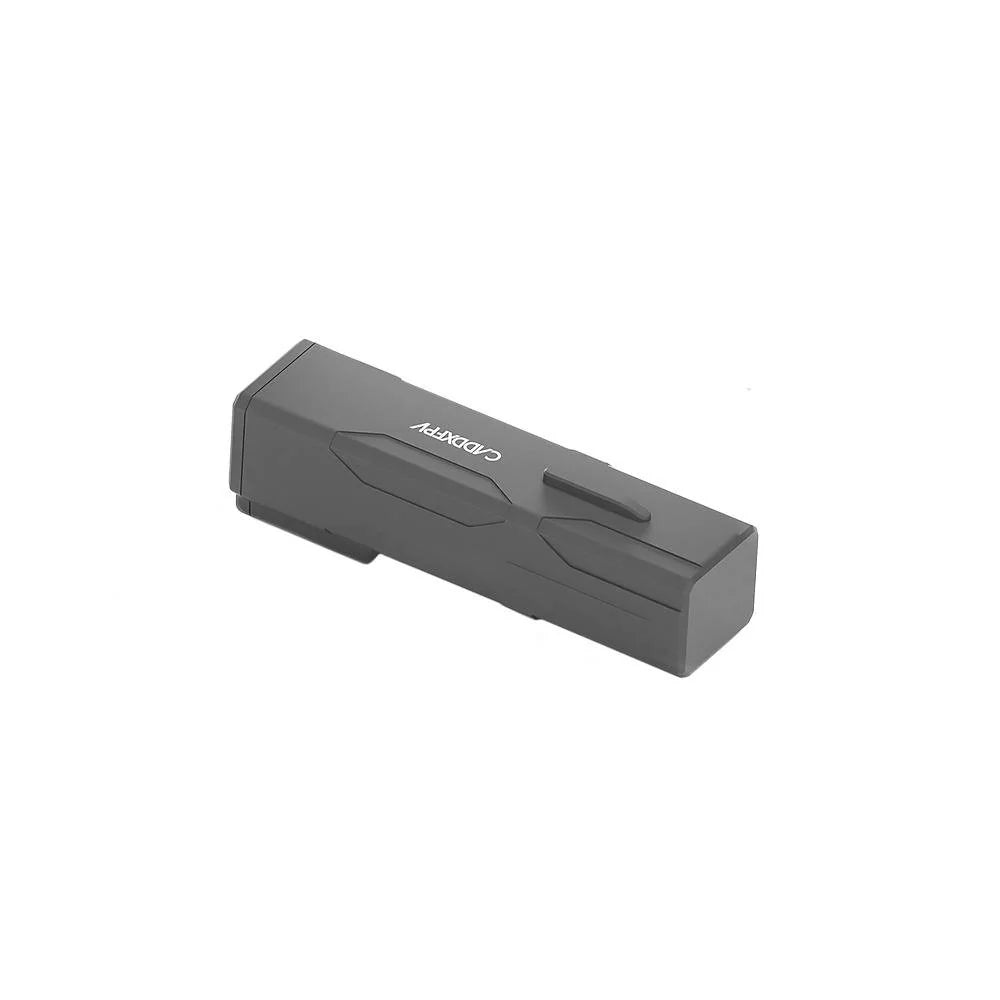

The Caddx Protos 2S Battery is a specialty battery designed for the Caddx Protos FPV drone. Its slim build makes it easy to install and swap out for less downtime in the field.

Check out pre-built quads, and our CADDX selection!

Find more information about the Caddx Protos here!

Features

• Plug-in design for quick and easy connection
• Can fully charge in less than 20 minutes
• Battery lock protection triggers when voltage of a single cell drops below 2.8V

Specifications

• Model: C0PJ-DC016
• Battery Type: Li-ion
• Battery Capacity: 840mAh
• Battery Specification: 2S1P (2 Cells in Series, 1 in Parallel)
• Discharge Rate (C-Rate): 15C
• Maximum Power: 6.384Wh
• Voltage Range: 6.80V~8.70V
• Max Charging Voltage: 8.5V
• Charging Method: 2S Charger (Not Included)
• Charging Time: ≤20min
• Protection Mechanism: When the voltage of a single cell drops below 2.8V, battery lock protection is triggered and charging is required to reactivate.
• Dimensions: 77.5x24x21mm
• Weight: 41.9g ± 0.5g

Includes

• 1x Caddx Protos 2S Battery
