Description

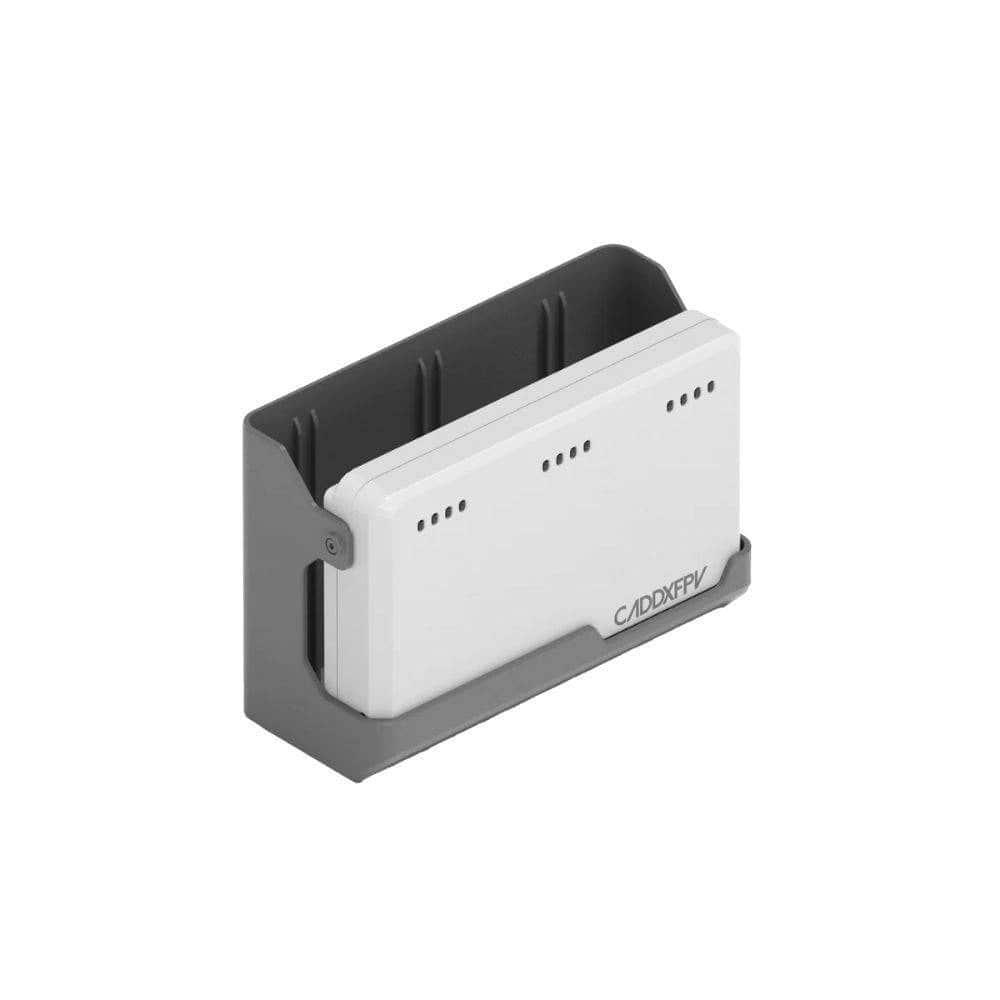

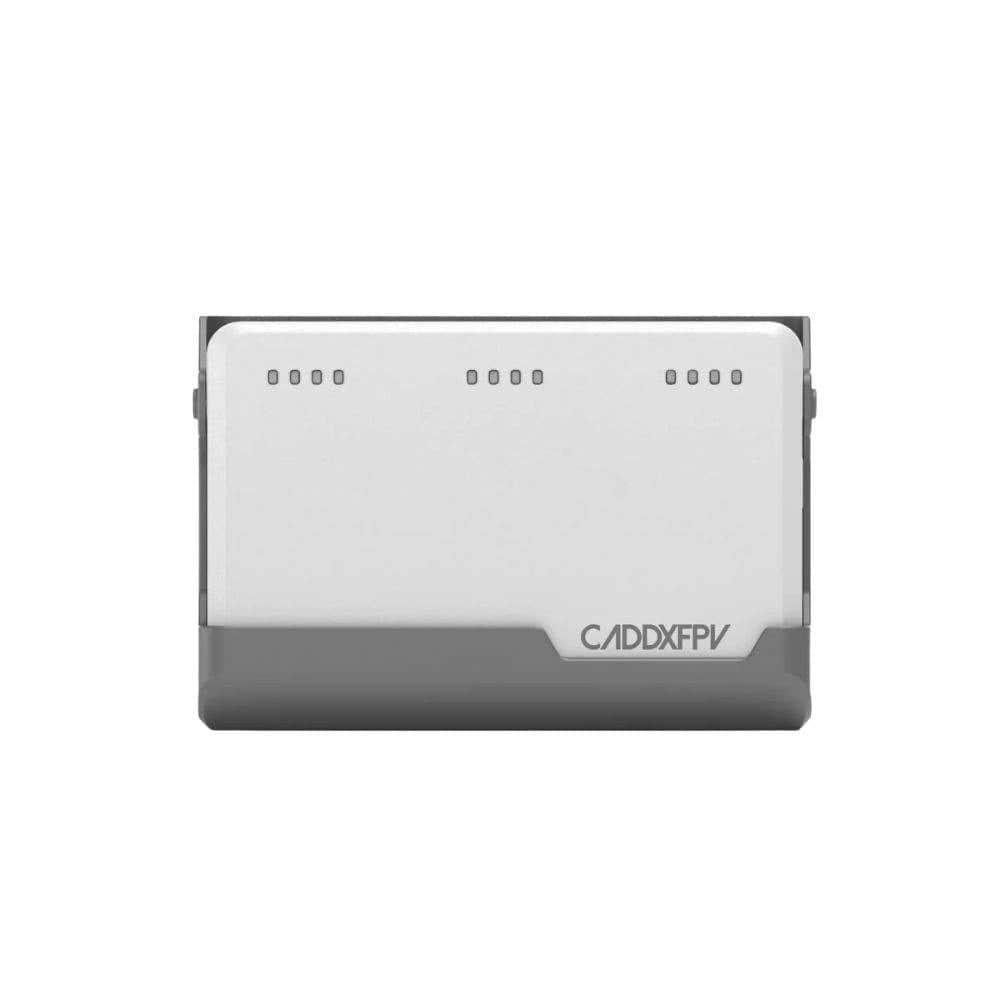

The Caddx Protos 2 Charger is a compact 3-channel sequential charger designed for 2S 840mAh Li-ion batteries. Featuring USB-C PD input, LED status indicators, and support for both charging and storage modes, it delivers up to 25W of charging power in a lightweight, travel-friendly design.

Check out pre-built quads, and our CADDX selection!

Find more information about the Caddx Protos here!

Features

• 3-channel sequential charging
• Charging and storage modes
• USB-C PD input (12–15V)
• LED status display (4 LEDs)
• Up to 25W charging power

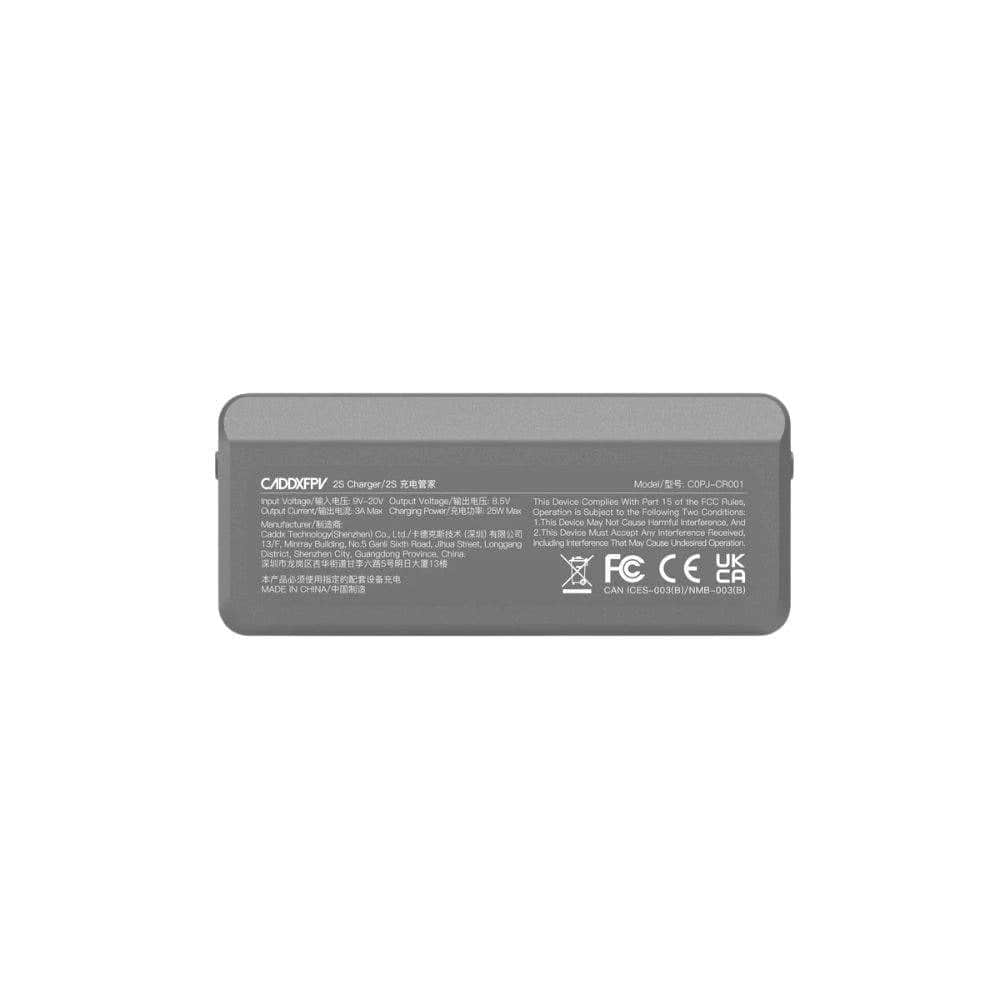

Specifications

• CC IC: 2BHG9-C0PJ-CRL01
• Battery Type: Li-ion 2S 840mAh
• Input Voltage: 12–15V (PD input; 5V adapters not supported)
• Input Current: Max 3A
• Output Voltage: 8.7V
• Charging Current: Max 3A
• Balancing Current: Max 0.21A
• Charging Power: Max 25W
• Discharging Power: Total 5W (Max 1.6W per channel)
• Input Interface: USB Type-C
• Display: 4× LED indicators
• Operating Temperature: -10°C to 45°C
• Storage Temperature: -20°C to 60°C
• Dimensions: 94 × 63 × 39.1mm
• Weight: 65 ±0.5g

Includes

• 1x Caddx Protos 2S Charger
