Details
Description

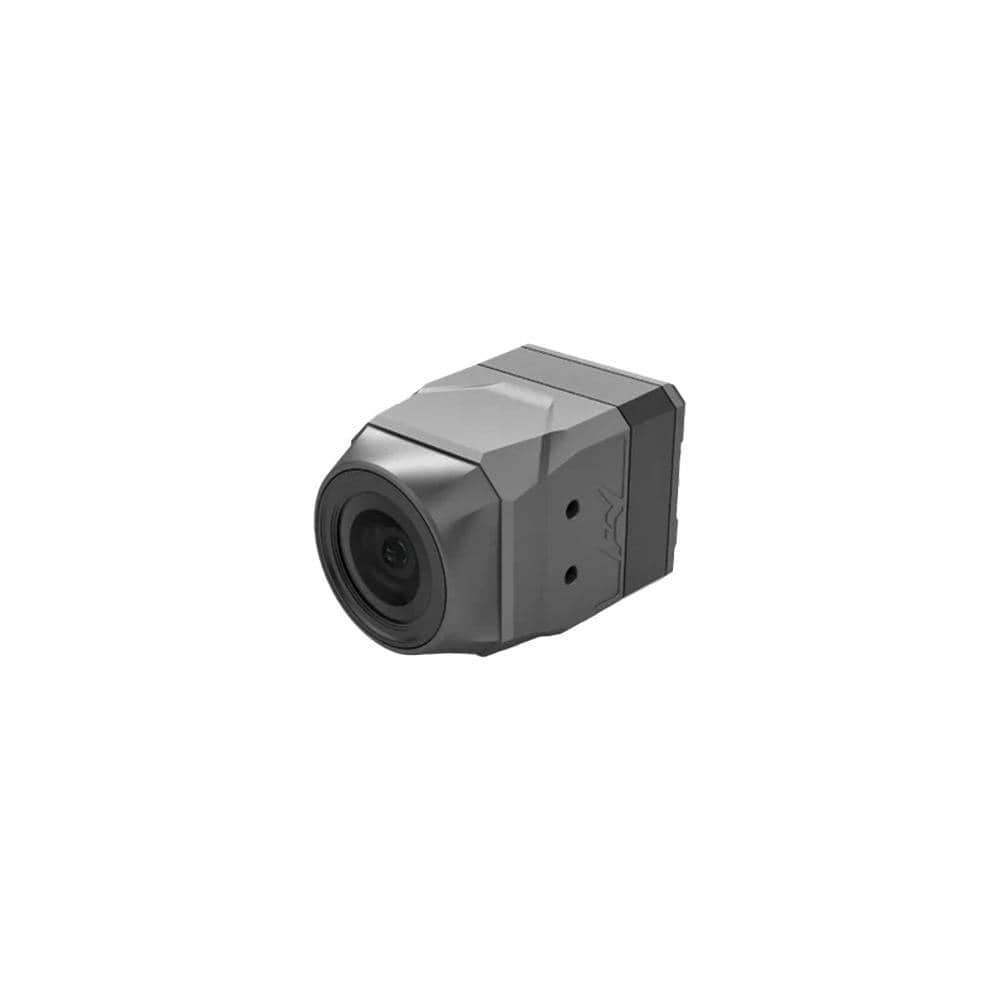

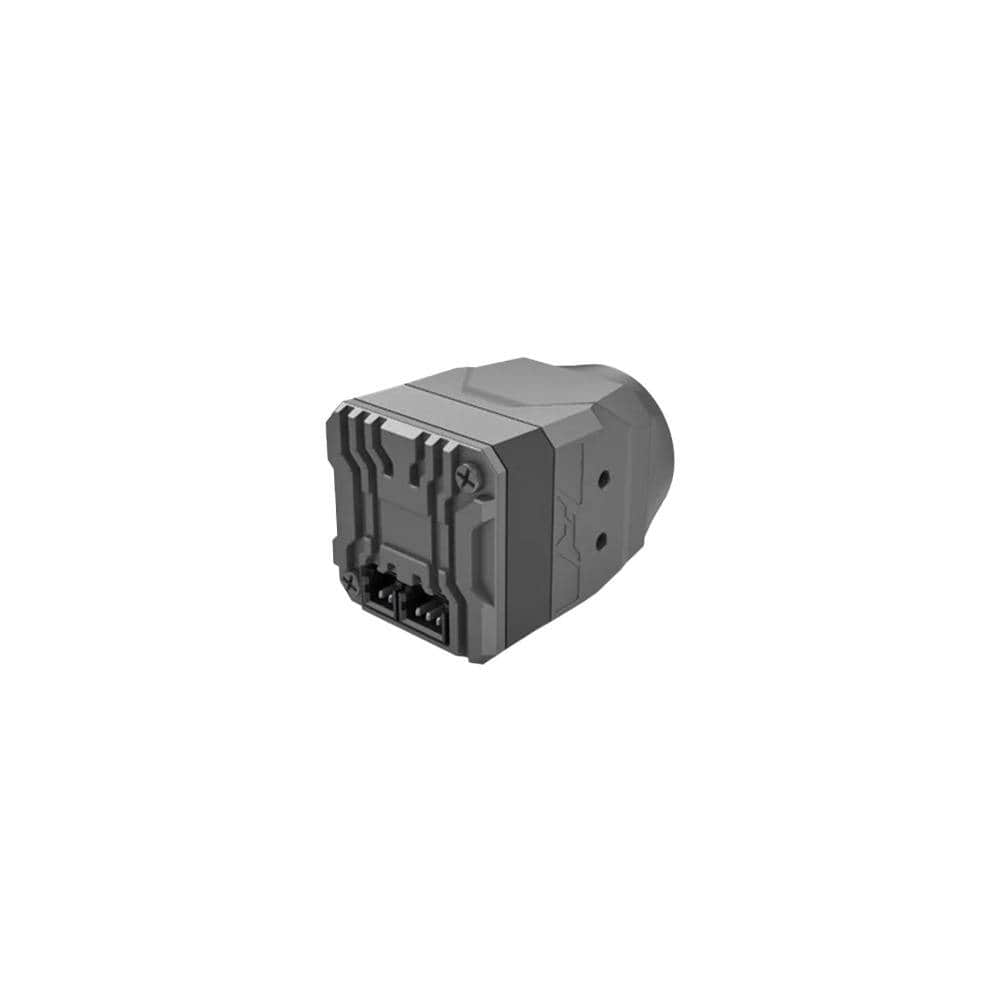

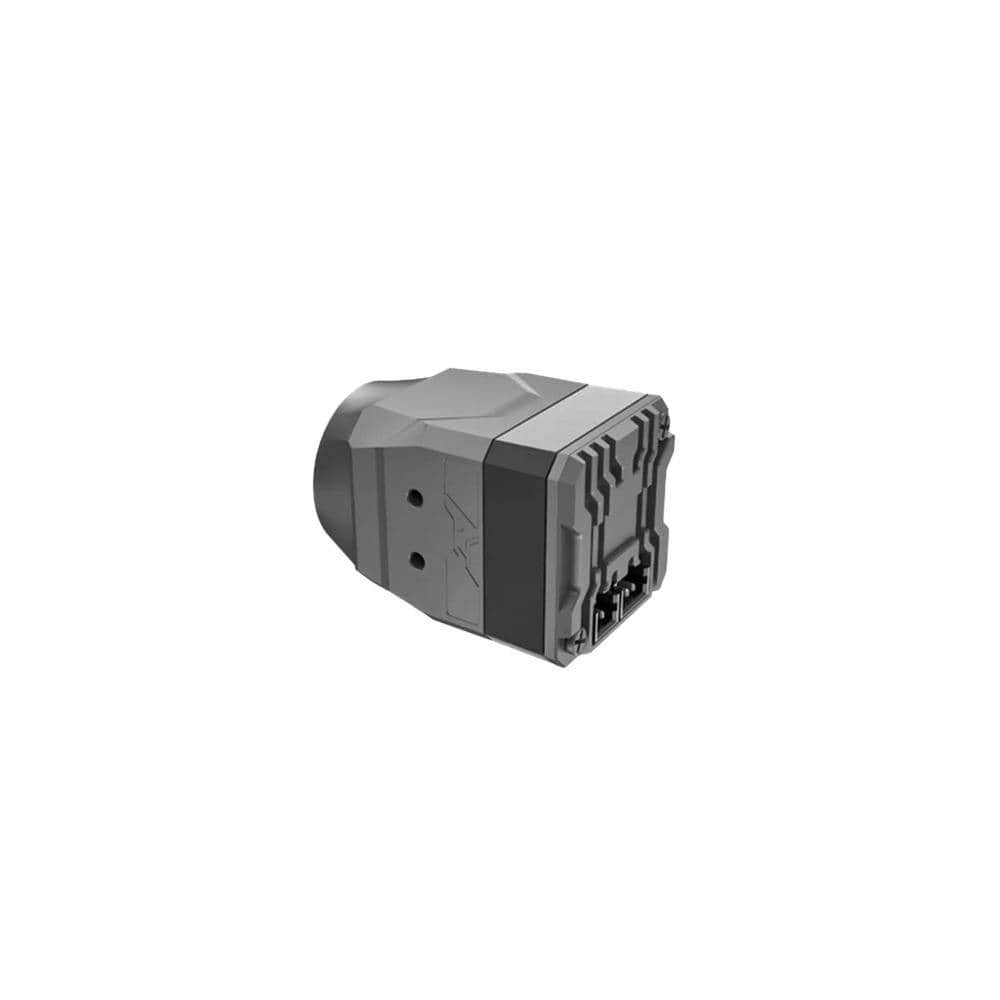

The Caddx Ratel Ultra is a high-performance analog FPV camera designed to deliver an exceptionally clear image in both daylight and extremely low-light conditions. Built around a large 1/1.8″ image sensor, it offers an impressive 1500TVL resolution and super WDR (HDR) in all kinds of lighting environments. With a wide 4.5-36V input range and compact 19.5 x 19.5mm form factor, it’s a versatile choice for FPV drones, fixed-wing aircraft and other analog FPV applications where excellent image quality and low-light performance are a priority.
Check out the rest of our Caddx cameras or other FPV Drone Cameras!
Features
- Minimum illumination down to 0.00001 Lux
- Built-in Super WDR reduces backlight and sudden light changes
- Adjustable output parameters make setup more flexible
- Full-featured OSD offers many customization options
Specifications
- Name: Ratel Ultra
- Image Sensor: 1/1.8 inch sensor
- Horizontal Resolution: 1500TVL
- TV System: NTSC & PAL (Switchable)
- Aspect Ratio: 16:9 & 4:3 (Switchable)
- WDR: Super WDR (HDR)
- Min.lllumination: 0.00001Lux
- FOV: 125°
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- OSD Language: English/Japanese/Russian/Spanish/Italian/French/ Polish Portuguese/Chinese
- Day/Night: Auto/Color/B&W/EXT
- Dimensions: 19.5mm x 19.5mm x 28.1mm
- Power Input: DC 4.5V-36V
Links
Includes
- 1x Caddx Ratel Ultra FPV Camera
- 1x OSD Menu Board
- 1x Accessory Kit
- 1x User Manual
More Info
- SKU: G25282CN1Z
- Barcode: 723326382833
