Details
Description

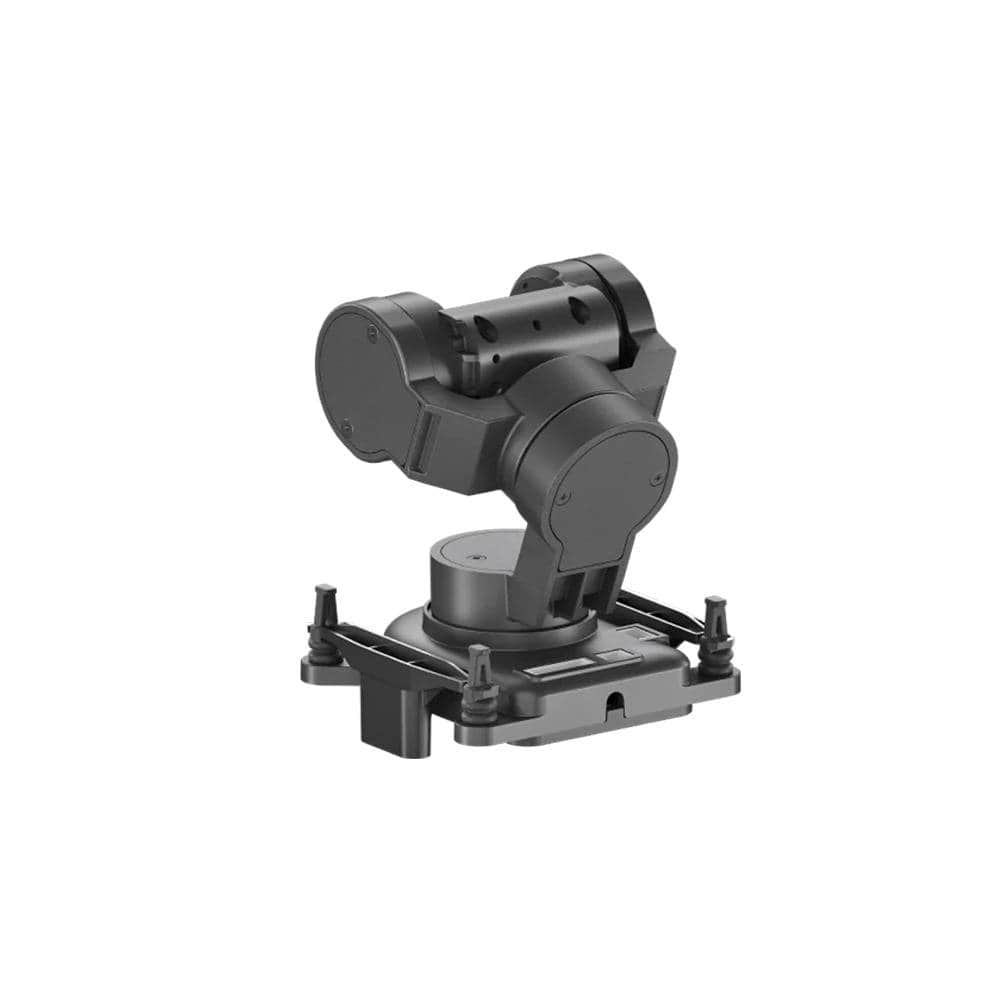

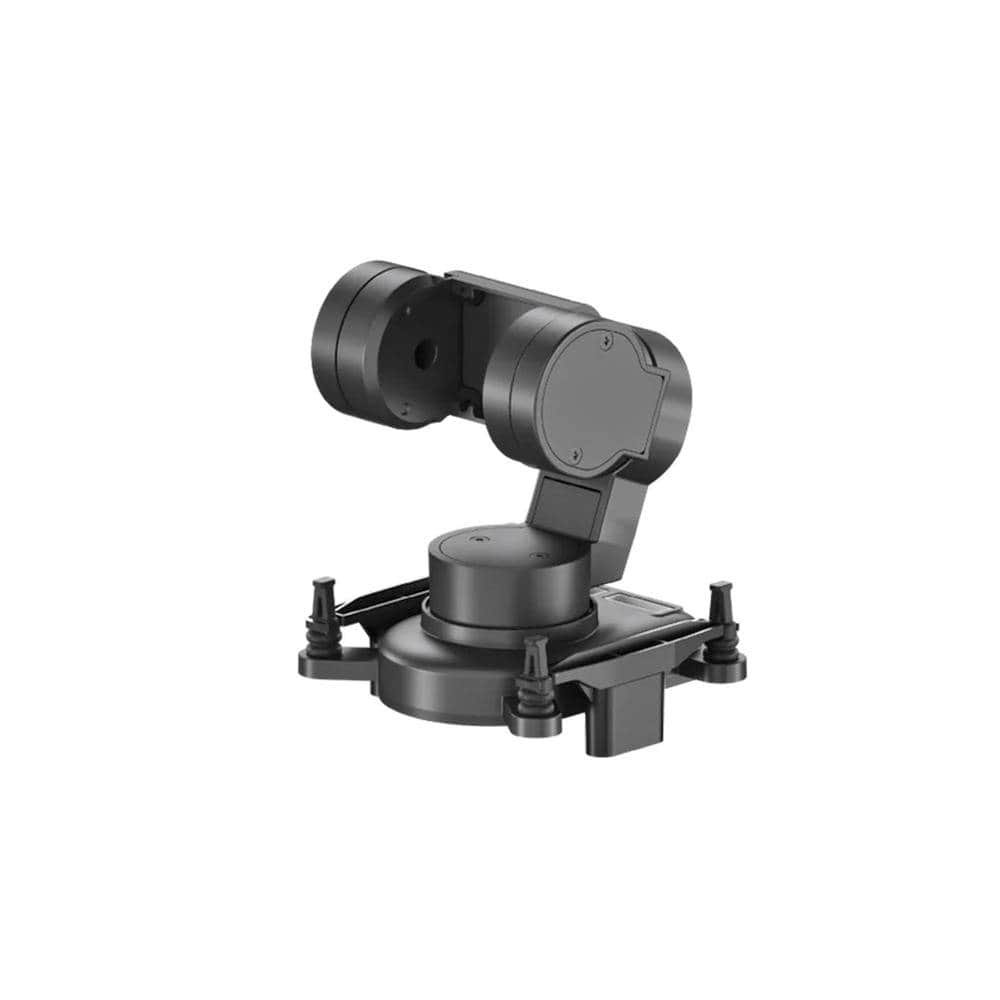

The Caddx GM3 V2 Gimbal is a high-performance, compact 3-axis mechanical stabilization gimbal engineered specifically for digital FPV applications. It features comprehensive mechanical stabilization across the yaw, pitch, and roll axes, eliminating harsh in-flight vibrations. With an incredible stabilization accuracy of ±0.005° and a maximum controllable tracking speed of up to ±1500°/s, it ensures instantaneous response times and crisp camera tracking even during complex maneuvers.
Note: This purchase includes only the GM3 V2 FPV Gimbal; the VTX must be bought separately.
Check out all our replacement cam parts & lenses, and our CADDX gear selection!
Features
- Lightweight and easy to mount and transfer between different RC vehicles
- Integrates with Avatar HD Goggles, Pro Kit, Moonlight Kit, and GT2 to enable real-time head tracking for an immersive FPV experience
- Provides mechanical stabilization to reduce vibrations, ensuring a clear camera view for smooth FPV platforms
- Supports PWM control and UART-based head tracking for seamless integration
- The CaddxFPV GM3 V2 is designed for versatile mounting across various RC equipment, including FPV drones, fixed-wing aircraft, and RC cars
Specifications
- Model: GM3 V2-20
- Camera Compatibility: Avatar/Ascent Series 19/20mm
- Stabilization Accuracy: ±0.005°
- Maximum Controllable Speed: ±1500°/s
- Controllable Rotation Range: Yaw：±160° / Pitch: ±120° / Roll：±60°
- Control Method: Uart/ S.bus/ Crsf/ Mavlink/ PWM
- Head Tracking Control: Supports
- Static Power: 1.6W
- Stall Power: 18W
- Dimensions: 61.5x47x46mm
- Weight: 48g
Links
Includes
- 1x CaddxFPV GM3 V2 FPV Gimbal
- 1x Power Cable
- 1x Port Cable
- 1x Upgrade Module
- 1x Accessory Kit
- 1x User Manual
