Details
Description
We're finally ready to announce our predecessor the XING2!
The smooth, reliable and powerful XING motors were upgraded and iFlight has achieved an even higher standard as well as better performance in motors than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor. Maybe the biggest bottleneck of our FPV flight controller is the motor due to its translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Due to the high-quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!
Check out our vast motor selection, and all our iFlight gear!
Features
- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 10x4x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced
Specification
- KV: 1850Kv
- Input Voltage: 6S Lipo
- Configuration: 12N14P
- Stator Diameter: 25mm
- Stator Length: 6mm
- Wire length: 20AWG 160mm
- Mounting pattern: 16x16mm
- Weight: 38.2g with wires

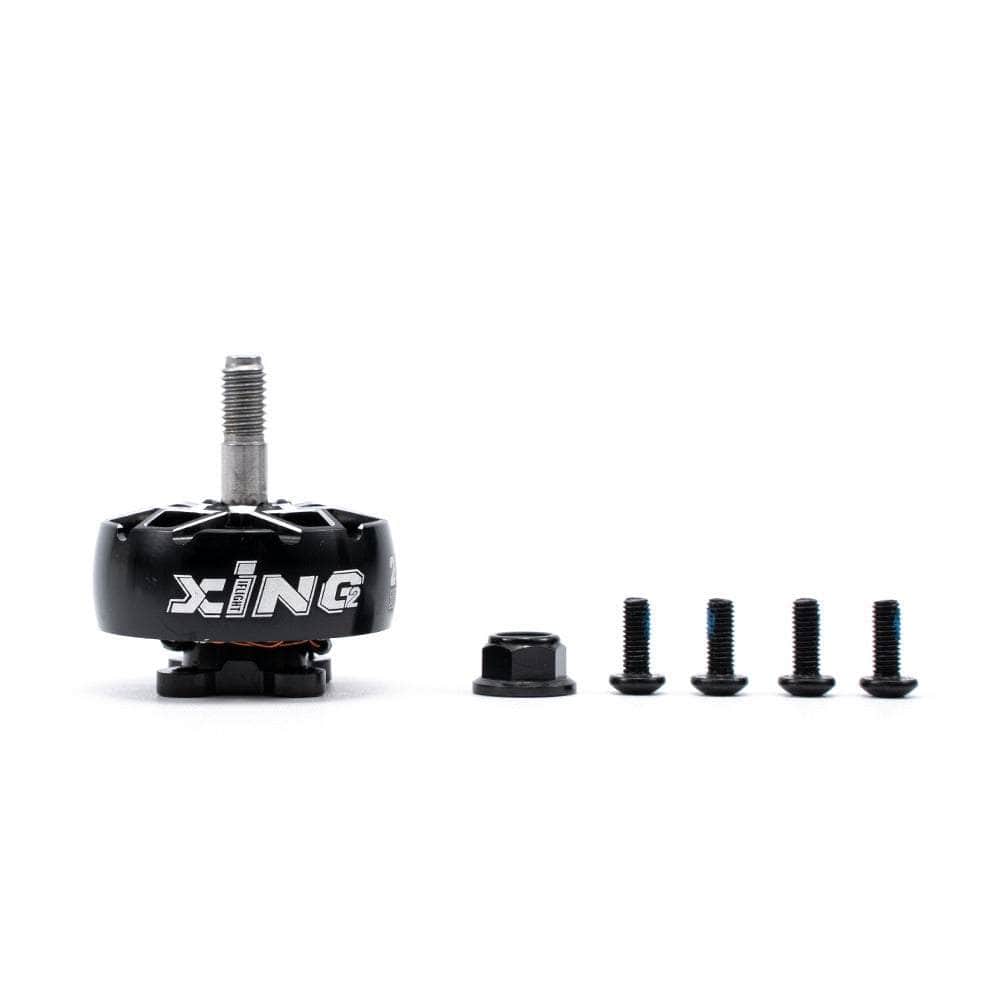

Includes
- 1x iFlight Xing 2 2506 1500Kv Motor
- 1x M5 Flanged Nylon Insert Lock Nut
- 4x M3x8mm Screws

More Info
- SKU: 18248
- Barcode: 691023522602
