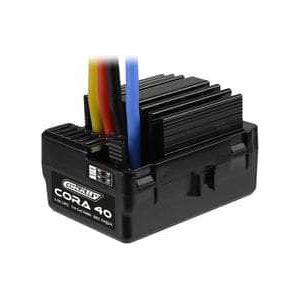

COR54001, Corally CORA 40-Brushed ESC, 2-3S: SP Versions

  • Max. Cont. Current (A): Forward: 40 A / Reverse: 20 A
  • Motor Limit: 2S = 12T 3S = 18T
  • Input Voltage (V) min. - max.: 5-12.6 V
  • Max. Current (A): Forward: 180 A / Reverse: 90 A
  • Resistance: Forward: 0.002 Ohn / Reverse: 0.004 Ohm
  • Length (mm): 46.5 mm
  • Nr of Li-xx Cells: 2-3S
  • Width (mm): 34 mm
  • Nr of Ni-xx Cells: 5-9 Cell NiMH
  • Motor Type: Brushed
  • Height (mm): 28.5 mm
  • BEC Voltage (V): 6 V
  • BEC Current (A): 2 A
  • Weight incl. wire (g): 65 g
  • Programmable: Jumper
  • Throttle Mode: Forward / Reverse programmable Reverse lockout
  • Battery Mode: NiMH / LiPo
  • Cut off voltage: NiMH mode = 4.5 V
  • Lipo Cut off: 2S = 6.5 V 3S = 9.75 V
  • Thermal Protection Temperature: 105 Degrees C
  • Water Protection: Yes
  • Connector (Motor): 4 mm
  • Connector (Battery): Tamiya style
  • Motor wire size: 16 AWG
  • Battery wire size: 16 AWG
  • Car Type Use: 1/10th scale
