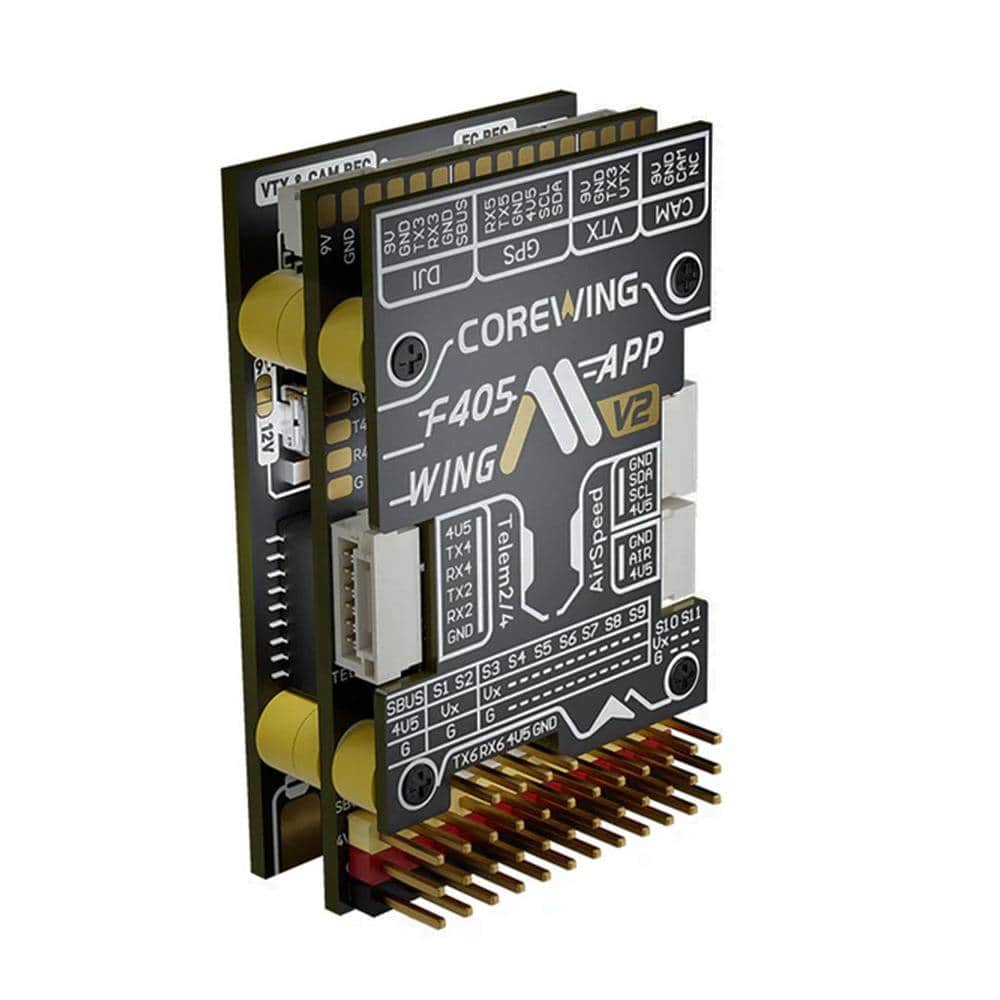

The CoreWing F405 Wing V2 (formerly known as the SpeedyBee F405 WING APP) is a revolutionary fixed-wing flight controller designed to simplify the build process while maximizing performance. It consists of three modular components: the Flight Controller, the Power Distribution Board (PDB), and a Wireless USB Extender stacked together to create a tidy, powerful avionics hub.
Check out our other wing flight controllers!
Features
- Wireless tuning via Bluetooth/WiFi/SPP using smartphone apps or QGroundControl.
- Modular 3-board stack for better layout and repairability.
- Fully compatible with INAV and ArduPilot (including ArduPlane for VTOL).
- 6x UARTs for peripherals and 11x PWM outputs for complex control surfaces or VTOL motor configurations.
- Integrated LED battery level indicator on the wireless board gives instant power status checks.
Specifications
- MCU: STM32F405, 168MHz
- IMU: ICM-42688-P (Gyro & Accelerometer)
- Barometer: SPA06-003
- OSD: AT7456E
- Input Voltage: 10V-28V (3S-6S LiPo)
- BEC Outputs:
- FC: 5.2V @ 4A Continuous, 5A Peak
- VTX: 9V @ 2A Continuous, 3A Peak
- Servo: 5V @ 8A Continuous, 14A Peak
- Wireless Modes: BLE, WiFi-AP, WiFi-STA
- PWM Outputs: 12 Total (11 for Servos/Motors, 1 for LED)

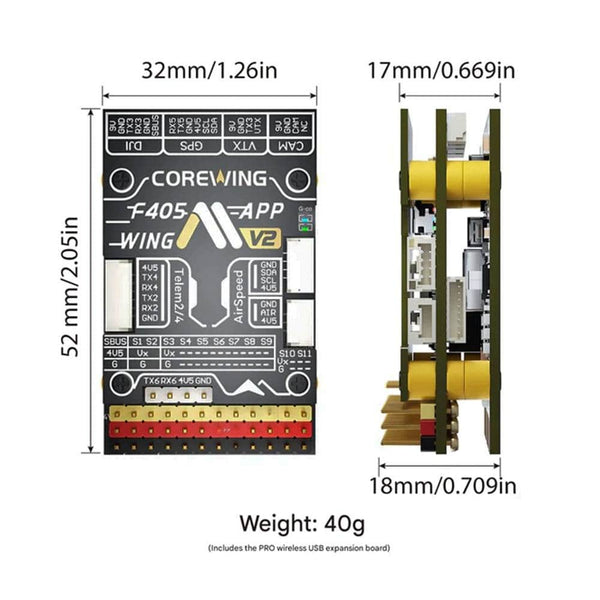

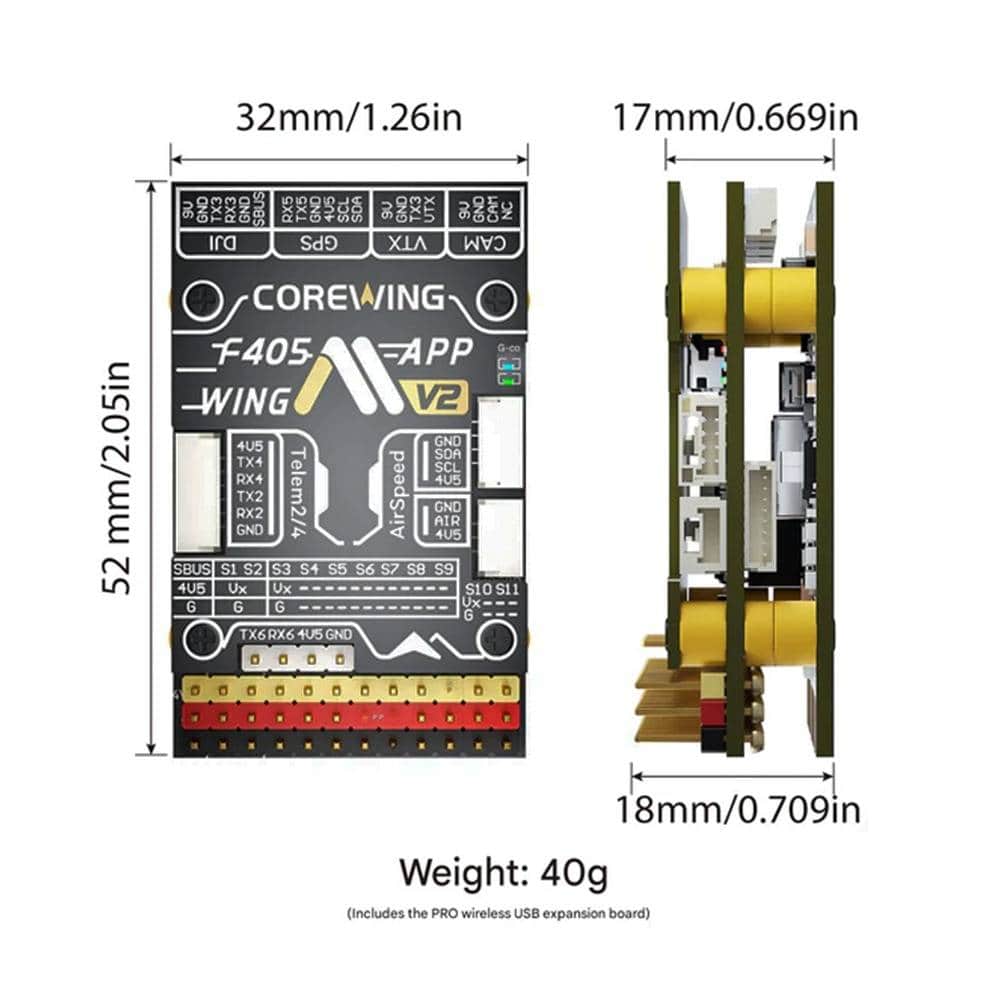

- Weight: 40g Total
Links

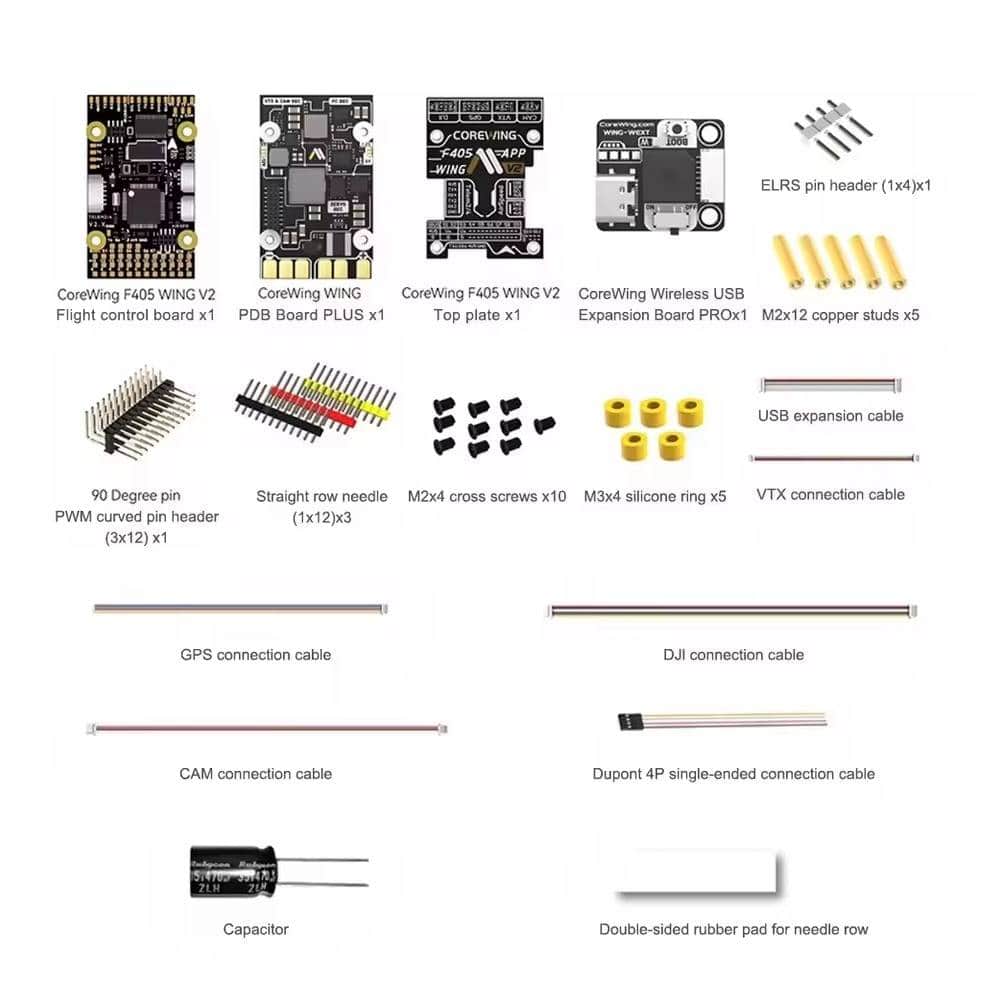

Includes
- 1x CoreWing F405 Wing V2 Flight Controller
- 1x CoreWing Wing PDB Plus
- 1x CoreWing F405 Wing V2 Top Board
- 1x Wireless USB Expansion Board
- 1x Cable & Pin Header Set
