Details
Description

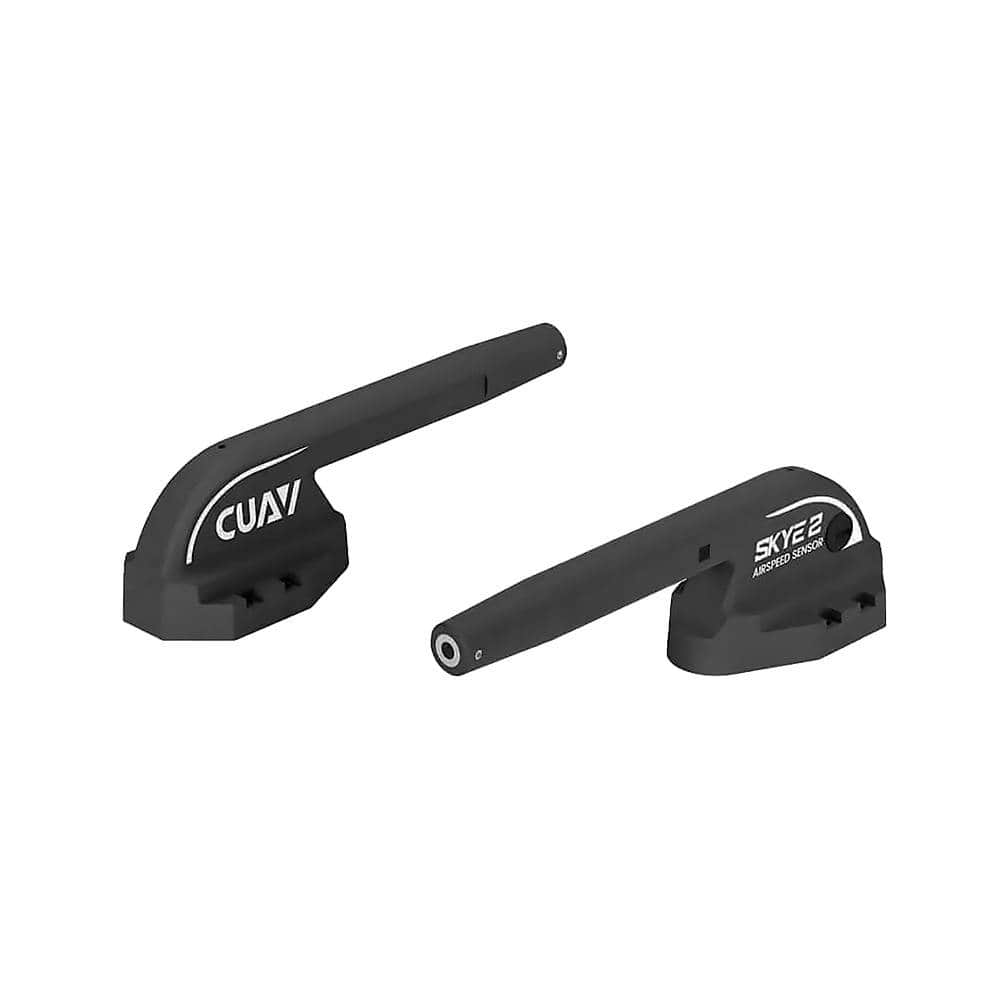

The CUAV SKYE 2 is the industry’s first intelligent airspeed meter with de-icing and drainage functionalities. It integrates an ARM M4 processor, a pitot tube, an airspeed sensor, a temperature and humidity sensor, and a dual temperature compensation system. SKYE 2 adopts DroneCAN protocol, supports open-source platforms such as ArduPilot, and is suitable for various Unmanned Systems models.
Check out our other Sensors and all our wing flight controllers!
Features
- Highly integrated design
- Intelligent de-icing and drainage
- New generation linear structure
- M4C intelligent, precise heating
- Shock resistance, low-temperature drift
- Adopts the DroneCAN protocol and supports the ArduPilot and PX4 platforms
Specifications
- Processor: STM32F4
- Protocol: DroneCAN
- Airspeed sensor: SM5391
- Airspeed Sensor Options: PIX, V5+and X7 Series FC
- Power supply range: Default 18~68V
- Pitot tube heating power: 35W
- Temperature control type: Resistance heating
- Airspeed range: 0~106m/s
- Accuracy: ±1% FS
- Humidity measurement: 0–100%
- Temperature measurement: -20~125℃
- Measuring range: ±6895Pa
- Protection Level: IP54 (To be installed on request)
- Size: 101.9 × 28.2 × 29.9mm
- Weight: 24.38g
Includes
- 1x CUAV SKYE 2 Airspeed Sensor
- 1x SKYE 2 HV HUB
- 1x Airspeed Sensor Cable (HUB to SKYE)
- 1x CAN Data Cable (35mm)
- 1x XT30 Power Cable (20cm)
More Info
- SKU: G24864CN1Z
- Barcode: 723326380907
