Description

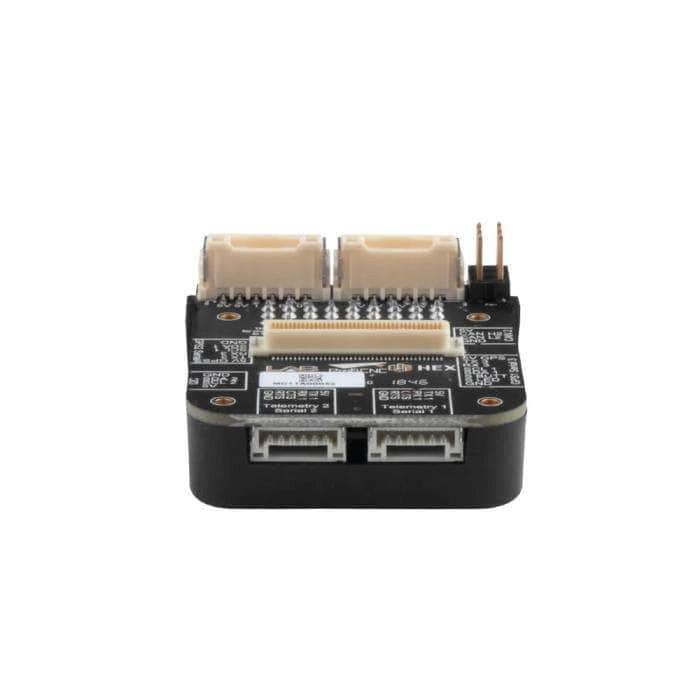

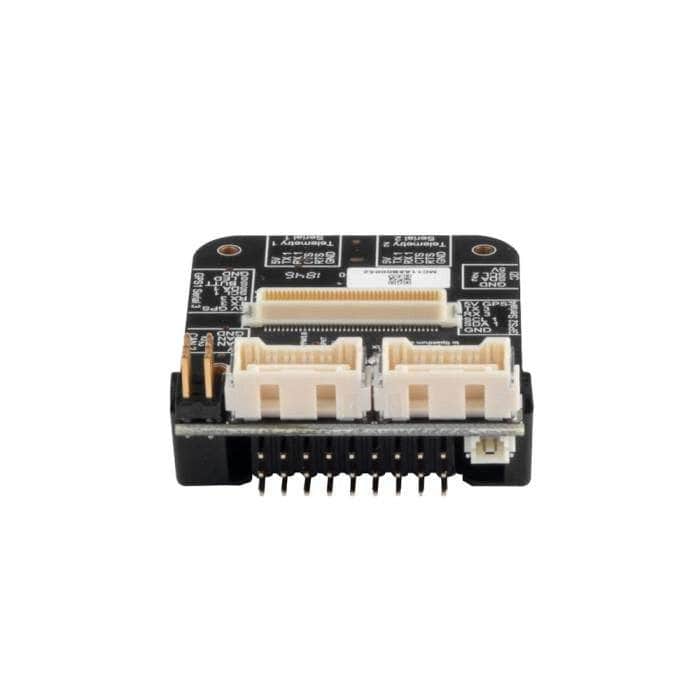

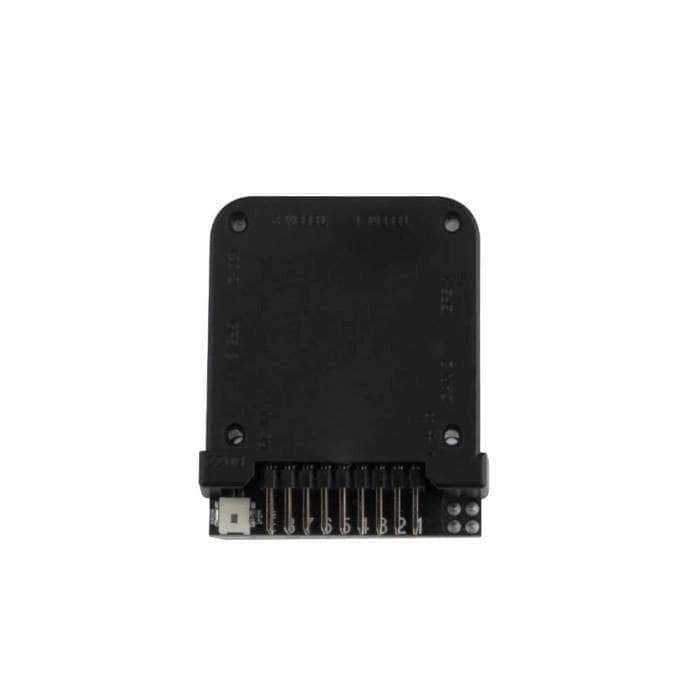

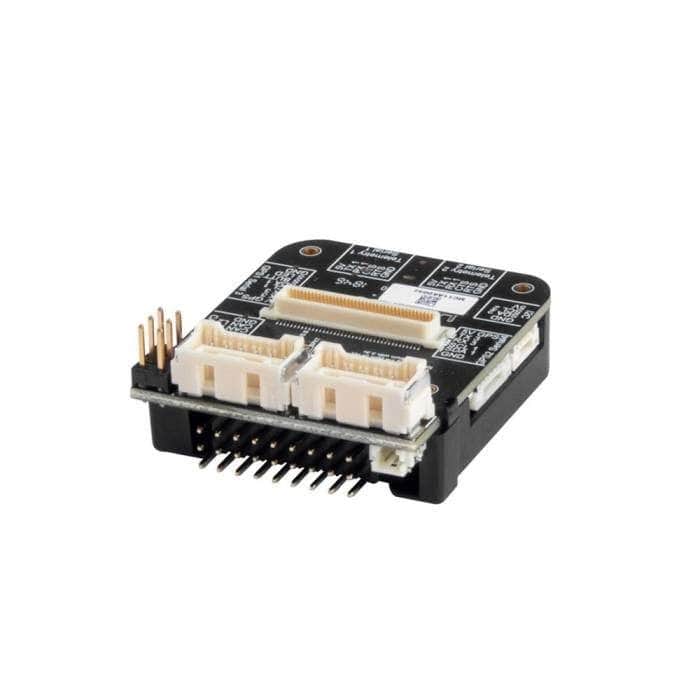

The CubePilot Mini Carrier Board is a compact, versatile solution for Cube flight controllers. Designed to work with all Cube models, it offers the core features of a full-size carrier board in a smaller, more space-efficient design—perfect for tight builds. Pair it with the Cube Mini for a streamlined setup that doesn’t compromise on performance.

Check out all our stacks & combos!

Features

• Compatible with all Cube flight controllers
• Built-in power and voltage protection
• Dual power inputs for backup
• Compact, space-saving design
• Ideal for Cube Mini setups

Specifications

• Input Voltage (Power Port): 4–5.7V (safe range: 0–20V, but system won't operate outside 4–5.7V)
• Working Temperature: -10°C to 55°C
• Dimensions: 47.5 x 38.5 x 17.8 mm
• Input Current (Power Port): 2.5A
• Rated Power Output/Input: 14W
• USB Input Voltage: 4–5.7V
• USB Input Current: 250mA
• Servo Rail Voltage: 4–10.5V
• Material: ABS molding

Links

• Cubepilot Mini Carrier Board User Guide

Includes

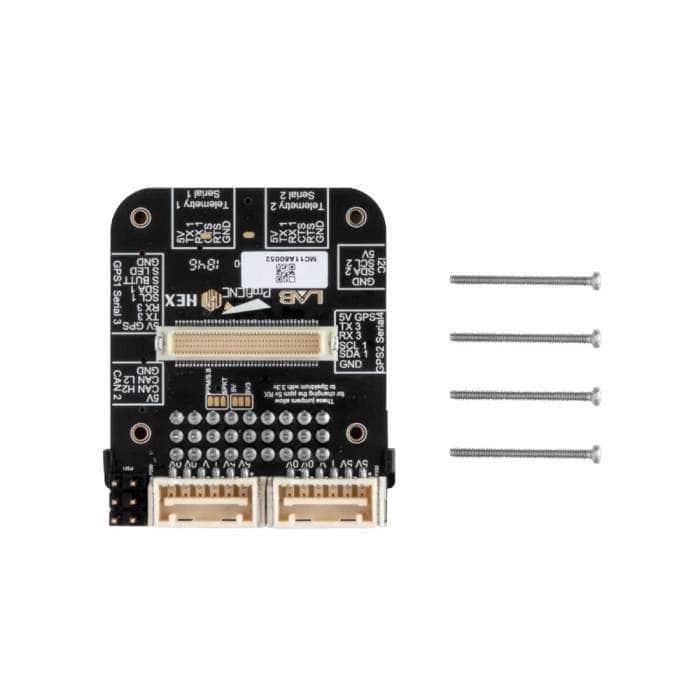

• 1x CubePilot Mini Carrier Board
