Description
The Cube Red Pro Standard Set is the first in CubePilot's new line of advanced autopilot modules. Its two dual-core, double-precision FPU microprocessors deliver blazing fast data processing. It includes an Ethernet interface for expanded networking capabilities. All the key components feature a redundancy system to ensure uninterrupted vehicle operations. Additionally, the module has an external flash memory to accommodate larger and more complex programs.
Check out all our stacks & combos!
Features
- STM32H7 dual-core processors (double-precision FPU)
- Ethernet interface
- DSI out
- Isolated Static Air port
- Type-C Debugging interface
- CAN FD port
- 4 Sets of IMUs
- 3 Barometers
- Replaceable fully-closed uppercase and isolated static air ducts
- Additional foams with varying hardness
Specifications
Microcontroller
- STM32H7 series microcontrollers (primary controller + secondary controller)
- Dual-core (Cortex®-M7 + Cortex®-M4) processors
- Memory: Embedded and external flash memory
- Ambient temperature: 125°C to - 40°C
Sensors
- Three IMUs connected to primary microcontroller; One IMU connected to secondary microcontroller
- Two barometers connected to primary microcontroller; One barometer connected to secondary microcontroller
Compass
- Sensitivity: 13nT
- Noise: 15nT
- Linearity over +/- 200 uT: 0.50%
- Field Measurement Range: +/- 1100 uT
- Current @ 8Hz, 3 Axes: 260 uA
- Interface: SPI and I2C
- Operating Temperature: -40°C to +85°C
Interfaces
- USB FS compatible with USB Type C connector
- 10/100BaseT Ethernet interface
- Display Serial Interface (DSI)
Links

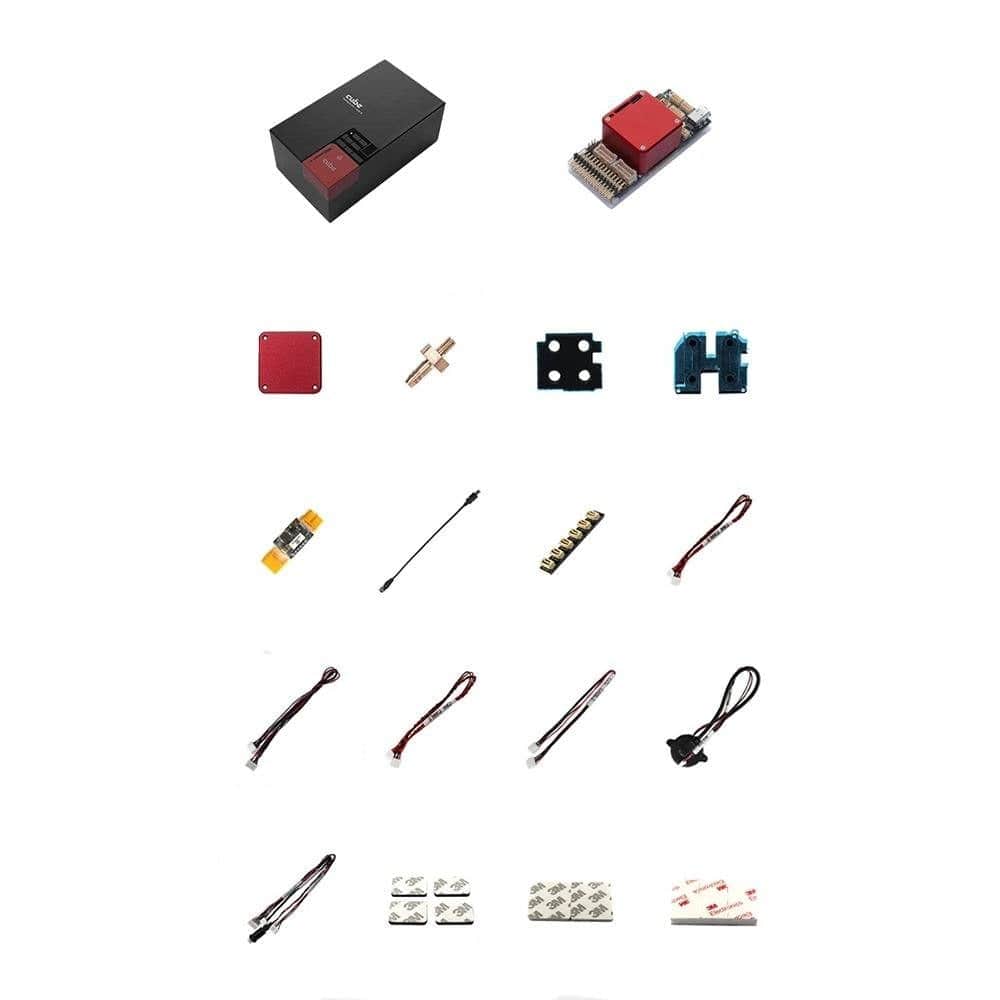

Includes
- 1x CubePilot Cube Red
- 1x ADS-B Carrier Board
- 1x Power Brick Mini
- 1x The Cube Standard Cable Set V2.1
- 1x Waterproof Top Case
- 1x Air Tube Connector (M3)
- 1x CAN BUS Splitter
- 1x Foam (A)
- 1x Foam (B)
- 1x Ethernet Cable (mini I/O to RJ45; 30cm)
- 4x Mounting Screw
- 3x 3M Large Sticker
- 2x 3M Medium Sticker
- 4x 3M Small Sticker
More Info
- SKU: G23796TW1Z
- Barcode: 9359453000046
