Details
Description

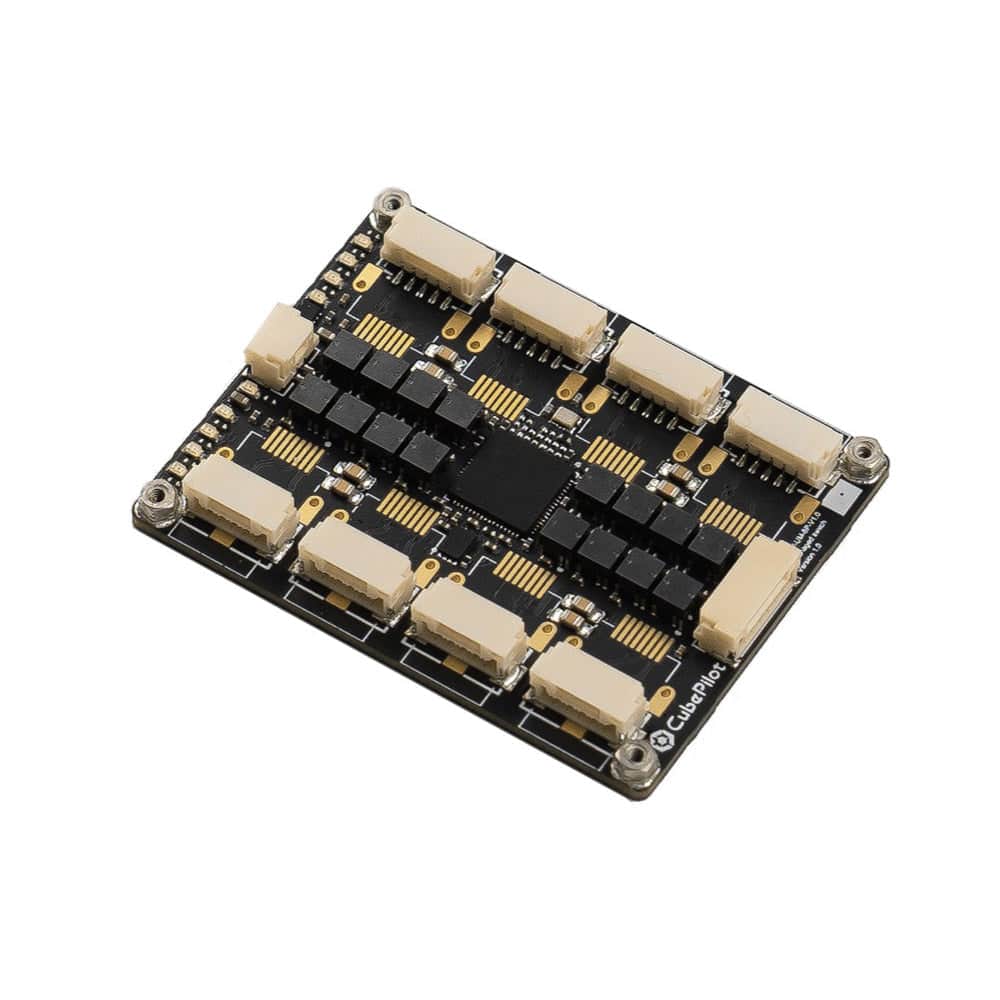

The CubePilot CubeLAN 8-Port Switch is a miniature Ethernet switch that can connect up to eight Ethernet devices. It is compatible with the Cube Red and CubeNode.
Check out all our stacks & combos!
Features
- Easily connect 8 Ethernet devices
- NDAA Compliant
- Supports Auto MDI-MDIX Function
Specifications
- Dimensions: 41.15 x 52.58 mm
- Speed: 10/100M
- Connector Type (Power): JST SM02B-GHS
- Connector Type (Ethernet): JST SM05B-GHS / TE Connectivity 2294415-1
- Auto MDI-MDIX Function: Supported
Recommended Operation Conditions
-
Vin:
- Min: 4 V
- Max: 5.5 V
-
Operating Ambient Temperature:
- Min: 0 ℃
- Max: 70 ℃
Includes
- 1x CubePilot CubeLAN 8-Port Switch
More Info
- SKU: G23801TW1Z
- Barcode: 723326373619
