Description

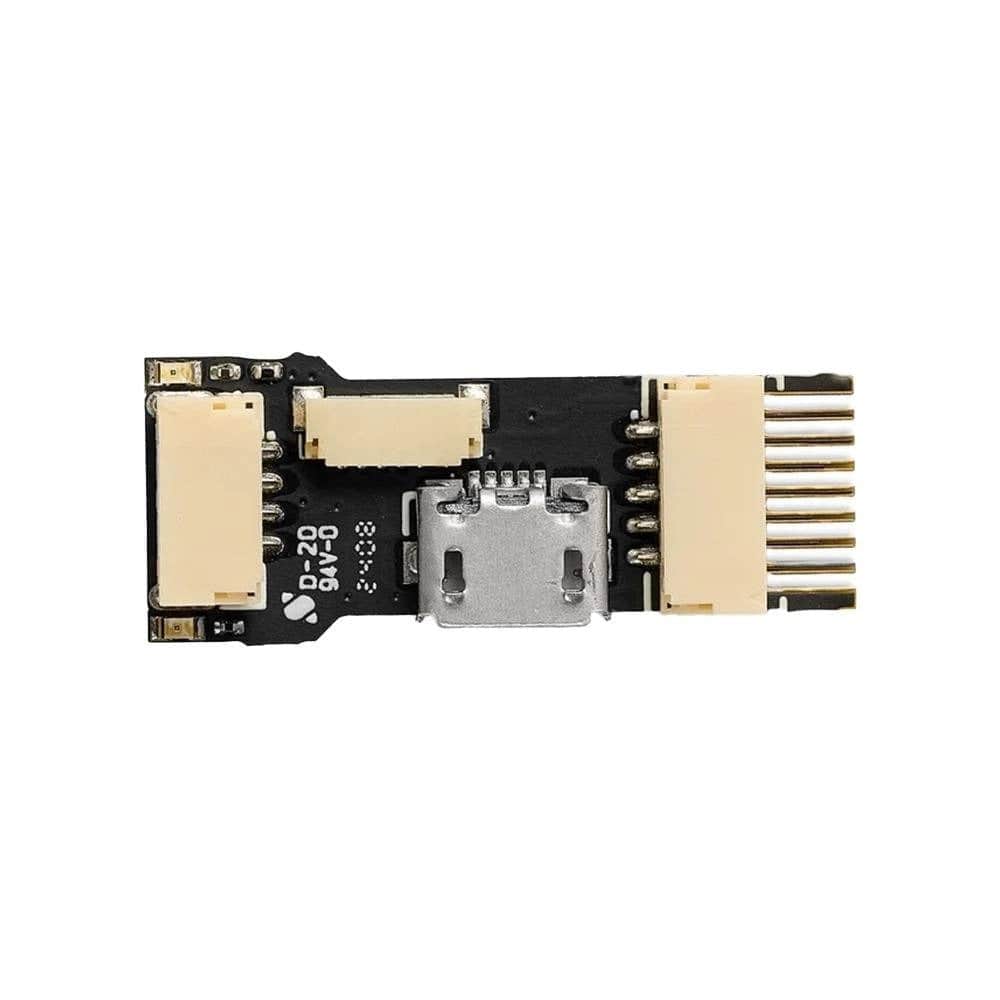

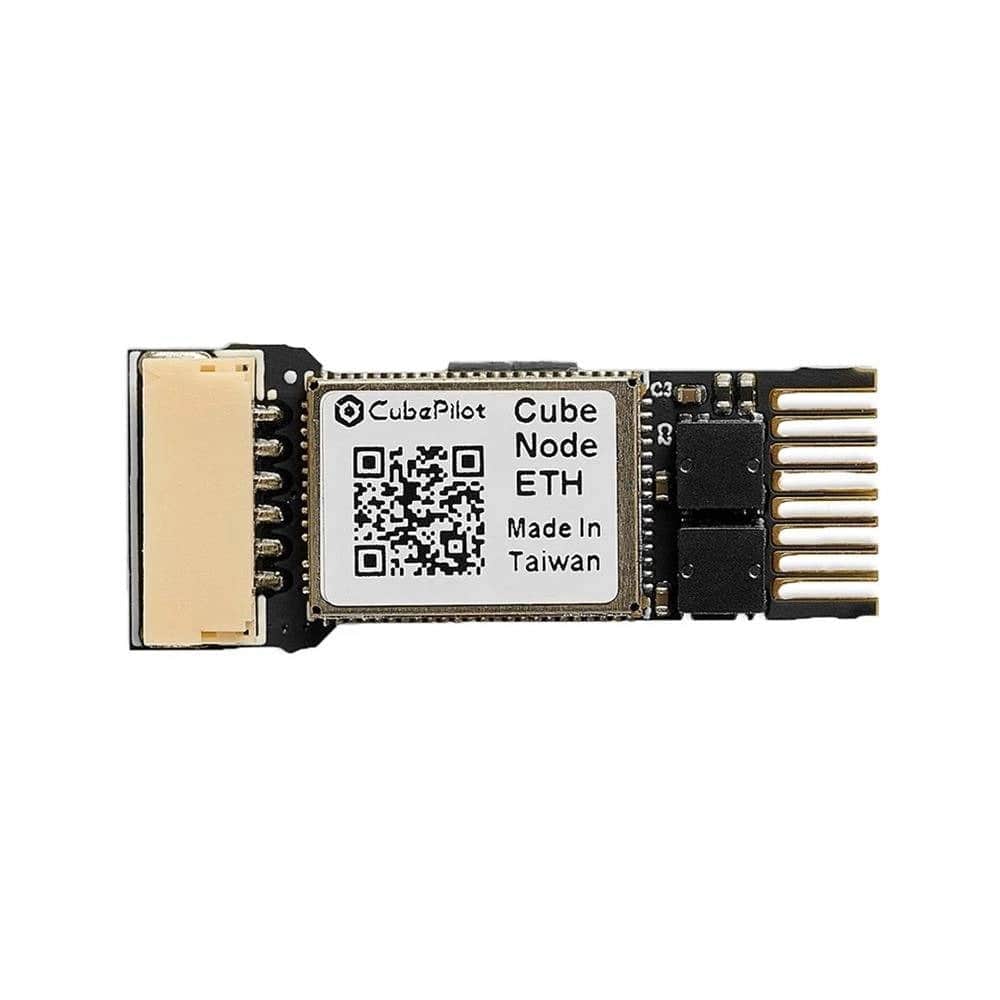

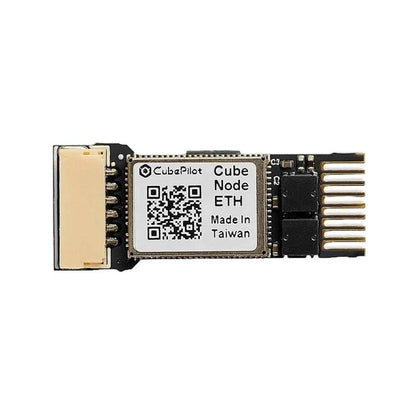

The CubePilot CubeNode ETH ethernet adapter allows STM32 H7 autopilots without built-in ethernet support to connect to ethernet peripherals. By enabling the PPP protocol on one of the serial ports (preferably with flow control) of The Cube, you can achieve up to 12Mbit/s networking link and transport multiple protocols (CAN, MAVLink) over the network without using multiple serial ports.
Check out all our stacks & combos!
Features
- Compliant with Energy Efficient Ethernet (EEE) IEEE 802.3az
- Compliant to IEEE 802.3 100BASE-TX and 10BASE-Te
- Diagnostics tools: cable diagnostics, built-in self test (BIST), loopback modes
- Auto-negotiation
- Automatic polarity detection and correction
- Vendor specific register functions
- HP Auto-MDIX support
Specifications
- Dimensions: 11.43 x 28.44mm
- Speed: 10/100M
- Connector Type (CAN): JST SM04B-GHS
- Connector Type (Serial): JST SM06B-GHS
- Connector Type (Ethernet): JST SM05B-GHS
- Auto MDI-MDIX Function: Supported
- LAN Transformer: Included
Links

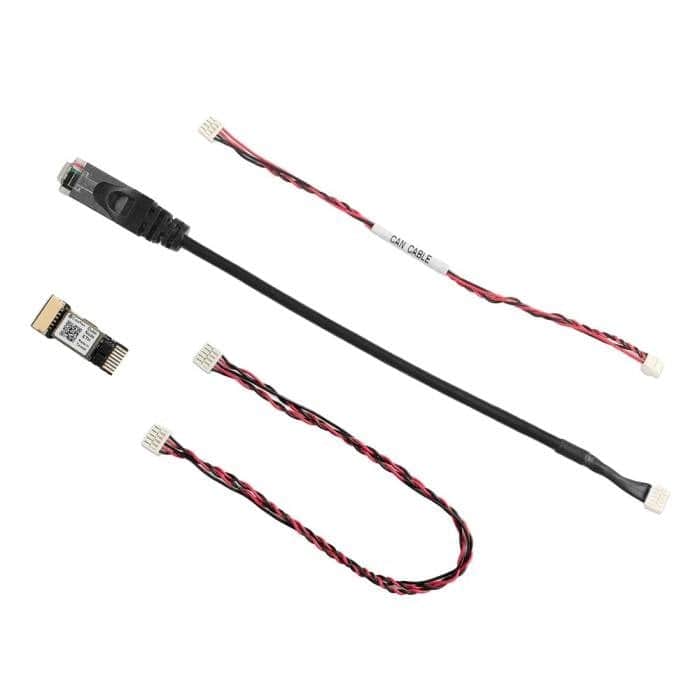

Includes
- 1x CubePilot Cubenode ETH

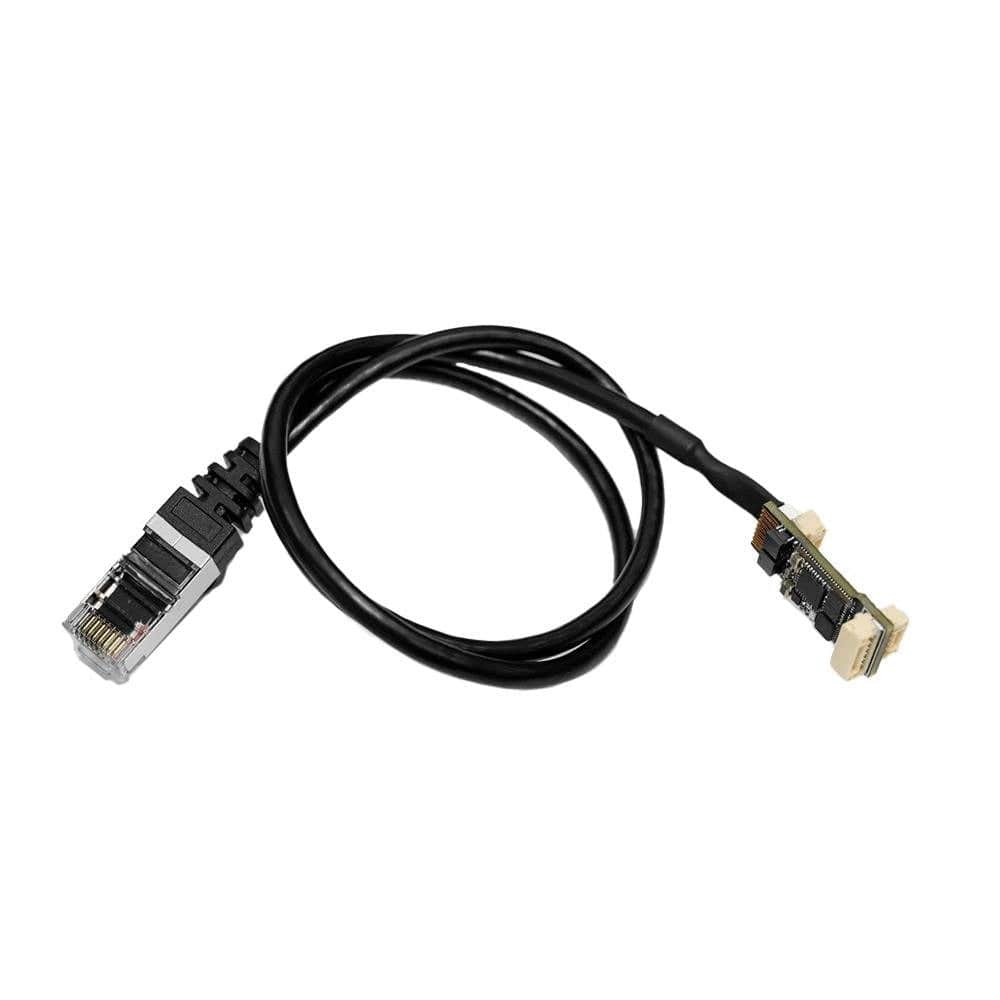

- 1x 5-pin to RJ45 ethernet cable
- 1x CAN cable
- 1x GH TELEM cable
More Info
- SKU: G23797TW1Z
- Barcode: 9359453000114
