Description

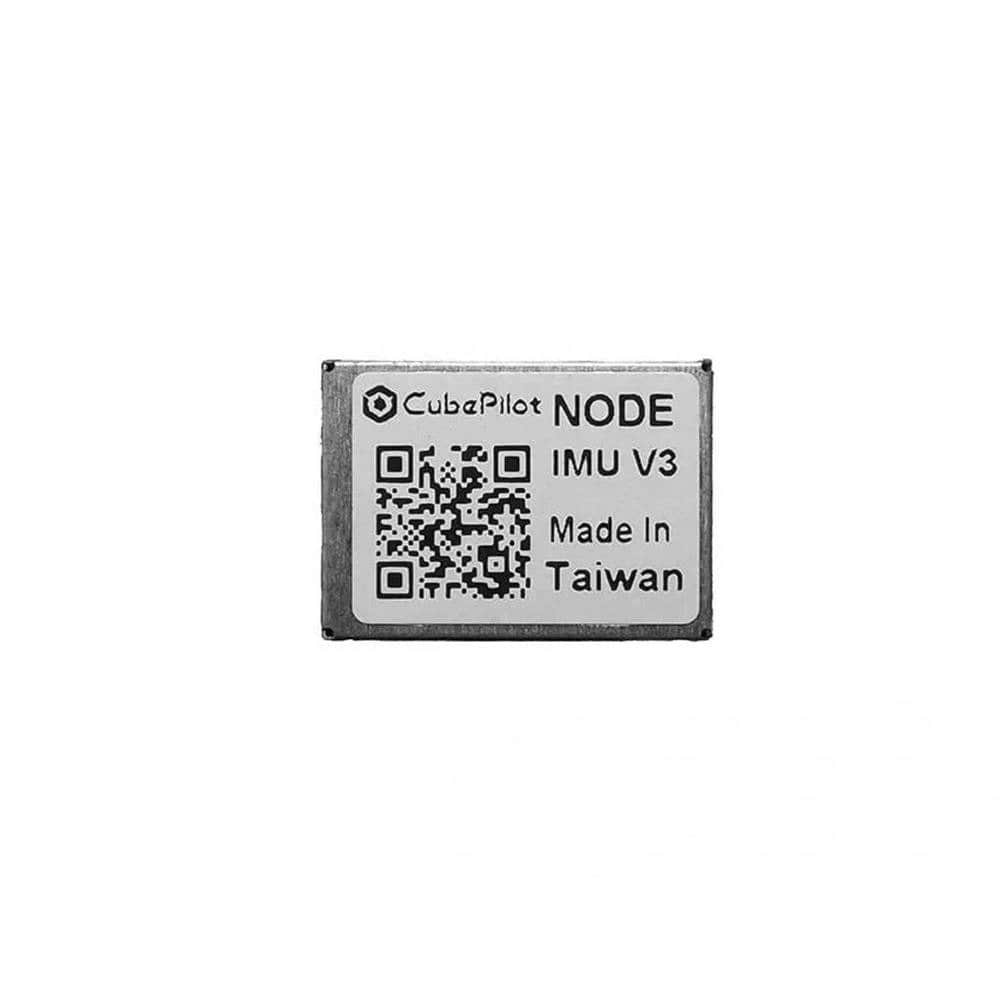

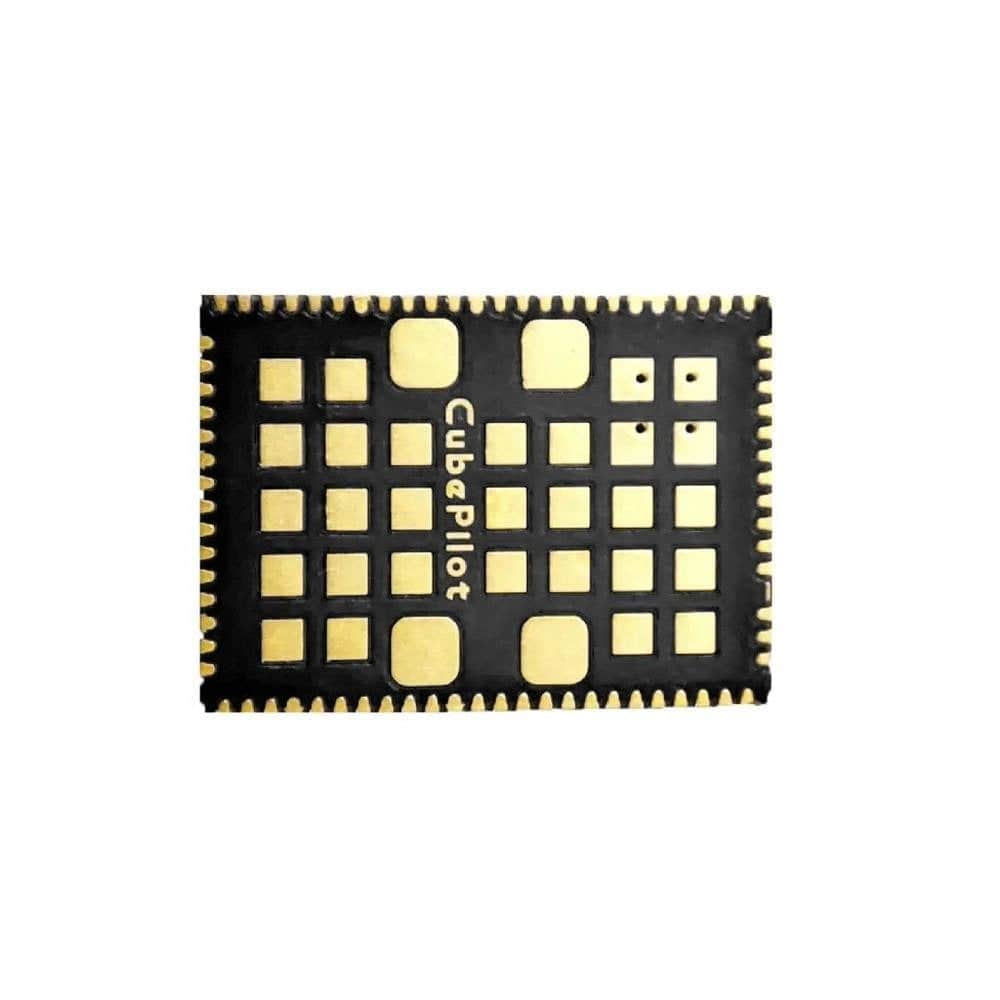

The CubePilot CubeNode V3 provides a platform to develop, create, test, and refine components such as navigation systems, communication modules, sensors, payloads, and more. It integrates dual Arm Cortex cores that can execute and optimize high-performance tasks in parallel.
Check out all our stacks & combos!
Features
- Dual Arm Cortex cores
- Cortex-M7: Can execute high-performance tasks in parallel
- Cortex-M4: Offers optimal performance for real-time applications
- Two Memory Protection Units (MPU) protect data processes and prevent untrusted user programs from corrupting OS data
- 2Mb embedded flash memory divided into two independent banks
- High-current-capable General-Purpose I/O (GPIO) pins with speed selection to manage internal noise, power consumption, and electromagnetic emissions
- Three Analog-to-Digital Converters (ADC), allow resolution to be configured to 16, 14, 12, 10, or 8 bits
- Three embedded UART and four embedded USART
- Two controller area network (CAN) modules: shared message RAM memory and clock calibration unit designed for high-speed Classical CAN and CAN FD (up to 8 Mbit/s) applications
- High-performance 10/100BaseT Ethernet transceiver
Specifications
Microcontroller (Dual-Core)
- 32-bit Arm Cortex-M7 core
- 32-bit Arm 32-bit Cortex-M4 core
Memory
- Flash: 2Mb read/write support
- RAM: 1Mb
- Cyclic redundancy check (CRC) calculation unit
Security
- Read-out protection (ROP) & Proprietary code read-out protection (PC-ROP)
- Active tamper
- Secure firmware upgrade support
- Secure access mode
Operating Conditions
- Standard Operating Voltage: 4.5V ~ 5.5V
- Standard Operating Voltage (HV_IN pin): 5.5V ~ 30V
- Operating Ambient Temperature: -40°C ~ 85°C
- Operating Junction Temperature: -40°C ~ 125°C
Includes
- 1x CubePilot CubeNode V3
More Info
- SKU: G23798TW1Z
- Barcode: 723326377884
