Description

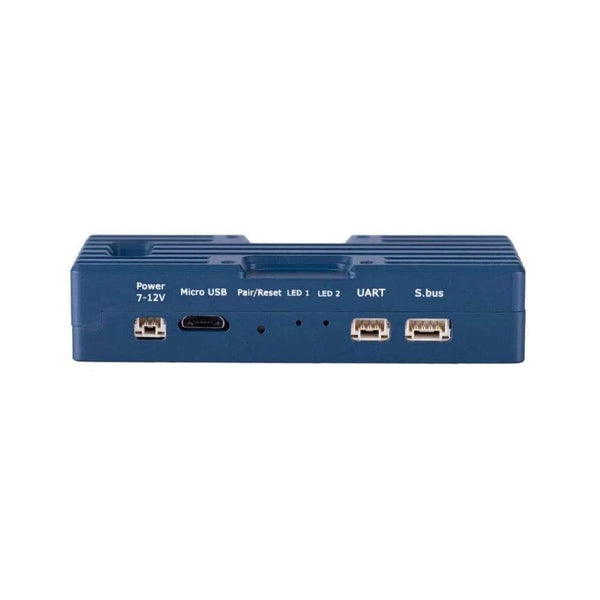

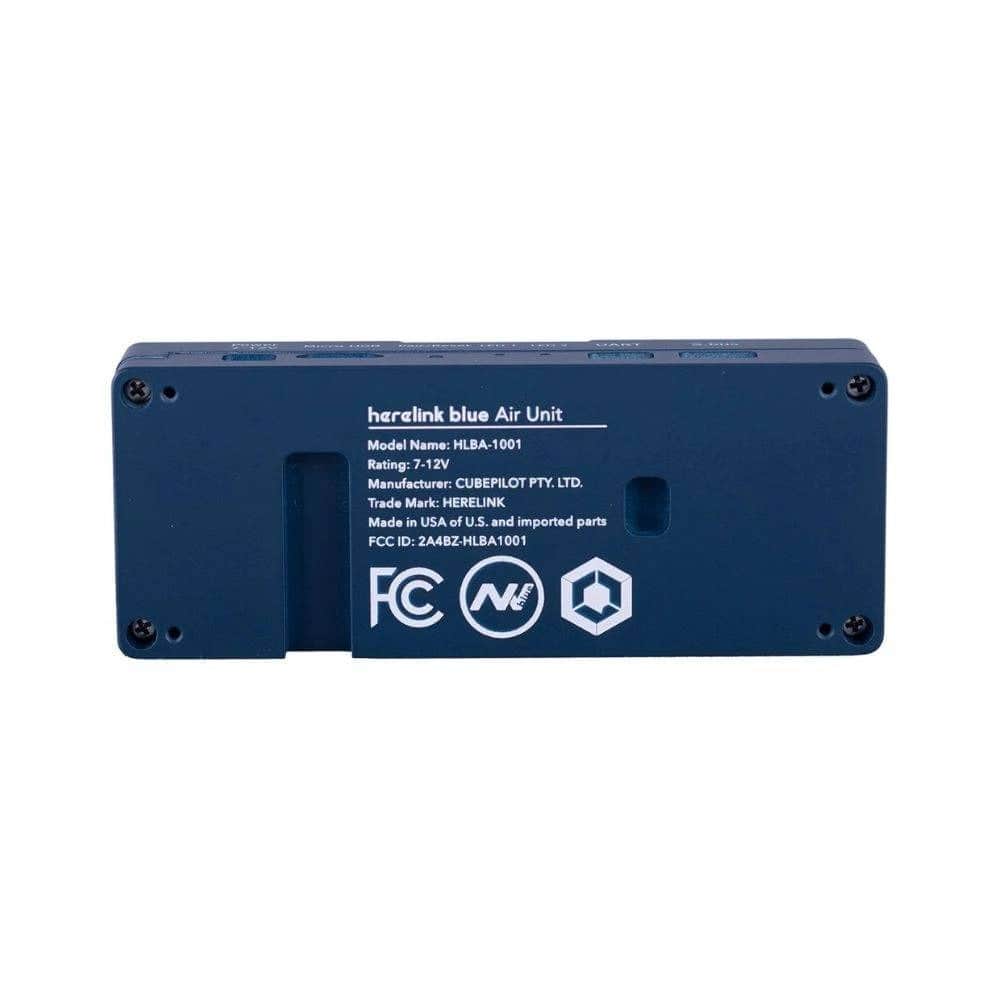

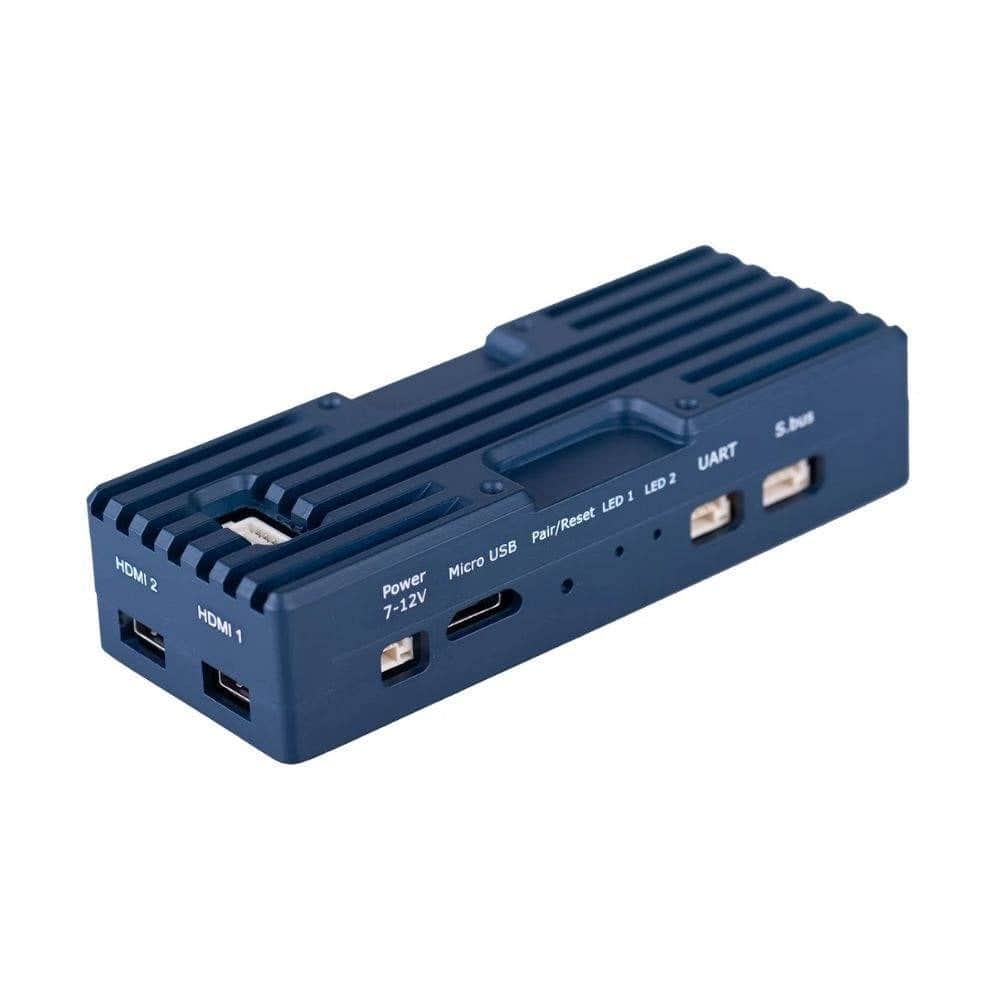

The Herelink Blue Air Unit V1.1 is a long-range digital video and data transmission module designed for seamless integration with the Herelink Blue system. It delivers reliable RC control, HD video, and telemetry over extended distances with enhanced connectivity and performance features.
Check out all our VTXs as well as the rest of our CubePilot selection!
Features
- Long-range digital transmission up to 20 km (FCC)
- Integrated 8-core processor for responsive performance
- Dual Micro HDMI inputs for camera video signals
- Ethernet and Micro SD support for expanded connectivity (v1.1)
- MMCX antenna connectors with detachable omnidirectional antennas
Specifications
- Case Material: 6061 aluminum with Cerakote coating
- Weight: 68 g
- Dimensions: 78 × 30 × 17 mm
- Signal Bandwidth: 20 MHz / 10 MHz
- Power Consumption: Average ≤ 4 W
- Power Input: Recommended ~7 V (min 6 V, max 12 V); avoid sharing BEC with servos
- Power Output: 200 mW (stock)
- Micro HDMI 1: Camera video signal input (recommended)
- Micro HDMI 2: Camera video signal input
- UART Interface: 3.3 V UART
- S.Bus Interface: Dual RC out (S.Bus1 and S.Bus2)
- Micro USB: Debugging and firmware upgrades; supports OTG (no external power needed)
- Button: Pairing and state reset
- Indicator Lights (1 & 2): Pairing and video transmission status
- MMCX Antenna Jacks (1 & 2): Signal transmission and ground communication
- SD Slot (Air Unit 1.1 only): For future usage
- ETH Interface (Air Unit 1.1 only): Network protocol device access
Includes
- 1x Herelink Blue V1.1 Air Unit / Modem
- 2x Air Unit Taoglas Antenna
- 1x Mounting Plate kit
- 1x Fan
- 1x Cable Set
- 1x HDMI Cable
More Info
- SKU: G24167US1Z
- Barcode: 723326378980
