The Herelink Blue V1.1 Bundle is an integrated remote controller, ground station, and wireless digital transmission system assembled and supported in the USA by NW Blue LLC. Compatible with Cube Autopilot, Ardupilot, and PX4, it delivers RC control, HD video, and telemetry up to 20 km, featuring an 8‑core SOC, enhanced 1000 nit display, and expanded connectivity with Ethernet and SD card support on Air Unit v1.1.
Check out all our VTXs as well as the rest of our CubePilot selection!
Features
- Integrated remote controller, ground station, and HD video transmission system
- Compatible with Cube Autopilot, Ardupilot, and PX4
- Long-range transmission up to 20 km
- Air Unit and Controller with 8-core SOC for custom applications
- Enhanced display (1000 nit) with Ethernet and SD card support on Air Unit v1.1
Specifications
- Processor: SoC – Pinecine S1
- CPU: 4 × Cortex A53, 2.2 GHz / 4 × Cortex A53, 1.4 GHz
- GPU: 4-core Mali‑T860
- SDR: A7 + DSP
- Memory: Air Unit LPDDR3 1 GB | Controller LPDDR3 2 GB
- Storage: Air Unit eMMC 4 GB | Controller eMMC 8 GB
- Transmission Distance: FCC 20 km | CE / SRRC / MIC 12 km
- Video Delay: 110 ms
- Image Resolution: 720p @30 fps | 1080p @30/60 fps
- Frequency Band: 2.4 GHz ISM
- Receive Sensitivity: -99 dBm @ 20 MHz BW
- Recovery Time: < 1 s

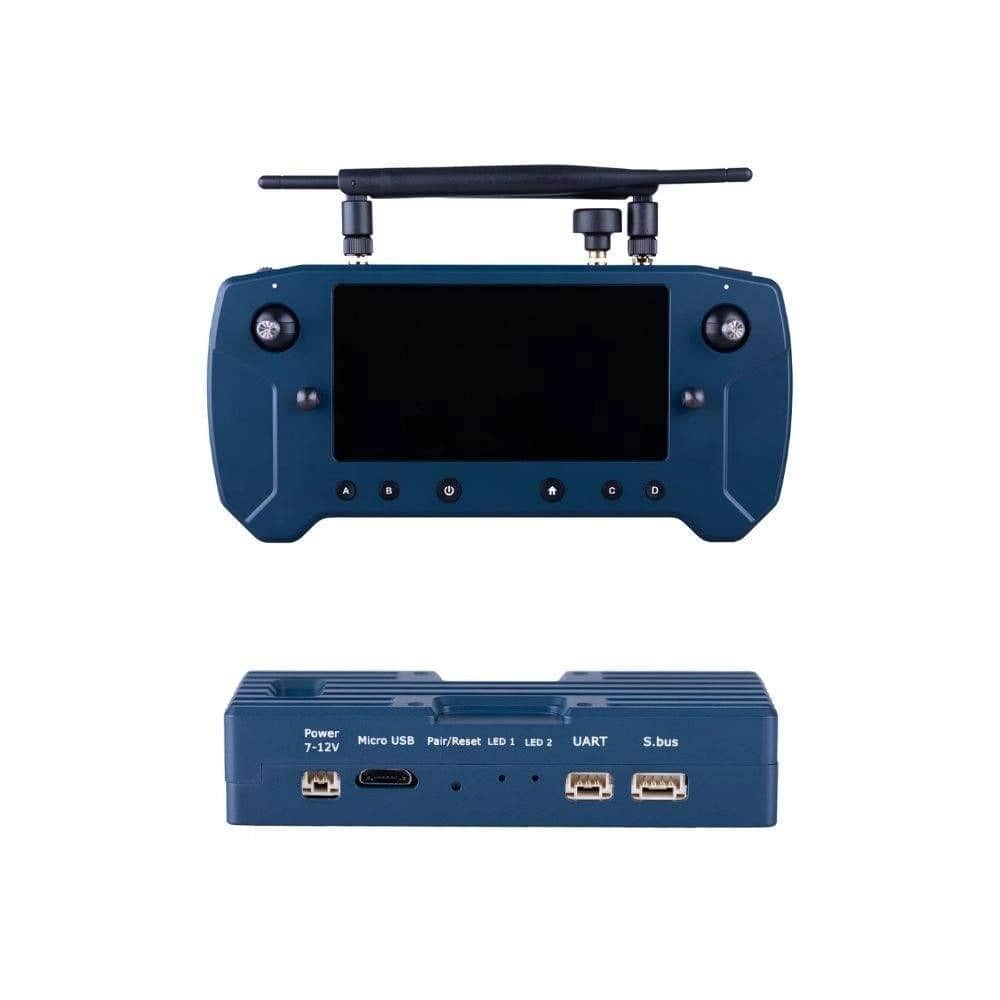

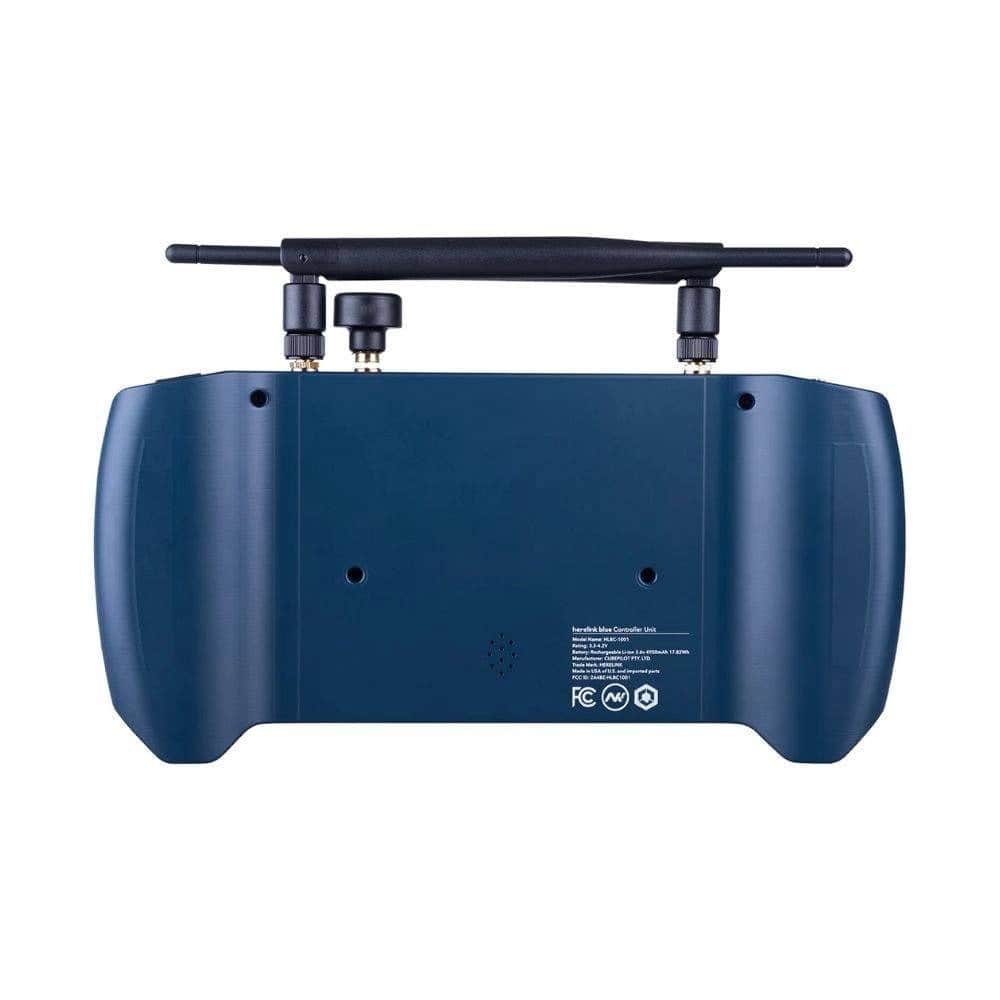

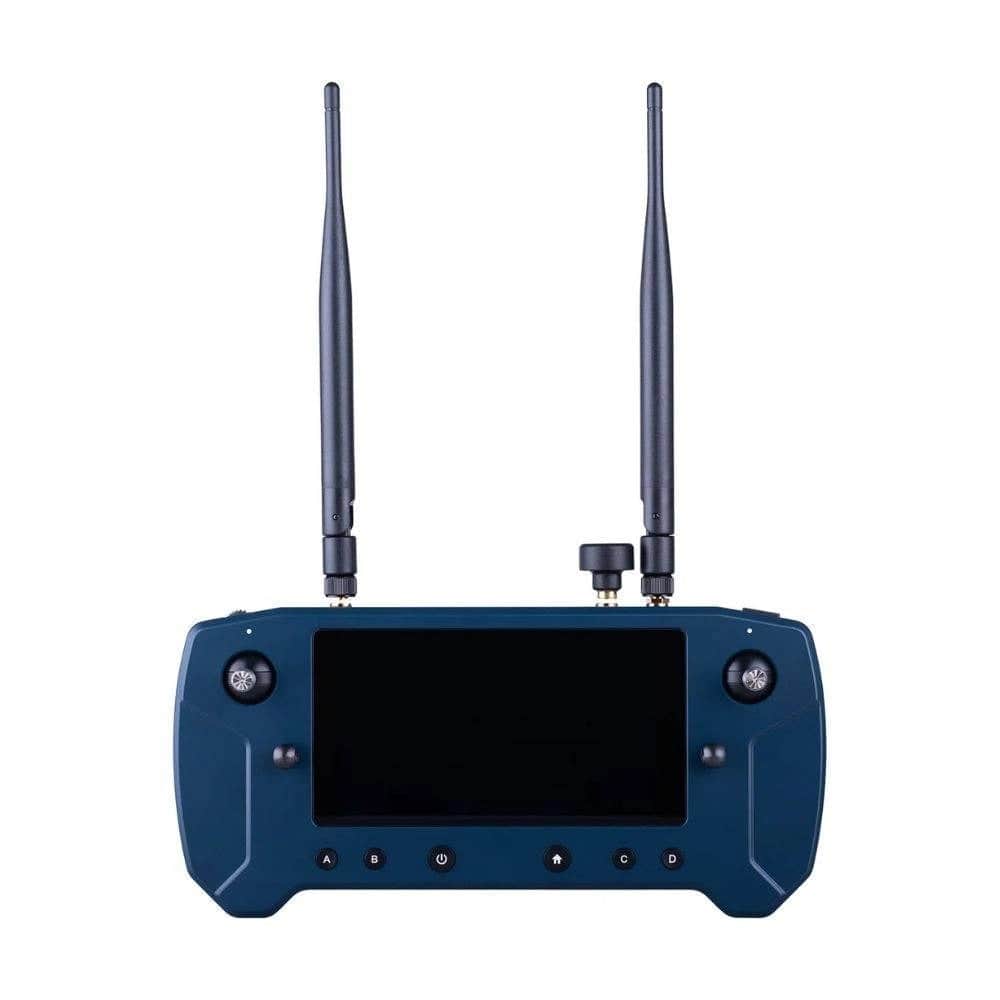

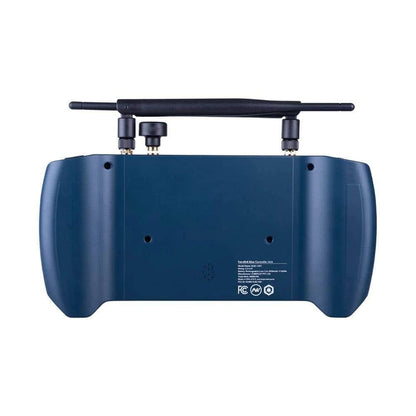

HERELINK BLUE CONTROLLER
- Case Material: 6061 Aluminum with Cerakote coating
- Weight: Herelink Blue 1.0 – 961 g | Herelink Blue 1.1 – 725 g (including 2 antennas)
- Size: 240 × 110 × 40 mm (not including external antennas and joysticks)
- Screen: 5.46 inch, 1080P, 16 million colors, capacitive touch
- Screen Brightness: Herelink Blue 1.0 – 600 nit | Herelink Blue 1.1 – 1000 nit
- Audio: Built-in speaker × 1, built-in microphone × 2
- Remote: Hall effect gimbals with removable sticks × 2, scroll wheel × 1, bottom buttons × 6 with backlight, top button × 1 (right)
- Wireless Communication: Bluetooth / WiFi / 2.4 GHz map transmission ground / 5.8 GHz WiFi
- Indicator Light: Tricolor LED × 2 (upper right and left corners)
- Interface: MicroUSB × 1, Micro SD × 1 (supports up to 64 GB)
- External Antenna: Omnidirectional antenna (3 dBi) × 2, detachable
- Built-in Antenna: Built-in WiFi antenna
- Power: Built-in 4950 mAh LiPo battery
- Charging: Supports micro USB 5 V, 2 A current charging
- Power Consumption: Average ≤ 4 W (picture transmission only, medium screen brightness, WiFi off, GPS off)

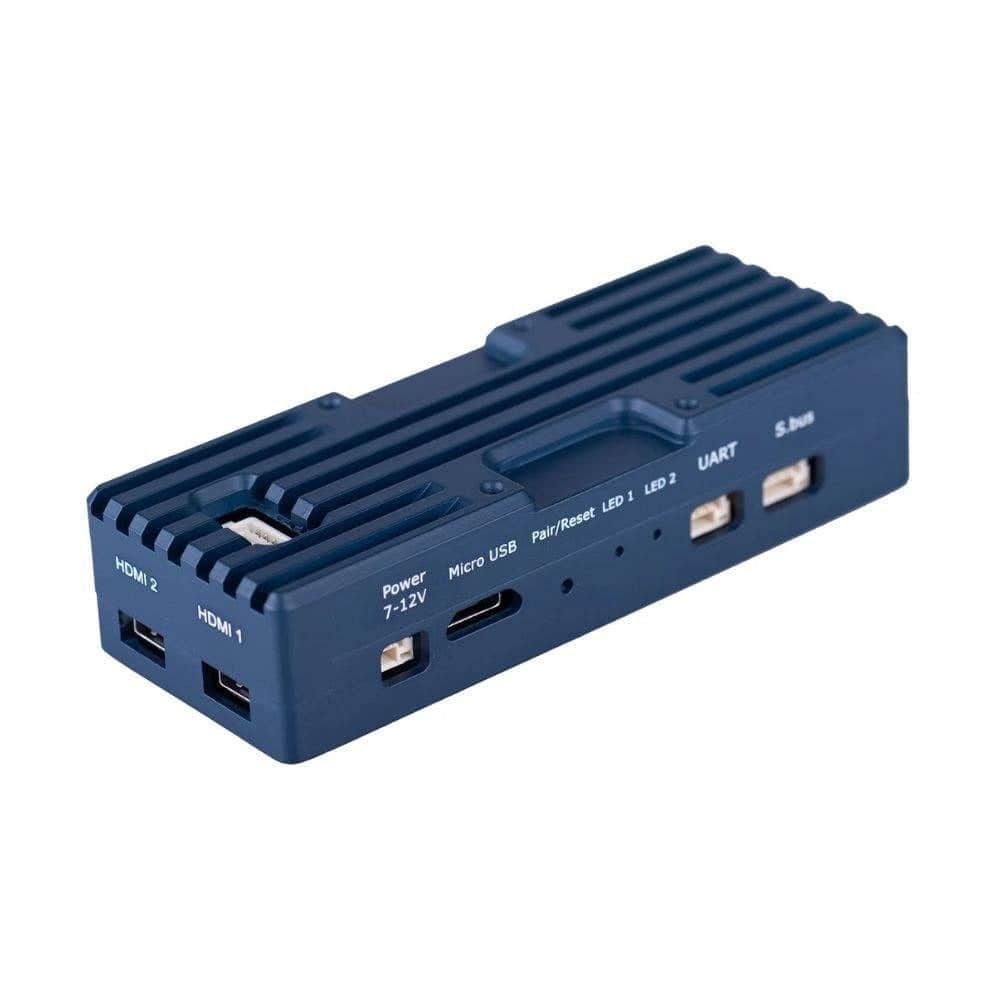

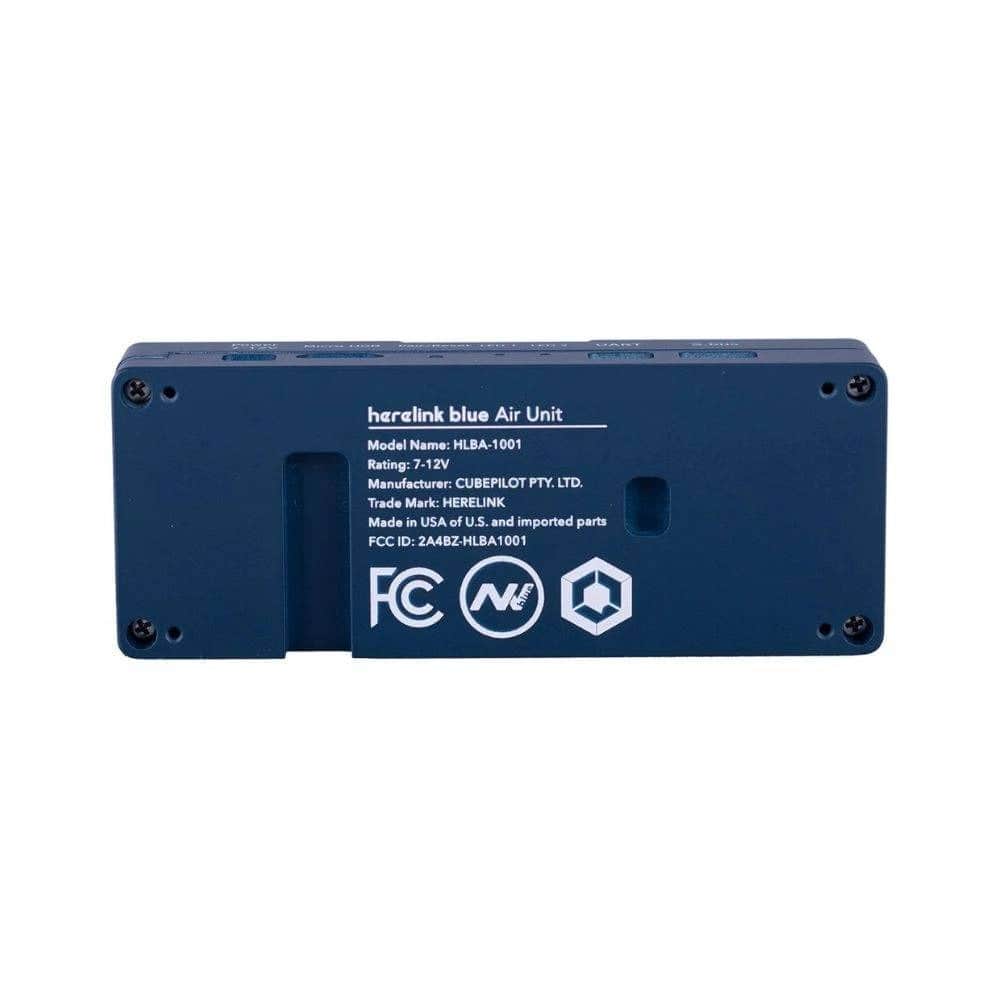

HERLEINK BLUE AIR UNIT V1.1
- Case Material: 6061 aluminum with Cerakote coating
- Weight: 68 g
- Dimensions: 78 × 30 × 17 mm
- Signal Bandwidth: 20 MHz / 10 MHz
- Power Consumption: Average ≤ 4 W
- Power Input: Recommended ~7 V (min 6 V, max 12 V); avoid sharing BEC with servos
- Power Output: 200 mW (stock)
- Micro HDMI 1: Camera video signal input (recommended)
- Micro HDMI 2: Camera video signal input
- UART Interface: 3.3 V UART
- S.Bus Interface: Dual RC out (S.Bus1 and S.Bus2)
- Micro USB: Debugging and firmware upgrades; supports OTG (no external power needed)
- Button: Pairing and state reset
- Indicator Lights (1 & 2): Pairing and video transmission status
- MMCX Antenna Jacks (1 & 2): Signal transmission and ground communication
- SD Slot (Air Unit 1.1 only): For future usage
- ETH Interface (Air Unit 1.1 only): Network protocol device access

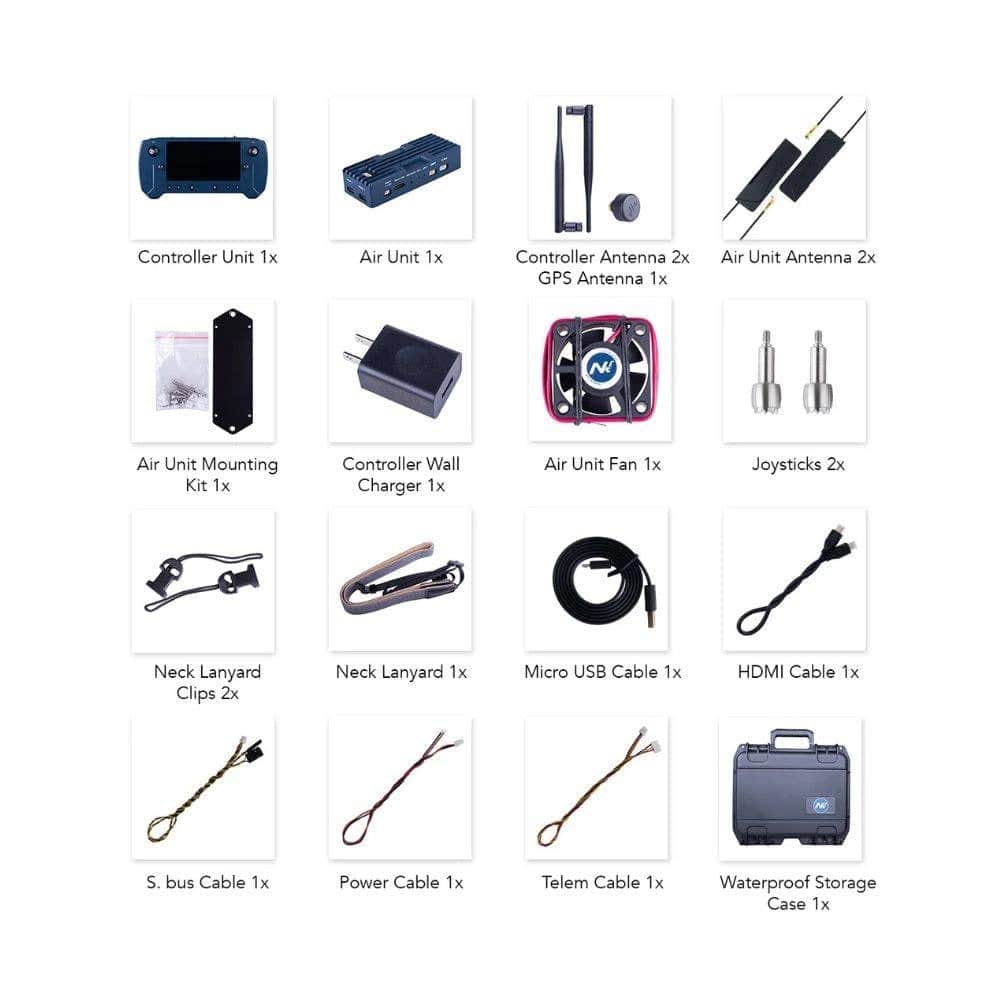

Includes
- 1x HereLink Air Unit
- 1x HereLink Controller
- 2x Omnidirectional antenna
- 1x GPS antenna
- 2x Airunit antenna
- 2x Joy-stick
- 1x HDMI cable
- 1x Power cable
- 1x Telemetry cable
- 1x S.Bus cable
- 1x Ethernet cable
- 1x USB cable
- 1x Fan (available in Herelink Blue v1.1)
- 1x Air Unit mounting plate
- 8x Silicon o-ring
- 4x M1.6 × 16 mm screw
- 4x M1.6 × 3 mm screw
- 4x M1.6 washer
- 2x M3 × 10 mm screw
- 2x M3 nut
- 1x Neck lanyard
- 2x Neck lanyard clips
- 1x Wall charger

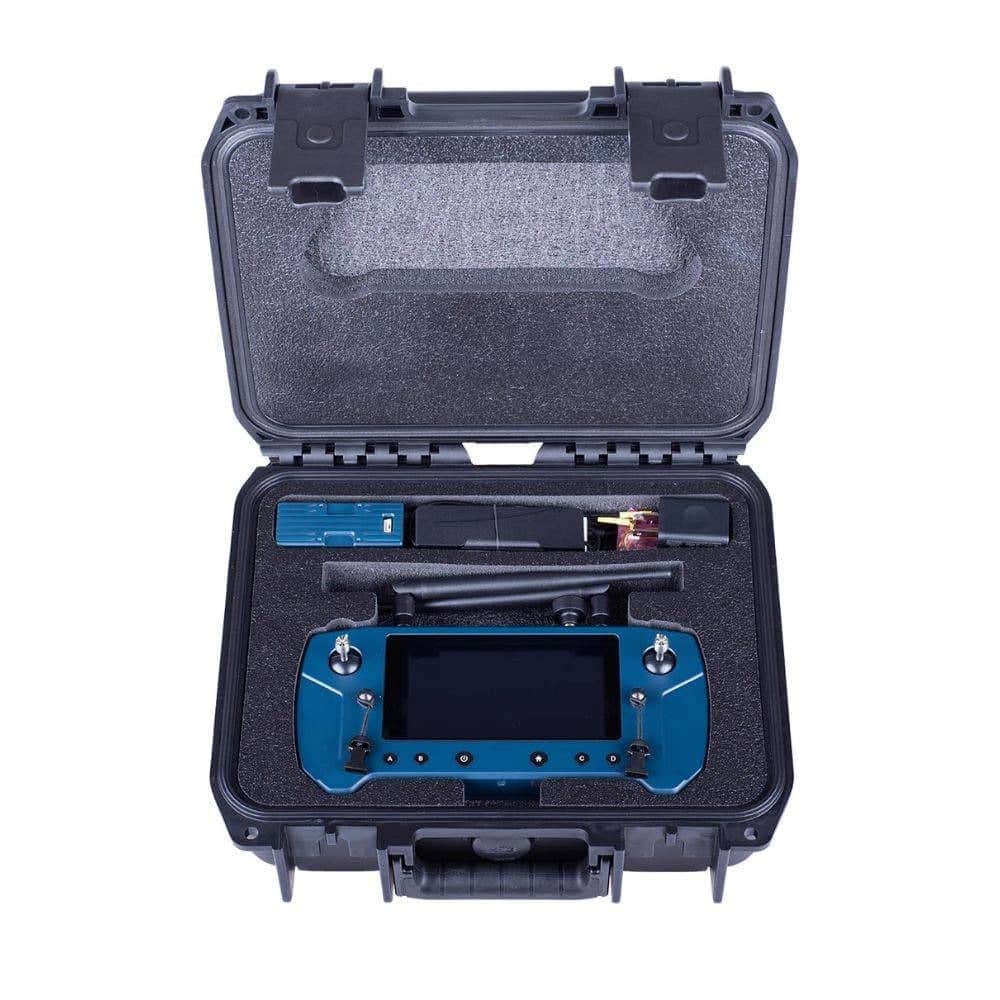

- 1x Waterproof storage case
More Info
- SKU: G24166US1Z
- Barcode: 789270120938
