Details
Description

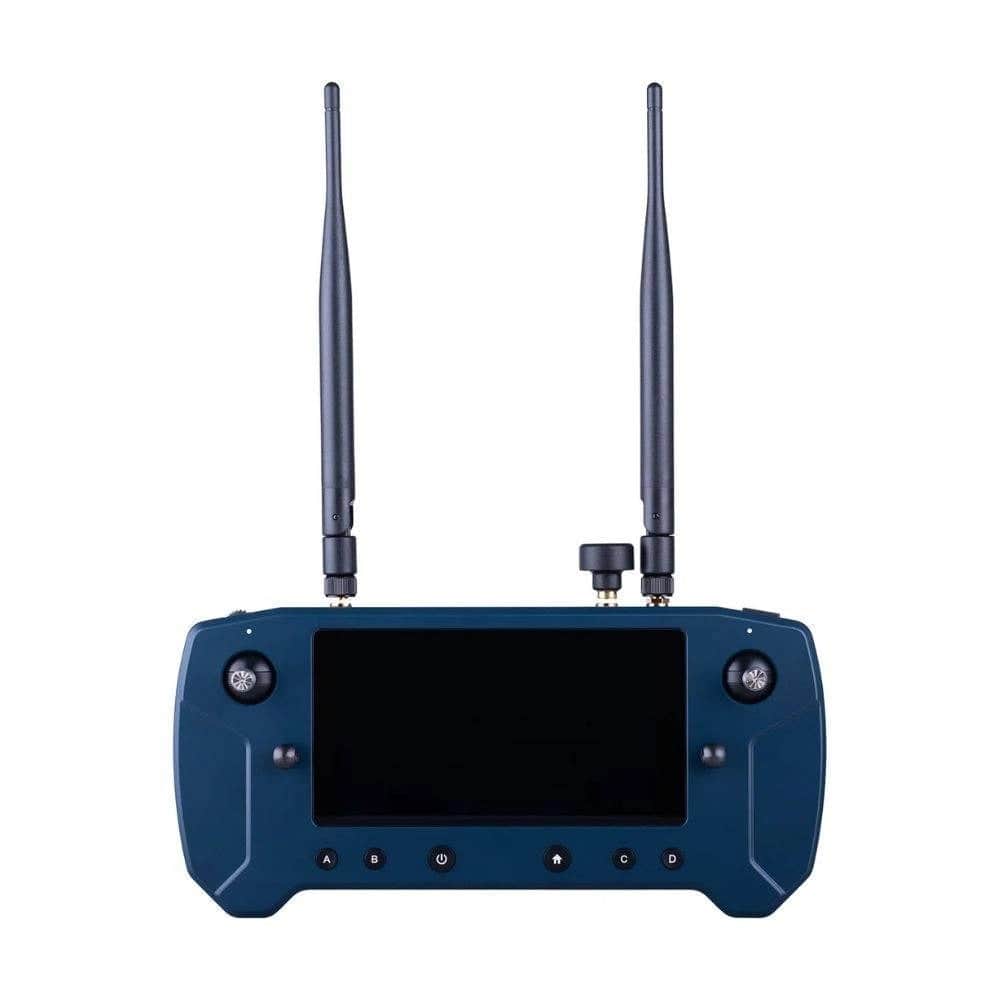

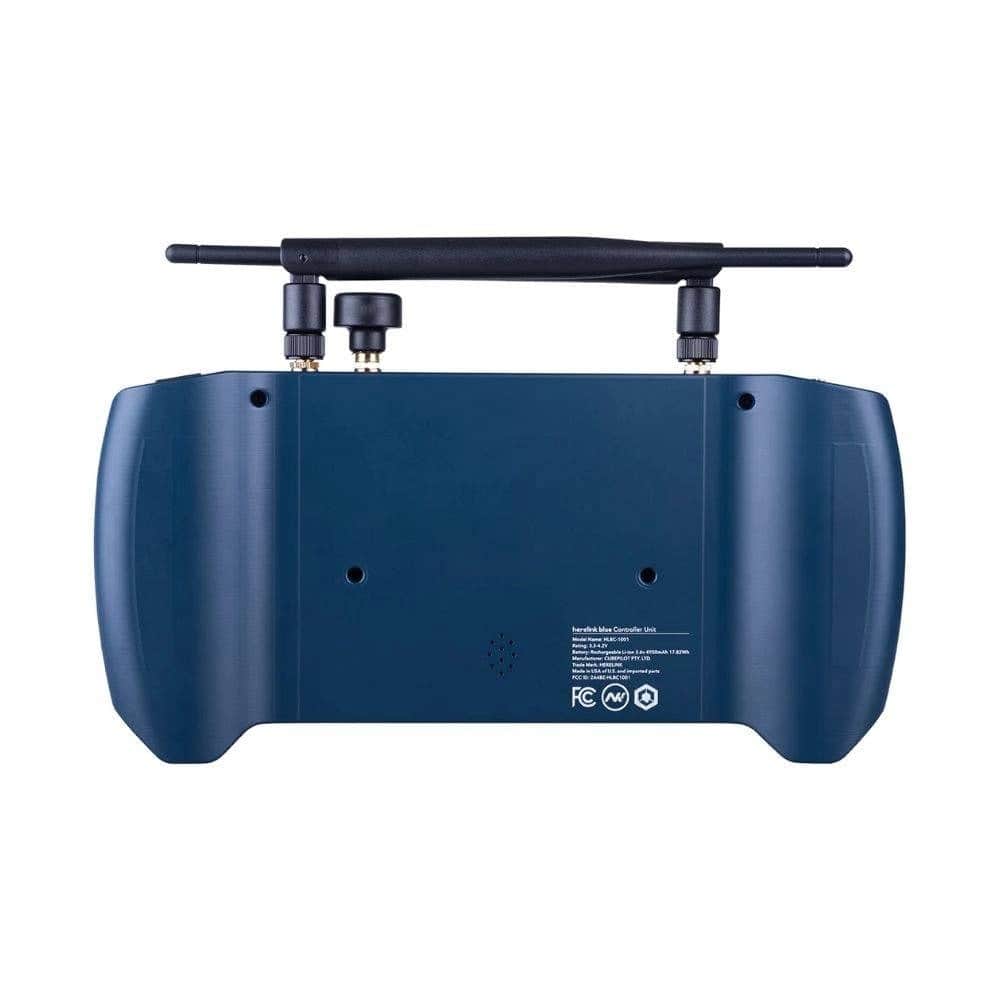

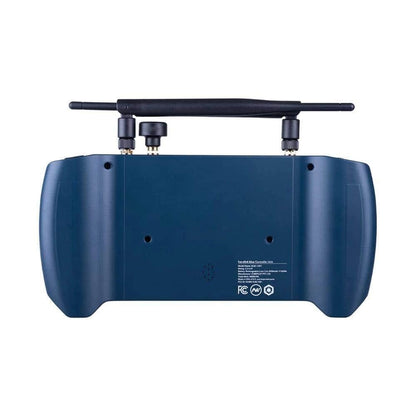

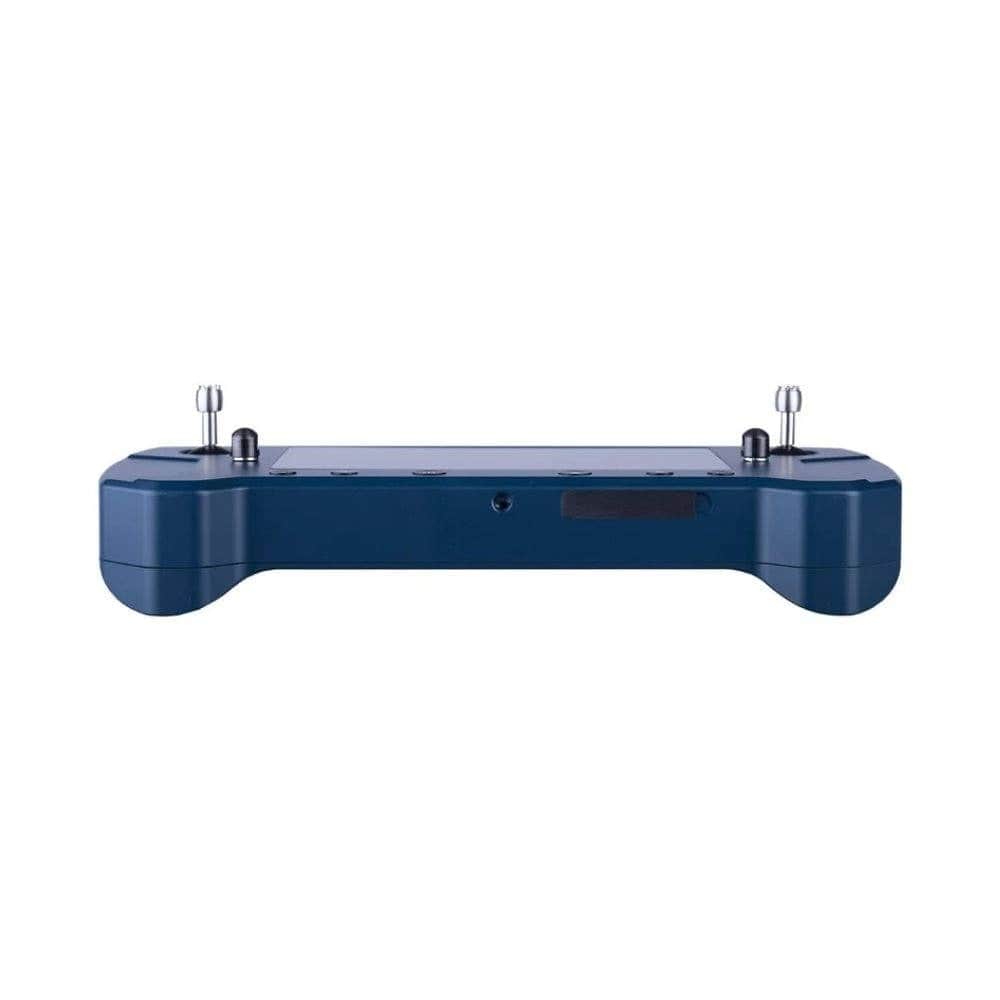

The Herelink Blue Controller V1.1 is an all-in-one remote control and ground station designed for long-range drone operation, combining RC control, HD video, and telemetry into a single portable unit. With a bright capacitive touchscreen and powerful onboard processing, it delivers responsive performance and expanded connectivity for advanced flight applications.
Check out all our Radio Controllers as well as the rest of our CubePilot selection!
Features
- Bright 5.46″ 1080p capacitive touch display with up to 1000 nit brightness
- Integrated remote control, ground station, and video receiver in one unit
- 8-core processor for responsive performance and custom apps
- Dual Hall-effect gimbals with removable sticks and backlit buttons
- Built-in Bluetooth, Wi-Fi, and long-range 2.4 GHz/5.8 GHz communication
Specifications
- Case Material: 6061 Aluminum with Cerakote coating
- Weight: Herelink Blue 1.0 – 961 g | Herelink Blue 1.1 – 725 g (including 2 antennas)
- Size: 240 × 110 × 40 mm (not including external antennas and joysticks)
- Screen: 5.46 inch, 1080P, 16 million colors, capacitive touch
- Screen Brightness: Herelink Blue 1.0 – 600 nit | Herelink Blue 1.1 – 1000 nit
- Audio: Built-in speaker × 1, built-in microphone × 2
- Remote: Hall effect gimbals with removable sticks × 2, scroll wheel × 1, bottom buttons × 6 with backlight, top button × 1 (right)
- Wireless Communication: Bluetooth / WiFi / 2.4 GHz map transmission ground / 5.8 GHz WiFi
- Indicator Light: Tricolor LED × 2 (upper right and left corners)
- Interface: MicroUSB × 1, Micro SD × 1 (supports up to 64 GB)
- External Antenna: Omnidirectional antenna (3 dBi) × 2, detachable
- Built-in Antenna: Built-in WiFi antenna
- Power: Built-in 4950 mAh LiPo battery
- Charging: Supports micro USB 5 V, 2 A current charging
- Power Consumption: Average ≤ 4 W (picture transmission only, medium screen brightness, WiFi off, GPS off)
Includes
- 1x Herelink Blue v1.1 Controller Unit
- 2x Controller Joystick
- 2x Omni-directional Antenna
- 2x Neck Lanyard Clips
- 1x Neck Lanyard
- 1x Wall Charger
- 1x Micro USB Cable

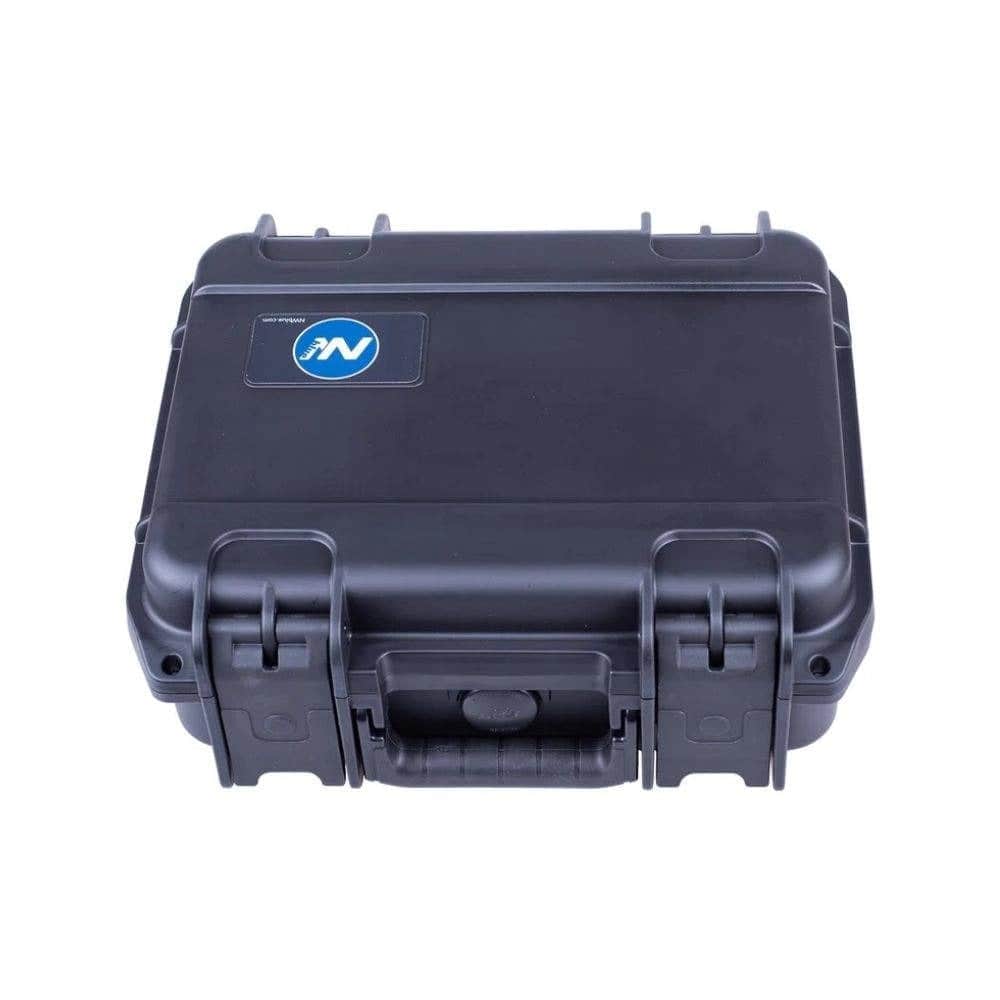

- 1x Waterproof Storage Case
- 1x GPS Antenna
More Info
- SKU: G24169US1Z
- Barcode: 723326378973
