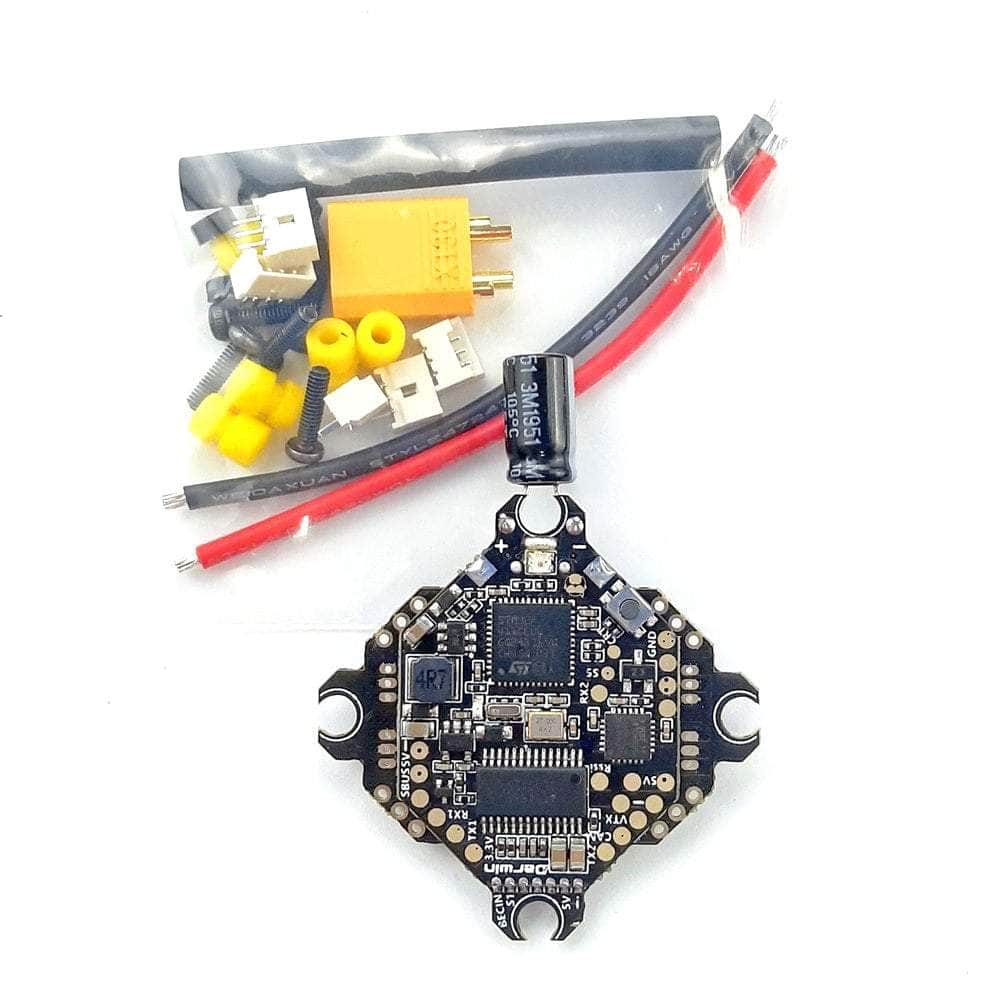

DarwinFPV 1-3S F4 AIO Flight Controller w/ 15A ESC

DarwinFPV 1-3S F4 AIO Flight Controller w/ 15A ESC

$47.99
$47.99
Add To Wishlist
View full details

Details

Description

The Darwin FPV AIO is great for Ultralight and Whoop builds. It even come with a capacitor pre-soldered for convenience! With AIOs becoming more popular every day, Darwin enters the market with one of their very own made specifically for small builds!

Check out our other AIO flight controllers as well as our other DarwinFPV products!

Specifications

  • MCU: STM32F411
  • Gyro: MPU6000
  • BEC: 5V/2A,3.3V
  • Input voltage: 1-3S Lipo
  • Support Receiver: PPM, Ibus, Sbus, Dsmx
  • Black box: NO
  • Barometer: NO
  • Firmware: MATEKF411
  • Buzzer interface: YES
  • Betaflight OSD: AT7456E
  • Constant current: 15A
  • Peak current: 17A
  • MCU: EFM8BB21F16G(48MHz)
  • Firmware: BLHeli_S
  • Protocol: Dshot600
  • Mounting: 25.5X25.5 M2

Includes

  • 1x DarwinFPV 1-3S F4 AIO Flight Controller w/ 15A ESC

Wiring Diagram

More Info

  • SKU: DARW-F4-3S-15A-BL_S
  • Barcode: 691023478336


Overall rating: 3.6530612 / 5 from 49 reviews.

AI Generated Review Summary

The DarwinFPV 1-3S F4 AIO Flight Controller is designed for ultralight and whoop builds, featuring a pre-soldered capacitor for convenience. While some customers found the motor solder pads problematic, others had no issues. The board is considered a bit dated but comes with blue jay firmware.

Summary topics

  • Motor Solder Pads: 17%
  • Board Quality: 28%

Review topics: ["shipping","control","replacement","issues","build","price","board","pads","aio","option","esc"].

Review highlights

  • "Easy to sodler and the pads are quickly identified." — Larry L.
  • "Best budget toothpick board around." — James W.
  • "Nice board and easy to set up a 3" DJI Toothpick." — Paul E.

Reviews

Perfect for micro racers if

"Perfect for micro racers if ELRS is not used."

— Rafael M. (4/5)

"Exactly as described an fast shipping"

— Pennington (5/5)

"Little dated board!"

— James (4/5)

"Flight controller was dead after flashing firmware straight from Darwin FPV"

— Douglas (1/5)

This is my GoTo for micro quads.

"Two broke out uarts is just enough for my receiver and digital video. No spi receiver which I like. I've ran 2s and 3s 3inch toothpick builds on this and have really been impressed. Haven't burn one when I turtle or try getting out of a tree. The capacitor hanging out the back is the only thing that isn't great. I just let it stick out. Its short enough that its fine though not ideal. Both walksnail and hdzero 1s vtx's work great with this FC. My fav has been hdzero on the crux frame running 2s. This combo rips like crazy and I get about 6min medium ripping an r-line 550 bat. 7min if I cruise. I tried 3 other FCs before settling on this one. It's a gem"

— Taylor G. (5/5)

Great price for the parts, even better webstore

"Shipment was super fast and the fc looks in perfect shape. Excited to try this in one of my chassis"

— Anthony N. (5/5)

CHEAP AND GOOD FC

"CHEAP AND GOOD FC"

— Alvaro A. (5/5)

good price

"good price"

— Gary B. (4/5)

Favorite aio for small builds.

"Favorite aio for small builds. Holds up well and is easy to work on."

— Nick F. (5/5)

It's a great AIO 3xcept

"It's a great AIO 3xcept for how small and crammed the pads are. It's also behind on the firmware so you have to flash it as soon as you get it to configure motor direction. The price could be better as betafpv has 20amp AIO boards with bigger pads for 10 bucks cheaper"

— Wallace G. (3/5)
