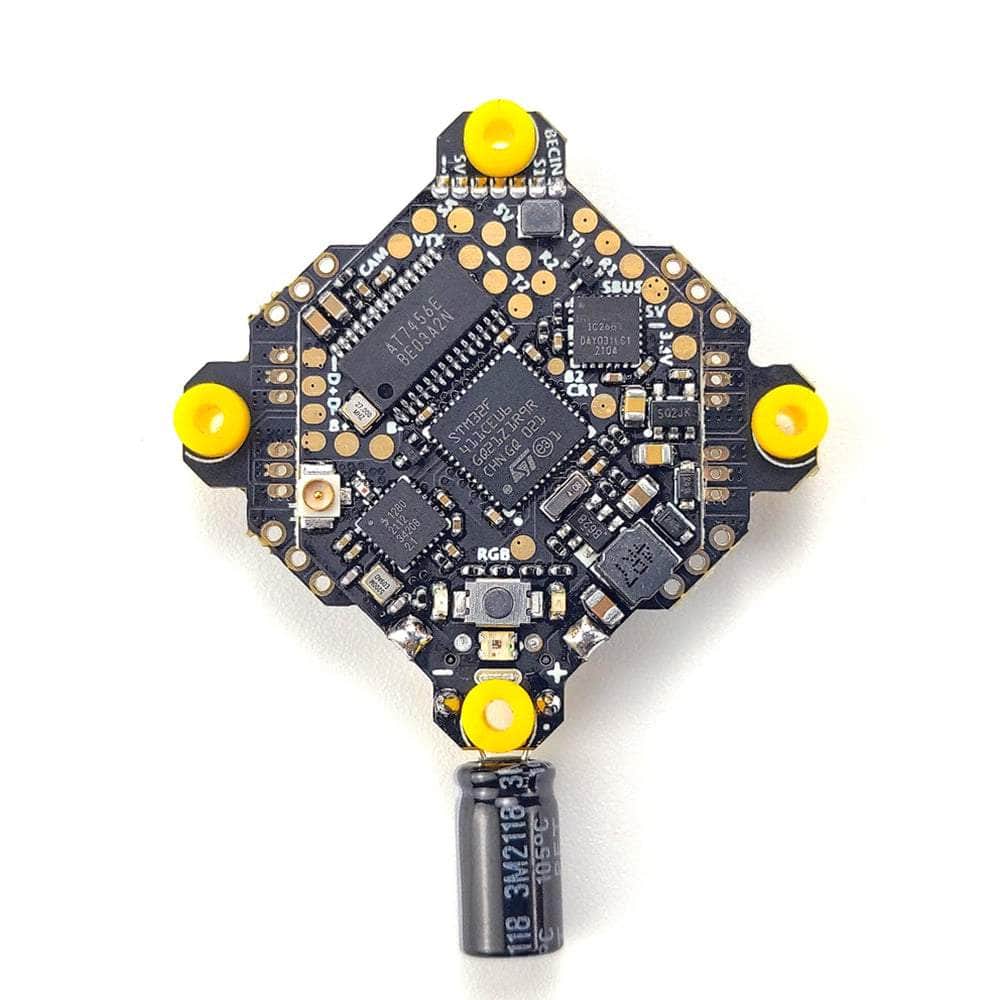

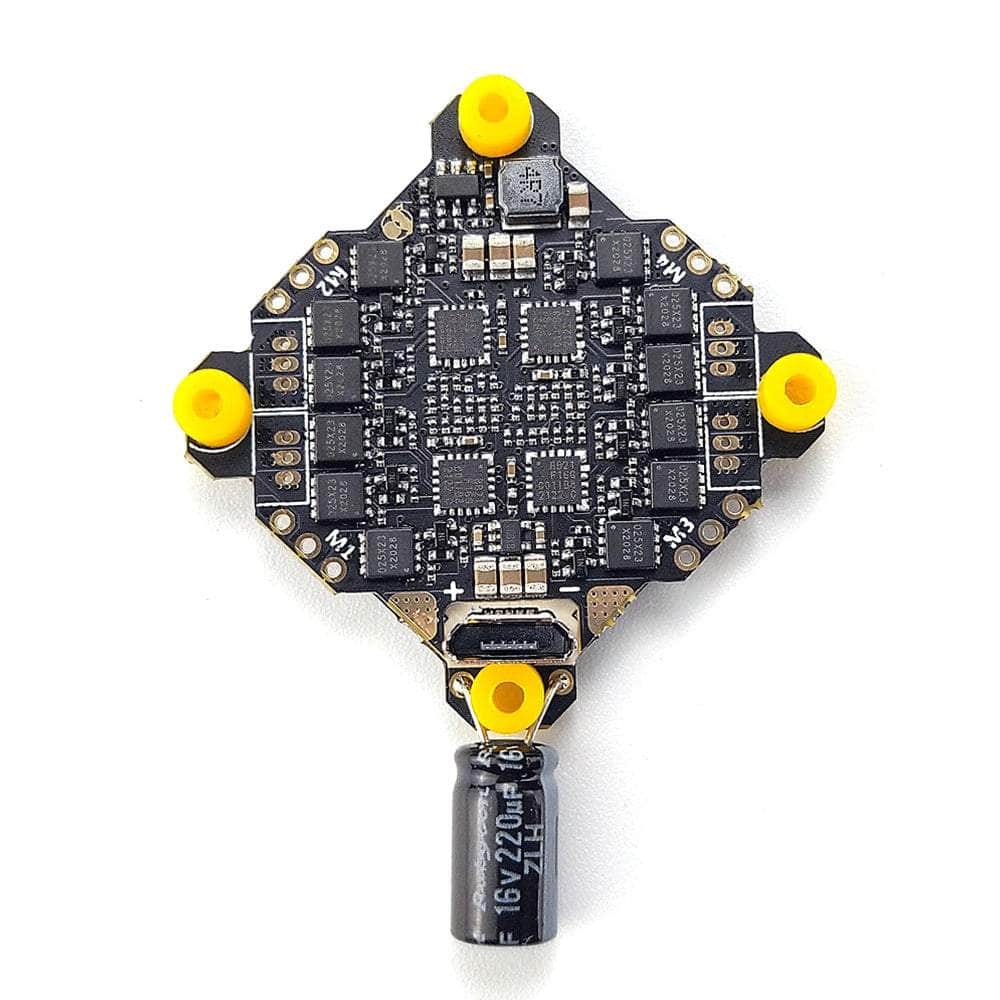

DarwinFPV 1-3S F411 AIO Flight Controller w/ 15A Bluejay ESC and ELRS2.0

DarwinFPV 1-3S F411 AIO Flight Controller w/ 15A Bluejay ESC and ELRS2.0

Regular price $59.99
Sale price $59.99 Regular price
Add To Wishlist
View full details

Details

Description

The Darwin FPV AIO is great for Ultralight and Whoop builds. It even come with a capacitor pre-soldered for convenience! With AIOs becoming more popular every day, Darwin enters the market with one of their very own made specifically for small builds! This version even comes with pre-flashed Bluejay ESCs and built-in ExpressLRS!

Check out our other AIO flight controllers as well as our other DarwinFPV products!

Specifications

  • MCU: STM32F411CEU6(100MHz)
  • Gyro:  ICM-20689
  • BEC: 5V/2A,3.3V
  • Input voltage: 1-3S Lipo
  • Blackbox: NO
  • Barometer: NO
  • Firmware: betaflight_4.3.0_BETAFPVF4SX1280
  • Buzzer interface: YES
  • Betaflight OSD: AT7456E
  • Constant current: 15A
  • Peak current: 17A
  • MCU: EFM8BB21F16G
  • Firmware: Bluejay_S_H_50_48_v0.14
  • Receiver: Integrated Express LRS 2.4GHz
  • Mounting: 25.5X25.5 M2

Includes

  • 1x DarwinFPV 1-3S F411 AIO Flight Controller w/ 15A Bluejay ESC and ELRS2.0

More Info

  • SKU: DARW-ELRS-F4-15A
  • Barcode: 691023492301


Overall rating: 3.7857144 / 5 from 14 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["issues","board","drone","elrs"].

Review highlights

Reviews

Good this far!

"There’s not much say now because I’m currently setting it up in beta flight. I decided to buy different motors for it though and they’re in the mail. I’ll update when I get a flight in. Thank you"

Josh T. (5/5)

Good for price

"Good for price"

Ben M. (5/5)

"Ordered and had a issue with 1 motor output but RDQ made it right and replaced it with a new one and works amazingly. Arrived fast also. Love their online store and staff. Thanks"

Clayton (5/5)

Good board, bad info

"The board target IS NOT the betaFPV one. Use the DarwinF4SX1280 and the cli dump from the Darwin website. (Not the dump found in the FC firmware section rather the dump found in the CLI section)"

Kody C. (4/5)

Good stuff

"Upgraded my baby ape v2 with this. Nice having Elrs built in."

Dan N. (5/5)

Good board. Possible esc durability issues

"My first board had a fet loose and lifting off. Rdq replaced it for me cuz they're the best. Second board is running strong. 20 bat's in and no issues. Running a 3s 2.5 in custom build"

Josh N. (4/5)

DOA

"It had one dead motor output."

David H. (1/5)

Soldering is fiddly, Died Instantly

"Tried to use this as a drop in replacement for my BabyApe, but I really wouldn't recommend it. I love that it has bluejay and ExpressLRS built in, but When it didn't last beyond the first plug in it's sure hard to appreciate those features."

Ryan D. (1/5)

Great Little Board !

"I bought this to try something different in my Tiny Freestyle 2 , as I like the Drone but have fried several Boards . With a simple mod to the Frame it fits perfectly . The Built in ELRS with changeable IPEX antenna is awesome, if you are an ELRS user . Just add your own VTX . I have no problems flying 2s and 3s batteries with it ! TH1103 7000kv Motors"

Drone R. (5/5)

Interesting board

"Very similar to the baby ape board. I was disappointed to find the elrs is spi based. The only reason it loses a star is the lack of documentation that comes in the package or on the product page."

Jim P. (4/5)
