DarwinFPV CineApe 25 Cinewhoop 2.5" Micro Frame Kit

Original price $29.99 - Original price $29.99
Original price
$29.99 - $29.99
Current price $29.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

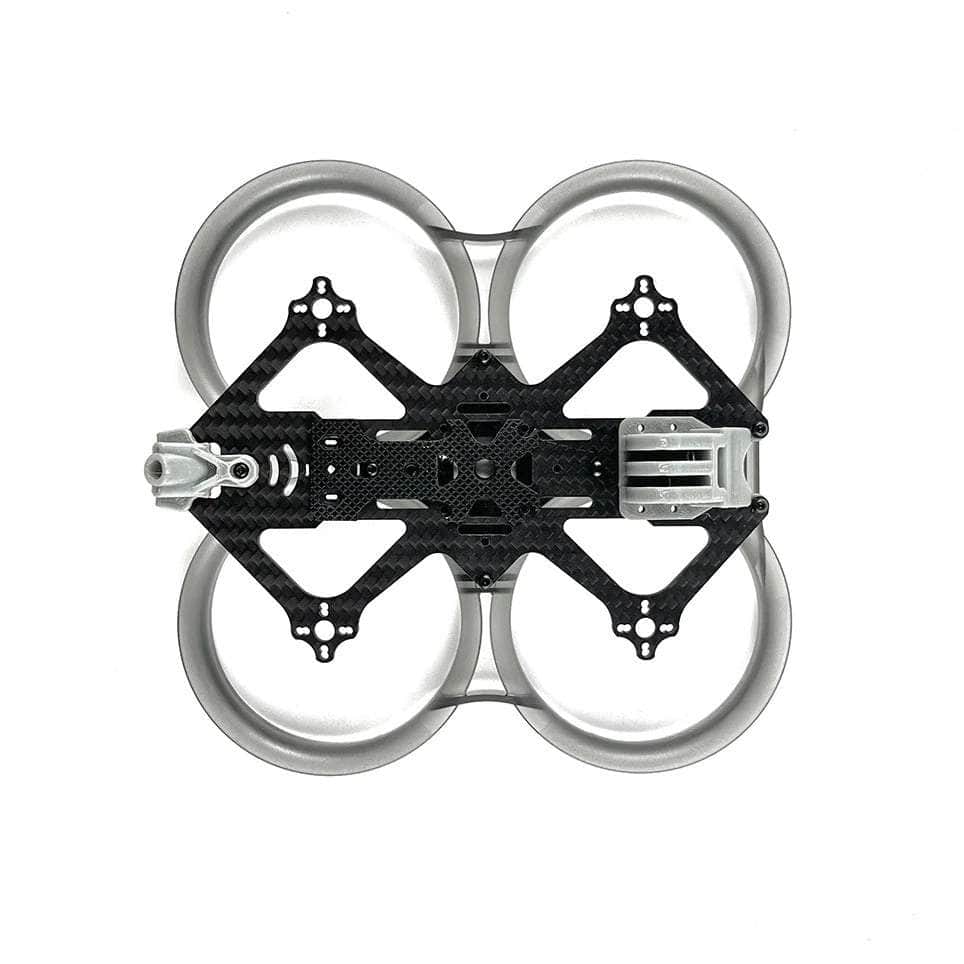

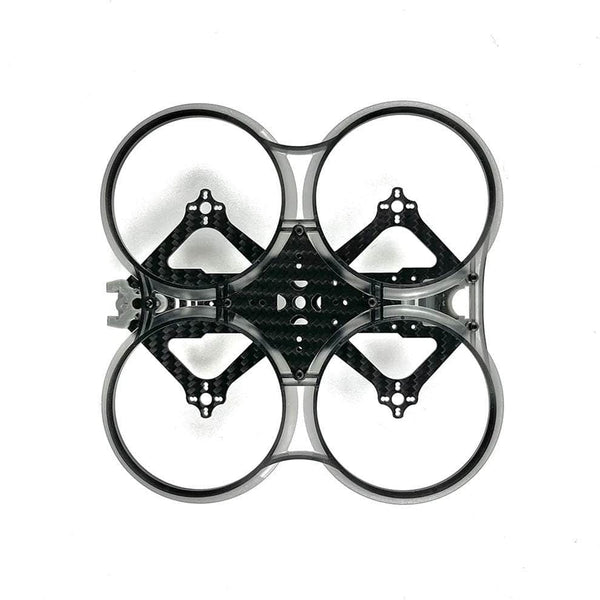

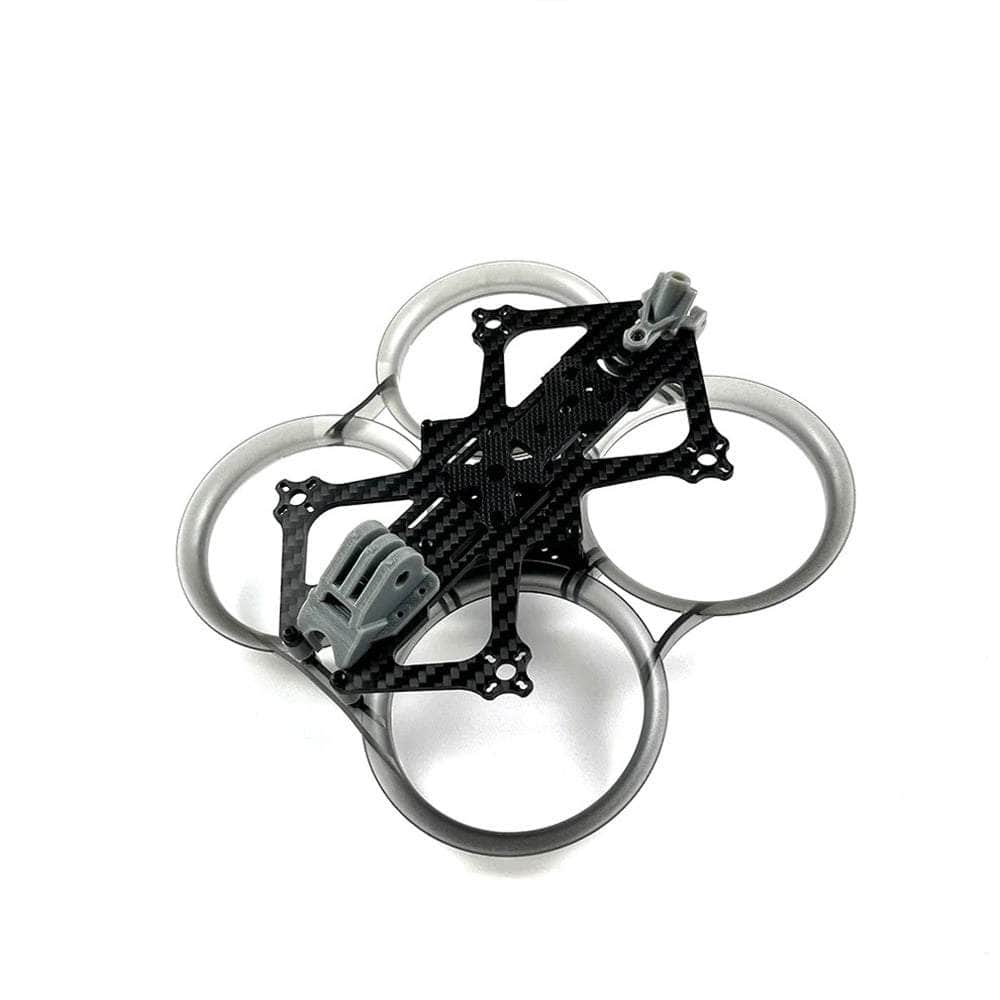

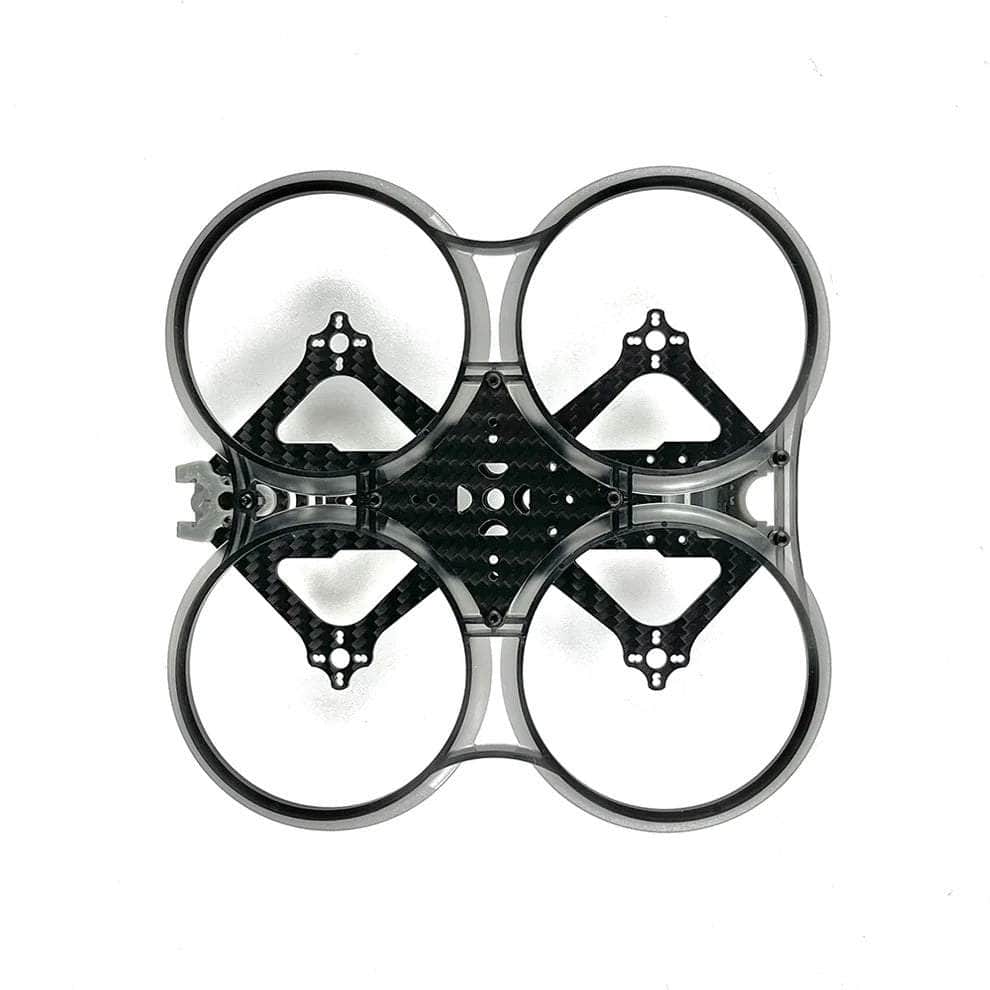

The CineApe 25 frame is the first inverted 2.5-inch cinematic whoop frame of DarwinFPV. The frame is composed of upper and lower layers of carbon plates and a high-strength injection molding ring, with an advanced appearance. In addition, to enhance the durability of the frame, we have also added additional reinforcement to the injection-molded boot, which now excels in crash protection.

The CineApe 25 Frame Kit is a cost-effective cinewhoop frame with tough, injection-molded prop guards to ensure your electronics are safe in the event of a crash. With a quick-release design, repairs on the go are made easy and the frame layout is great for AIO boards.

Be sure to check out our Cinewhoop Collection as well as all DarwinFPV products we have for sale at RaceDayQuads!

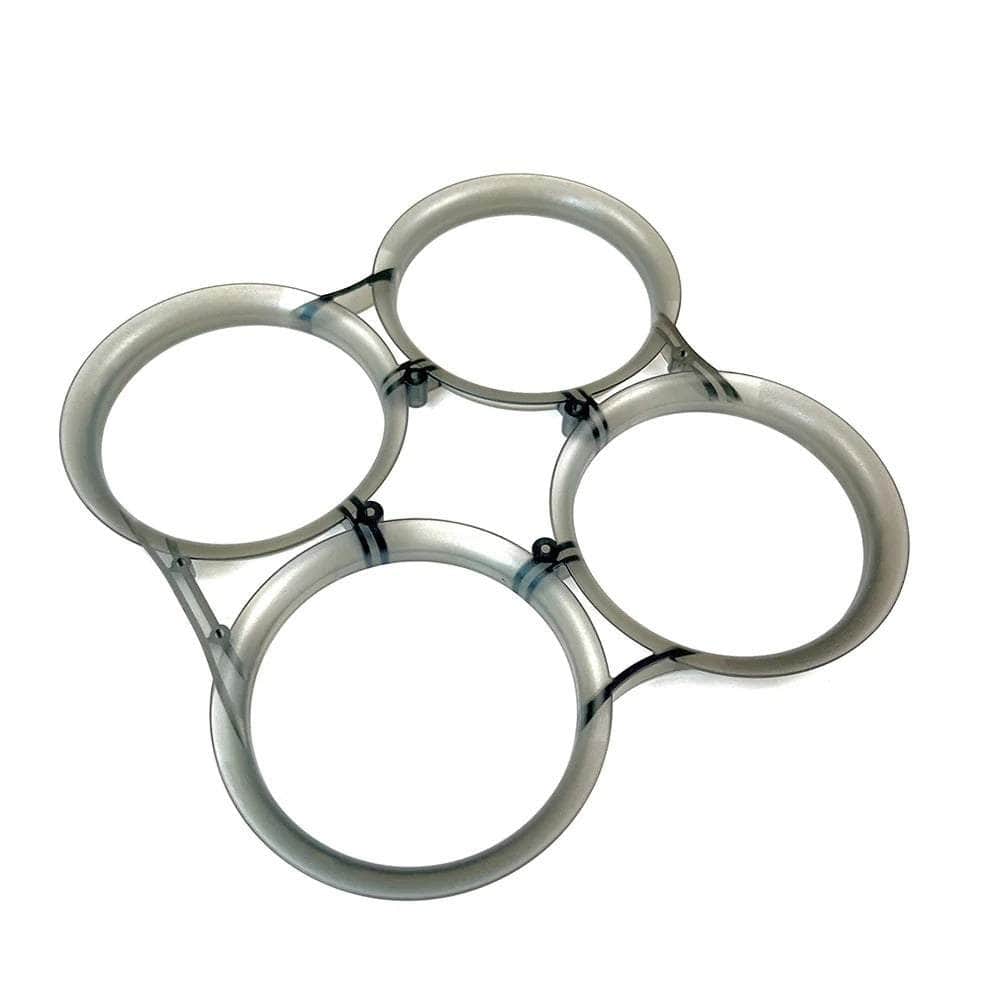

  • Comes with a high-strength one-piece injection-molded propeller guard, which has higher safety, a stronger and more durable frame, and also reduces the probability of risk, so you have more confidence to fly.
  • It is used the front Type-C parameter adjustment port, with DARWIN parameter adjustment adapter board, easy to adjust parameters.
  • It comes with a quick-release frame design that only needs to remove 7 screws to separate the top plate and the injection molding guard, which can easily deal with the scene in which accessories need to be replaced urgently.
  • Compared with the same type of frames, our CineApe 25 frame has added multiple battery strap mounting holes, compatible with 20mm stack mounting holes and 25.5mm AIO mounting holes. The battery anti-skid pad is designed to be extended, which avoids the trouble that the anti-skid pad at the back of the battery is too small to play a non-slip effect when installing the GoPro.
  • The arms use a strong triangular structure, which is more durable.
  • The integrated fixed design of the antenna print solves the problem of the traditional antenna moving easily and greatly optimizes the structure of the frame.


  • Wheelbase: 112mm
  • Top Plate Hole: 20x20mm,25.5x25.5mm
  • Bottom Plate Hole: 28x15mm (3 holes),20x20mm,25.5x25.5mm
  • Motor Mounting Hole: 9x12mm
  • Carbon Plate Camera Mounting Hole: 19mm
  • 3D Print Camera Hole:14mm

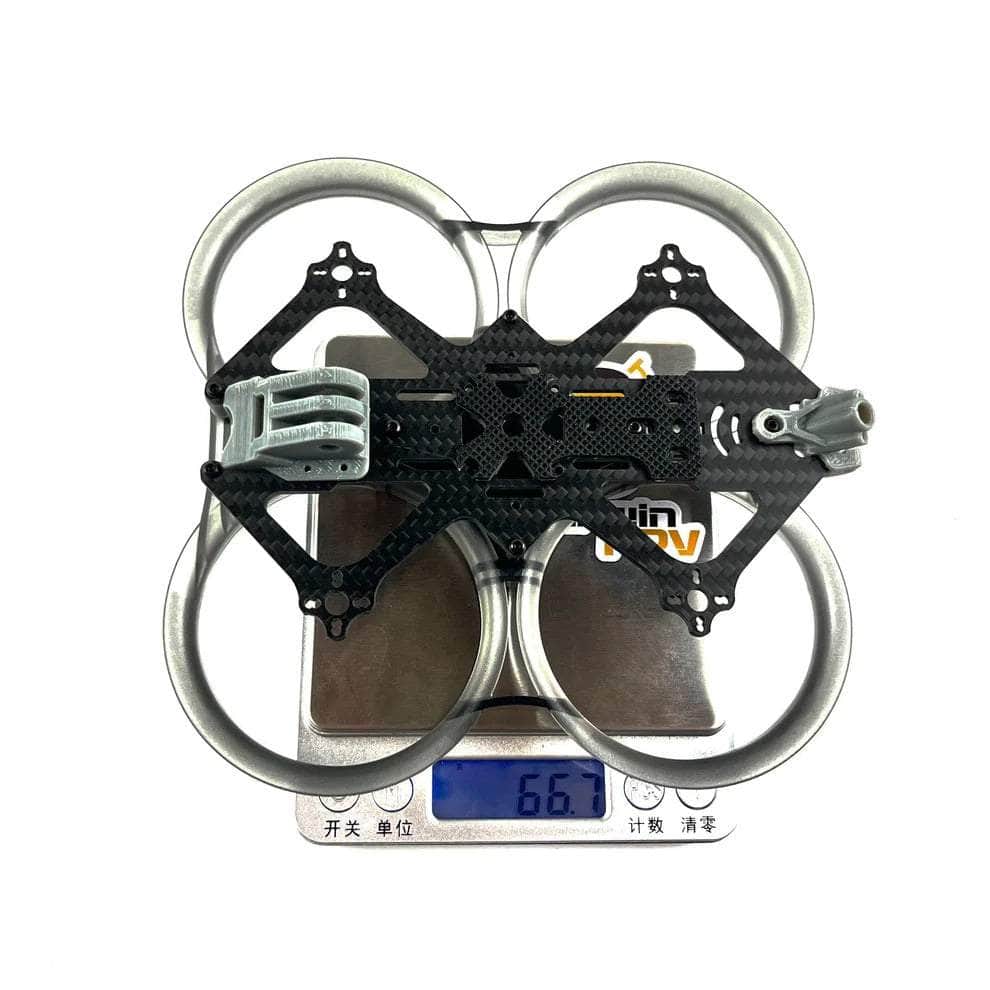

  • Weight: 66.7g
  • Top Plate Thickness: 2.5mm

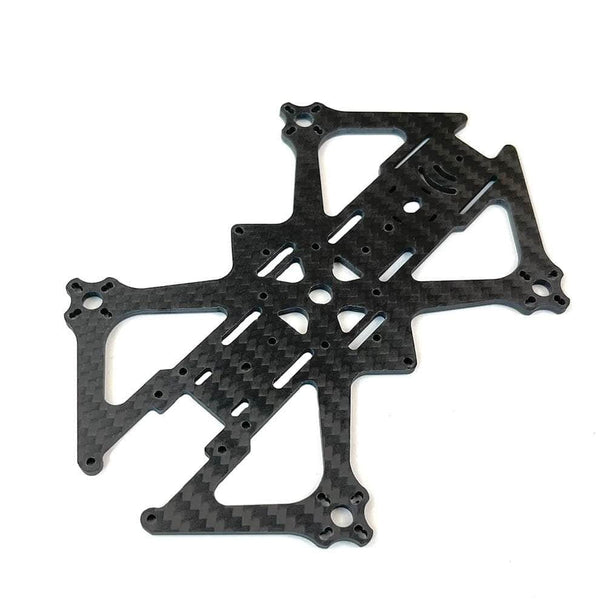

  • 1x top plate2.5mm

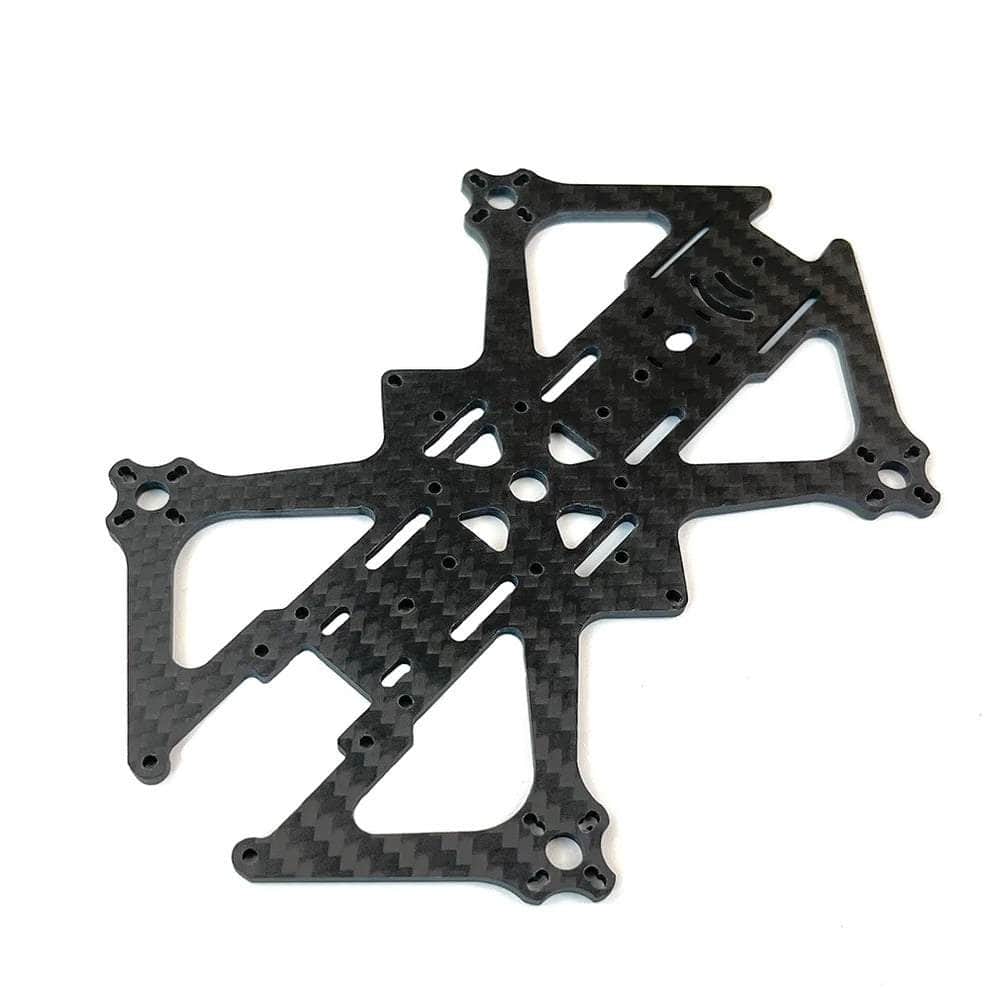

  • 1x bottom plate 2mm
  • 1x injection molding guard

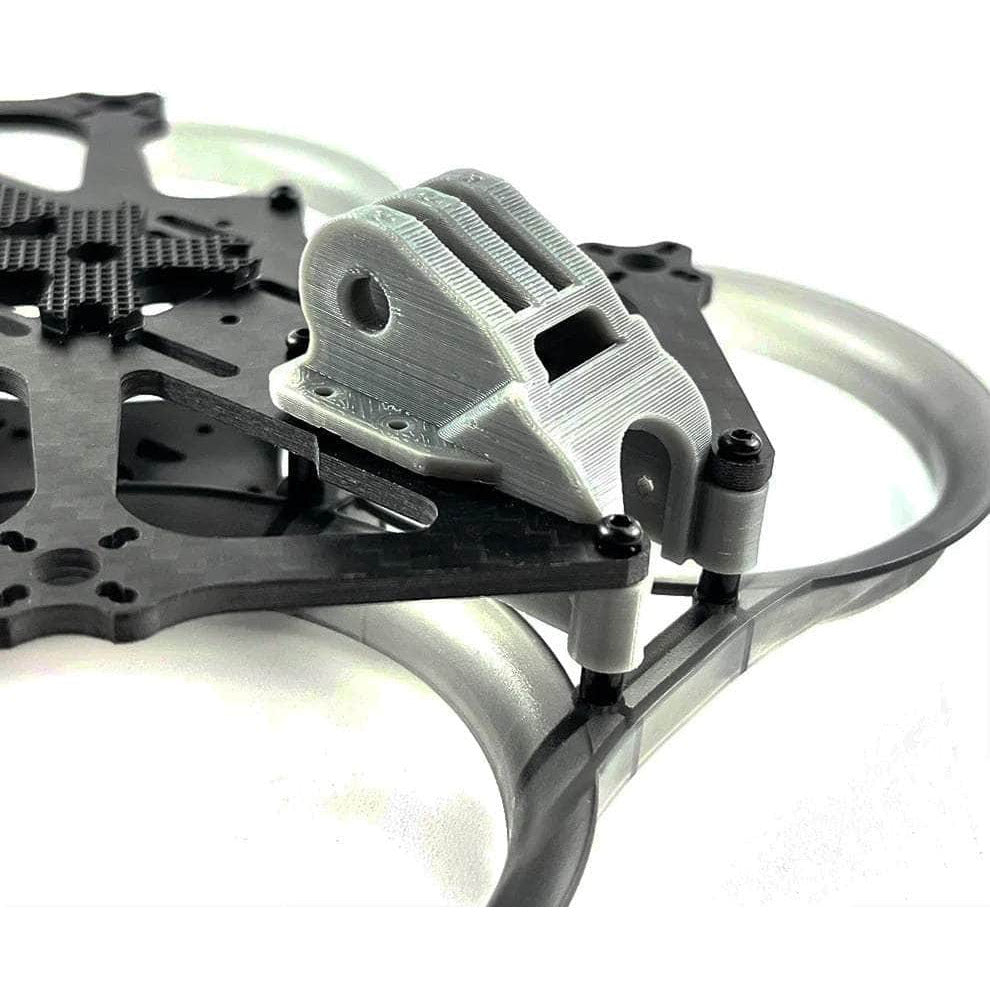

  • 1x camera mount

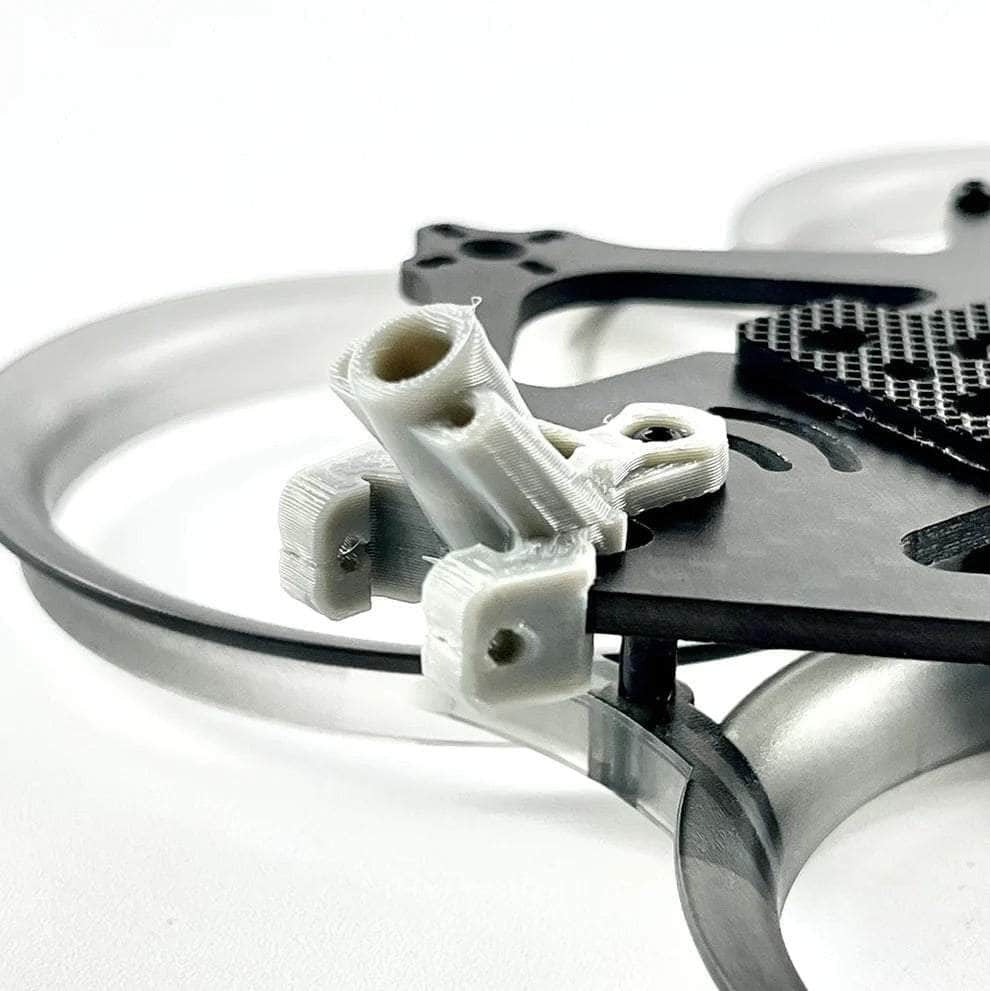

  • 1x antenna mount
  • 1x battery anti-skid pad
  • 2x battery cable tie 10x170mm
  • 7x M2x12mm copper standoff
  • 4x M2 nylon nut
  • 6x M2x6 hexagon socket head screw
  • 5x M2x7 hexagon socket head screw
  • 3x M2x10 hexagon socket head screw
  • 4x M2x14 hexagon socket head screw
  • 1x sticker
