DarwinFPV BNF Darwin240 Johnny5 4S 5" Analog Quad - PNP

DarwinFPV BNF Darwin240 Johnny5 4S 5" Analog Quad - PNP

Regular price $226.99
Sale price $226.99 Regular price
Add To Wishlist
View full details

Details

Description

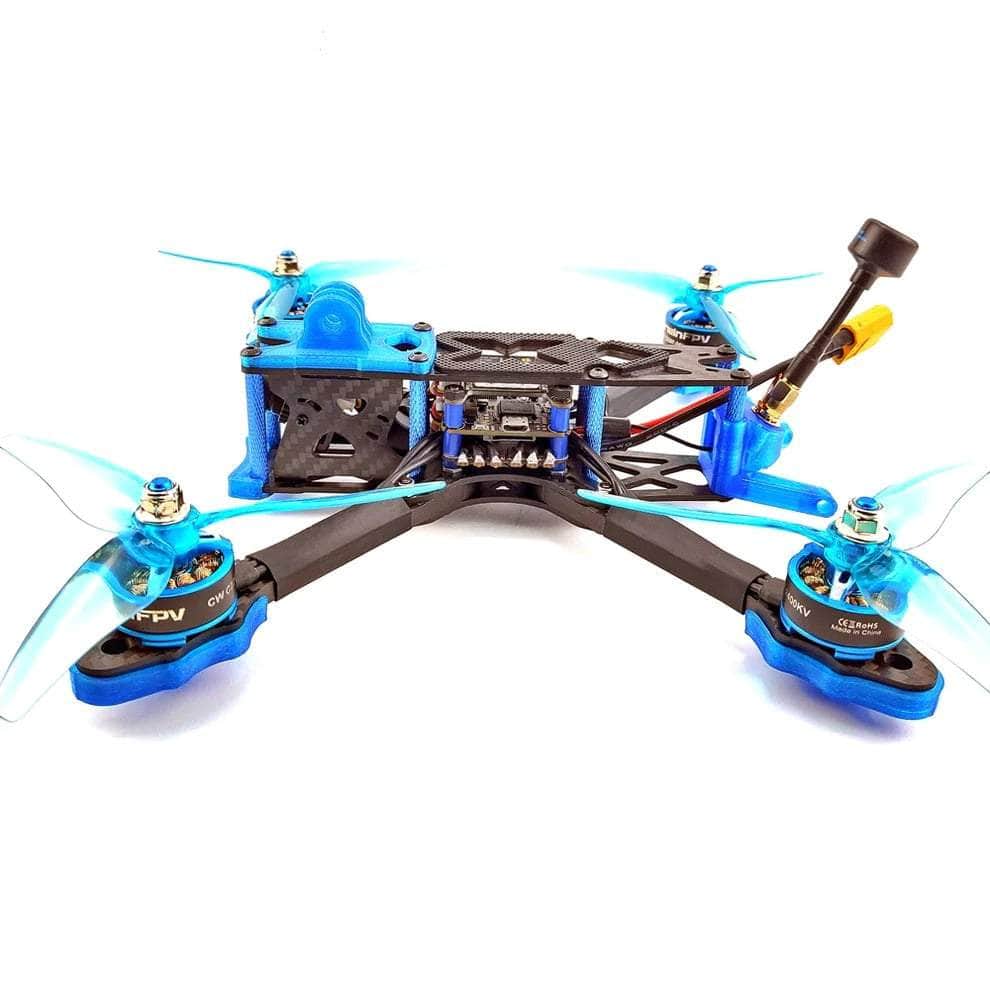

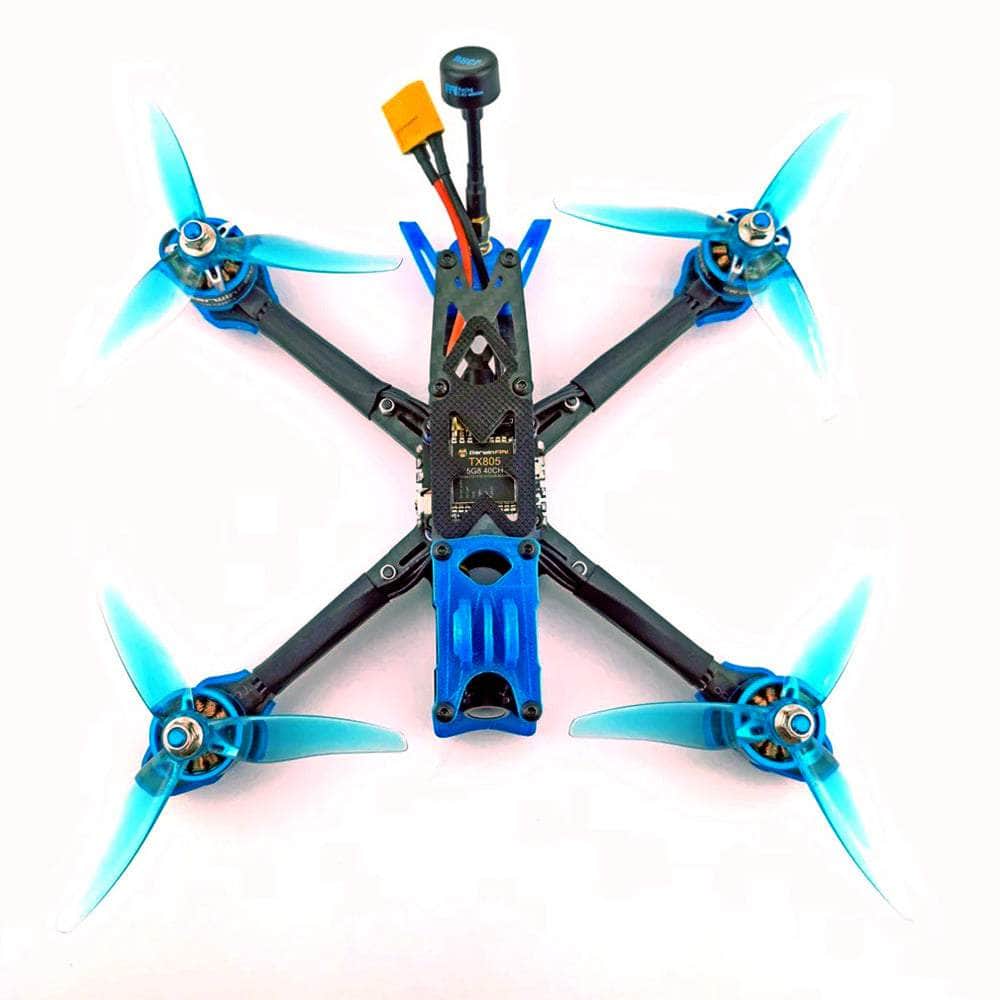

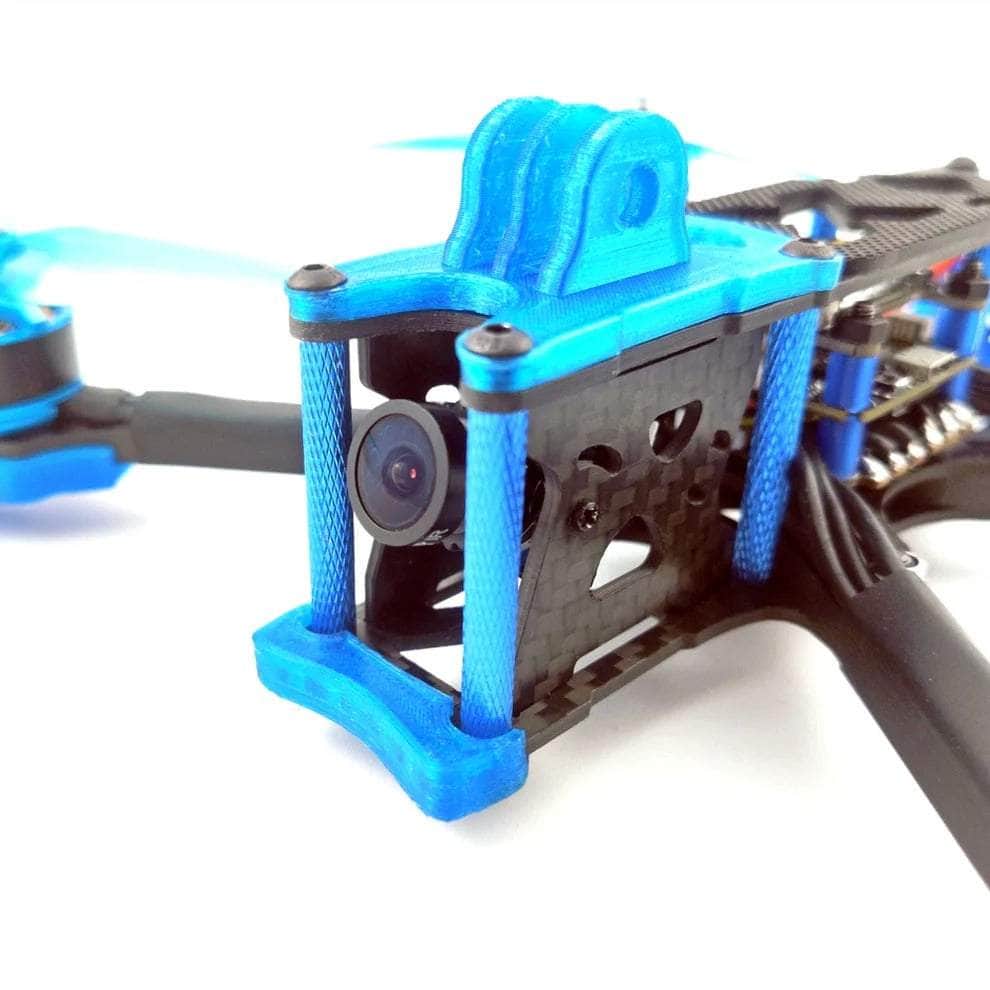

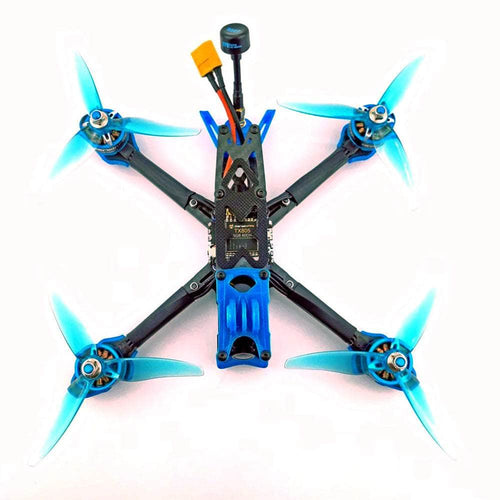

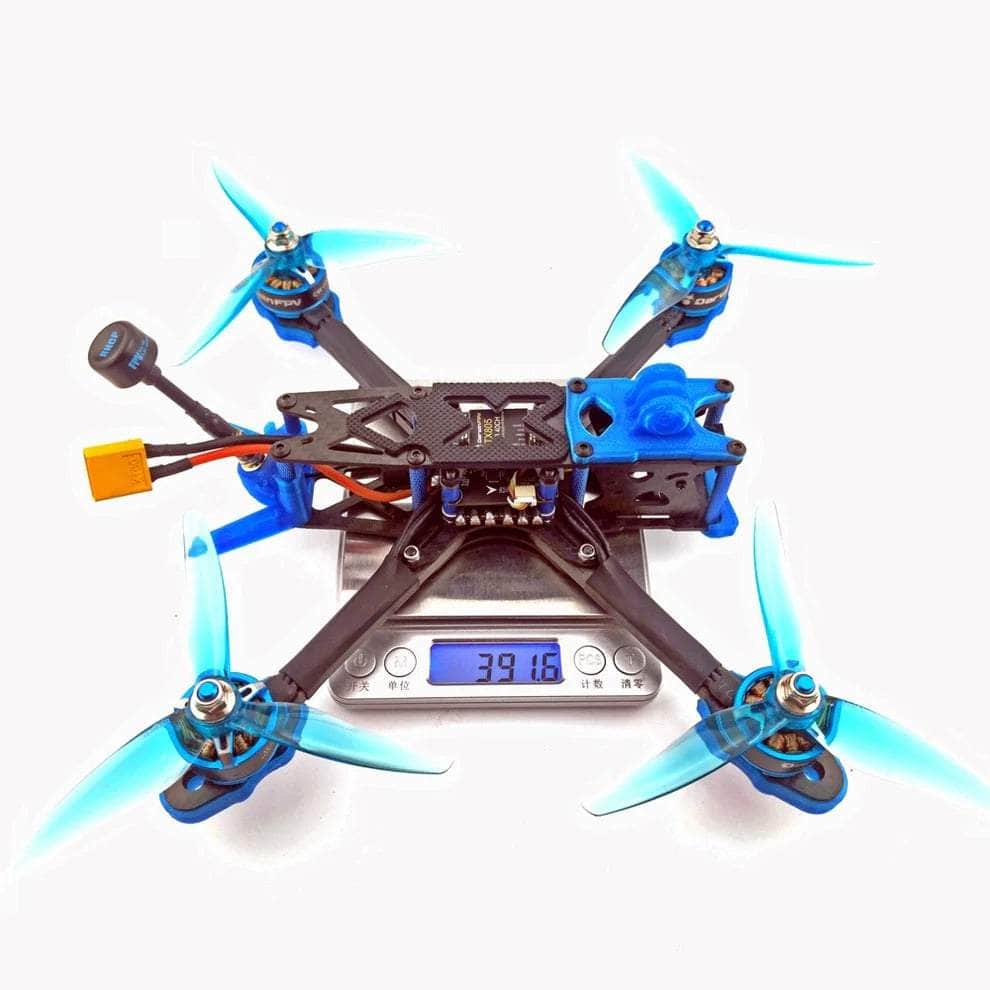

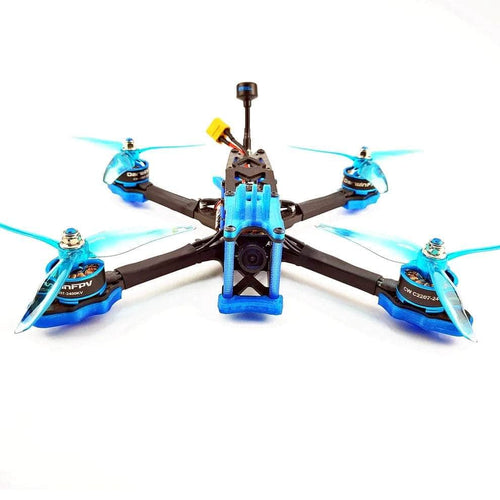

The Darwin240 is a racing drone from DarwinFPV. It is known for its light weight and high performance, making it suitable for freestyle flights. The drone comes pre-assembled and includes 50A ESC and 800mW VTX, allowing for smooth and stable aerial footage.

Check out our other Pre-Built quads and our DarwinFPV products!

Specifications

DarwinFPV Darwin240 Johnny 5" Quad

  • Wheelbase: 240mm
  • Frame arm thickness: 5.5mm
  • Frame kit material: 3K carbon fiber

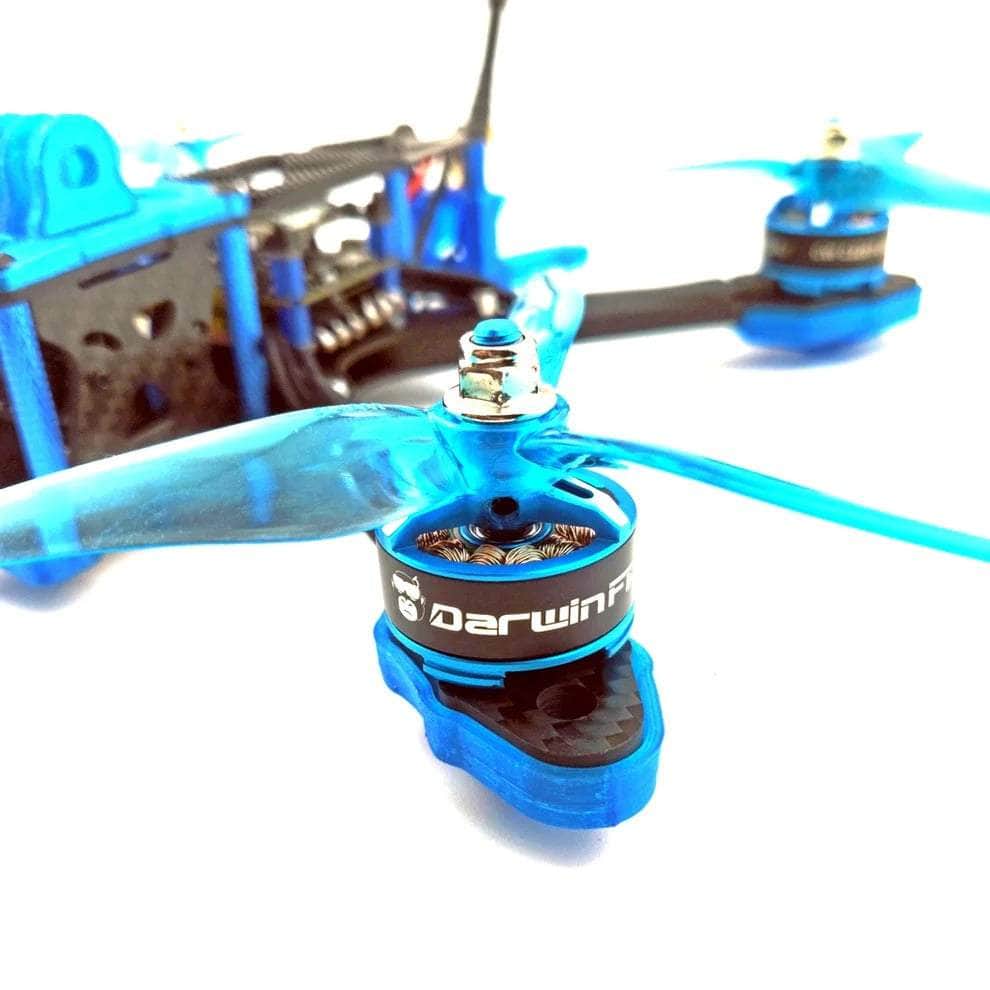

DarwinFPV 2207 2400Kv Brushless Motor

  • Motor Kv: 2400Kv
  • Idle Current: (Io/10V):0.81A
  • Lipo Cell:3-4S
  • Weight: 36.4g
  • Max Continuous Current: 32A
  • Max Continuous Power: 765W
  • Configuration: 12N/14P
  • Prop adapter shaft: M5
  • Bolt holes spacing: 16mm
  • Bolt thread: M3

4 IN 1 50A BLHeli_S ESC

  • F4-50A stack
  • Continuous current: 50A
  • Peak current: 60A (10S)
  • Lithium battery section number: 2-6S
  • BEC: 5V2A
  • ESC weight: 10.8g
  • Firmware: BL_S
  • Maximum support throttle signal: DSHOT600
  • Mounting hole: M3 30.5x30.5mm

F4 Flight Controller

  • Lithium battery section number: 3-6S
  • BEC: 10V 1A, 4.5V, 3.3V
  • MCU: STM32F405
  • Gyro: MPU6000
  • OSD: AT7456E
  • Firmware: MATEKF405
  • Weight: 7.2g
  • Mounting hole: M3 30.5x30.5mm
  • Support barometer, black box
  • Bluetooth Support

5.8G 40CH 800mw VTX TX805P

  • Frequency: 5.8G Channels: 40CH
  • Input voltage: 7V~24V
  • 5V camera supply: 120mA(MAX)----25mW@12V 5V
  • camera supply: 200mA(MAX)----200mW@12V 5V
  • camera supply: 300mA(MAX)----600mW@12V 5V
  • camera supply: 350mA(MAX)----800mW@12V Extra
  • Features: Smart audio
  • Power supply: 5V output for Camera
  • Output power: 25mW/200mW/600mW/800mW
  • Switchable Antenna connector: MMCX
  • Cable connector: Solder pads
  • Weight: 8g (excluding antenna)

Includes

  • 1x DarwinFPV PNP Johnny 5 Darwin240 4S 5" Quad

More Info

  • SKU: DARW-DRONE-07-PNP--240-Johnny5
  • Barcode: 691023479197


Overall rating: 4.5 / 5 from 8 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["quality","build"].

Review highlights

Reviews

"Fantastic"

— Joseph (5/5)

Very good

"Very good drone excellent quality"

— grayson w. (5/5)

Johnny 5

"I swear by Darwin. I have 3 3” quads. But the Johnny 5 came with a cracked S Bus plug broken and will not work with S bus plug receiver. And so I have to get another flight controller because something is wrong with this one. Has a short in it. I have ordered things from you that work great. Can I return this one and you replace it with a new one. Thank you Donnie Crouch"

— Johnny C. (5/5)

Doesn't work

"Bought a new drone as I was tired of fixing my old ones just to find out I will spend even more time and energy trying to get this one to work. Weeks in and still can't get to my first take off. Beyond disappointing."

— Michael S. (1/5)

Get it while you can!

"This is probably the best bang for your buck on the market. Not a bad flyer."

— Stephen H. (5/5)

You can't go wrong with Darwin for the $$

"It's hard to come by something in this size and price range that can just take a beating. The PIDs can be jacked. It's a steal. Want something cheap to bash the crap out of, this is your quad. It's short on nice to haves but who puts those on a basher anyways. Perfect quad for someone wanting to try out the 5" arena. Great job Darwin. I have $500+ quads and I enjoy this one as much as those. Just buy one you won't regret it. I sure don't."

— joeyw007 (5/5)

Great build.......

"Funny thing is that this is VERY close to a build I just priced out to build 80 units. This frame is known on aliexpress as the Johnny 5/Astro X/Johnny v2. One of them was a squashed X. The only difference in the Darwin frame are the rounded ends on the arms. The radius on older 5.5mm arms had a pointier end and were very much unfinished. This build is a steal! I was not able to get my price quite this low @50A."

— James R. (5/5)

Dude!!

"If this is in stock, just get one, it’s a blast. I was shocked. You rarely get more than what you pay for in this world, but this is one of those times."

— Collin W. (5/5)

Q&A

Is this plug n play hd/dji ? Could you take off existing Vtx , then plug n play a vista or air unit?
It is Analog as the description states. But you can remove the vtx and put whatever you want as long as it will fit. A vista or Air Unit may be a bit tight
